Junction Box 3D model

$6.5

License: Royalty Free No Ai

author:

wh1t3h4ck5

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «wh1t3h4ck5». CGhub does not claim copyright ownership over the content used.

Junction Box

What is it? A junction box is an electrical enclosure that houses one or more wiring connections. The box protects the connections, which usually contain vulnerable points such as wire splices, from environmental conditions and accidental contact.

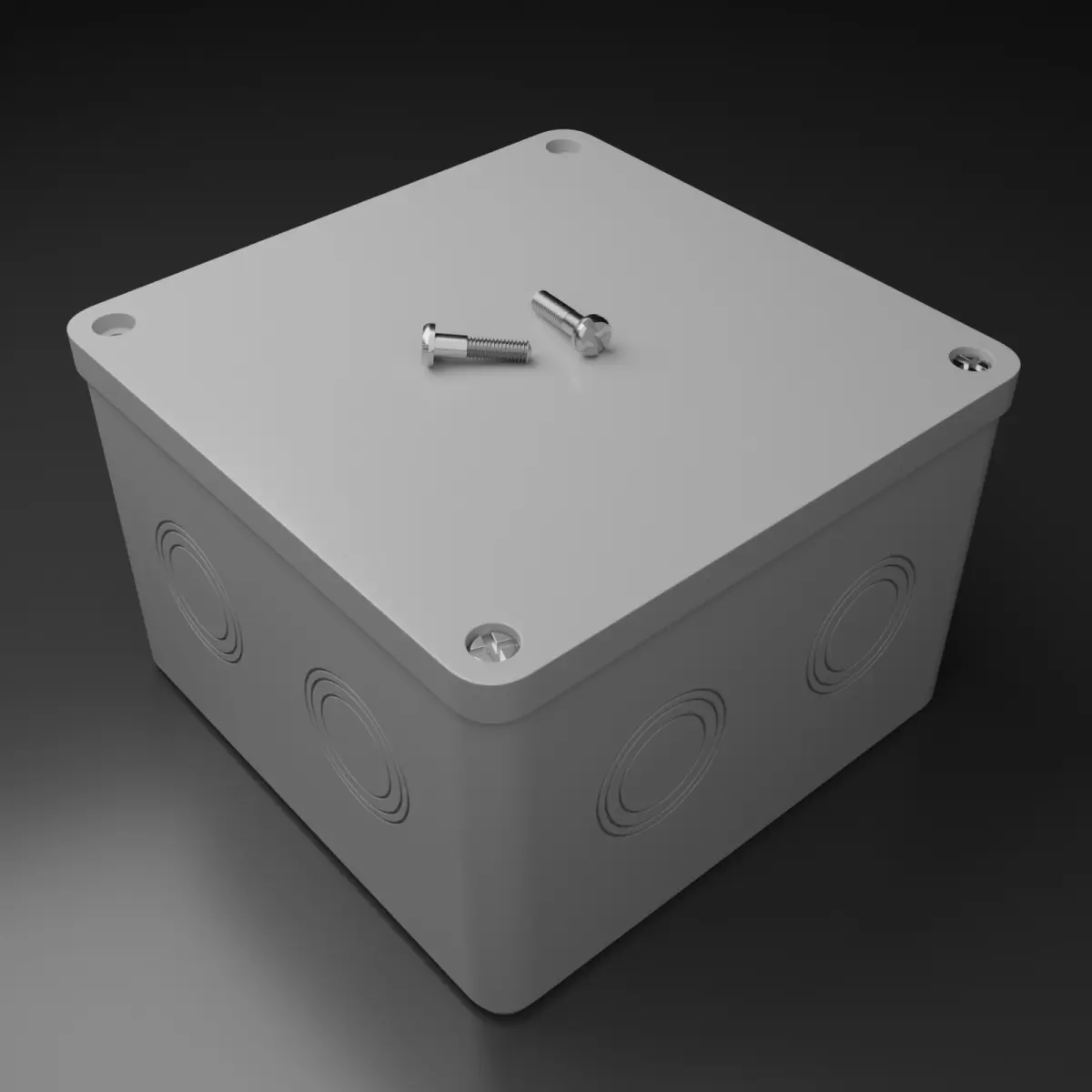

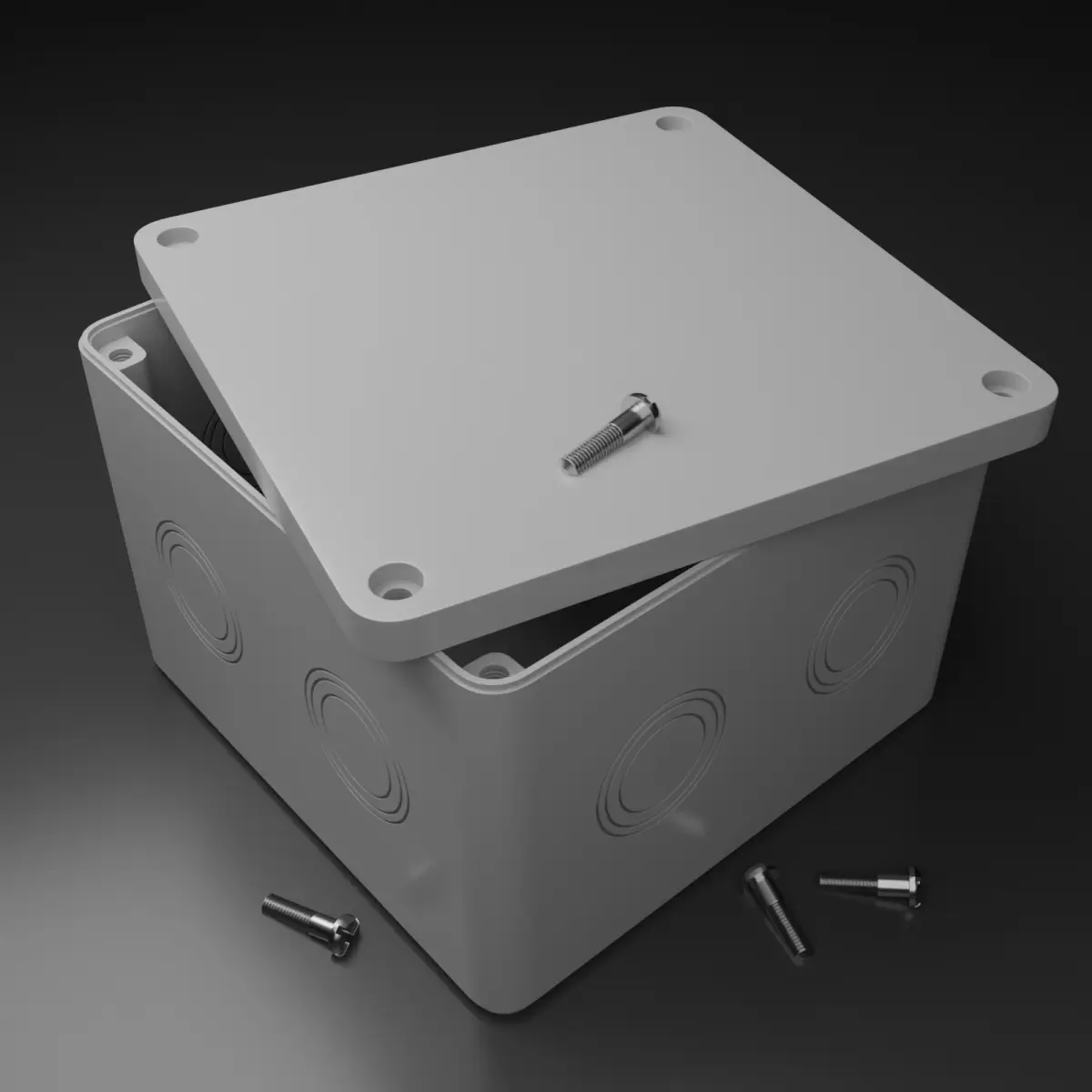

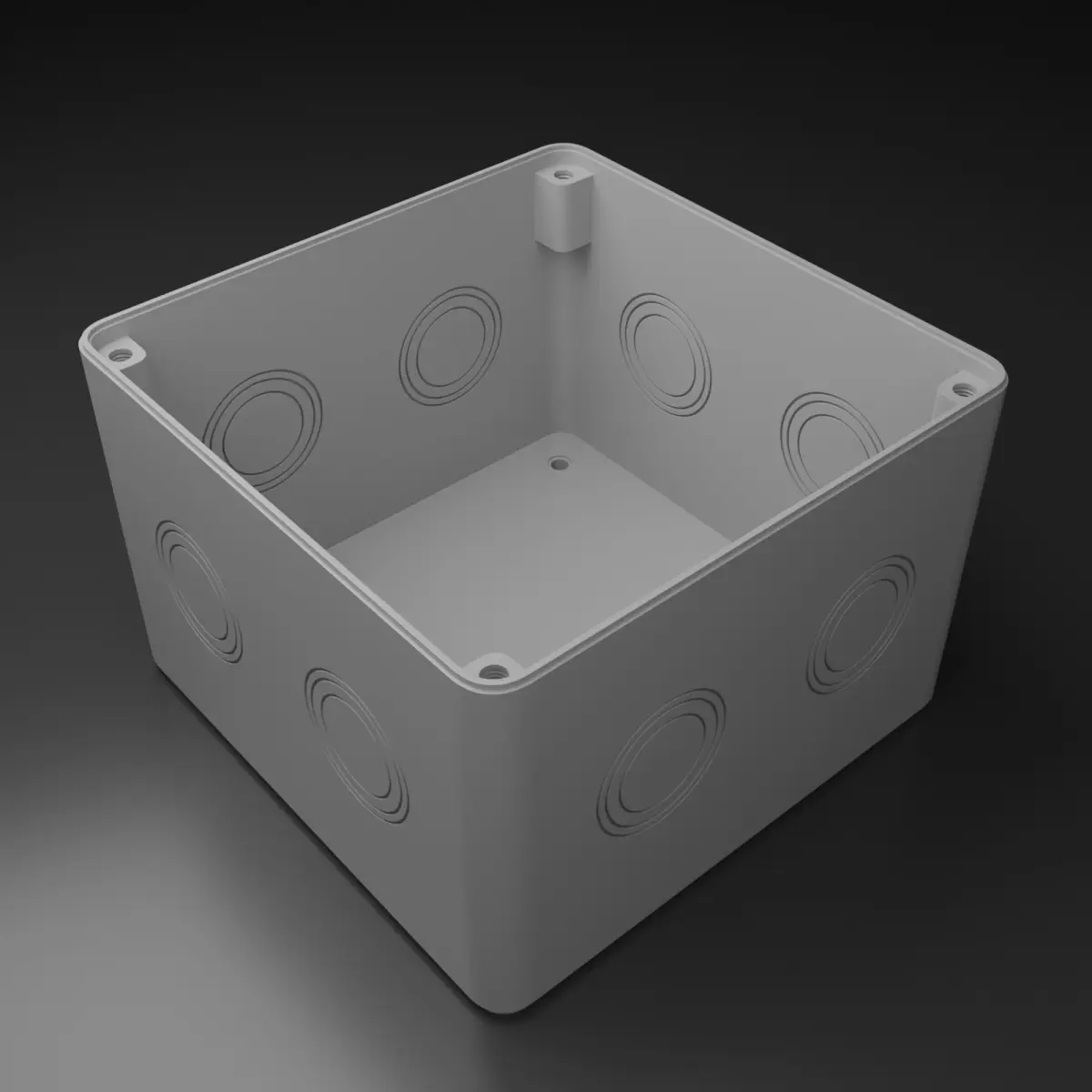

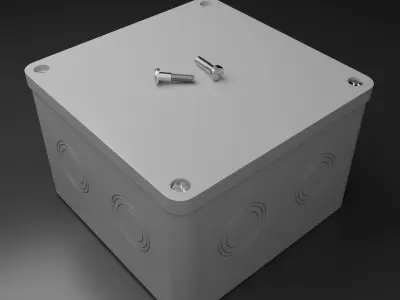

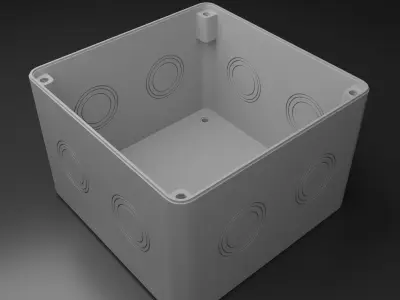

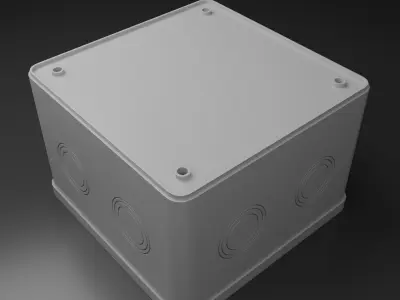

Blender file contains lowpoly and highpoly versions of junction box (box housing itself and cover are separate objects). Lowpoly objects doesnt contain numerous supporting edges used with highpoly ones. Highpoly is being used with subdivision modifier for close-up rendering to show smooth surface with fine bevels and details. Both objects, cover and box, have mirror modifier with XY active. Size of the box is 110x110x74mm (without cover). No n-gons! All materials are created with blender's shading editor and contain no texture images.

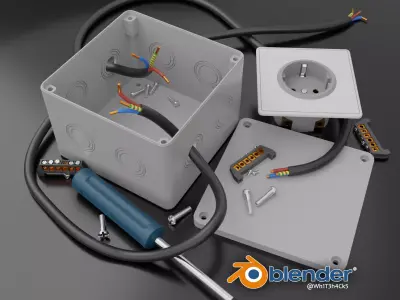

Additional objects shown on preview image are also included in separate blend file that contains entire scene (camera, floor, lights, F-type outlet, screwdriver, bridge connectors, cables and screws). Those objects are added to the scene from my different projects and given to you to be used however you want.

For any additional questions, leave a comment.

Enjoy

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 50000
Vertices: 50000
Plugins used
Geometry: Subdivision ready

Tags

Junctionbox Junction Box Plastic Electronics Wire Power Isolated Connection Electrical Pvc Cables Screwdriver Electrical outlet Socket Bridge Connectors Network Cycles Other
