Name: L Type Welding Positioner 3D model
Brand: Lovano
SKU: 37364
Price: 39.00 USD
Availability: InStock

$39

License: Royalty Free

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

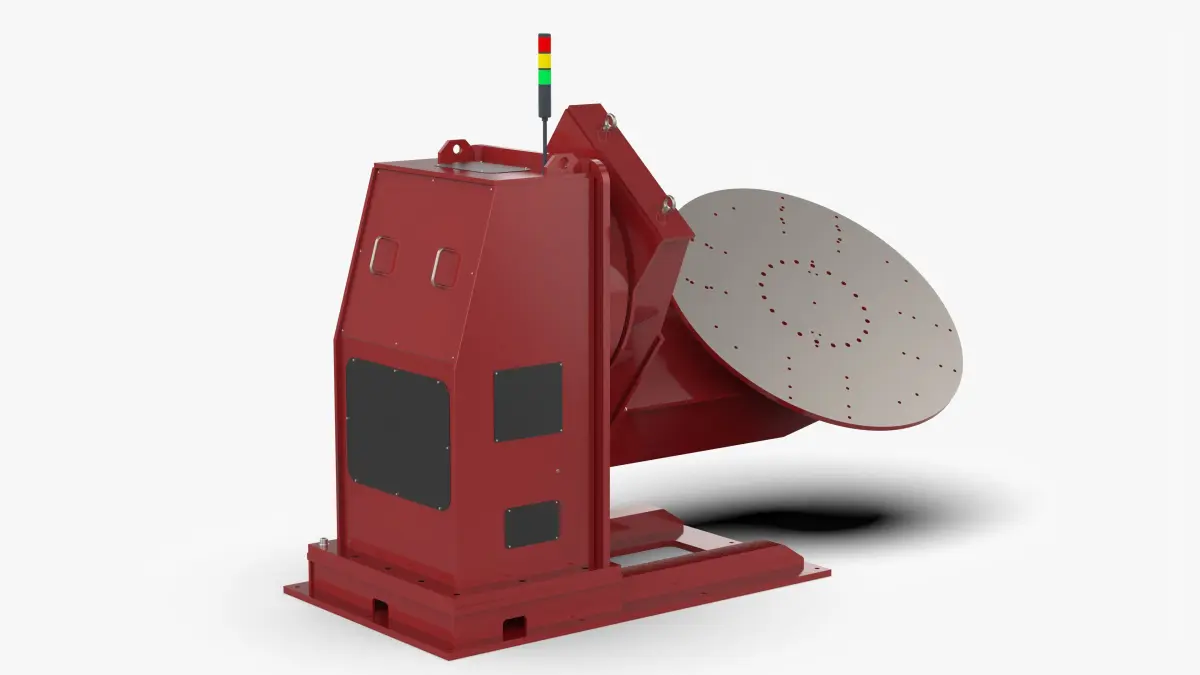

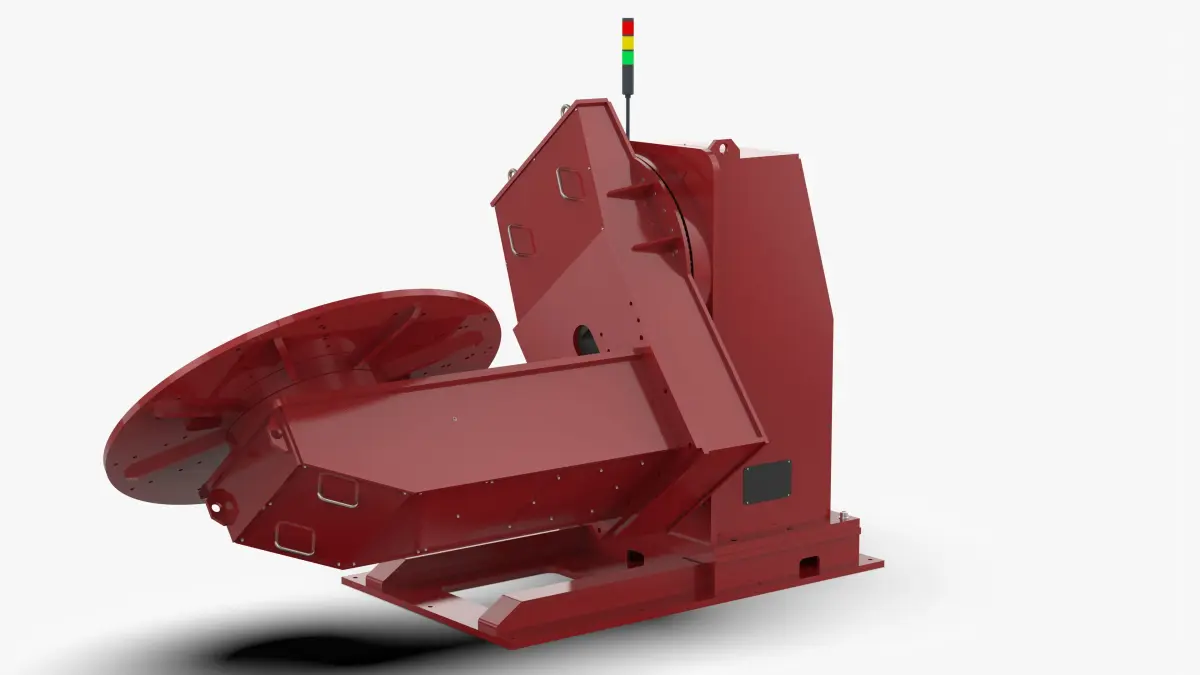

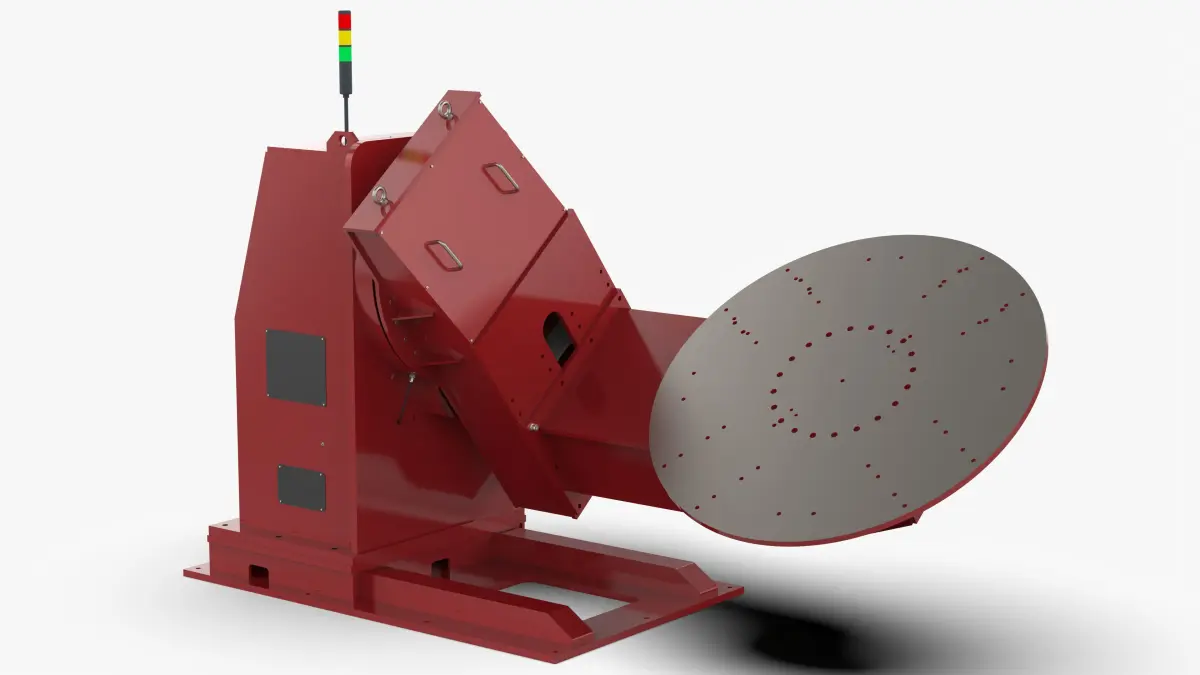

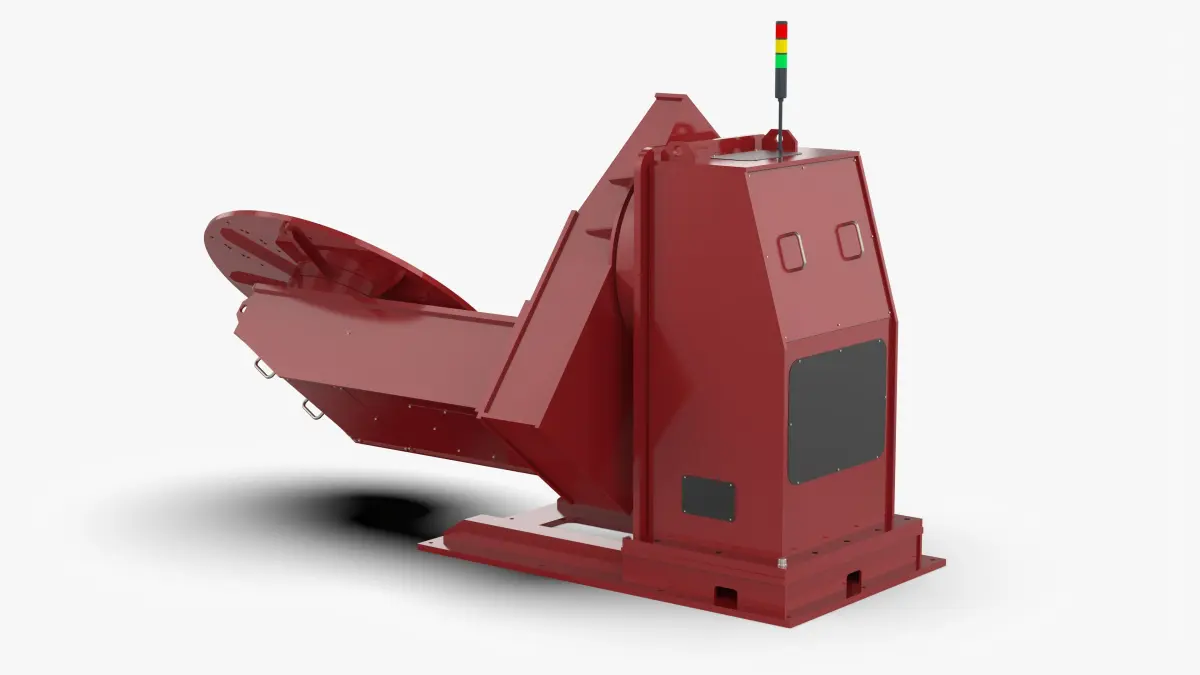

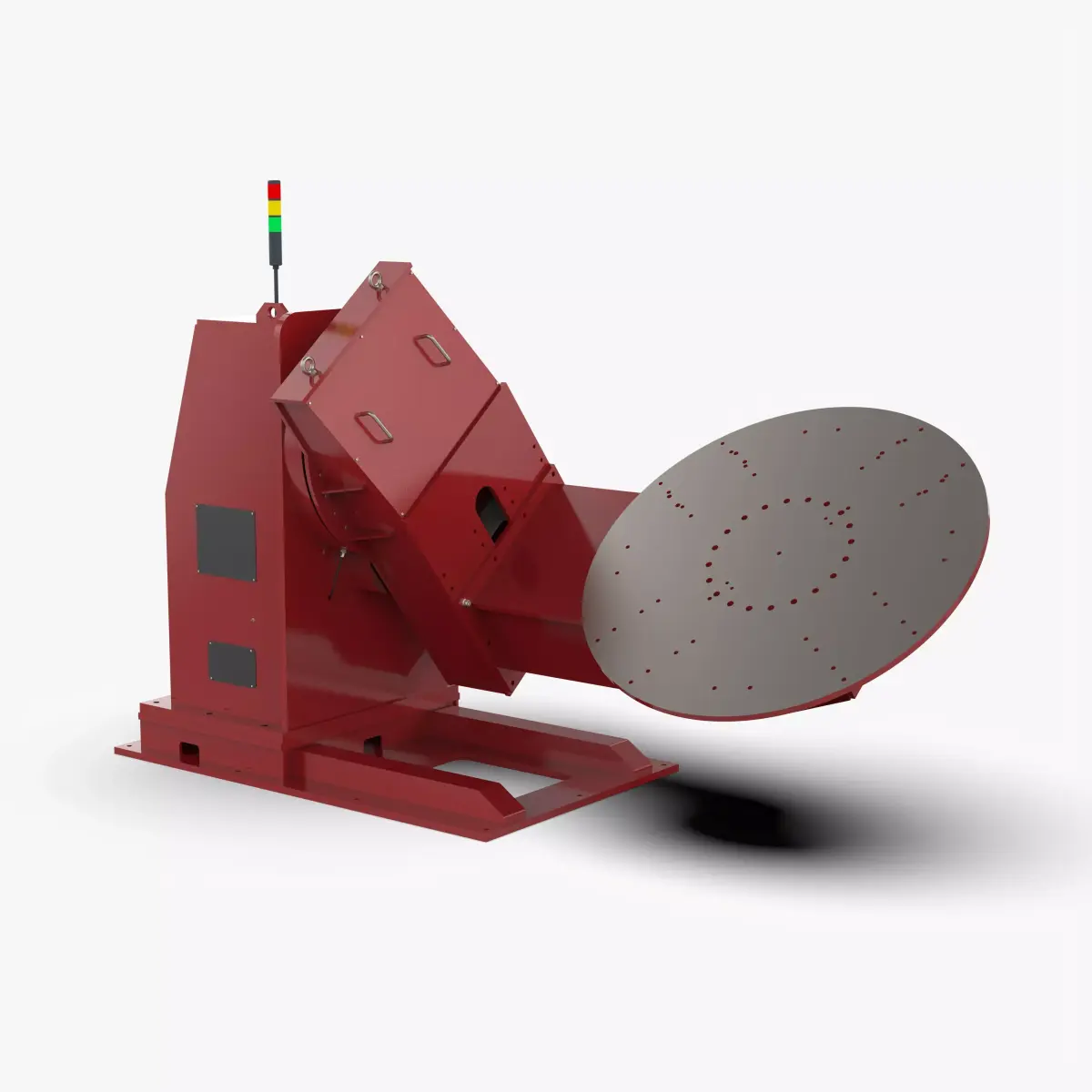

2.5 Tons L Type Welding Positioner

Introduction

The welding positioner is a welding piece displacement machine that rotates and tilts the workpiece so that the weld on the workpiece is placed in a favorable position for welding. It is mainly used for flipping and welding of workpieces, and can be used in conjunction with welding robots. It can also be used for assembly, cutting, inspection, etc. The 2.5-ton L-type welding positioner can weld a workpiece with a maximum weight of 2.5 tons. The worktable of the positioner has a degree of freedom of overall flipping, and the turntable of the worktable also has a degree of freedom of rotation. The model contains internal detailed structures such as frame, motor, reducer, gear, etc. There are 131 parts models and 25 assembly models, the format is solidworks2012, and production can be produced according to the model.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language)
OBJ (Object Files)

Geometry

Polygons: 479,810
Vertice: 1,439,430

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 479810
Vertices: 1439430
Plugins used
Geometry: Polygon mesh
