Buy Lamor Umbilical Hose Reel LUT Low-poly 3D model

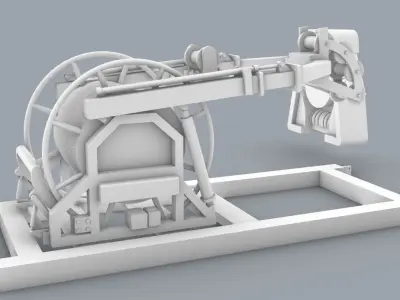

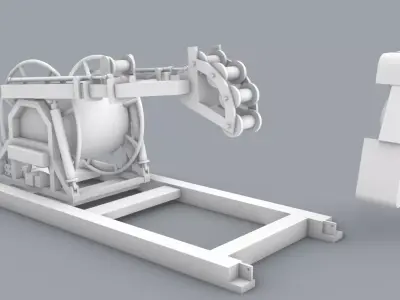

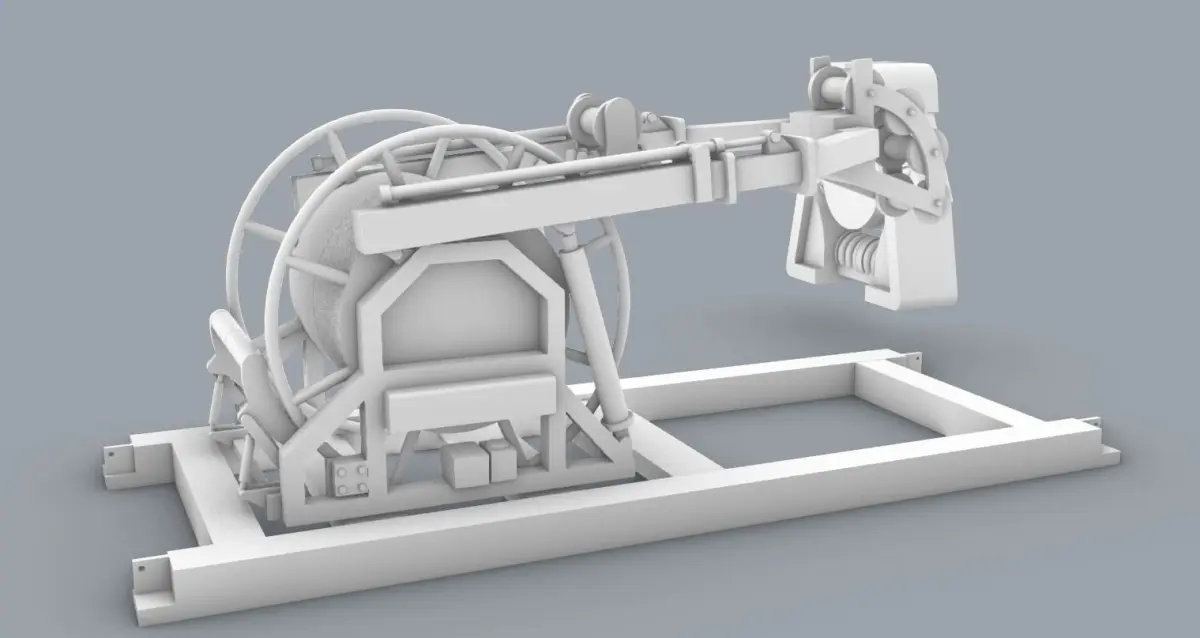

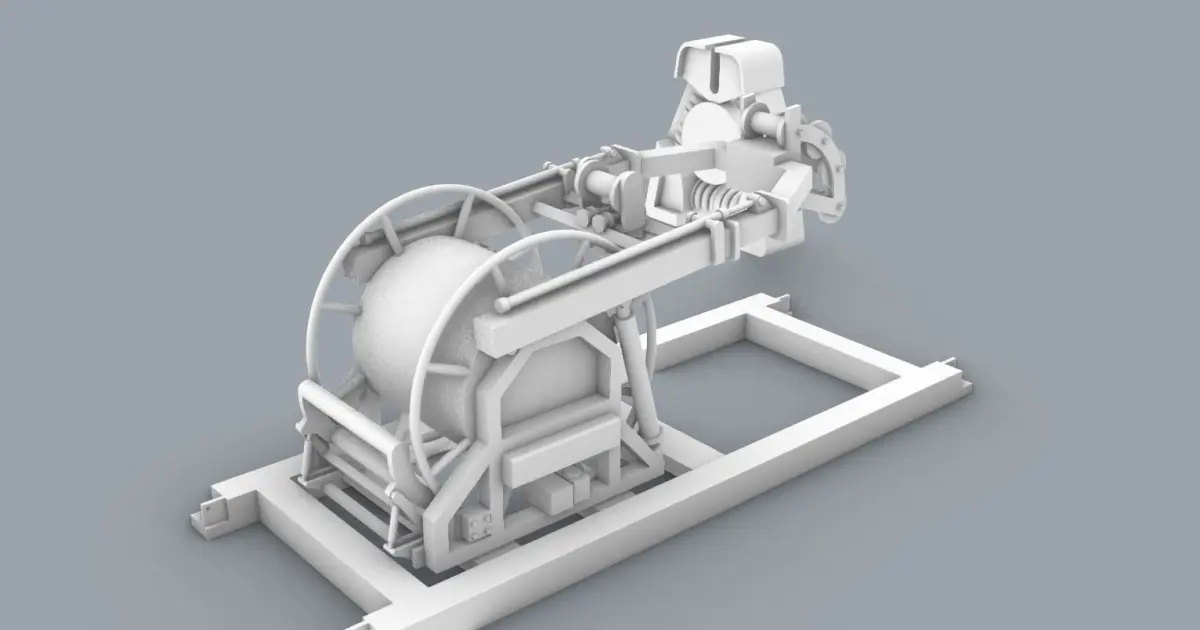

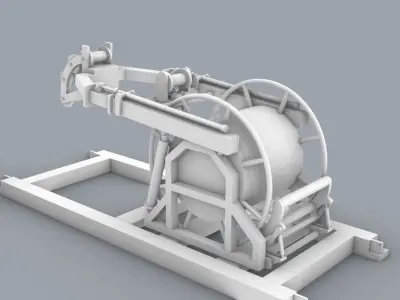

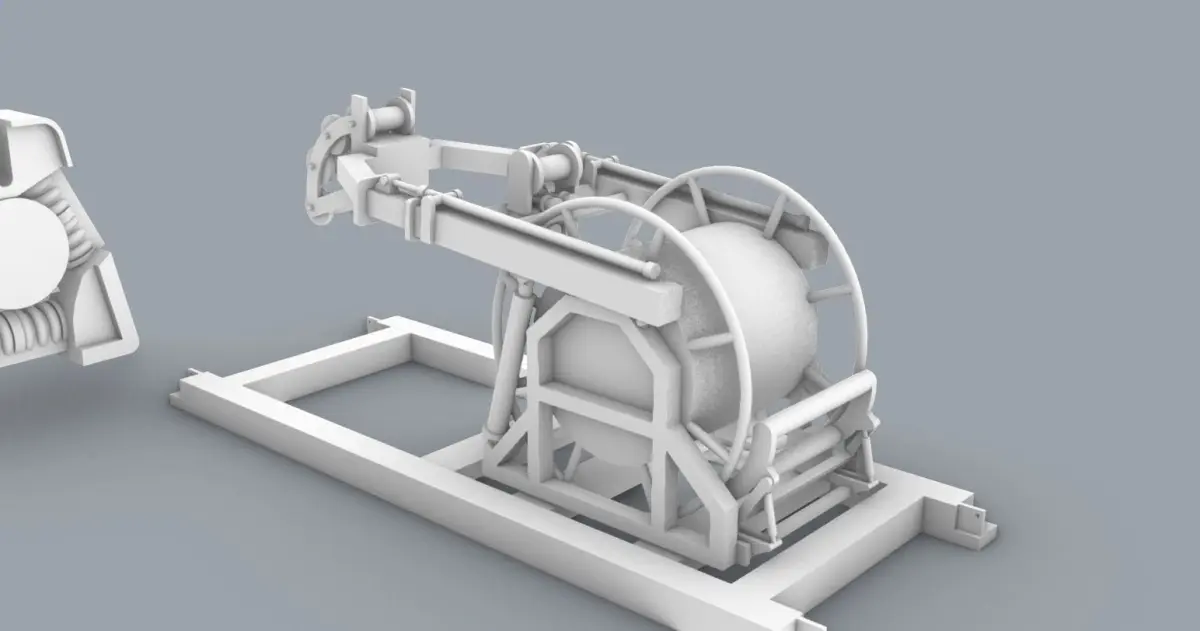

3D Model of Lamor Umbilical Hose Reel, made for 3D Model for EU Parlament.

Model is ready to be used in 3D Printing, Design, CNC..

Notes:

All models are preprinted in order to get highest quality possible.

Model is simplified for printing.

Dimensions

Length: 70.58mm

Width: 26.71mm

Height: 29.86mm

Includes OBJ and STL file.

About

The durable steel structure of the LUT is marine-grade painted and consists of a base, reel drum and telescopic arm (crane) on a skid. The reel and telescopic arm construction can rotate 360 degrees and has a max. reach of 5.5 m (18 ft) and a max. lifting angle of 38 degrees with 1500 kg (3307 lbs) of lifting capacity. A guiding roller is fitted on the outer end of the arm to facilitate deployment and retrieval. All functions are hydraulically operated and can be controlled via the control panel or optional remote control (not incl.).The unit is fitted on a 20 ft skid with a cradle for the skimmer and container corners for secure fixing. The skimmer oil transfer and hydraulic lines are connected to a manifold at the hub of the reel with pump- through swivel joint to allow continuous flow at any deployed length. The unit is also available in an EX- version. The other type is the Hose Reel Swivel. This product together with the Lamor 80 m (262 ft) hose package is an effective unit for hose handling of medium, large and offshore skimmers on vessels or barges. With the integrated swivel, the skimmer can be powered by hydraulics in use during deployment and retrieval without having all the hoses deployed from the reel. The reel frame is manufactured from high-quality marine-grade coated steel. The spool is made of marine-grade aluminum and has an integrated nine hydraulic channel stainless steel rotary swivel. The spool is rotated with a high torque hydraulic motor gear package. The reel can be lifted securely from the forklift channels or from the dedicated lifting points located on the frame. The reel is designed to fit inside a container and can be locked and secured by either the dedicated lashing points or the built-in ISO container corners. The reel can be fitted with a rotation control valve on the reel (optional, not included). The hose package consists of nine hydraulic lines and discharge hoses that are wrapped in a PVC covered hose float. The horse float can easily be opened and closed for maintenance.
