Large laser cutting machine 3D model

$150

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

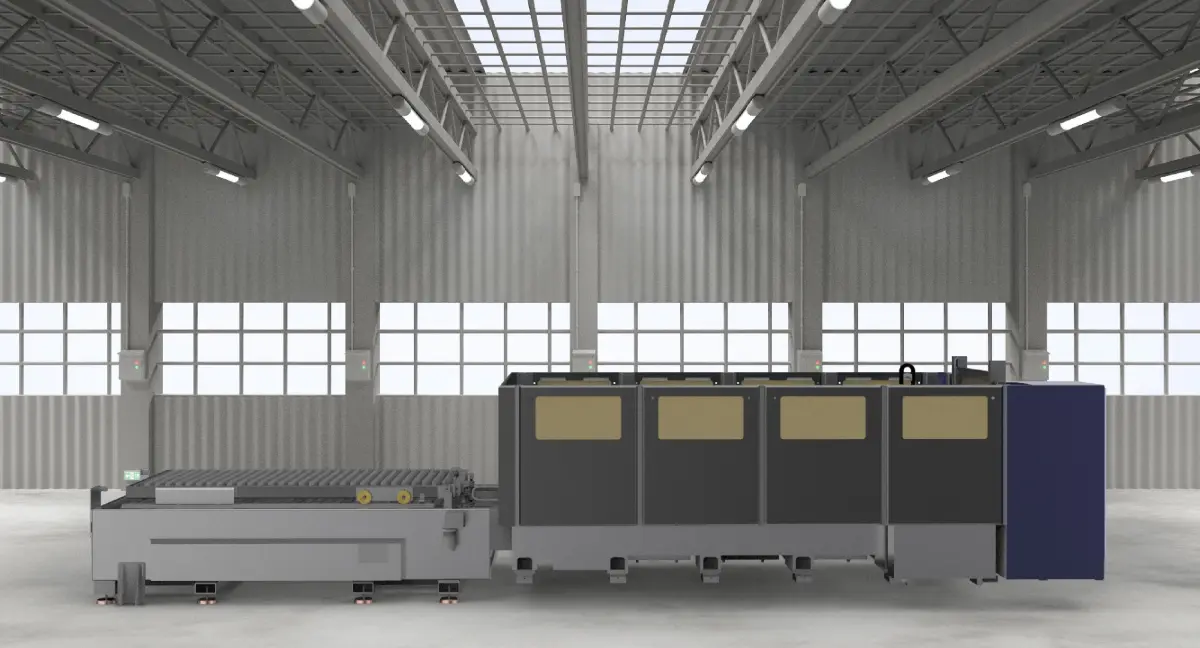

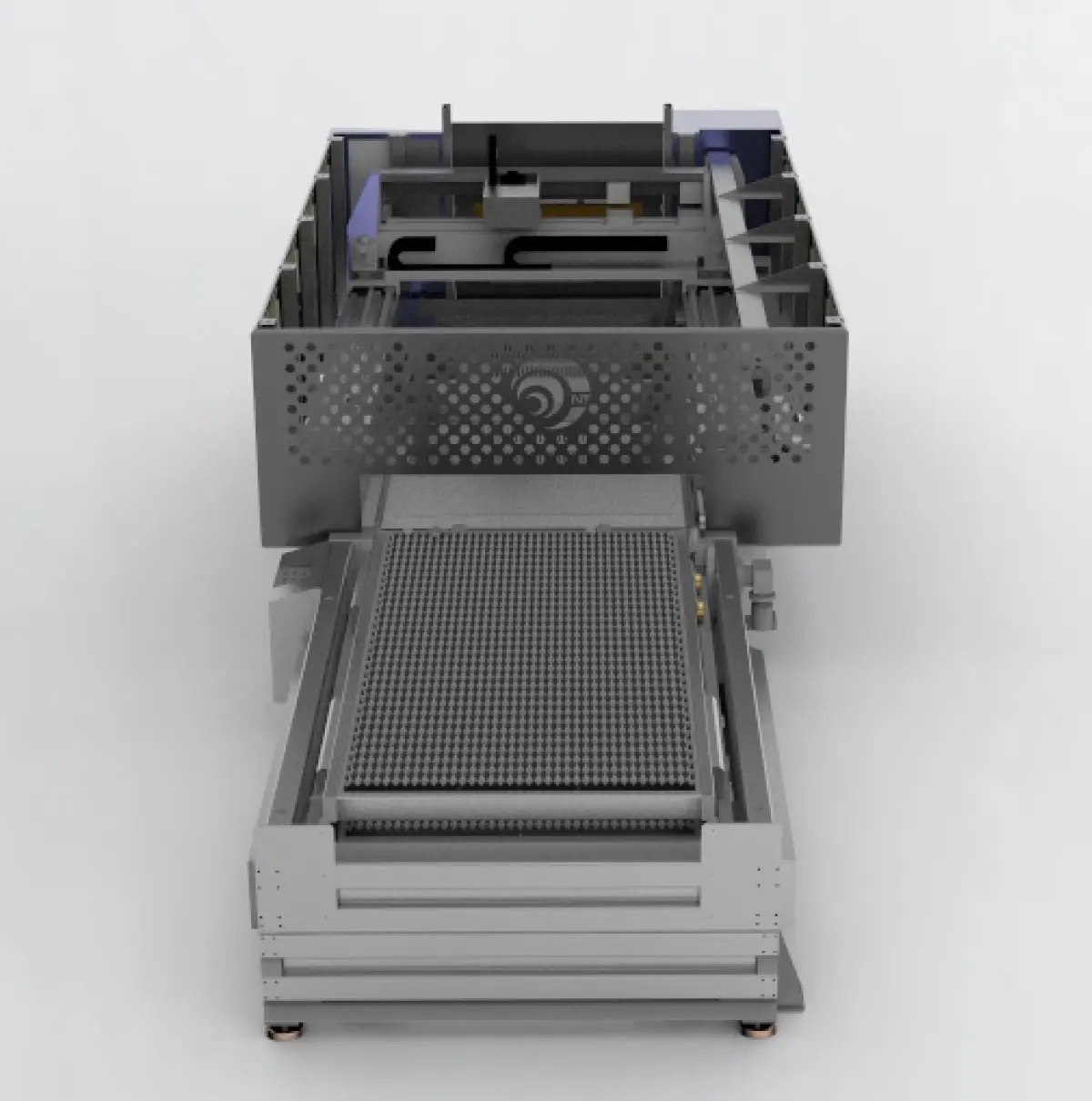

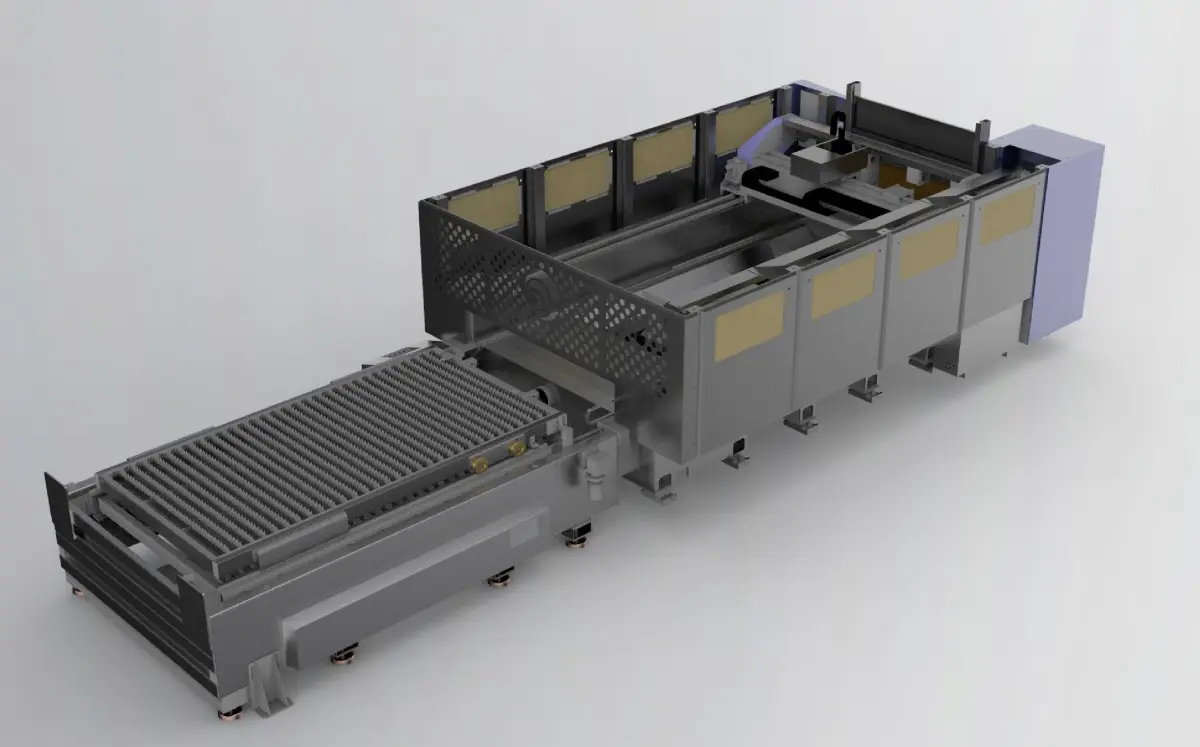

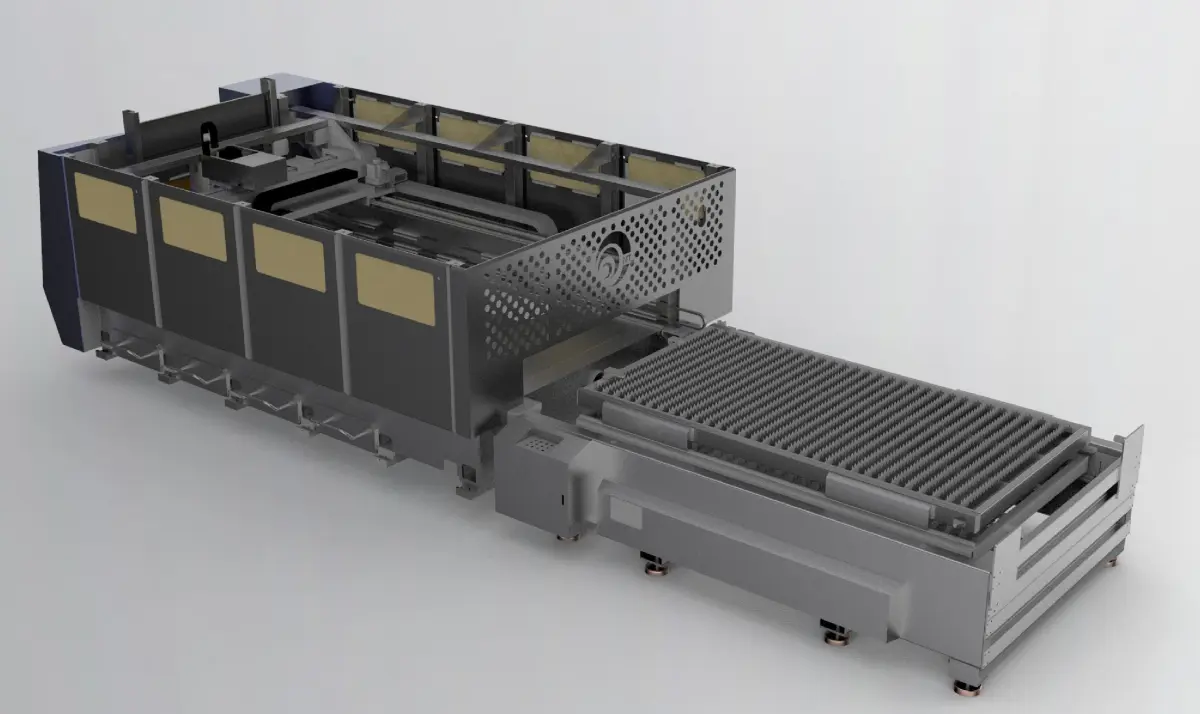

Large laser cutting machine

The machine comprises a plate feeder and a laser cutting machine, which uses a three-axis gantry mechanism to drive the laser head to cut products.High power density laser beam is used to irradiate the cut material, so that the material is quickly heated to the vaporization temperature, evaporation to form holes, with the movement of the light beam on the material, the holes continuously form a very narrow width (such as 0.1mm or so), to complete the cutting of the material.The mechanism includes:

Three-axis load shifting mechanism of gantry
Laser head mechanism
Feeding mechanism
Electrical machinery

polygons: 12507172

Vertice: 25005060

Files format contains

-solidworks 2017-step-iges-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: overlapping
Geometry: Polygon mesh
Polygons: 12507172
Vertices: 25005060
Plugins used

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Laser Loading Unloading Cutting Wedding Industrial machine Industrial part Industrial factory Industrial robot
