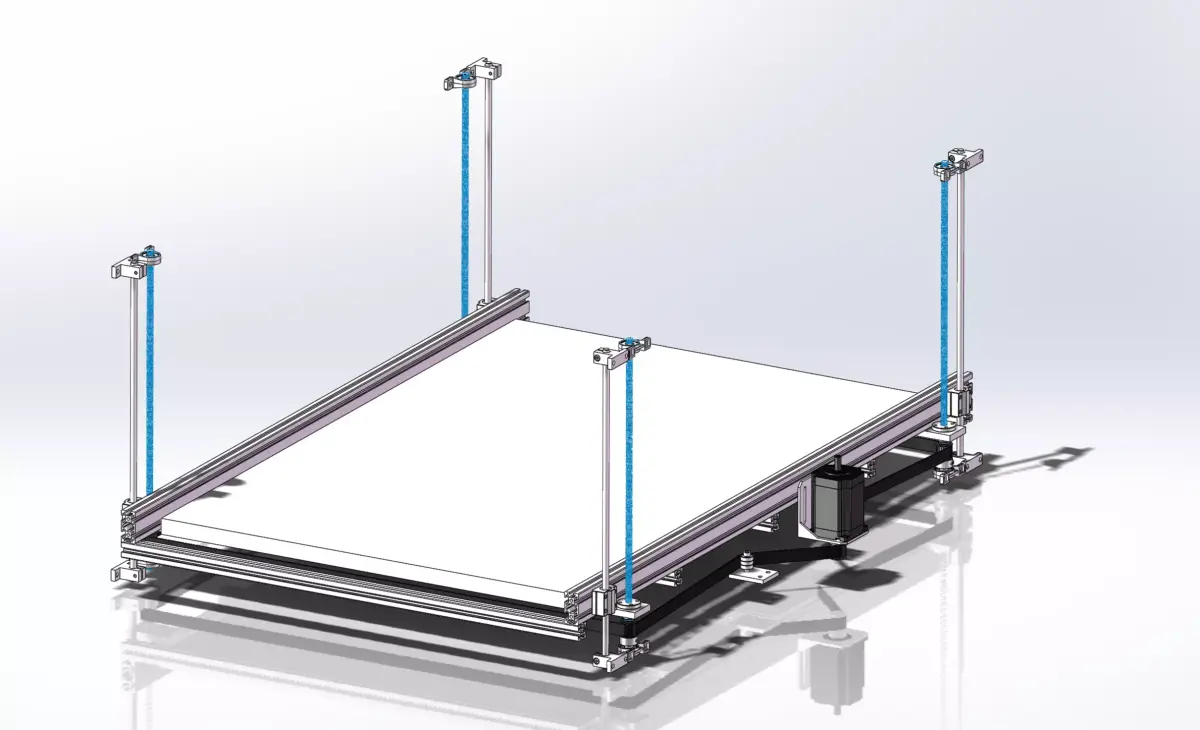

Large lifting mechanism

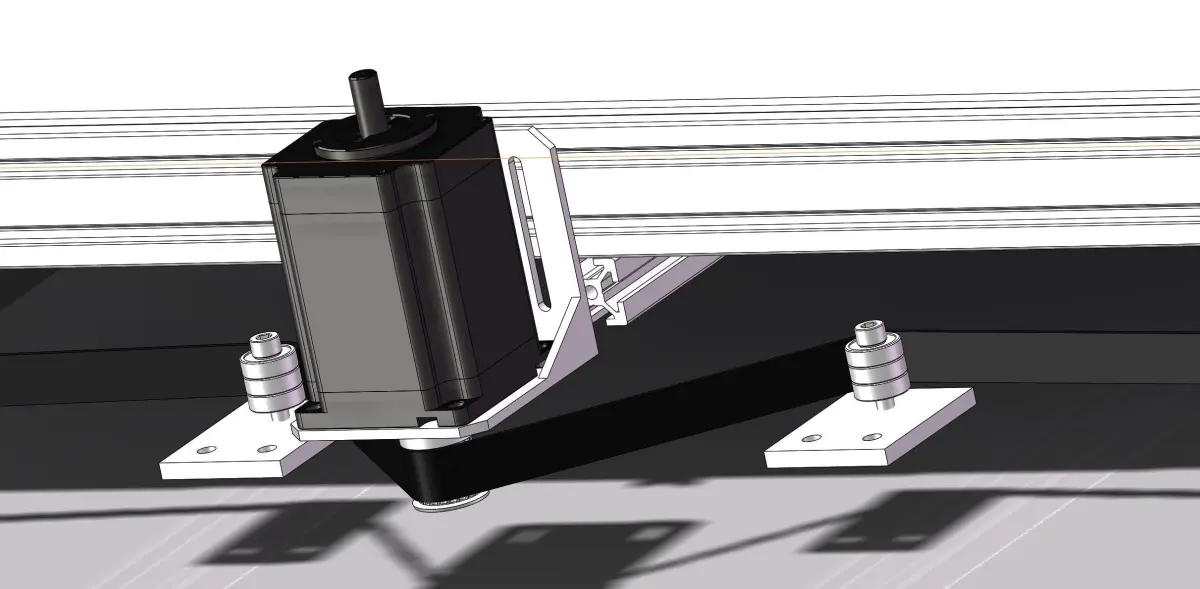

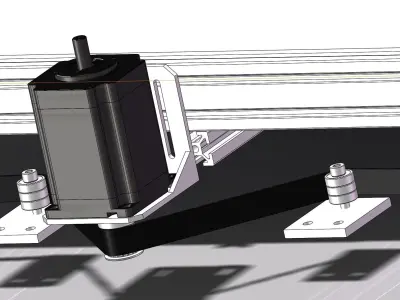

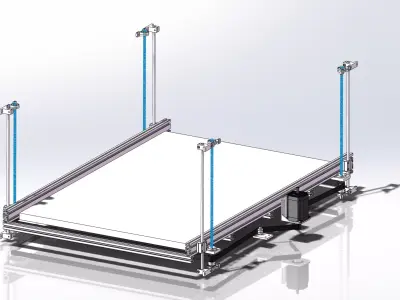

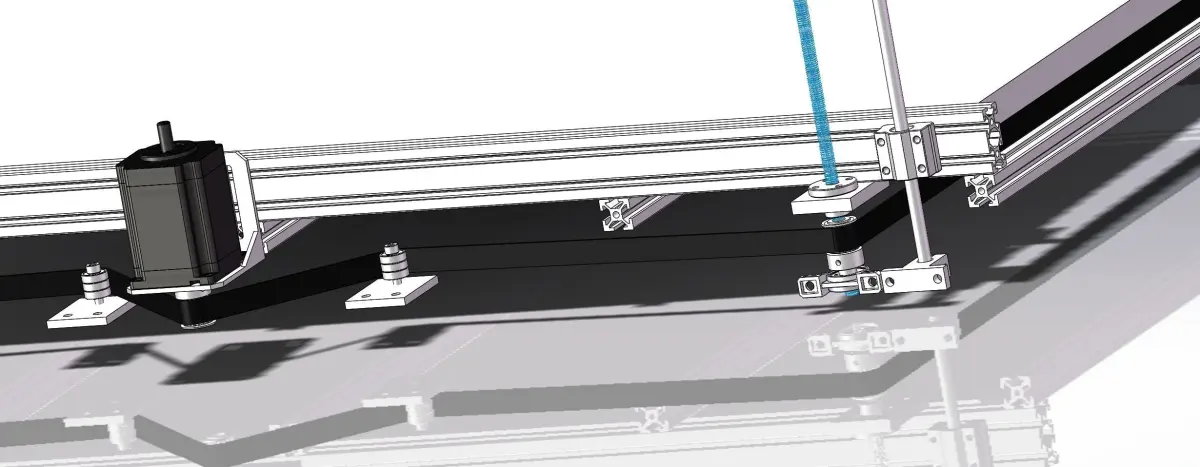

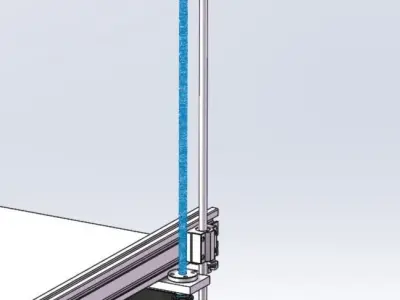

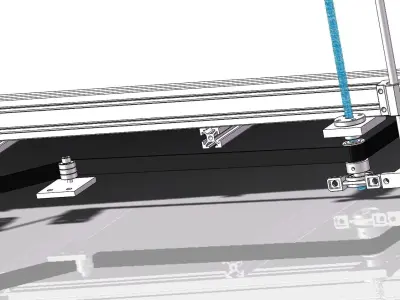

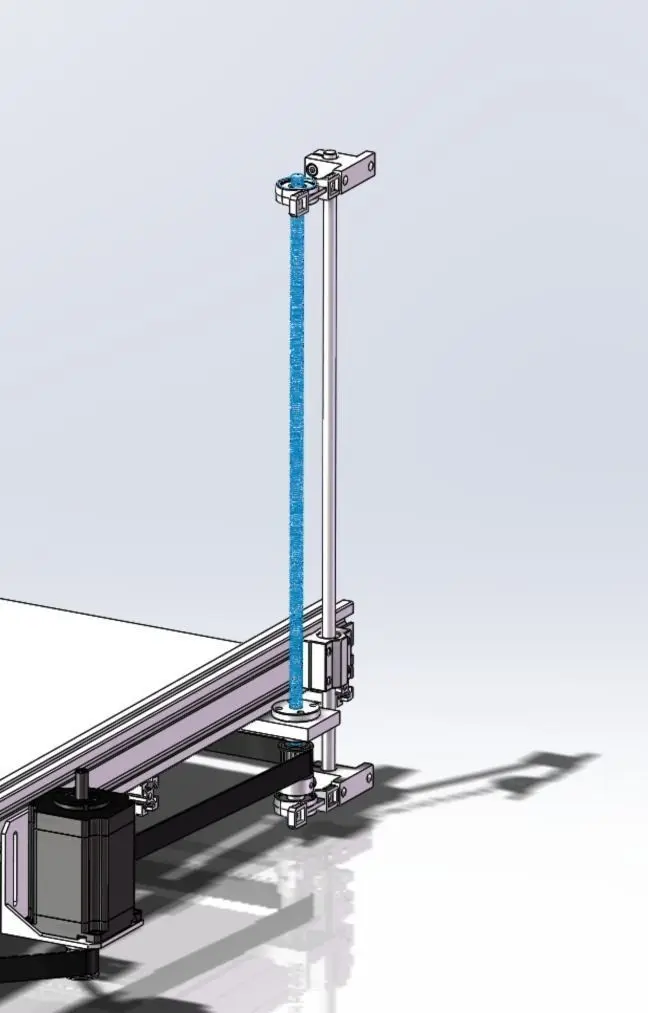

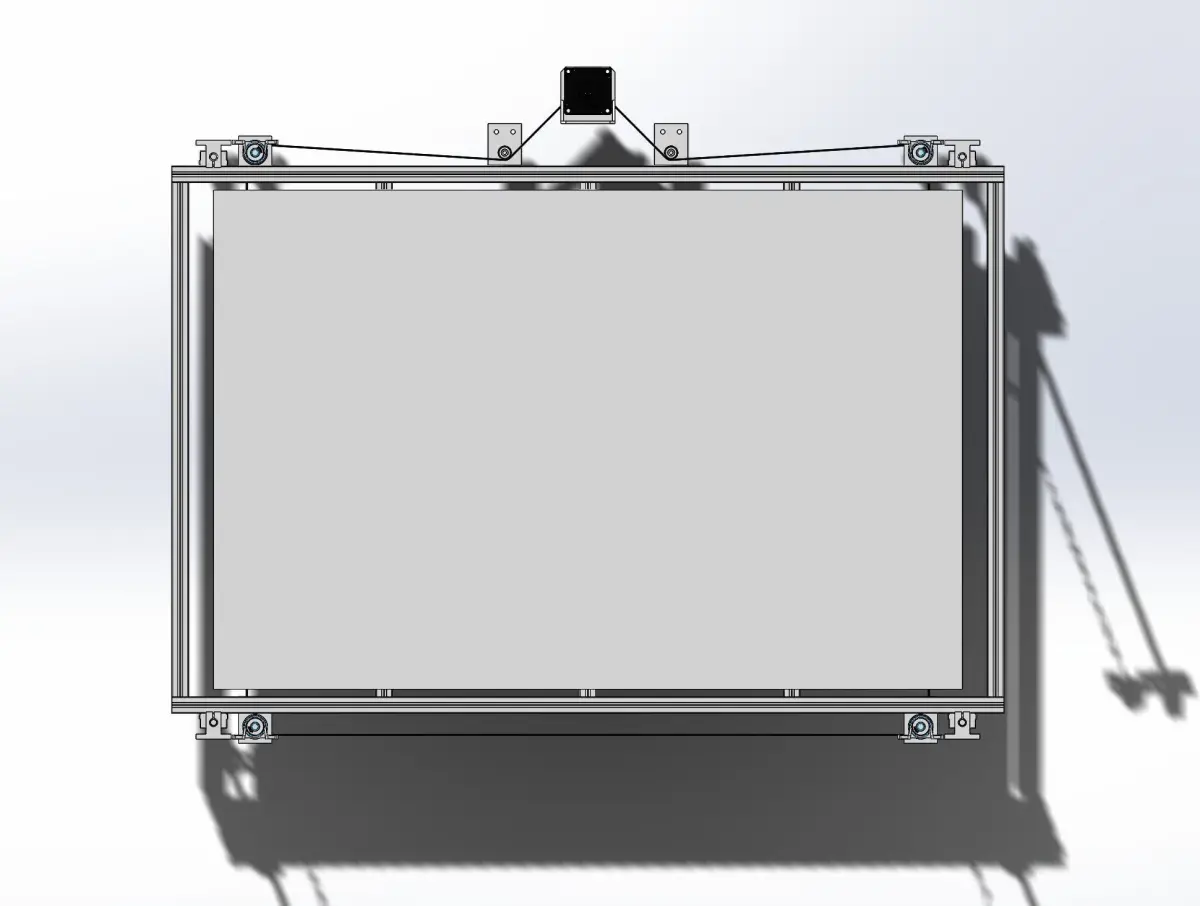

The mechanism drives the platform up and down by means of the lead screw mechanism through a plurality of support adjusting mechanisms.It includes synchronous mechanism and motor drive mechanism. Difficulty: how to synchronize the lifting and lifting of heavy-duty items to ensure the constant center of gravity of the platform.

Files format contains

-solidworks 2017-step-iges

and other formats**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot
