Publication date: 2022-10-04

Laser cutting machine 3D model

$355

License: Editorial No Ai

author:

FreeZuu

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «FreeZuu». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $355 Add to Wishlist
  • Description

Hello,I want to share a project of mine with you.

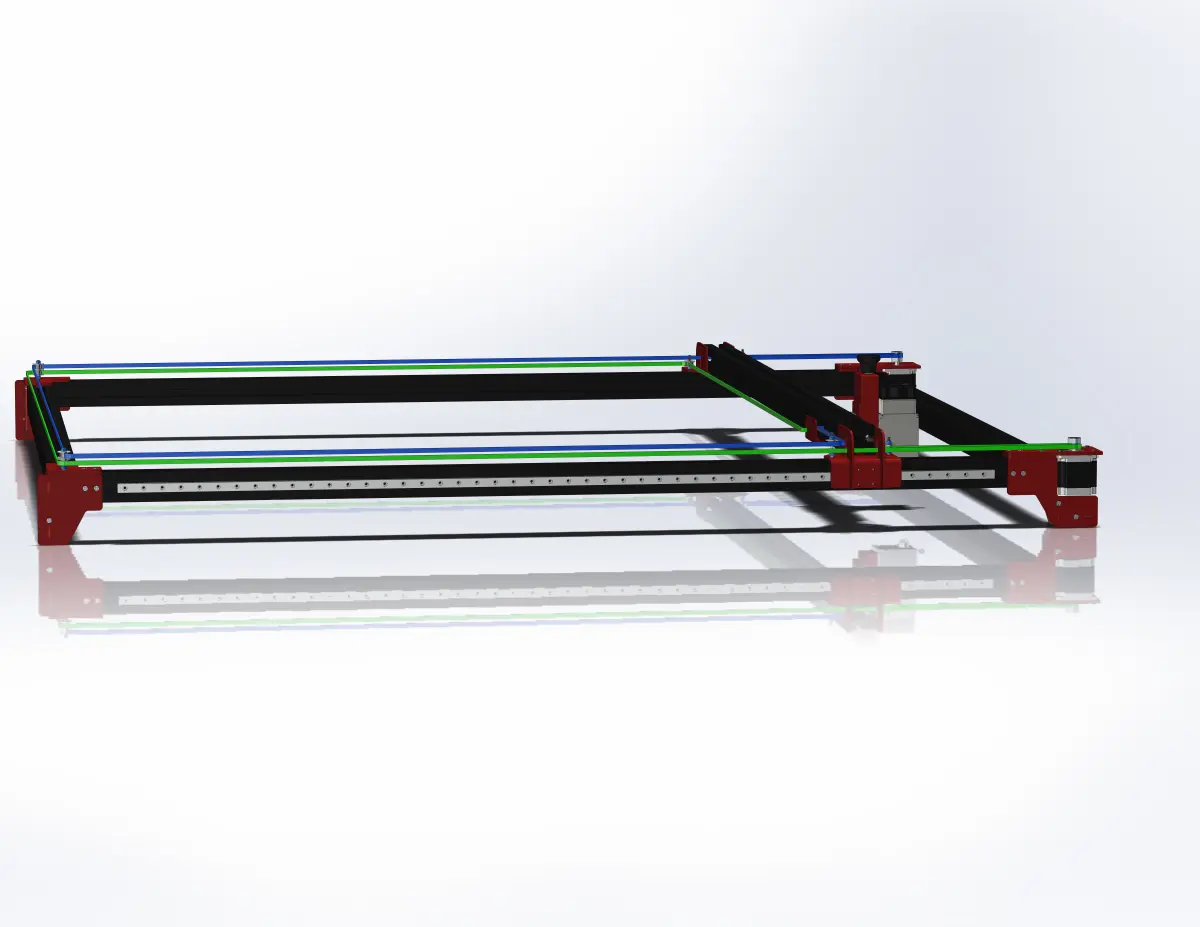

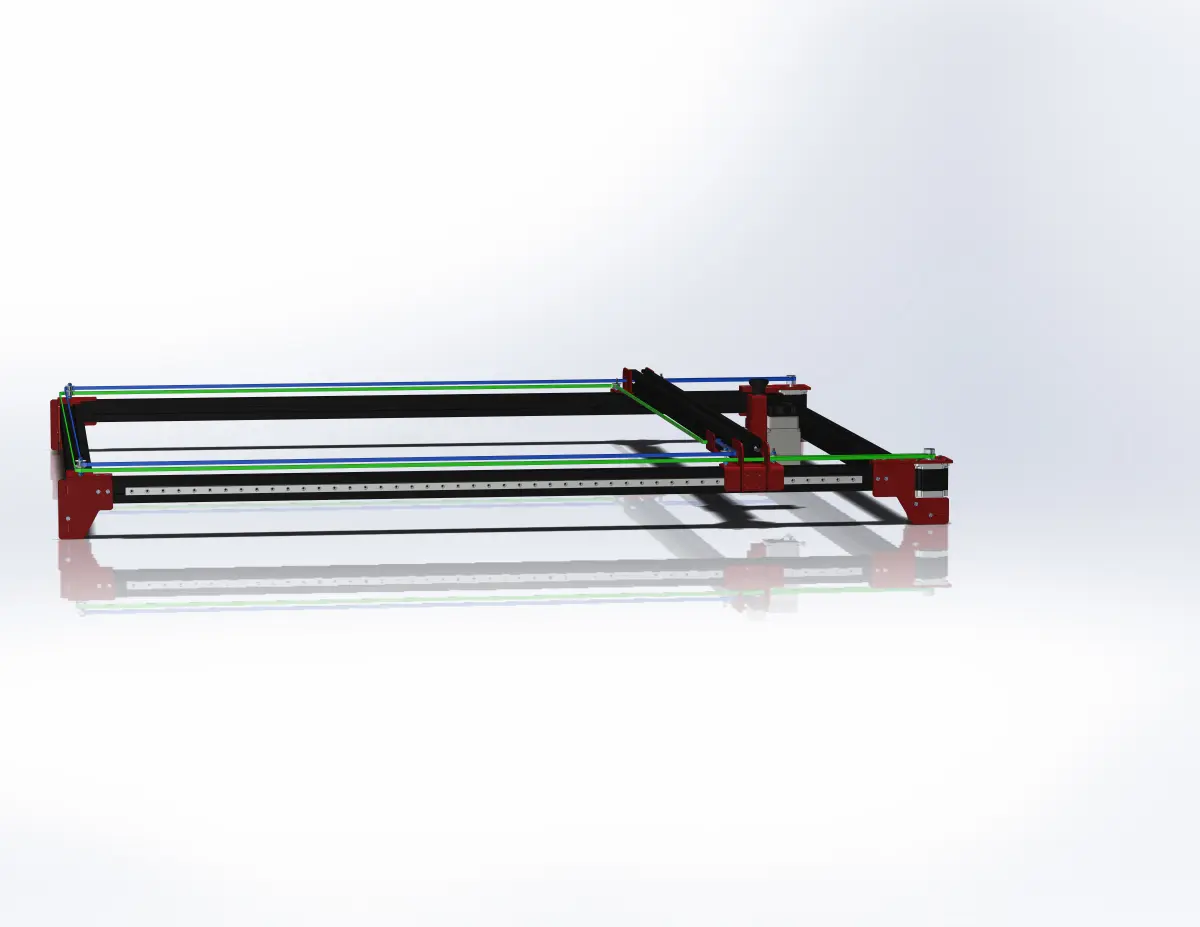

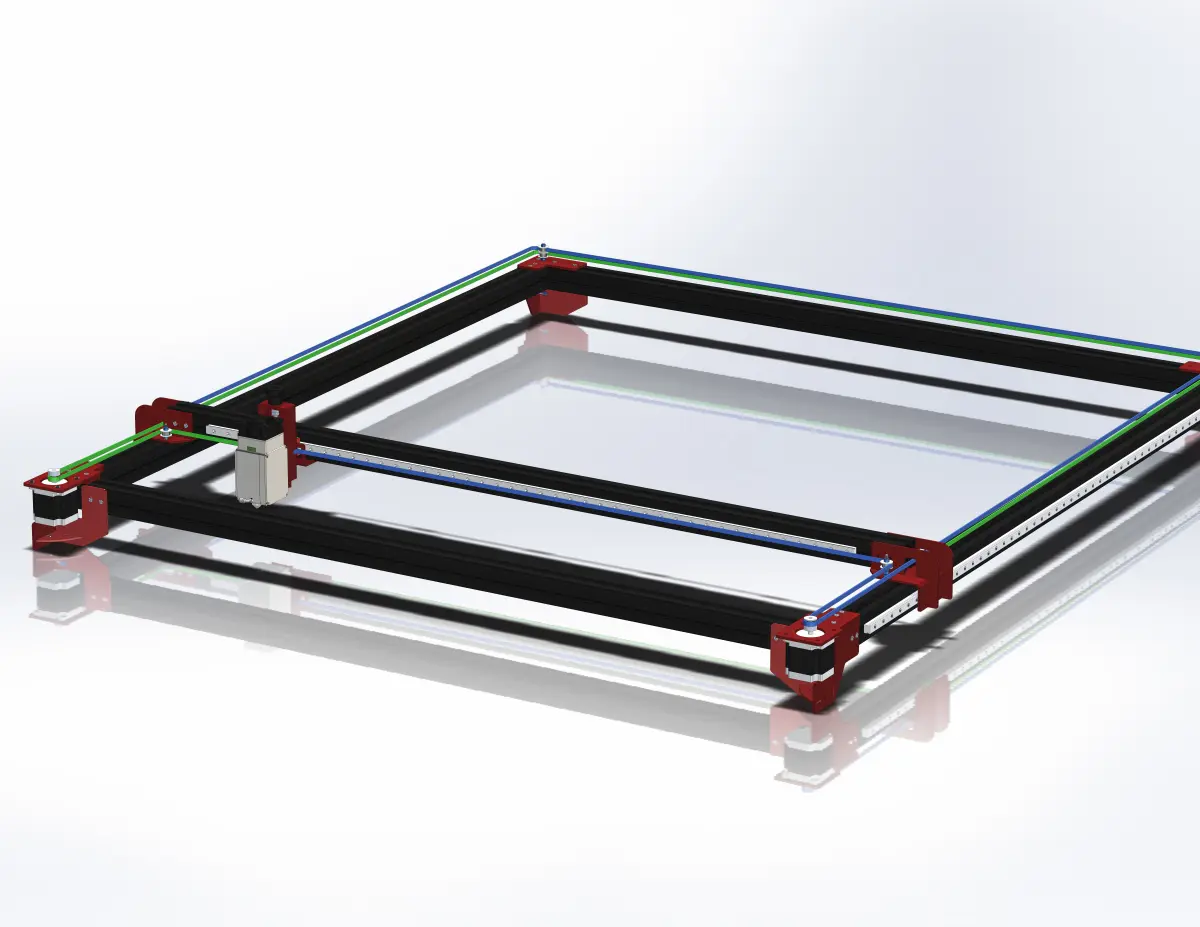

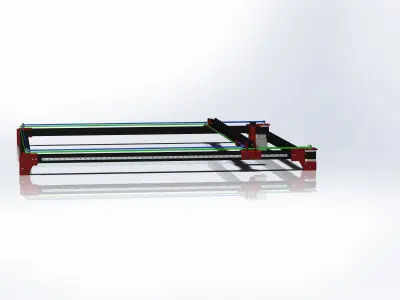

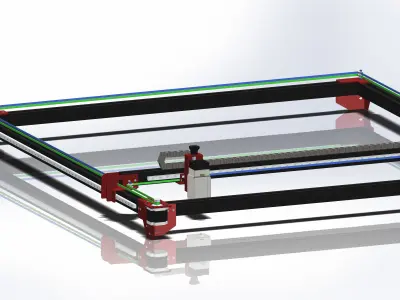

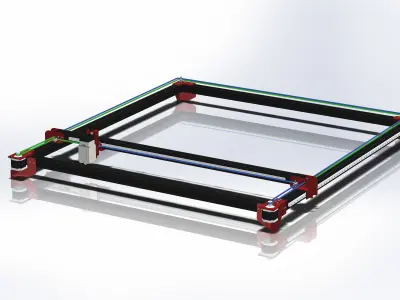

<><>All calculations and details of the project have been checked and shared with you. Our project consists of 40x40 lightweight aluminum chassis. All design files are included in the files shared with you. You can revise or edit as you wish. Please note that I am always open to communication. Please contact me for any changes you want or need. Information on the requirements is below.

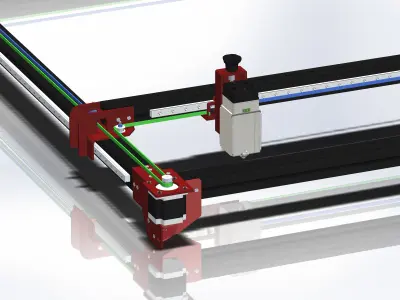

<><>All parts carrying the motion system are adjusted for metal cutting. The adjustable piece that holds the head of the laser is the 3d printed piece. Please do not ignore this.

<><>The movement system is corexy double belt.

list of requirements-2x 6m belt (6mm)

  • 2x nema 23 step motor
  • 2x gt2 pulley ( for nema 23 )
  • 4x 1300mm 40x40 sigma profile (light type)
  • 1x 1250mm 40x40 sigma profile (light type)
  • 2x 1200mm lineer ( mgn12h )
  • 1x 1100mm lineer ( mgn12h )
  • 8x 6mm gt2 pulley ( hole m4 )
  • 10x m4 screw (25-30mm)
  • 60x m4 screw (15mm)
  • 20x m4 screw (20mm)
