Layout for Precast factory and office 3D model

License: royalty_free_no_ai

author:

JindaArch

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «JindaArch». CGhub does not claim copyright ownership over the content used.

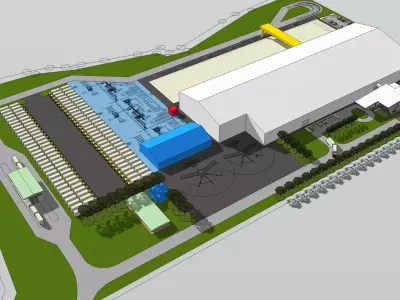

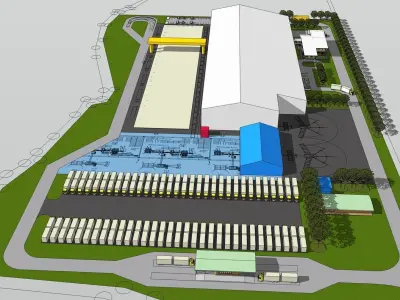

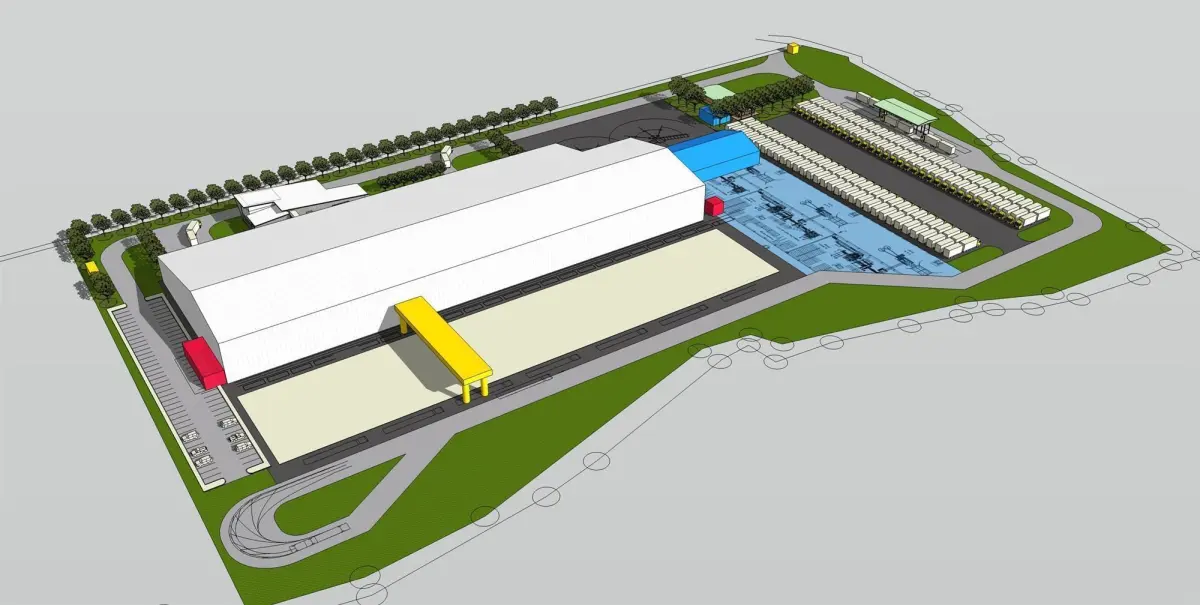

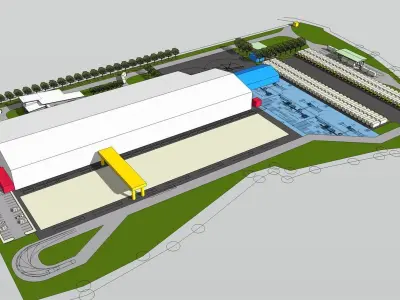

Precast factory and office

Project info :

Area : 72,000 sq.m.
Facility in layout :
- Office
- Canteen
- Workshop & Store
- Weight scale for trucks
- Guard house
- Power generator’s house

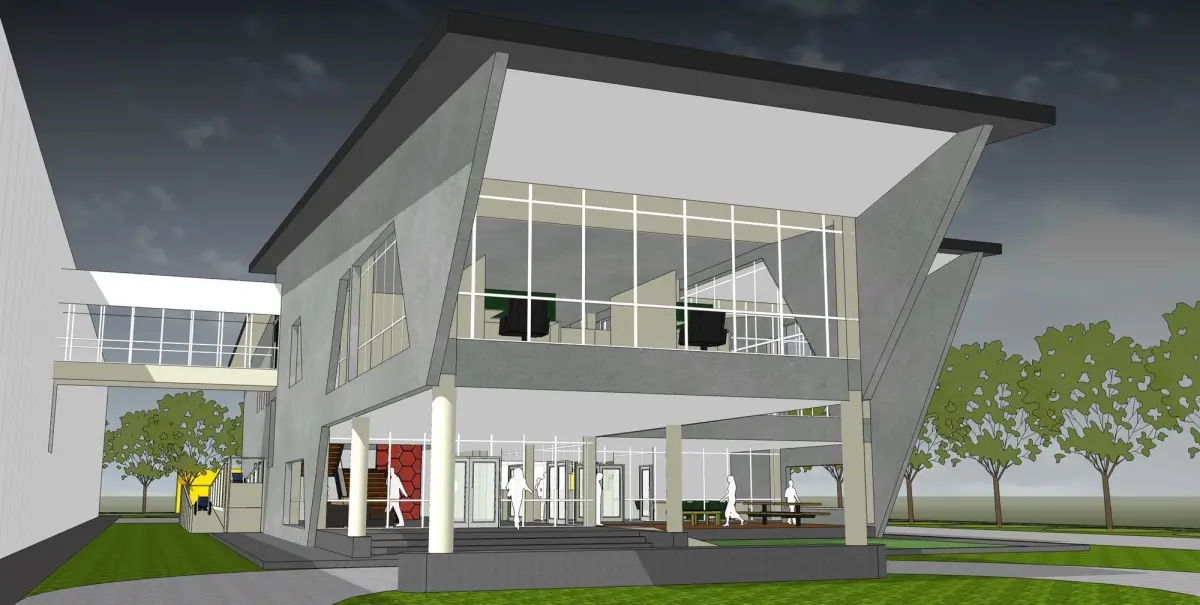

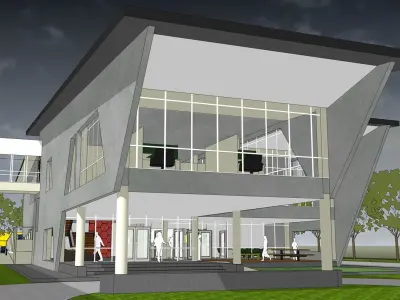

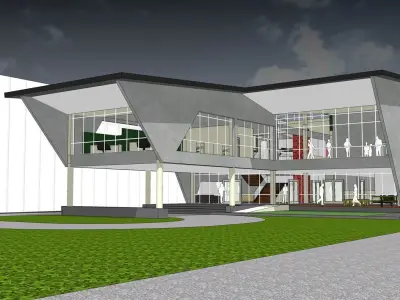

The open green area can be accessed from front and back, and can be seen from rooms around, also natural ventilation can be flow through the open space.

The building's void, glass windows area for daylight gain and visual security also.
The function can be used for office, meeting room, mini seminar, co-working space.
The structure is reinforce concrete with cantilever flat - concrete roof slab to reduce the direct sunlight.
Exposed stair to the open green area for visual securiry accesss.

This native model was made by SketchUP 2020 and imported to Autodesk 3D Max 2020.There are some objects inside this building such as furnitures, sanitary wares.

Building & material info :

Foundation : Spread footing
Structure : Post and beam - Reinforce concrete
Roof : Reinforce concrete Slab
Ceiling : Gypsum panel / Fiberglass insulation blanket type
Wall : Autoclaved aerated concrete (AAC) masonry / plastering / Gypsum panel
Floor : Reinforce Concrete hollow core / Terrazzo finished
Doors & windows : Aluminium frame / Glass 6 mm.thk

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Factory Industrial Building Industry Warehouse Storage Logistic Transport Truck Transportation Large truck Dock Layout Architect Construction Site Precast Cement Roof Engineering Architectural
