Name: LED Assembly and Plating Machine 3D model
Brand: zhip
SKU: 908951
Price: 50.00 USD
Availability: InStock

$50

License: Royalty Free No Ai

author:

zhip

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «zhip». CGhub does not claim copyright ownership over the content used.

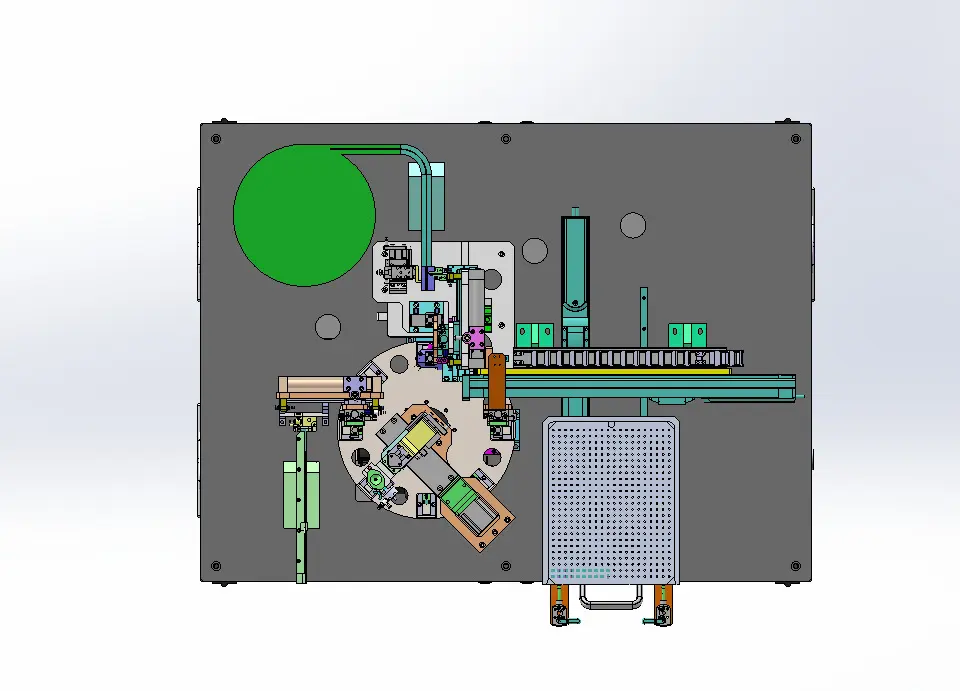

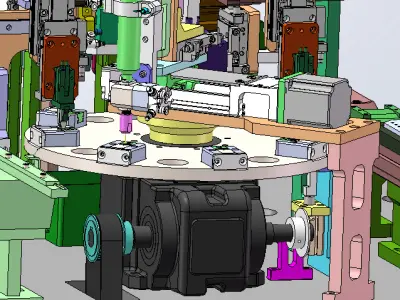

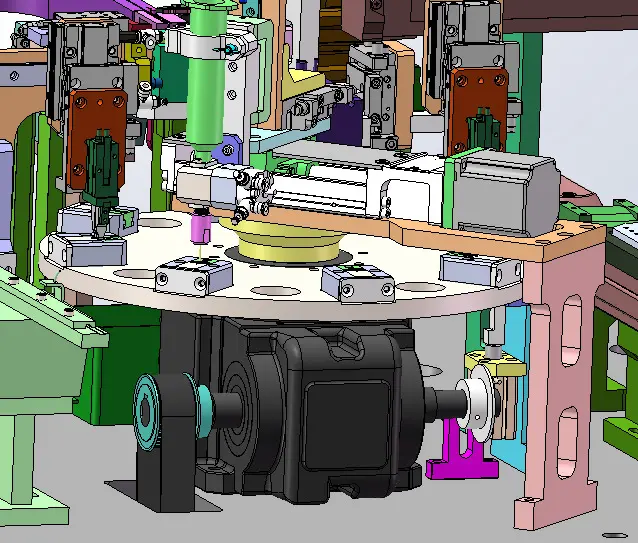

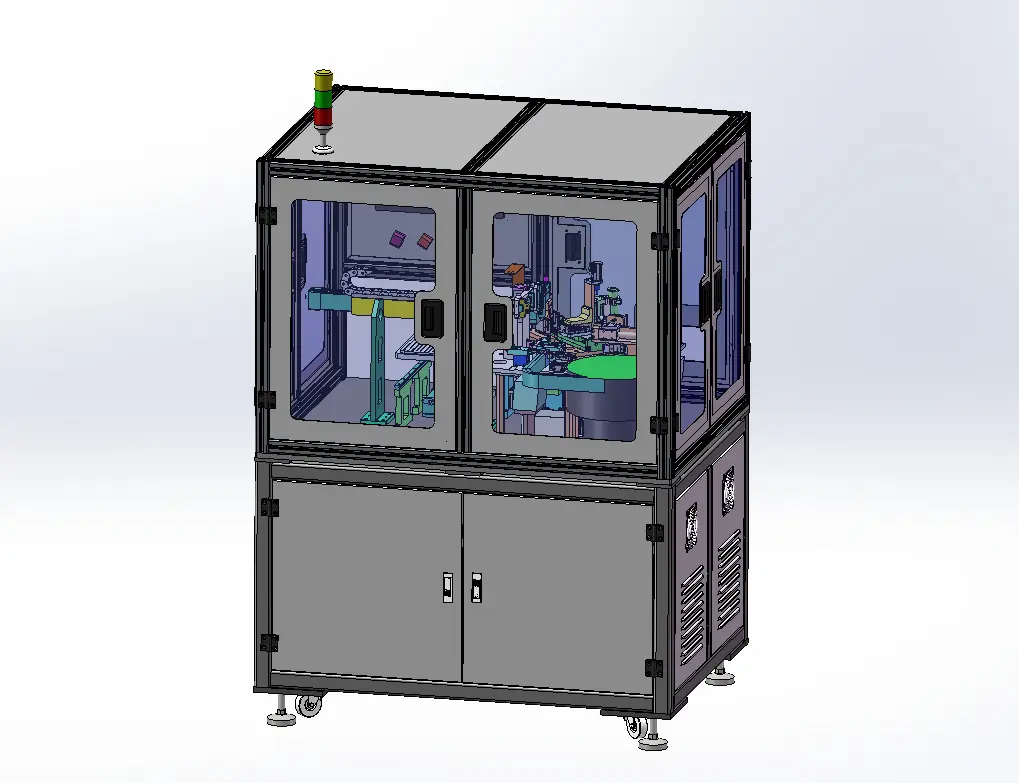

This is an automatic assembly and 摆盘 (It should be traying, so I'll correct it here) equipment for LED lights. It features a four - station design with a turntable, and the equipment operates in a counter - clockwise direction.Process 1: The LEDs are fed through a vibrating disk, their pins are cut, and then they are flipped and placed into the fixture.Process 2: The LED lamp holders are fed, and the robotic gripper picks them up and assembles them into the fixture.Process 3: The glue - dispensing mechanism applies glue to the assembled products and cures it.Process 4: The robot automatically trays and collects the finished products.The overall equipment measures 1200mm in length and 900mm in width. It has a compact layout and well - refined details. This is a non - standard equipment that has been put into production, and it has high reference value.
