Buy Louvre Curtain Wall Panel 3D model

Name: Louvre Curtain Wall Panel 3D model
Brand: droumbas
SKU: 777932
Price: 14.00 USD
Availability: InStock

$14

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

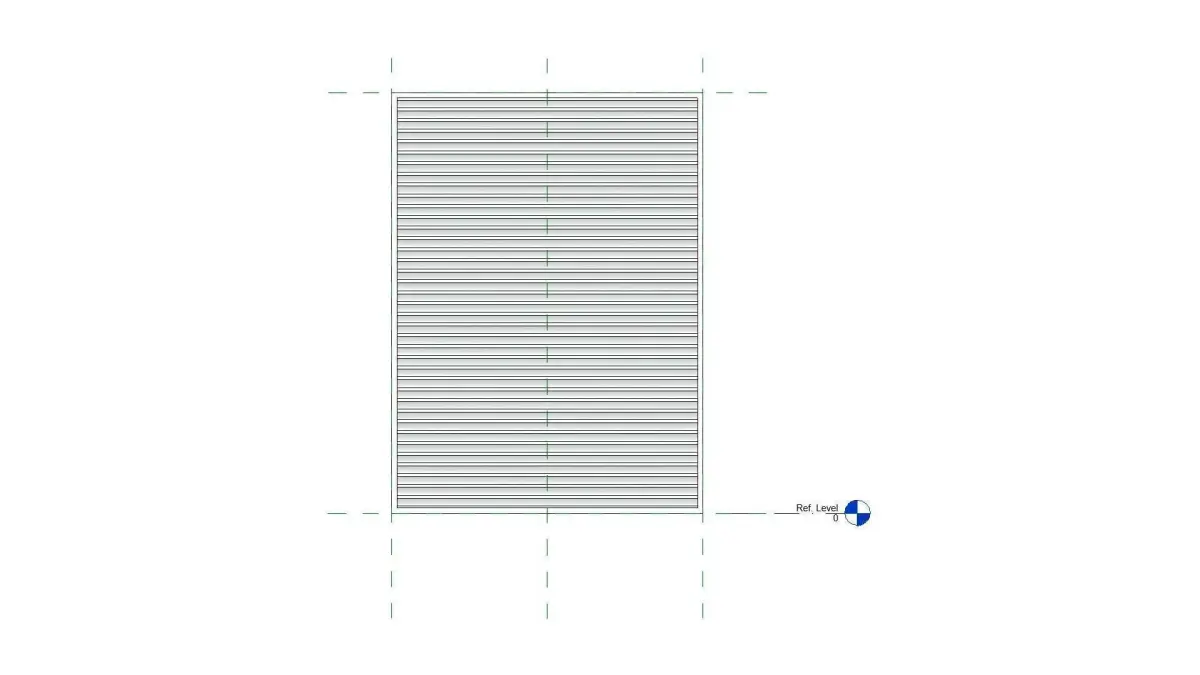

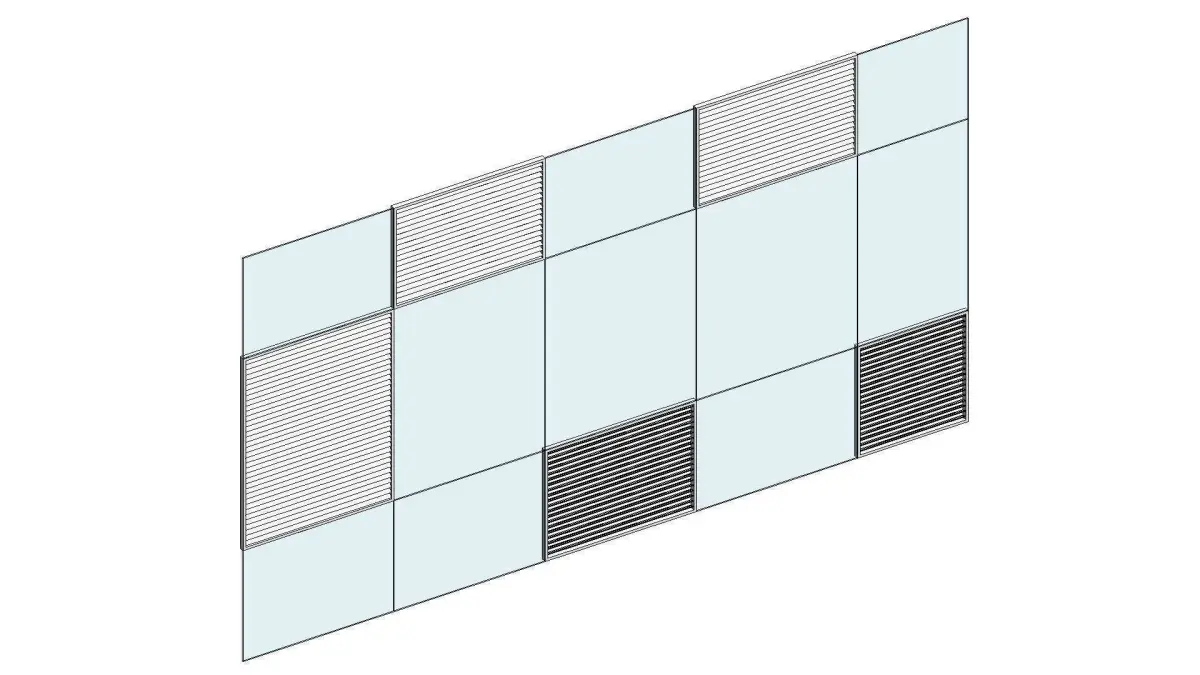

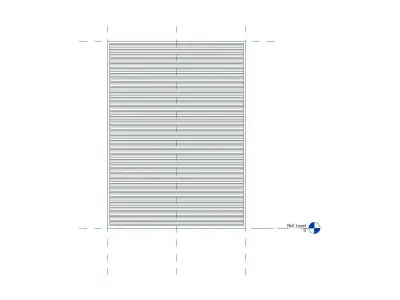

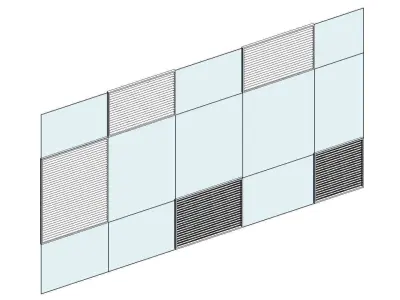

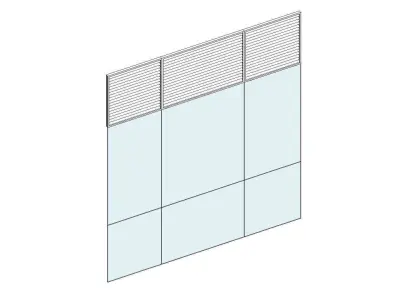

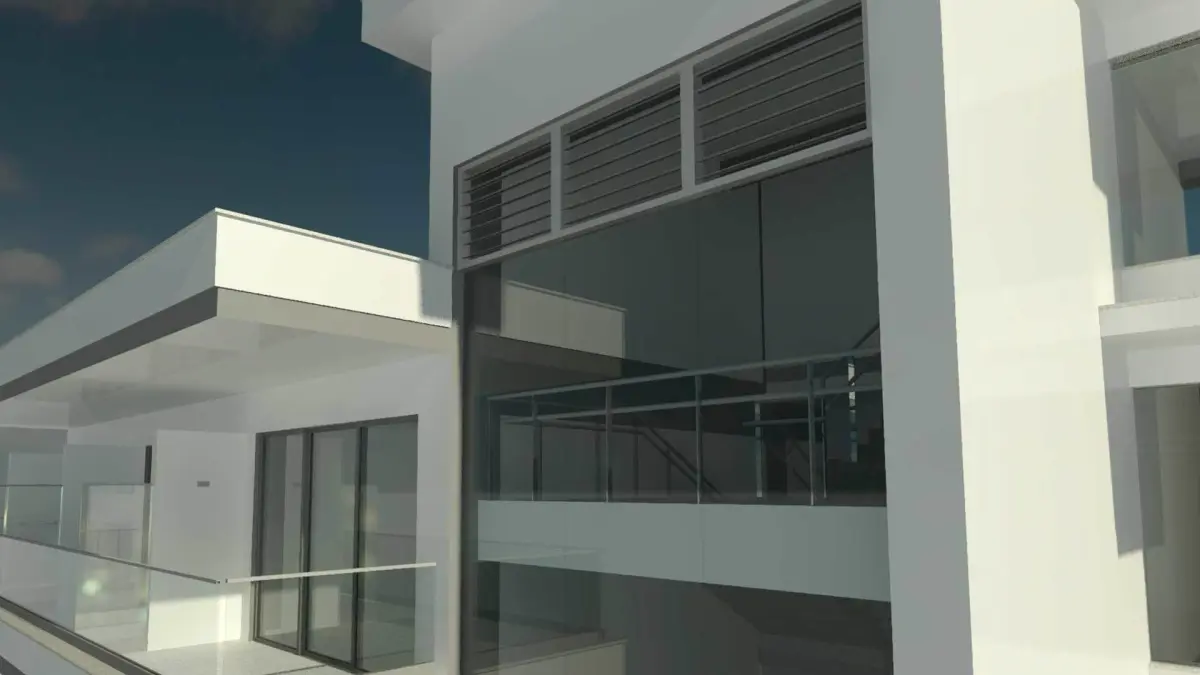

This is a louvre curtain wall panel. It can be very easily placed onto any curtain wall panel by simply loading the family into the project and changing the type of the curtain wall panel. Fully Parametric.Louvre panels are usually installed on staircase glass curtain walls for interior ventilation and fire ventilation.

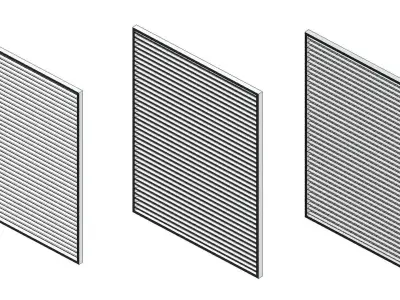

Family consists of three types of louvre blades. Oval shaped, rectangular and S-Shaped. Once loaded into a project, user can select from different family types for the desired shape of the louvre blade. Blade angle, blade height and thickness can be controlled by the user.

The Width and Height of the panel are automatically adjusted to fit into the curtain wall panel selected based on the curtainw all grid.

Frame depth is automatically calculated based on the louvre blade height. Number of blades and spacing between them is also automatically calculated based on the panel height and louvre blade height, in order for the blades to fully close and angle is selected at 90degrees.

ATTRIBUTES:

Revit Version : 2022
Family Type : Curtain Wall Panel
File Extension : .rfa

PARAMETERS:

Blade Angle
Frame Width
Louvre Blade Height and Thickness
Panel offset from curtain wall
Materials ( Frame and Louvres )Louvre Shape selection ( oval shaped, rectangular shape and S-Shaped )

FAMILY TYPES:

Oval Shaped Blades
Rectangular Shaped Blades
S-Shaped Blades

User does not need to adjust the width and the height of each panel, since they are automatically adjusted to fit into each curtain wall panel as drawn by the user with the curtain grids.
