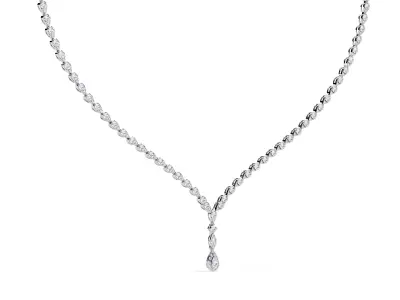

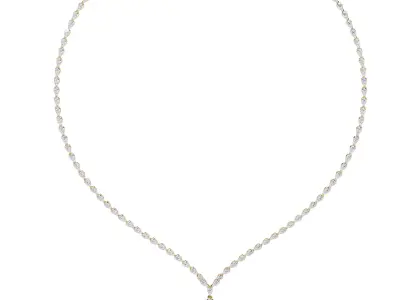

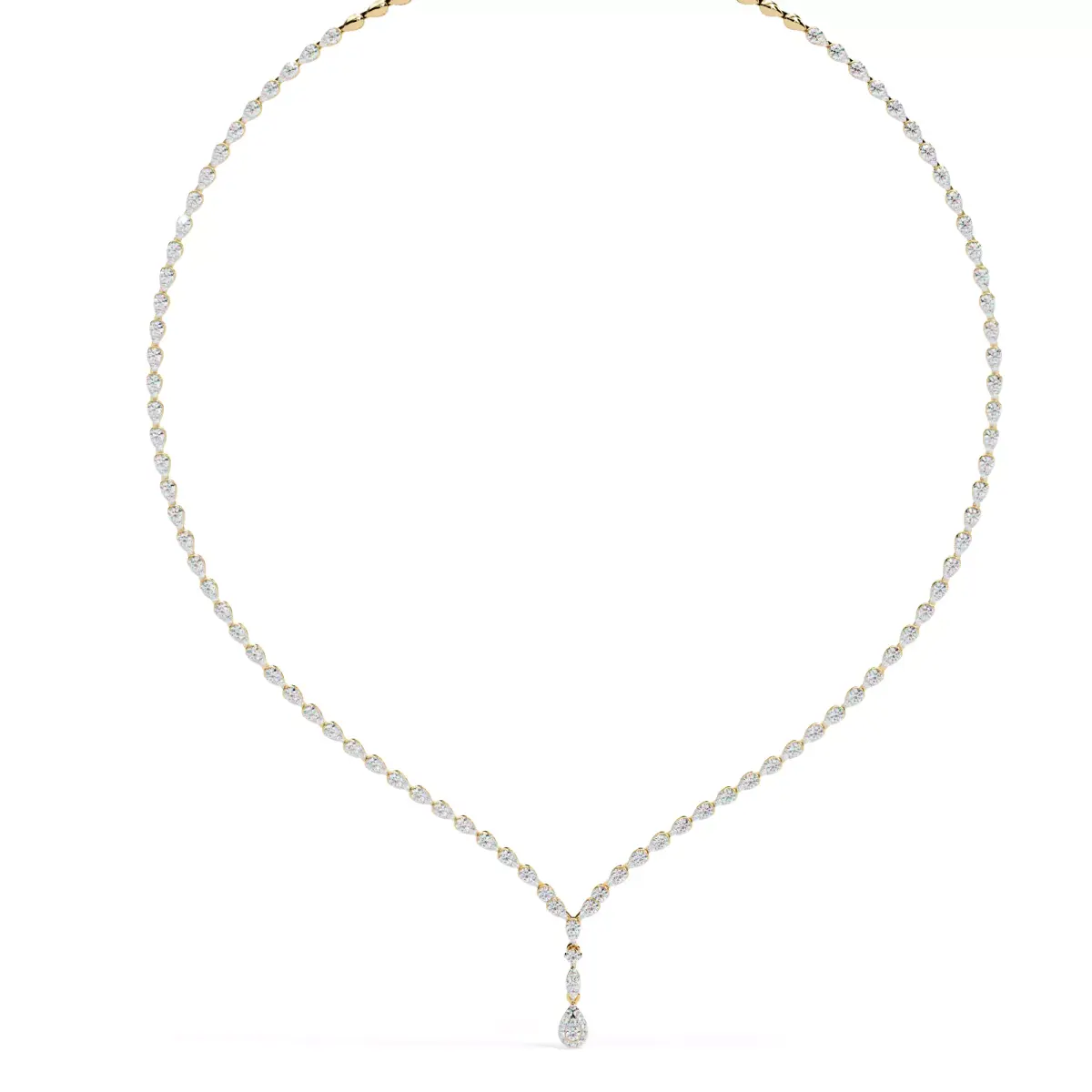

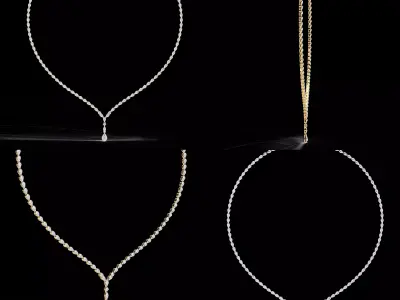

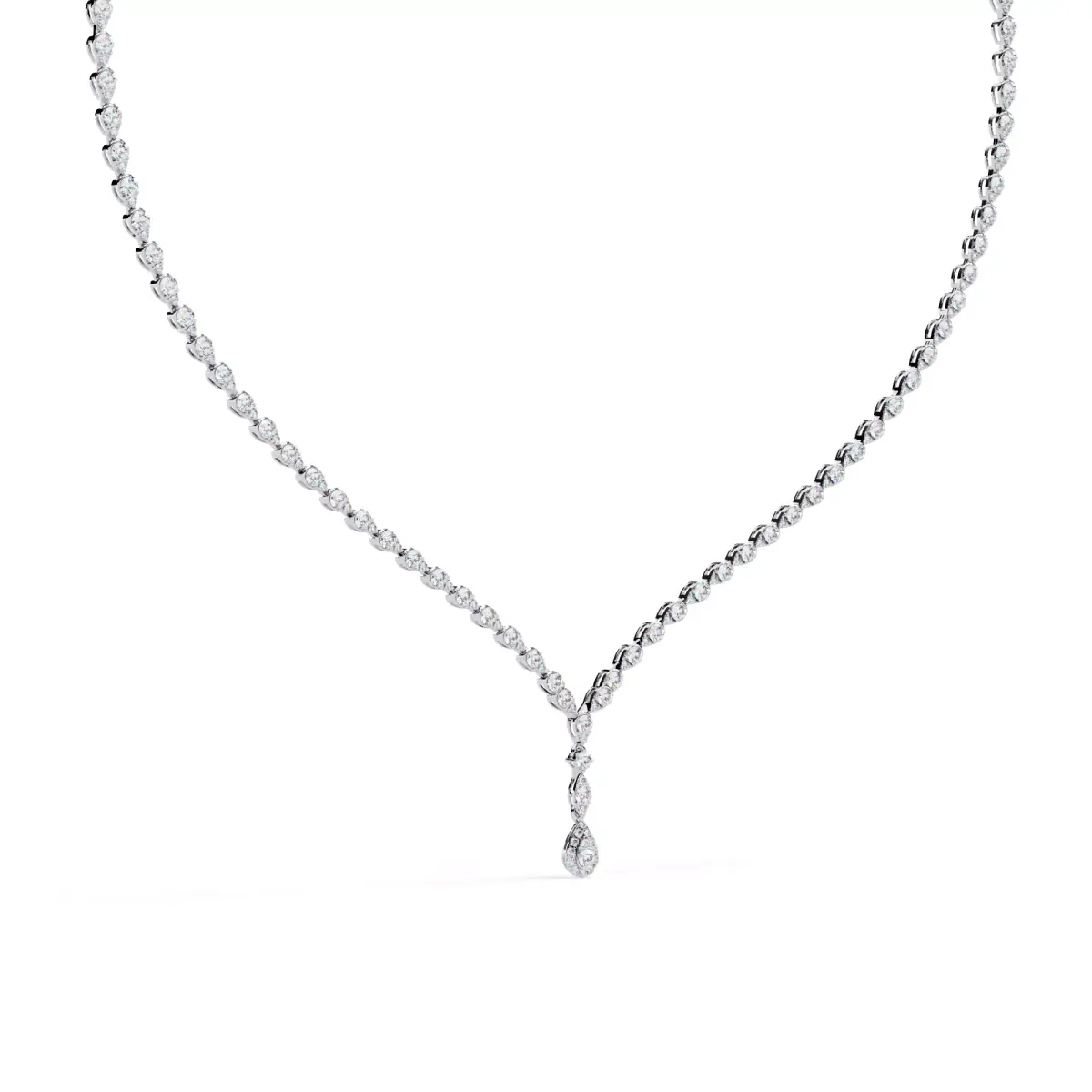

This luxury Y style diamond drop necklace CAD design is created for professional jewellery manufacturing with a focus on elegance, balance, and production accuracy. The design features a continuous diamond-set chain that flows into a refined Y-shaped drop, ending with a graceful dangling stone that enhances movement and brilliance.
The Y configuration is carefully proportioned to sit naturally on the neckline, creating a slimming and elegant visual effect. Each stone is evenly spaced and precisely aligned to ensure secure settings, uniform sparkle, and clean finishing during manufacturing.
The CAD model is developed with clean geometry and smooth curvature to support reliable casting, polishing, and stone setting. The transition from the main chain to the drop section is engineered to maintain strength while allowing natural movement and comfort during wear.
This design is ideal for jewellery brands, manufacturers, and designers looking to offer timeless and sophisticated necklace styles suitable for luxury, bridal, and premium evening jewellery collections.
Design DetailsThe necklace features a Y-style layout with a central diamond drop.Diamond-set links are evenly spaced for symmetry and visual balance.The drop section is proportioned for smooth movement and elegance.Stone settings are accurately aligned for secure holding and clean finishing.The structure is balanced to sit comfortably on the neckline.Clean geometry supports smooth casting, polishing, and stone setting.The CAD construction is optimized for professional jewellery manufacturing workflows.
UsageJewellery manufacturing and castingDiamond necklace productionJewellery brands, manufacturers, and wholesalersLuxury and bridal jewellery collectionsCustom jewellery design projectsOnline jewellery stores and CAD model libraries
Included Files3DM file provided as an editable CAD model for customization and design modifications.STL file included for direct use in casting and 3D printing workflows.All files are properly scaled, clean, and ready for professional production use.

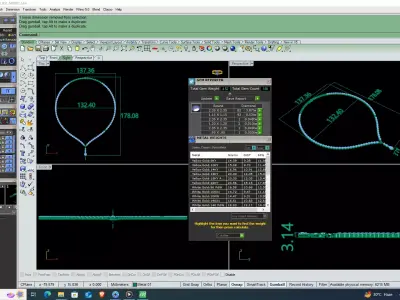

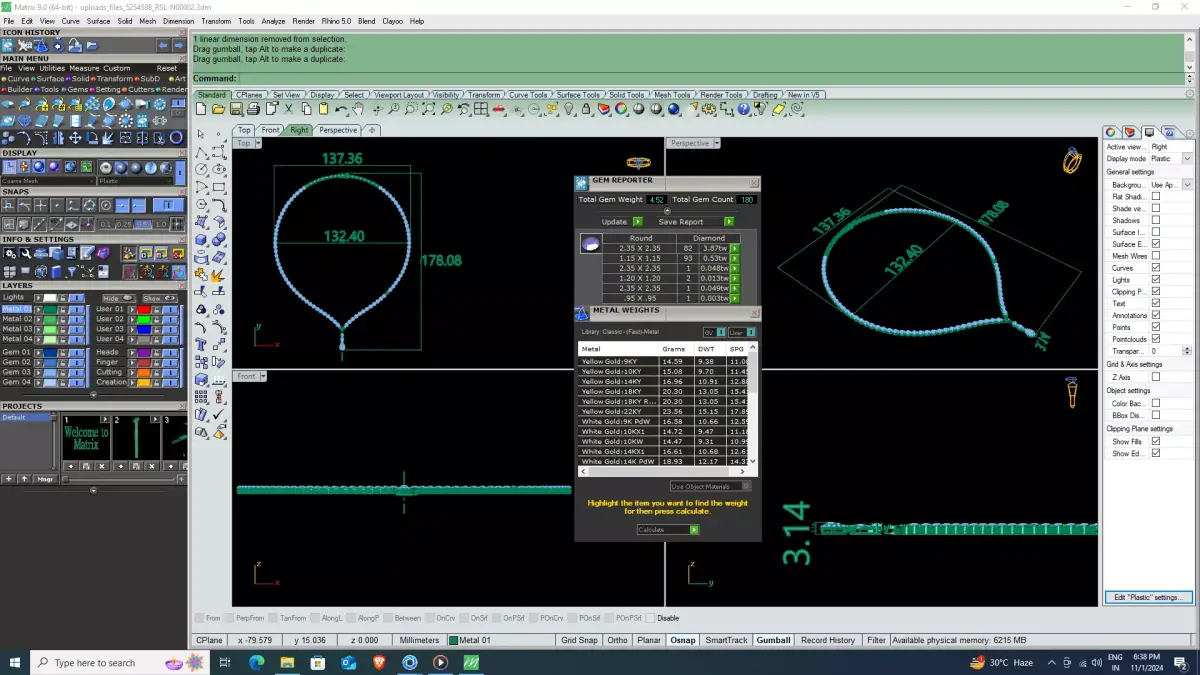

SoftwareCompatible with Rhino for CAD modelling and editing.Compatible with Matrix for jewellery-specific CAD workflows.
Customer SupportCustomer support is provided after purchase to ensure smooth usage of the files.Assistance is available for file opening, scaling, and general usage queries.Minor design adjustments can be discussed if required.Guidance related to jewellery manufacturing workflow is provided.Fast and professional response is ensured for buyer queries.
