Modular ventilated facade segment designed to be repeated and scaled for full facade systems.
Professional 3D model of a complete ventilated facade system with M-ANCHOR fixing solution and HPL cladding.
This product includes the full assembly with all structural and finishing components, accurately modeled for engineering visualization, architectural rendering, and technical presentations.

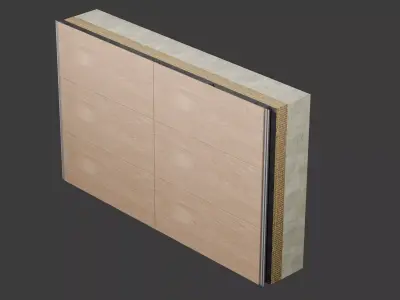

This model represents one complete facade module that can be duplicated to create full building facades.

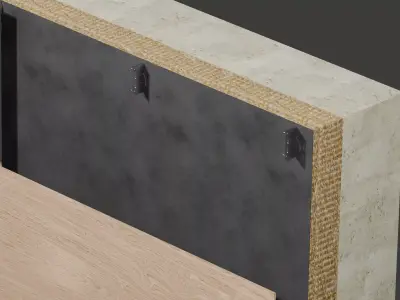

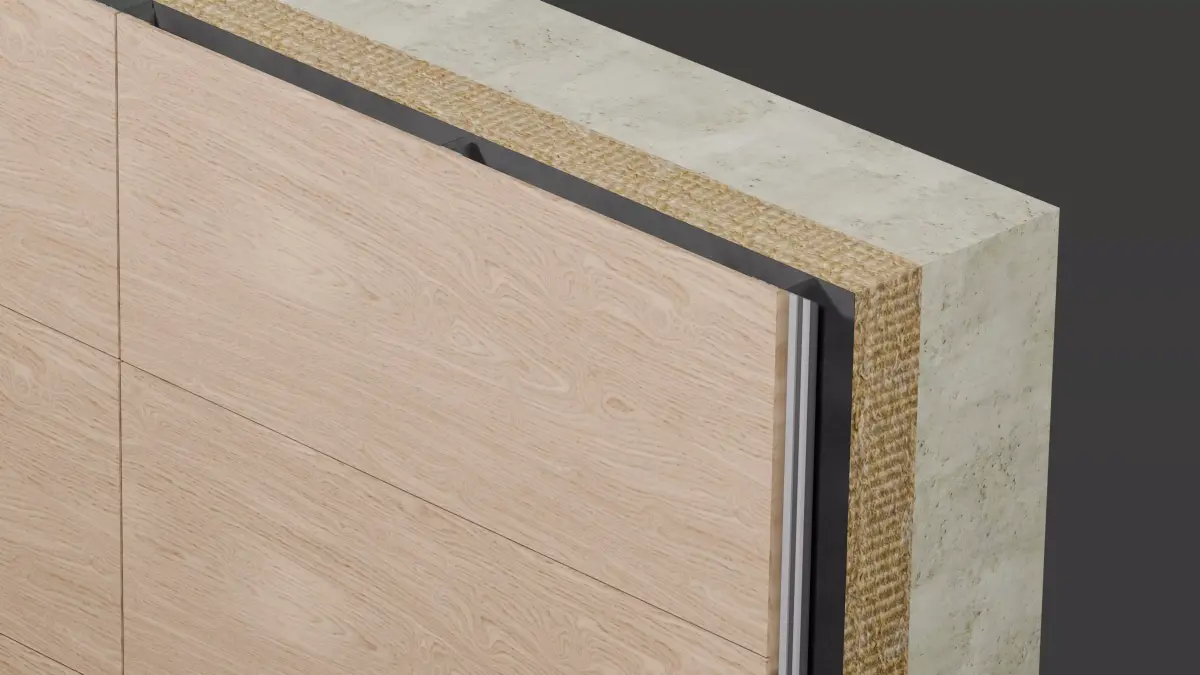

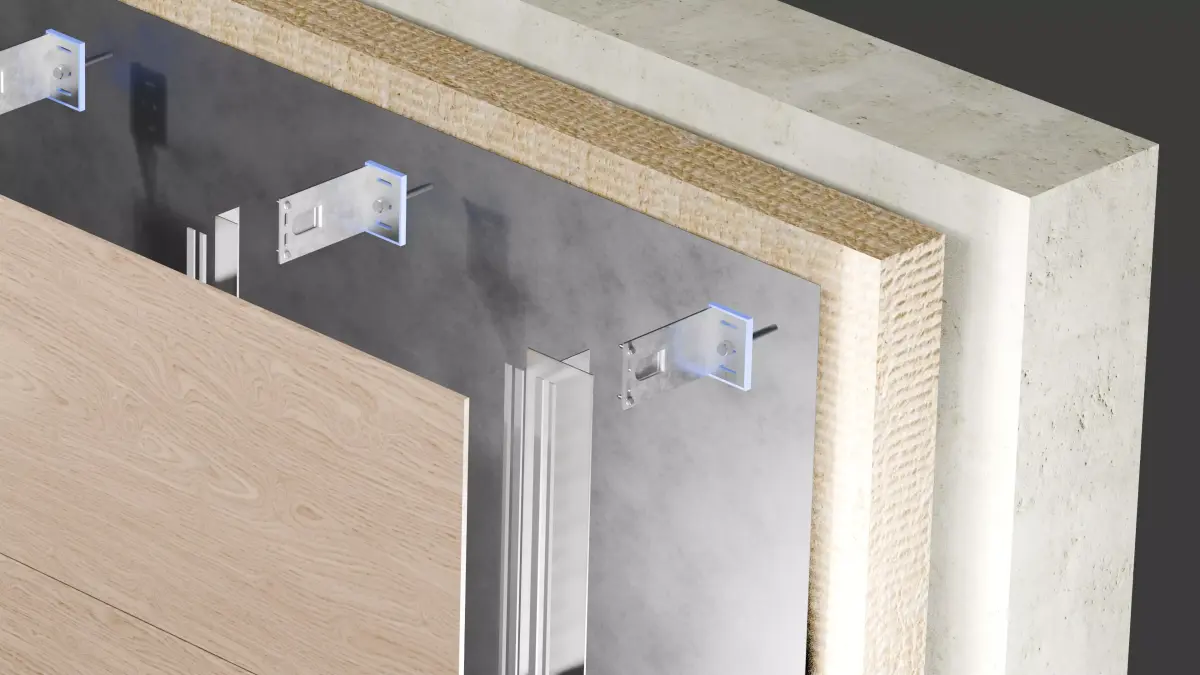

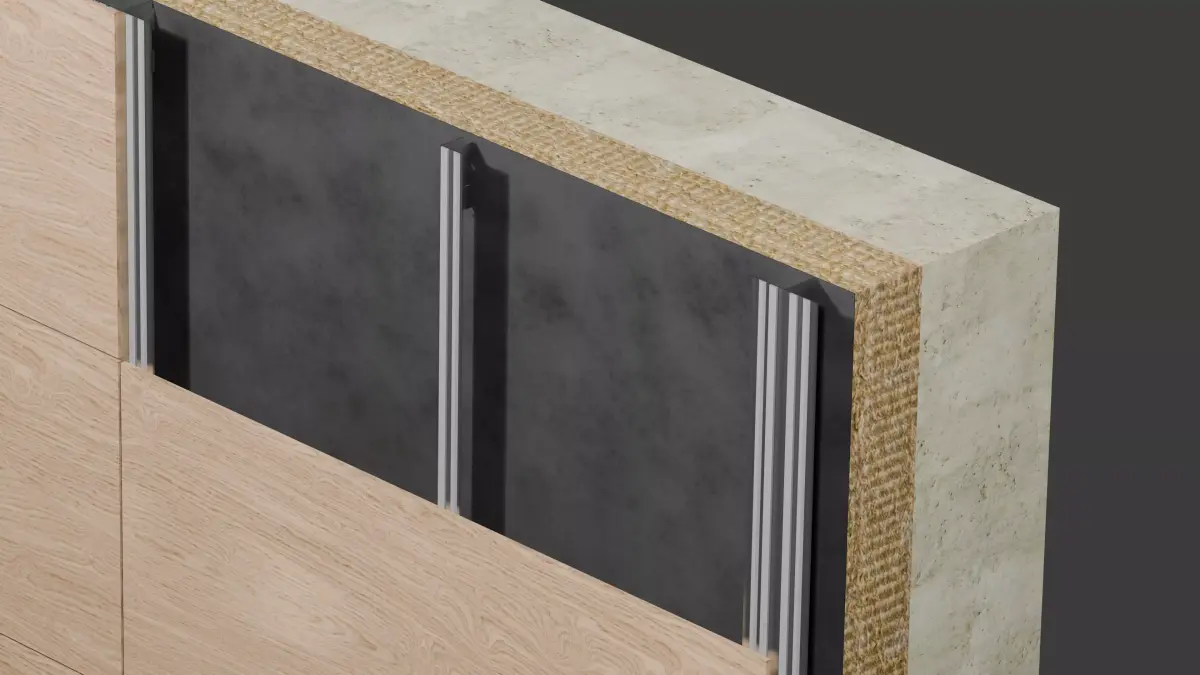

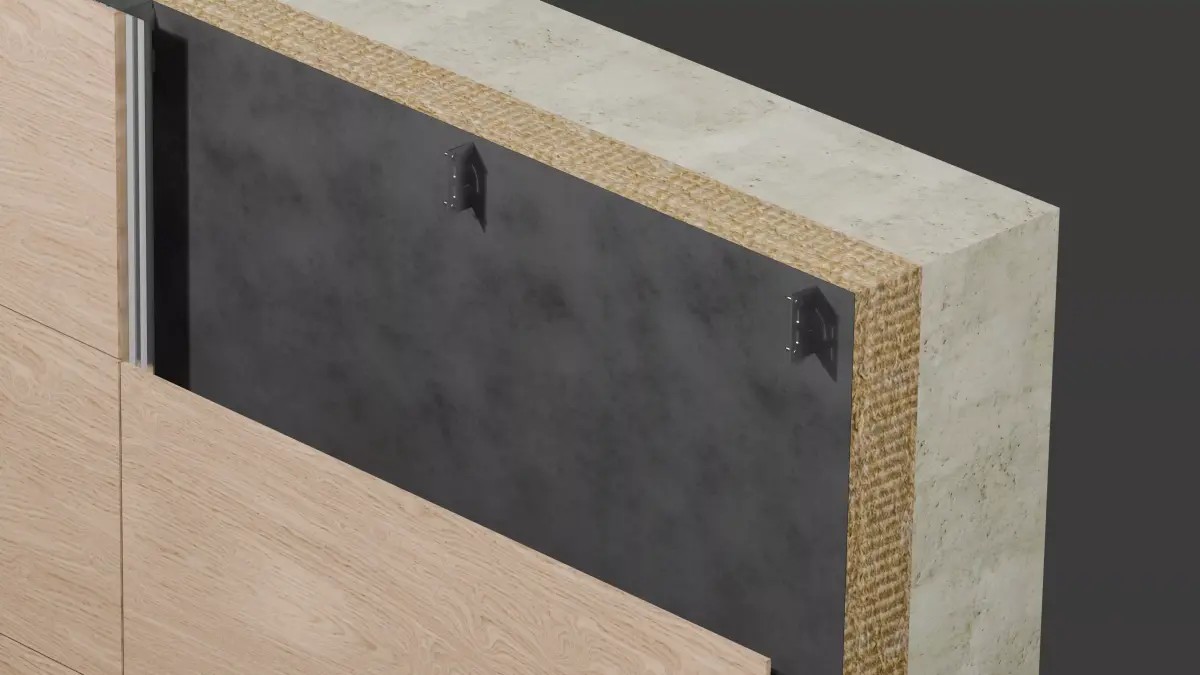

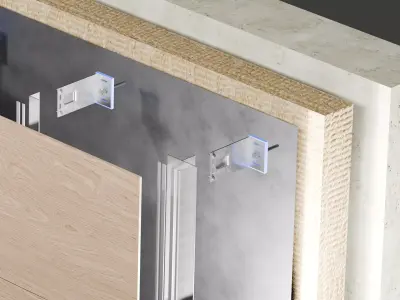

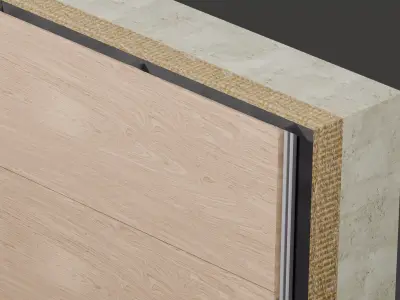

The system contains all layers:
• Concrete wall• Waterproof membrane• Thermal insulation• Anchor brackets (M-ANCHOR system)• Vertical T and L aluminum profiles• Fasteners, bolts, nuts and washers• HPL facade panels• Adhesive layer
All parts are modeled as separate components and properly named.
Perfect for:
• Architectural visualization• BIM workflows• Engineering presentations• Construction detailing• Technical documentation• Product visualization
Included formats:
STEP (engineering standard)IGESOBJ + MTLSTLPDF technical drawings with BOM and dimensions
Model features:
Real world scaleClean and accurate geometryAll elements separatedEngineering-level precisionReady for renderingReady for CAD workflows
The facade module can be repeated to generate larger facade surfaces.
Modeling softwareOriginally modeled in Autodesk Inventor.
Created byM-ANCHORProfessional facade fixing solutions
STL (Stereolithography, filesize: 3.73 MB), OBJ (OBJ, filesize: 9.8 MB), IGE (IGES, filesize: 575 KB), STP (STEP, filesize: 353 KB), PDF (PDF, filesize: 266 KB)
