M10x1.5 fastener set, ready for use in CGI, CAD, and 3D print applications. Modeled in Autodesk Inventor and Carrara Studio and provided in multiple file formats.

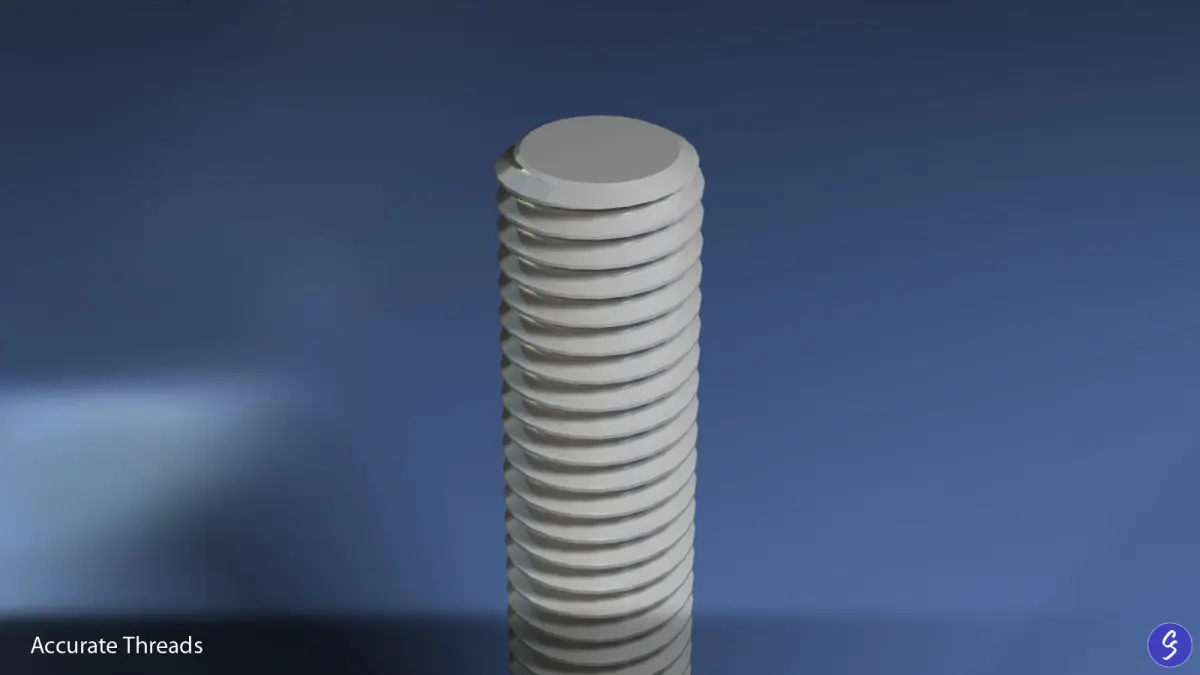

Threads are fully functional and accurately modeled based on the general ISO standard thread profile. Parts can be 3D printed to produce working fastener sets.
Native Autodesk Inventor 2012 files are provided with intact browser trees and parameter tables to allow full configurability and customization. Parts can be easily modified within Inventor to create any fastener size simply by changing the values of the clearly-labeled user parameters.
Fasteners included:
- Fully-threaded M10x1.5 x 50mm hex bolt - 11,734 facets - 17.0 x 19.6 x 56.4 mm
- Partially-threaded M10x1.5 x 50mm hex bolt - 6,374 facets - 17.0 x 19.6 x 56.4 mm
- M10x1.5 hex nut - 2,350 facets - 17.0 x 19.6 x 8.0 mm
- M10 flat washer - 384 facets - 20.0 x 20.0 x 2.0 mm
Product includes:
- 4 Autodesk Inventor 2012 assembly files (IAM format) - fully-threaded fastener assembly and partially-threaded fastener assembly, along with sectioned versions of each
- 8 Autodesk Inventor 2012 part files (IPT format) - fully-threaded bolt, partially-threaded bolt, nut, and washer, along with sectioned versions of each
- 12 STP models - all assemblies and parts, along with sectioned versions of each
- 12 SAT models - all assemblies and parts, along with sectioned versions of each
- 12 IGS models - all assemblies and parts, along with sectioned versions of each
- 8 OBJ models - fully-threaded bolt, partially threaded bolt, nut, and washer, along with sectioned versions of each
- 8 FBX models - fully-threaded bolt, partially threaded bolt, nut, and washer, along with sectioned versions of each
- 8 3DS models - fully-threaded bolt, partially threaded bolt, nut, and washer, along with sectioned versions of each
- 8 STL models - fully-threaded bolt, partially threaded bolt, nut, and washer, along with sectioned versions of each
- 1 Carrara Studio model (CAR format) - includes lights and cameras
- 1 Read Me text file (TXT format)
If you have any questions, either before or after purchasing this model, please feel free to contact me here on CGTrader and I will help in any way possible.
CBSpicer
