M10 Hex Bolt Free 3D model
M10 Hex Bolt Free 3D model
M10 Hex Bolt Free 3D model
M10 Hex Bolt Free 3D model
M10 Hex Bolt Free 3D model

Publication date: 2021-03-27

M10 Hex Bolt Free 3D model

free

License: Editorial No Ai License

author:

cbspicer

Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats
Description

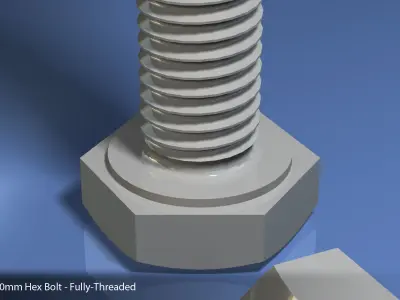

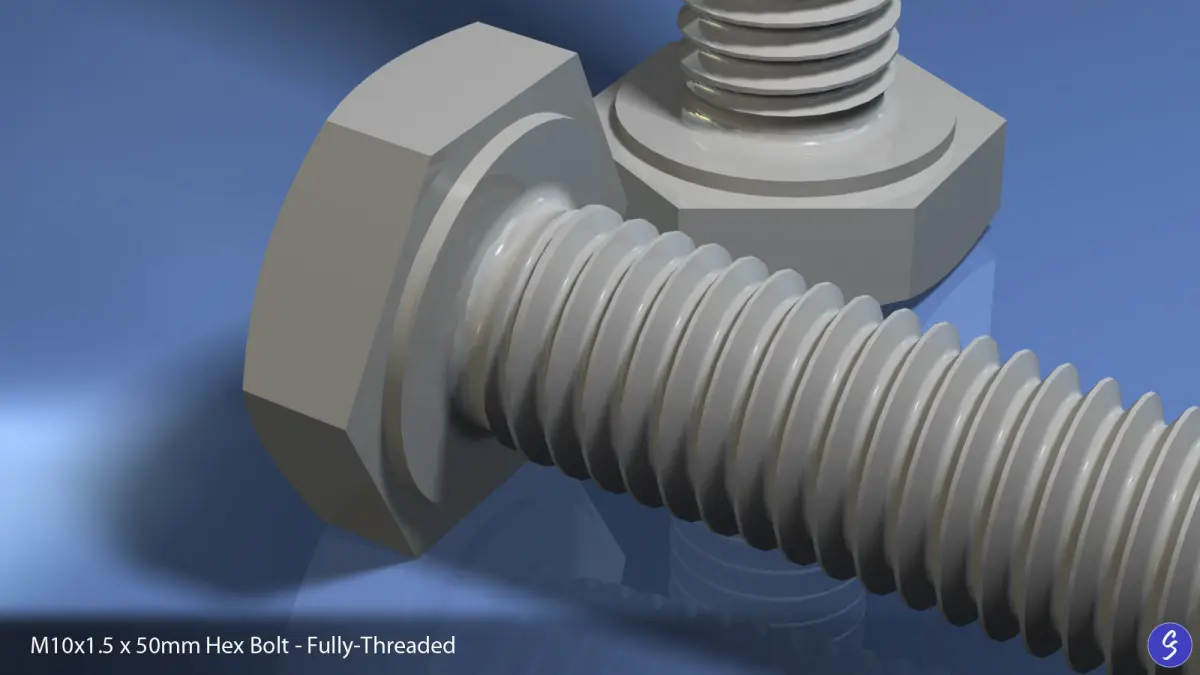

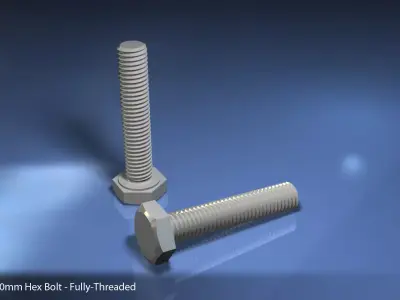

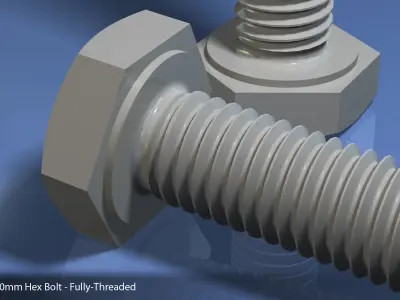

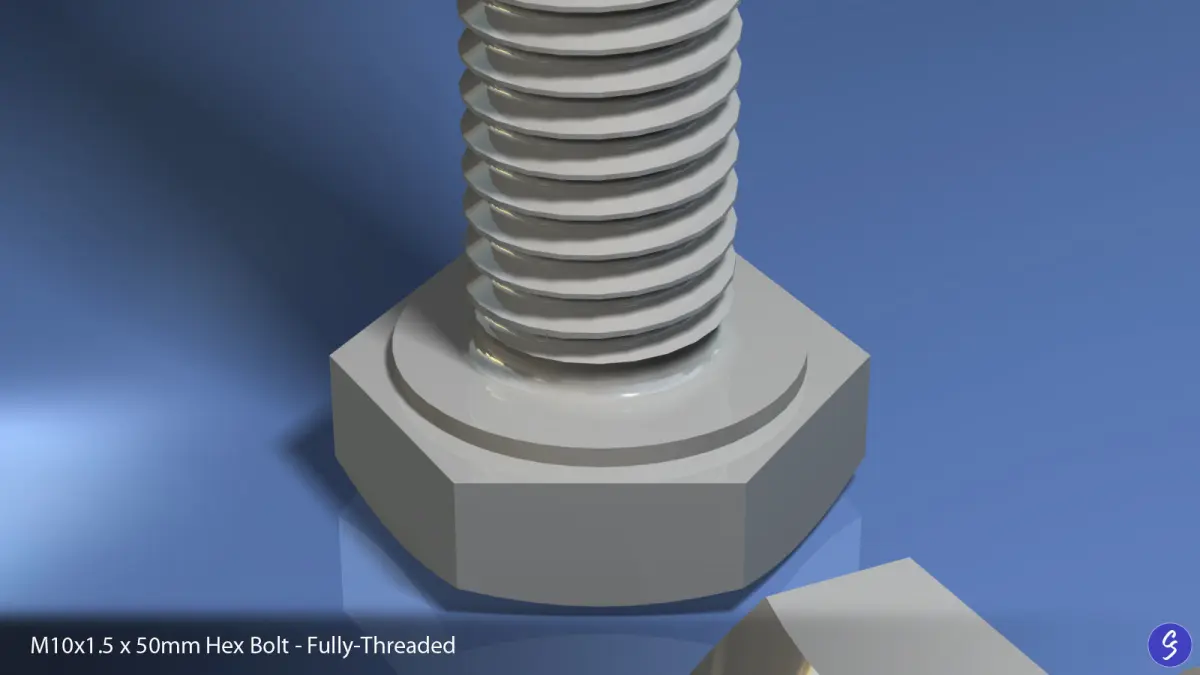

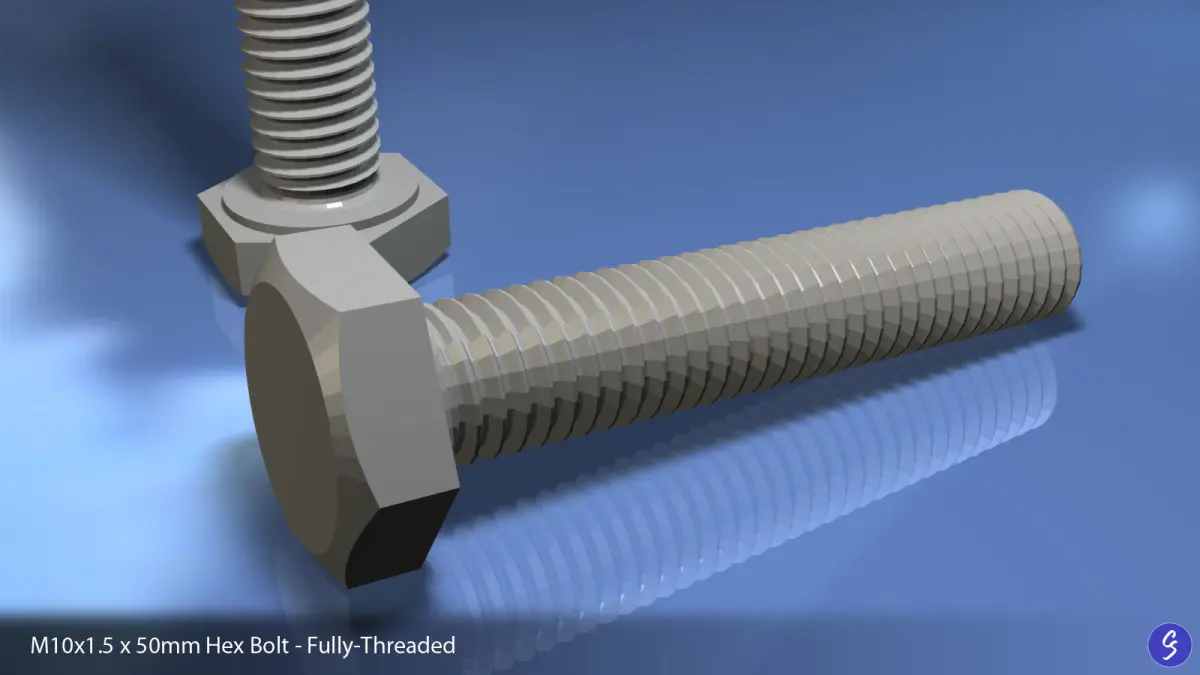

M10x1.5 x 50mm fully-threaded hex bolt, ready for use in CGI, CAD, and 3D print applications. Modeled in Autodesk Inventor and Carrara Studio and provided in multiple file formats.

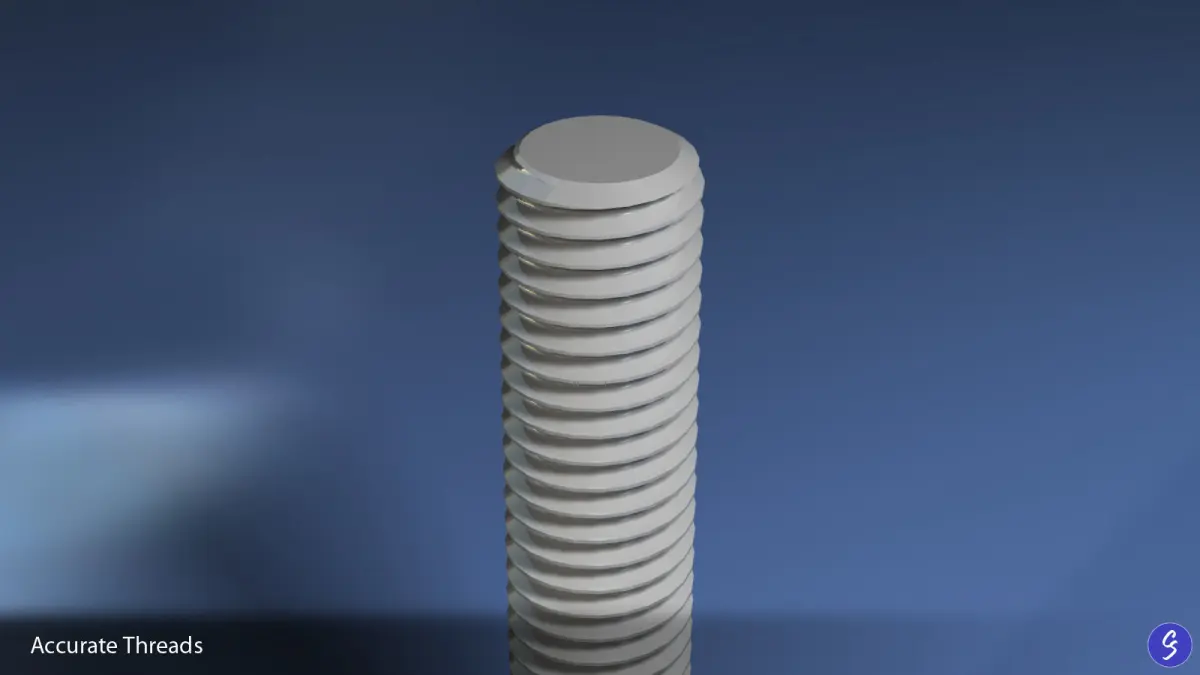

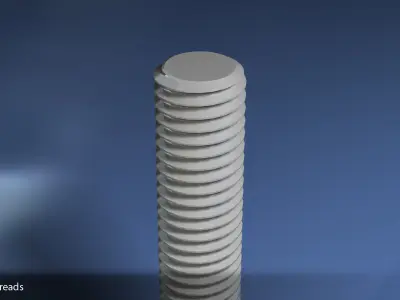

Threads are fully functional and accurately modeled based on the general ISO standard thread profile. Part can be 3D printed to produce working fastener sets.

Model specifications:

  • Physical dimensions: 17.0 x 19.6 x 56.4 mm
  • Facets: 11,734

Product includes:

  • 1 STP model
  • 1 SAT model
  • 1 IGS model
  • 1 OBJ model
  • 1 FBX model
  • 1 3DS model
  • 1 STL model
  • 1 Carrara Studio model (CAR format) - includes lights and cameras
  • 1 Read Me text file (TXT format)

Want more fasteners that are compatible with this product? Download the complete set here: https://www.cgtrader.com/3d-models/industrial/part/m10-fastener-set

CBSpicer

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 11,734
  • Vertices: 5,869

Tags

Hardware Fastener Bolt Screw Nut Washer Hex Thread Machine Mechanical Engineer Architect Join Assemble Industrial Part Cad Parametric Print Industrial machine Industrial part
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «cbspicer». CGhub does not claim copyright ownership over the content used.
  • OBJ ()190 KB
  • 3D Studio ()312 KB
  • Autodesk FBX ()317 KB
  • IGES ()643 KB
  • 3D ACIS ()82.2 KB
  • Stereolithography ()4.6 MB
  • STEP ()596 KB
