Buy M6 Cage Nut 3D model

Name: M6 Cage Nut 3D model
Brand: ewashbrook05
SKU: 9747
Price: 2.00 USD
Availability: InStock

License: Royalty Free

author:

ewashbrook05

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ewashbrook05». CGhub does not claim copyright ownership over the content used.

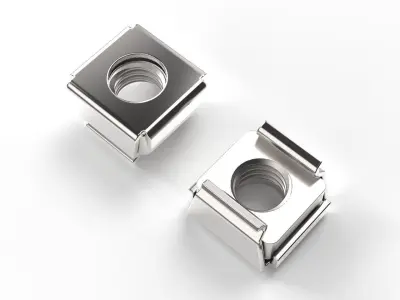

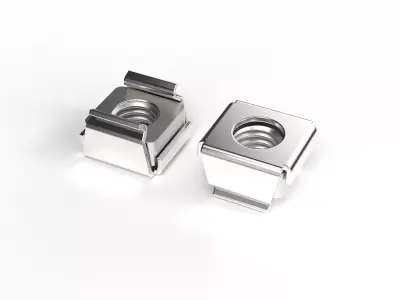

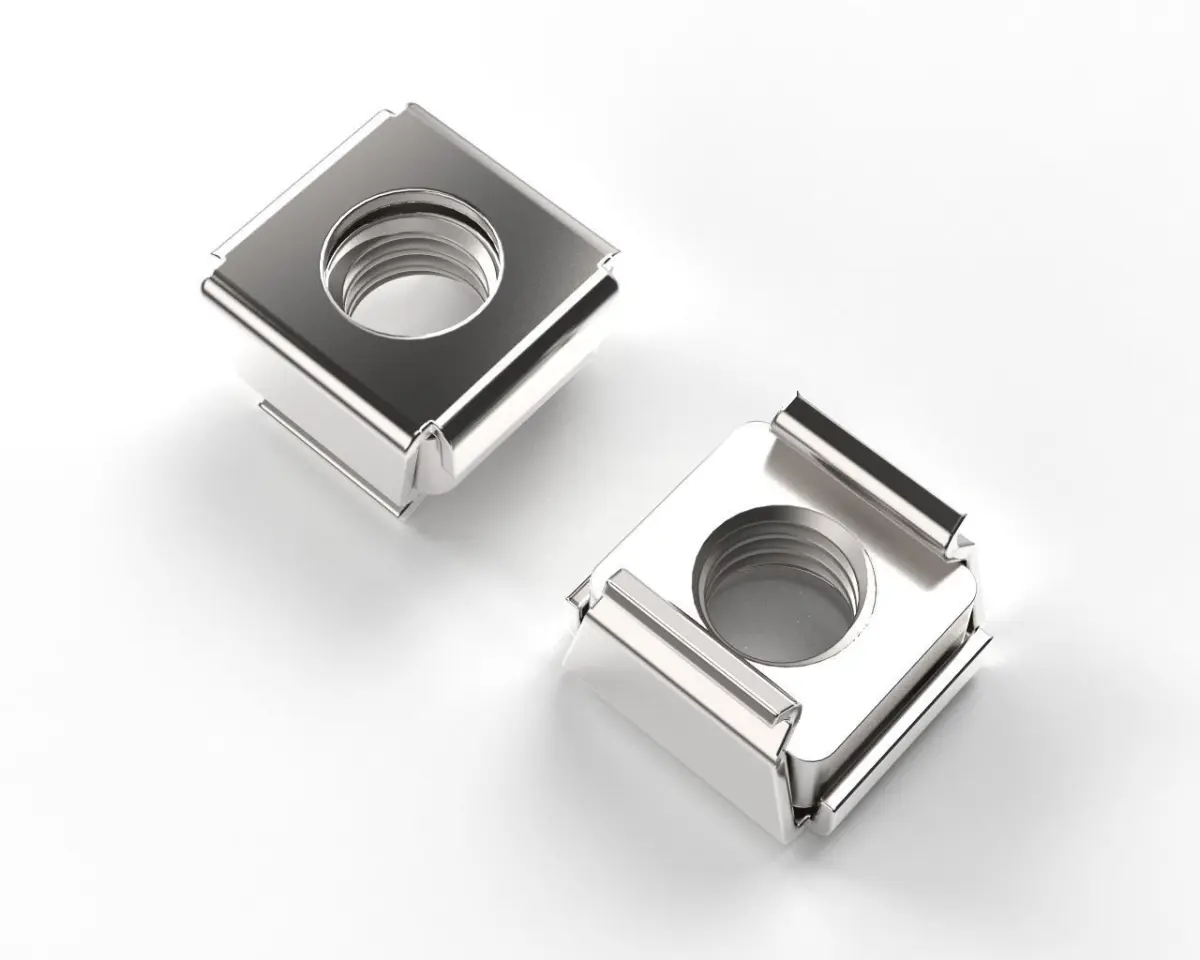

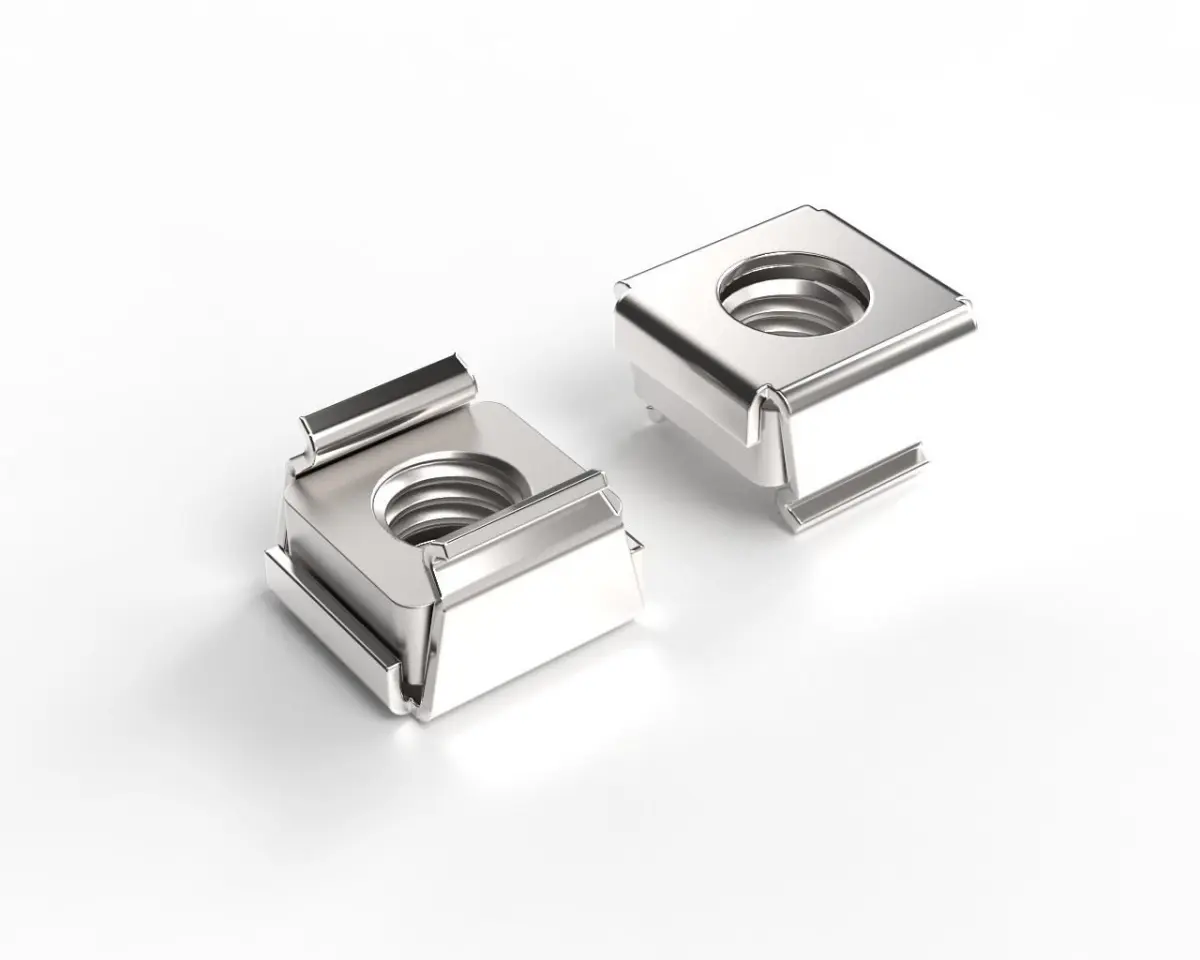

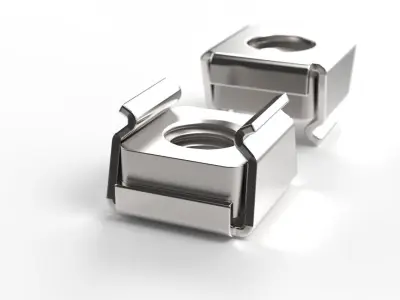

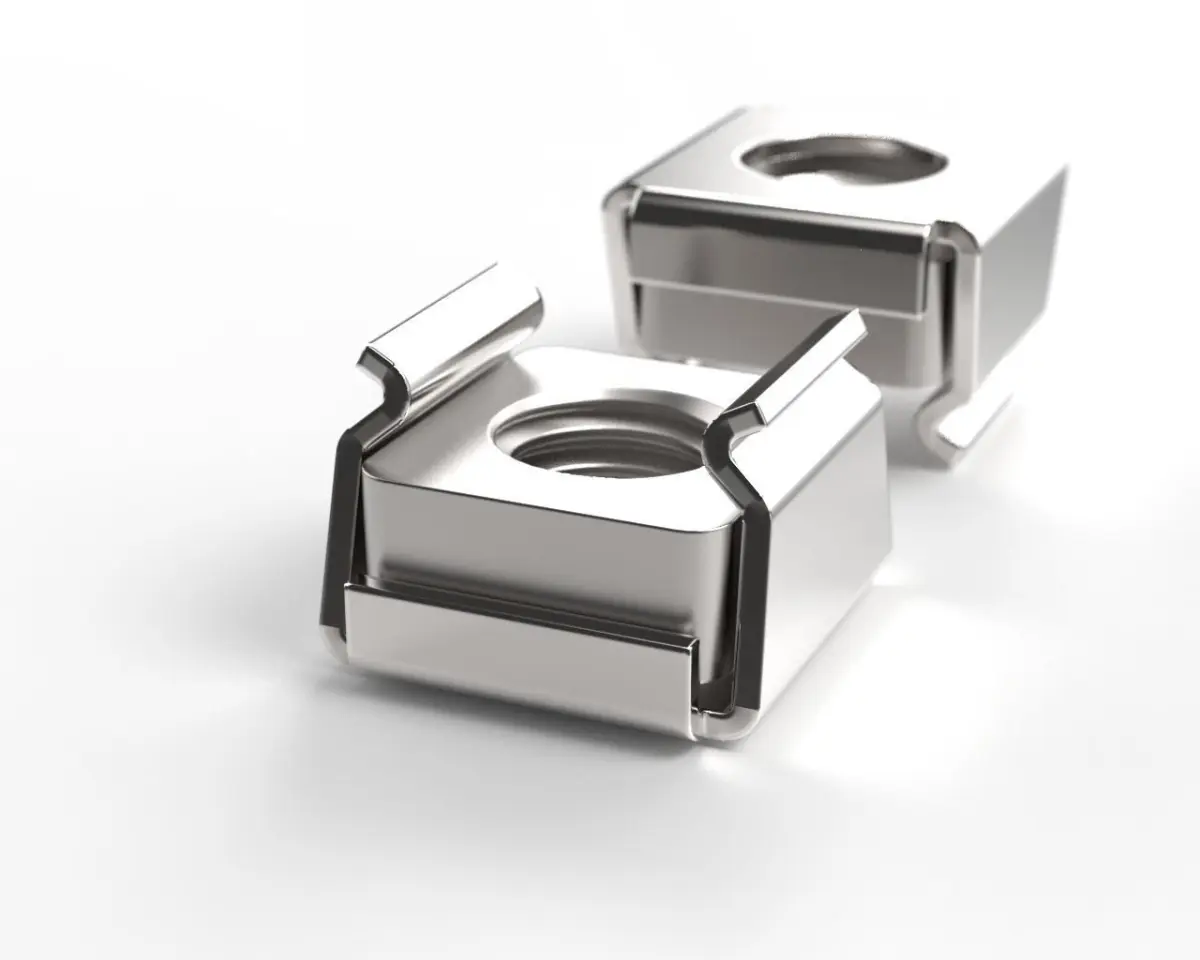

This is a fully detailed model of an M6 cage nut, designed for use in 19-inch racks for servers and audio equipment. The model includes geometry modelled threads. Modelled in SolidWorks and rendered in KeyShot.

From the NP website:

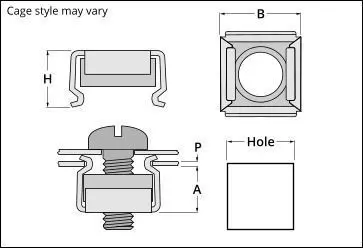

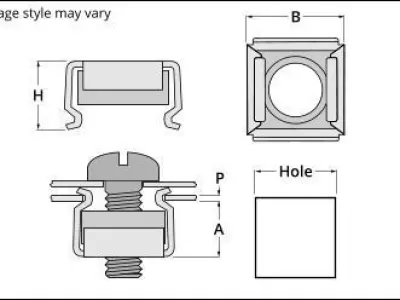

A cage nut consists of a square nut in a spring steel cage which wraps around the nut. The cage has two lugs that when compressed allow the cage to be inserted into a square hole. When the lugs are released, they hold the nut in position behind the hole.
