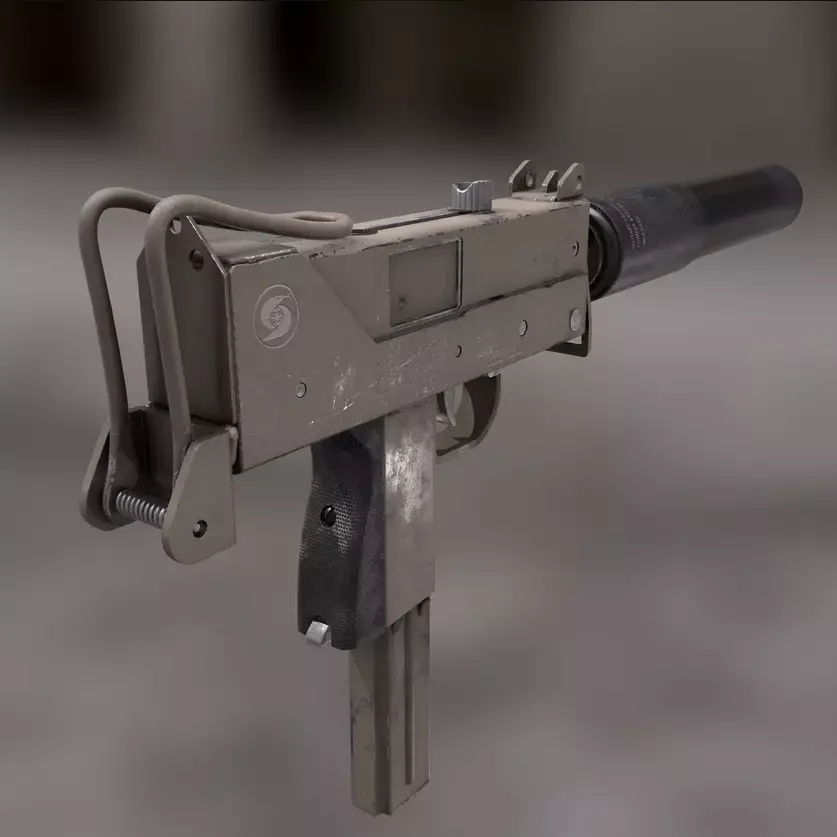

MAC-10, is a compact, blowback operated machine pistol/submachine gun that was developed by Gordon Ingram in 1964. It is chambered in either .45 ACP or 9mm. A two-stage suppressor by Sionics was designed for the MAC-10, which not only abates the noise created but makes it easier to control on full automatic (although it also makes the gun far less compact and concealable) The MAC-10 is built predominantly from steel stampings. A notched cocking handle protrudes from the top of the receiver, and turning the handle 90°, locks the bolt, and acts as an indicator the weapon is unable to fire. The MAC-10 has a telescoping bolt, which wraps around the rear face of the barrel. This allows a more compact weapon and balances the weight of the weapon over the pistol grip, where the magazine is located. The MAC-10 fires from an open bolt, and the light weight of the bolt results in a rapid rate of fire. In addition, this design incorporates a built-in feed ramp as part of the trigger guard (a new concept at the time) and, to save on cost, the magazine design was recycled from the M3 Grease Gun. The barrel is threaded to accept a suppressor, which works by reducing the discharge's sound without attempting to reduce the speed of the bullet. The .45 ACP models are well-suited for this, as most .45 loads are naturally subsonic, as opposed to the specialized subsonic loads usually required for suppressed 9mm weapons. At the suggestion of the United States Army, the suppressor also acts as a foregrip to inhibit muzzle rise when fired. Ingram added a small bracket with a small strap beneath the muzzle to aid in controlling recoil during fully automatic fire.
FBX (Autodesk FBX, filesize: 108 MB), PNG (PNG, filesize: 108 MB)
