Buy Machinery Fixture Clamping Jaw 3D model

Name: Machinery Fixture Clamping Jaw 3D model
Brand: arslanarif
SKU: 633282
Price: 5.00 USD
Availability: InStock

License: Royalty Free

author:

arslanarif

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «arslanarif». CGhub does not claim copyright ownership over the content used.

Machinery Fixture Clamping Jaw - Engineering CAD Model

It’s a mechanical component designed in SolidWorks for teaching purposes (not for direct industrial use, as noted in the footer).

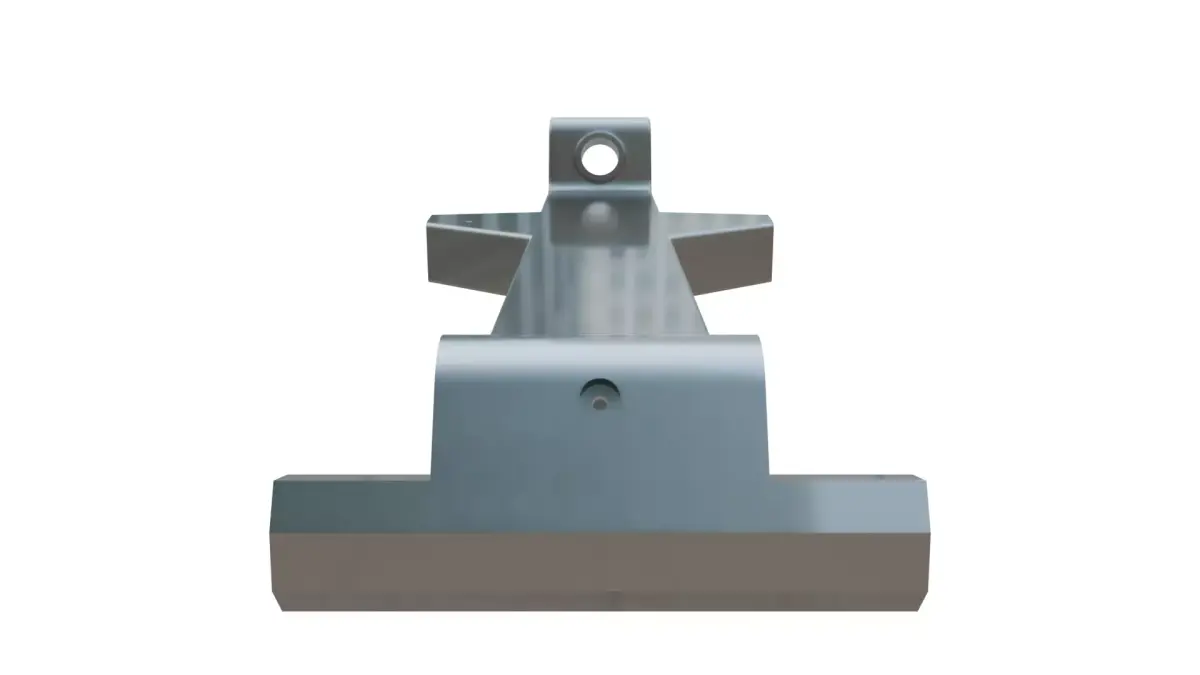

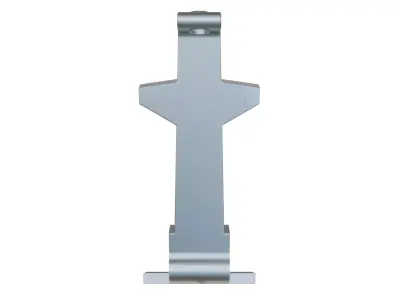

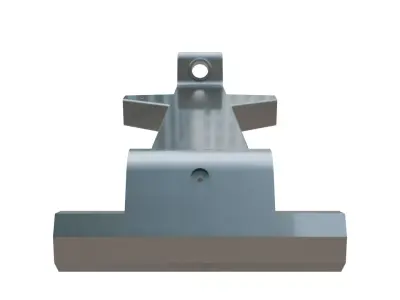

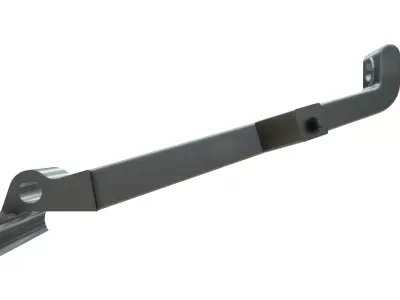

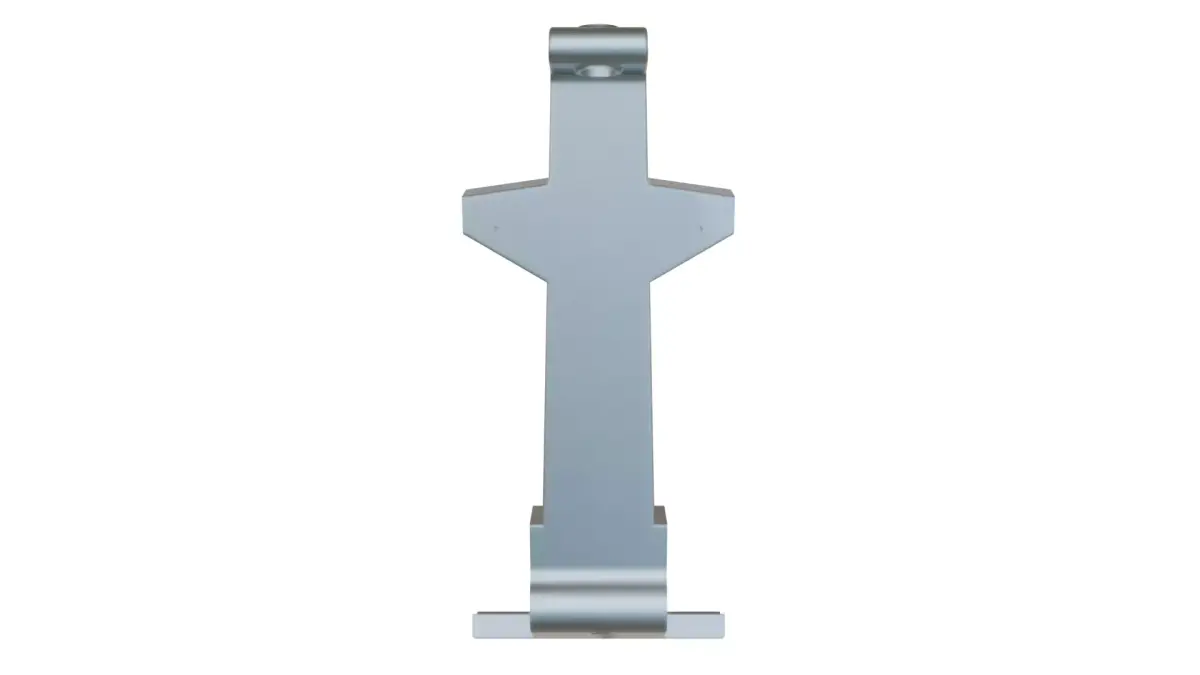

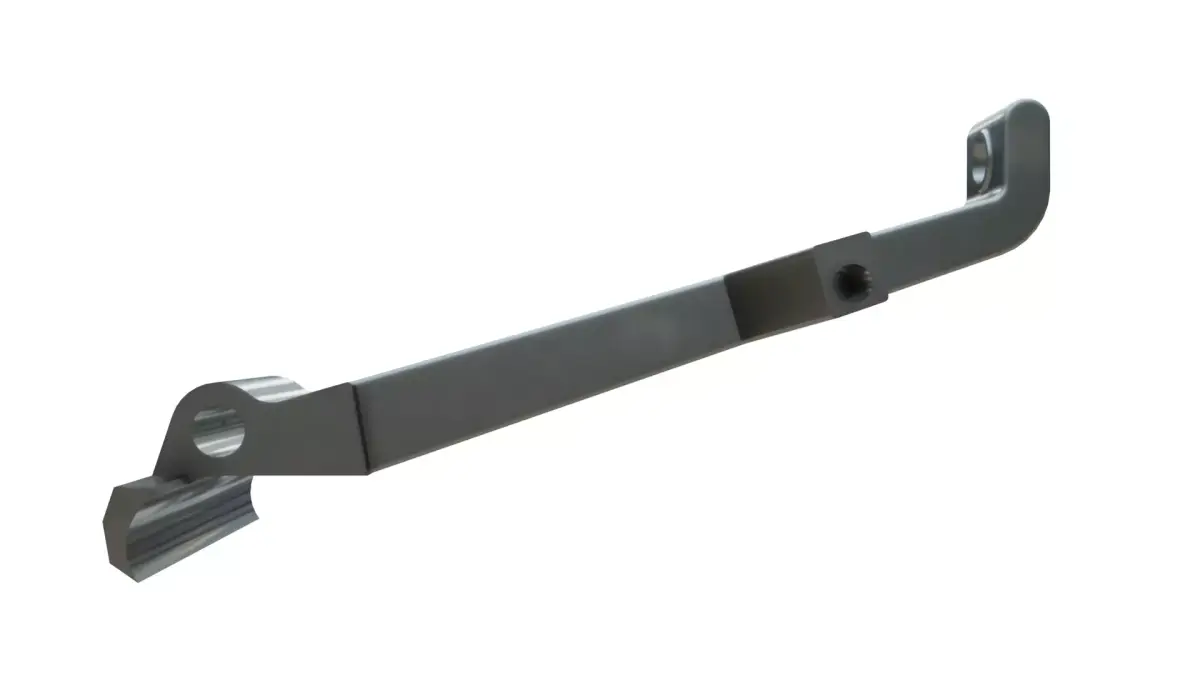

The geometry shows:

A central elongated body with symmetrical extensions.
Cylindrical ends with holes for mounting or pivoting.
Side holes likely for fasteners or alignment pins.
Radii and chamfers standardized (R3, 1×45°).
Material: Non-rusting steel casting (Nichtrostender Stahlguss).

A clamping jaw (Klemmbacke) is typically used in:

Fixtures and workholding systems: It grips or secures a workpiece during machining, welding, or assembly.
Mechanical linkages: It can act as a pivoting or holding element in assemblies.
Industrial presses or vices: Works as part of a clamping mechanism to apply force and hold parts in place.

File Formats: Solidworks, Blend, STEP, OBJ & Fbx.

#clampingjaw #Mechanical #Linkage #SteelCasting
