Buy Machinist V-Blocks 3D print model

Name: Machinist V-Blocks 3D print model
Brand: rachidsw
SKU: 633167
Price: 3.00 USD
Availability: InStock

License: Royalty Free No Ai

author:

rachidsw

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «rachidsw». CGhub does not claim copyright ownership over the content used.

V-Blocks are precision metalworking jigs typically used to hold round metal rods or pipes for performing drilling or milling operations. They consist of a rectangular steel or cast iron block with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. A small groove is cut in the bottom of the V. They often come with screw clamps to hold the work.

Perfect for FEA simulations and to be added to your CAM library for machining simulations

Perfect for 3d applications.

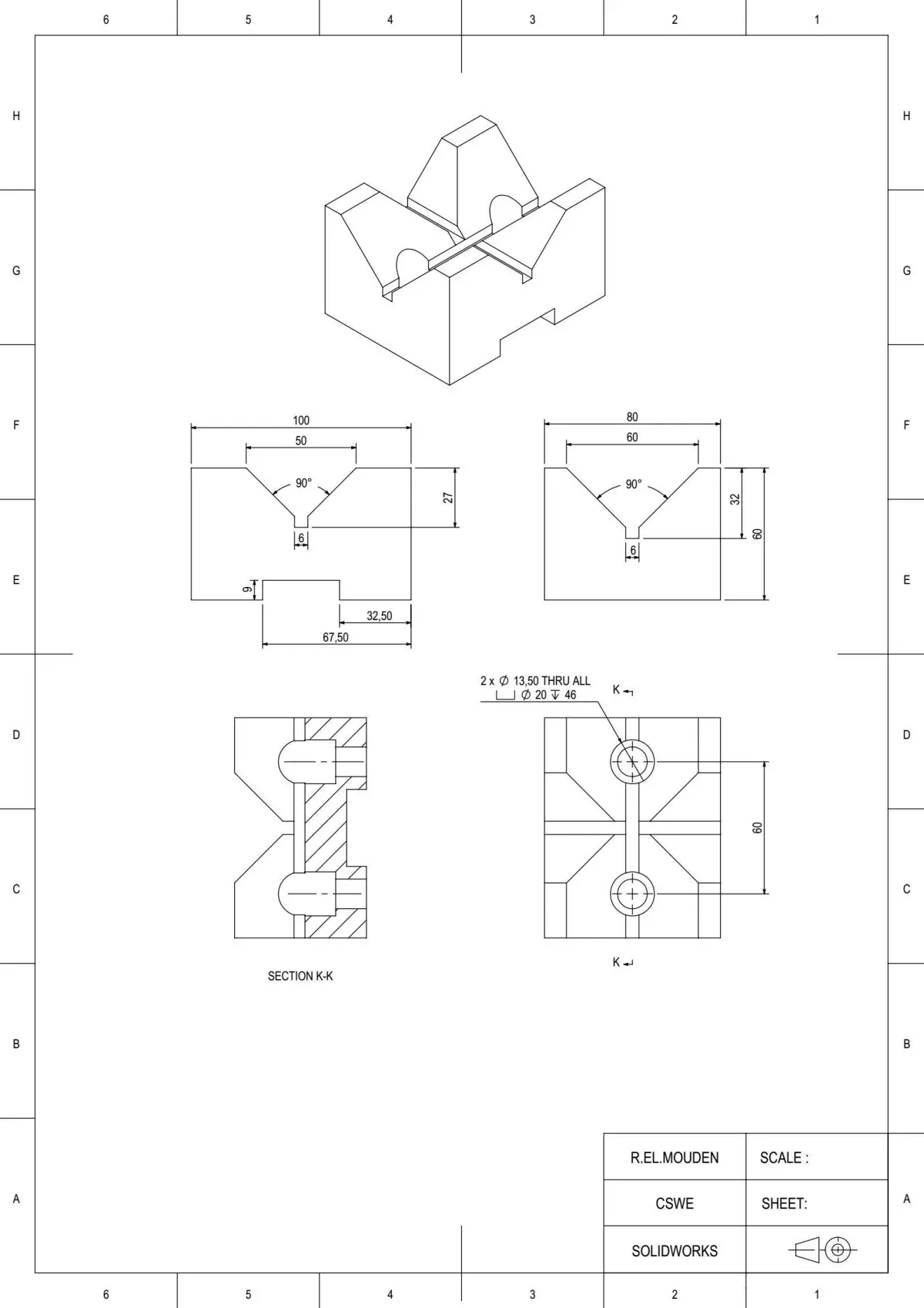

Made in solidworks 2020. The model is provided in the formats : STL, STEP, IGES, and a OBJ plus a PDF drawing with all the dimensions.

Please contact us for any inquiries and modifications. Check my previous models for similar designs.
