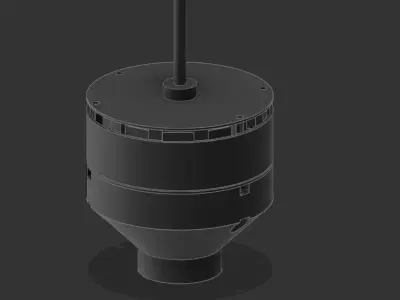

Magnetic Generator wind turbine AND MOTOR 3D print model

$15

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

mattia6519

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mattia6519». CGhub does not claim copyright ownership over the content used.

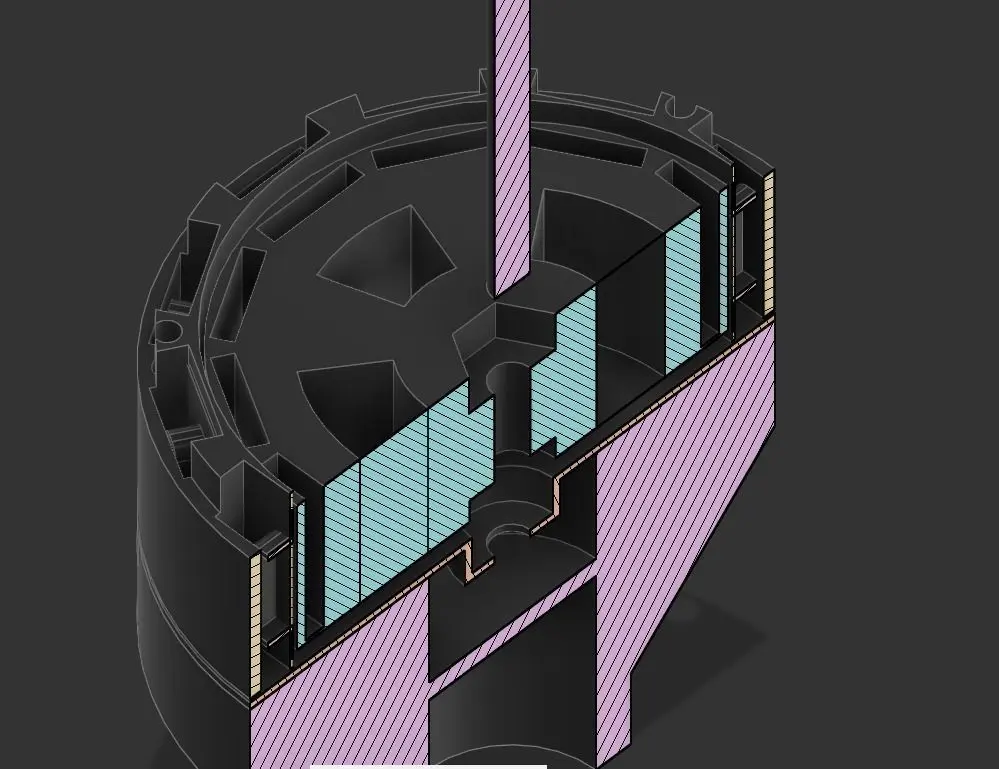

A really cheap working permanent magnetic generator. Totally 3d printable.It's working at low rpm , and can be used into vertical or orizontal wind generator. BRUSHLESS!!Easy to assembly.In the model you find all you need, the stator, the rotor, the wire holder for make coils and the base for hold the generator where you want.

For complete the assembly you need in order the follow components:2 bearing weels (10x22x5)M10 screw 1m lenght for rotor shaftM10 nut (x2)12 neodimio magnetic (max dimension 25x40x5)A lot of coil wire, best result with 0.6 mm section.M5 screw for stator and base. (x 4)M5 nut (x 8)You can transform it also in a motor, just check electric scheme and use an ESC.

3D PRINTER SETTING:

use medium hight infil : 25%/30%-abs is better, but also pla can work decently-no support needed

Soon a complete guide will be available.
