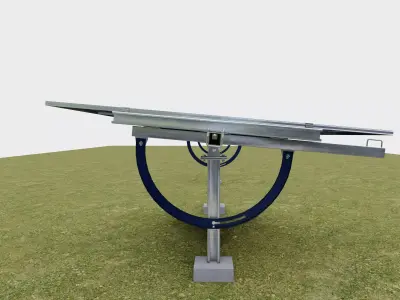

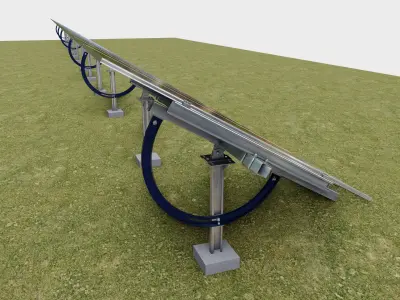

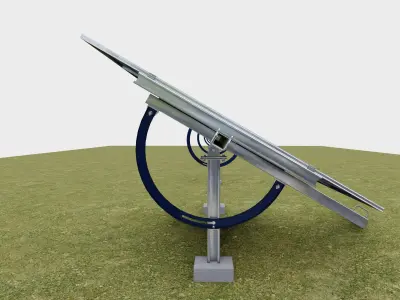

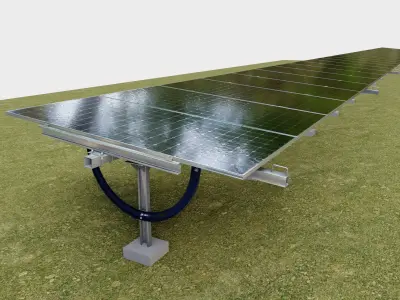

Manual Tracker Solar Energy Structure Type-5 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

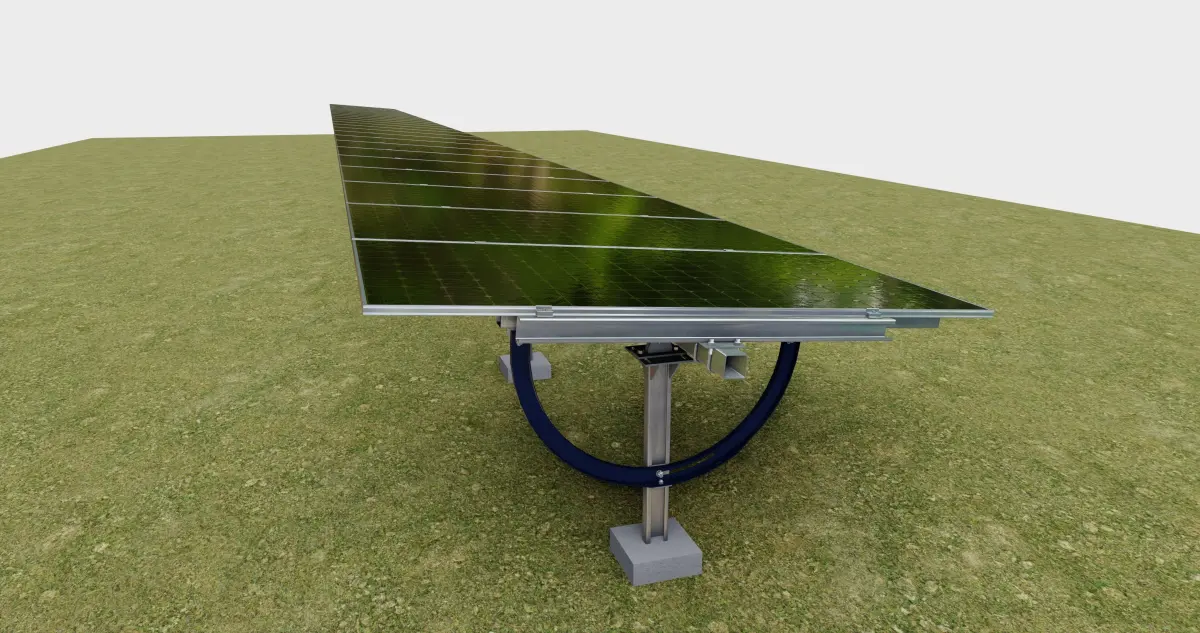

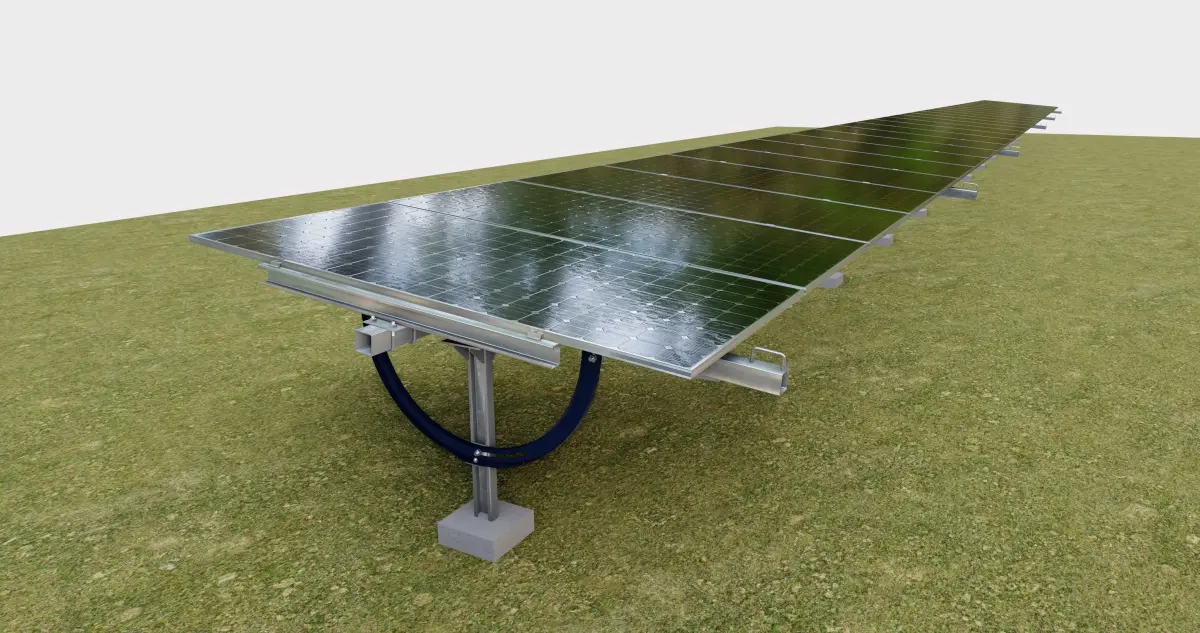

Manual Tracker Solar Energy Structure Type-5

1x26 Vertical Panel Layout

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1600 mm.

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 28,6 kWp power in 1 hour

The system consists of 12 axles and the distance between each axle is 2500 mm.

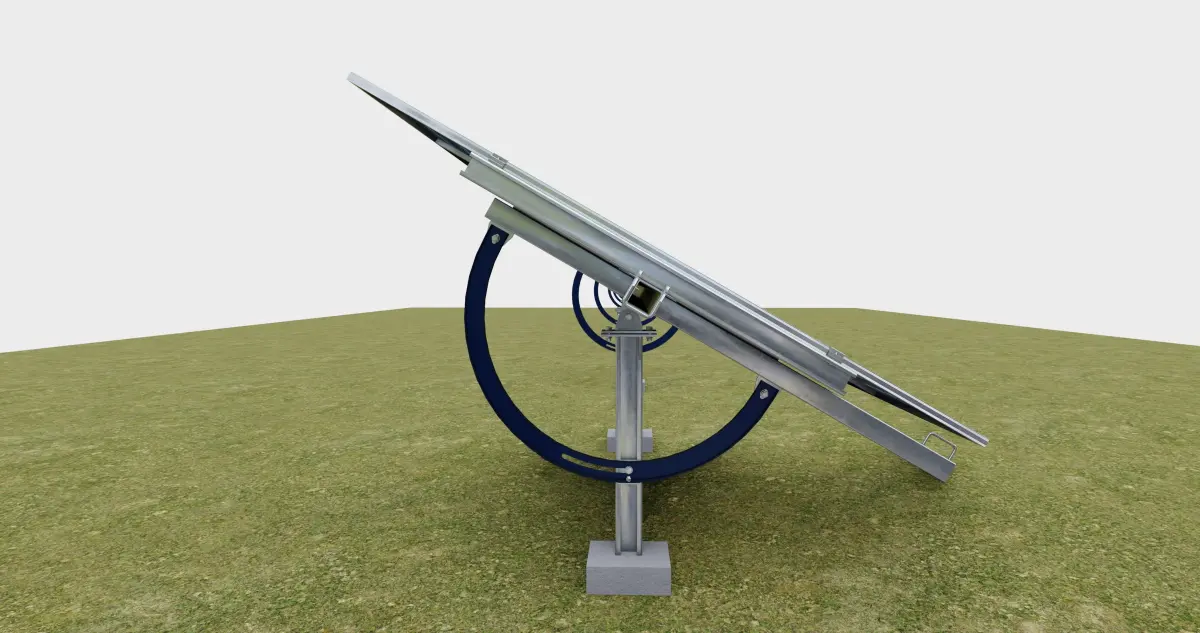

Horizantal angle of panel 5° - 18° - 30°

The closest distance of the panels to the floor 600 mm.

Prepared With BLENDER Version 4.0.1

Polygons : 495177

Vertices : 567372

Objects : 753

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 495177
Vertices: 567372

Tags

Solar Plant Site Panel Energy Sun Aluminium Structure Outdoor Engineering Buildings Green Module Mounting Inverter Manuel Tracker Tracking Architectural
