Marking Visual Inspection all-in-one Machine 3D model
Marking Visual Inspection all-in-one Machine 3D model
Marking Visual Inspection all-in-one Machine 3D model
Marking Visual Inspection all-in-one Machine 3D model
Marking Visual Inspection all-in-one Machine 3D model

Publication date: 2023-03-10

Marking Visual Inspection all-in-one Machine 3D model

$89

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $89 Add to Wishlist
  • Description
  • Formats
Description

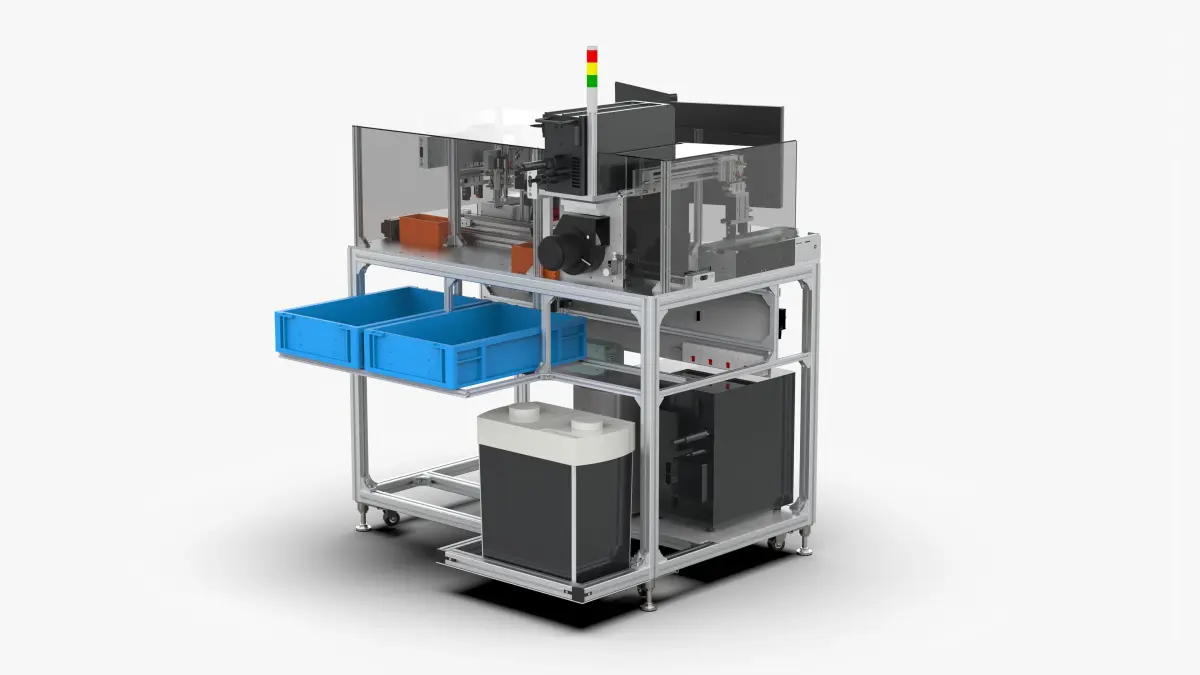

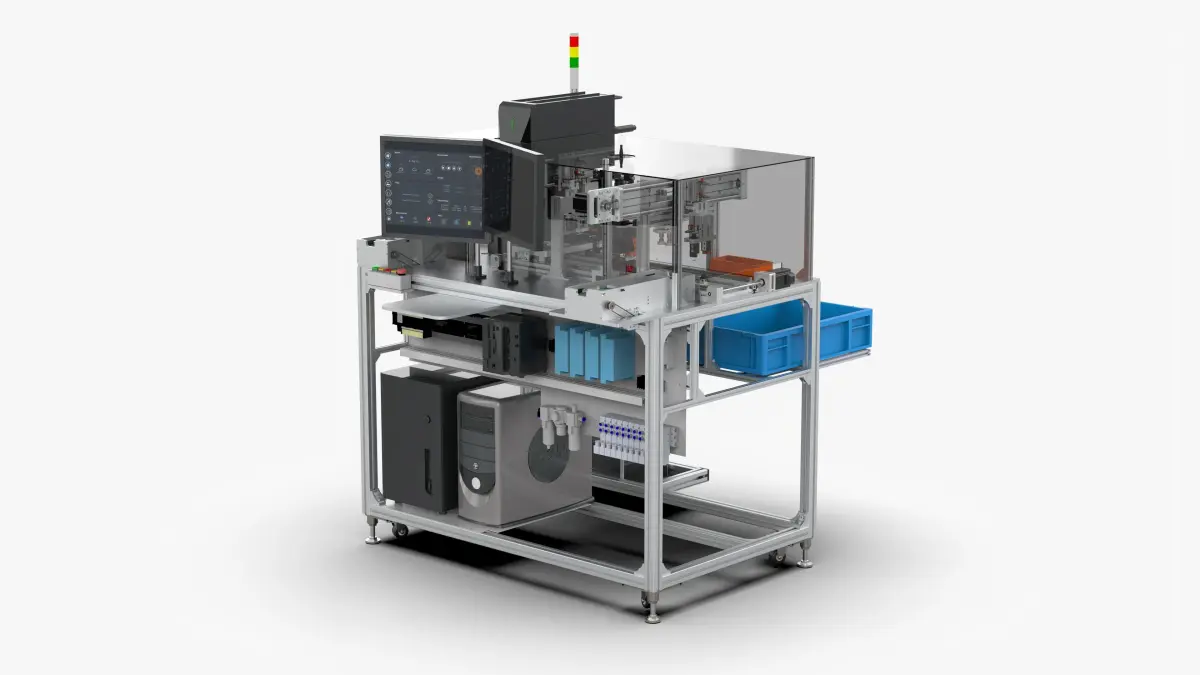

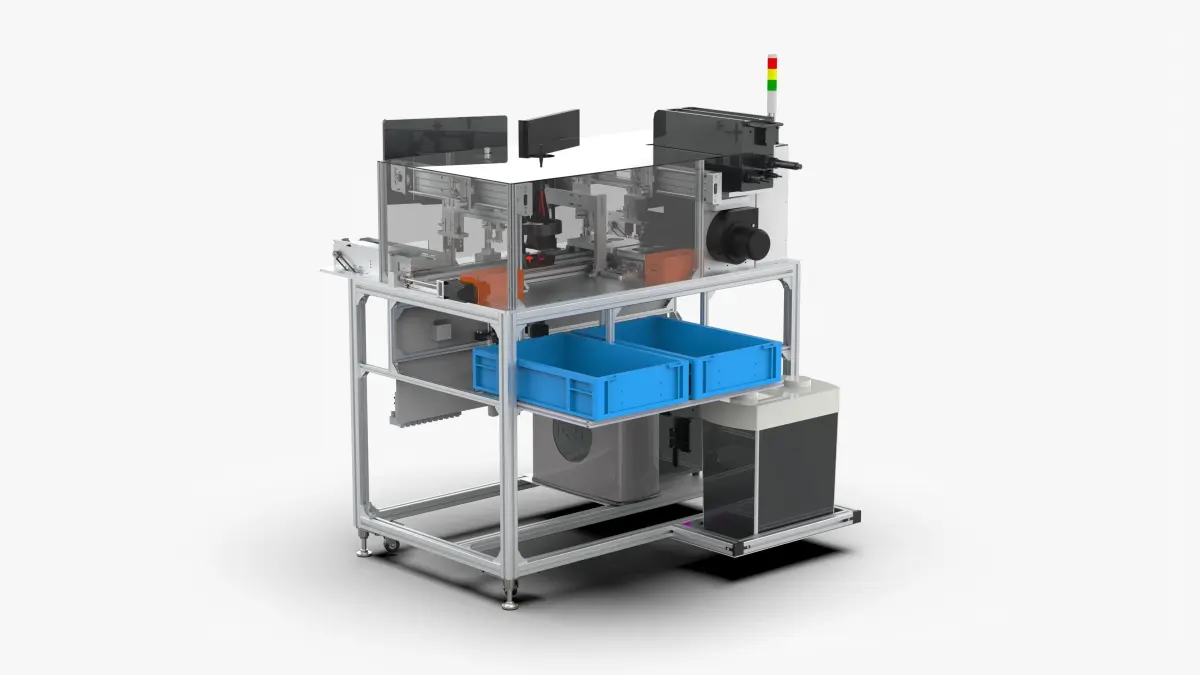

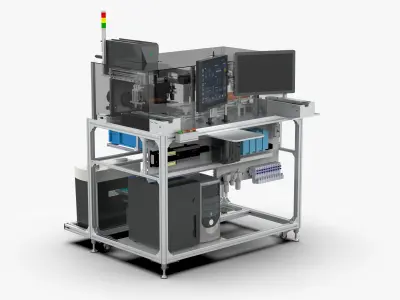

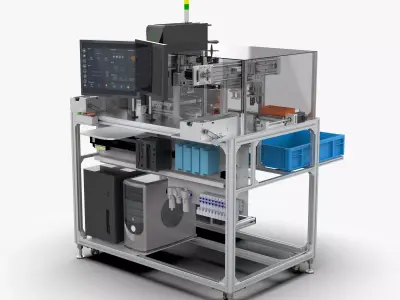

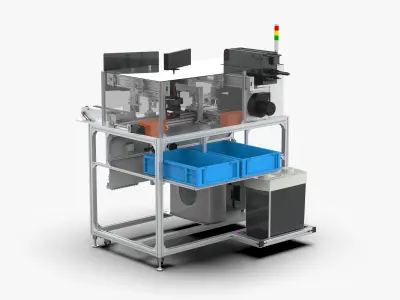

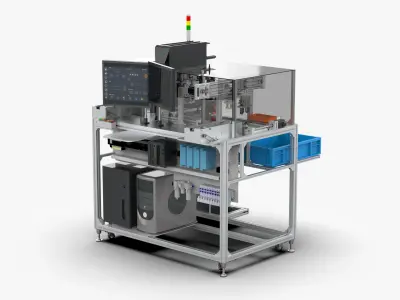

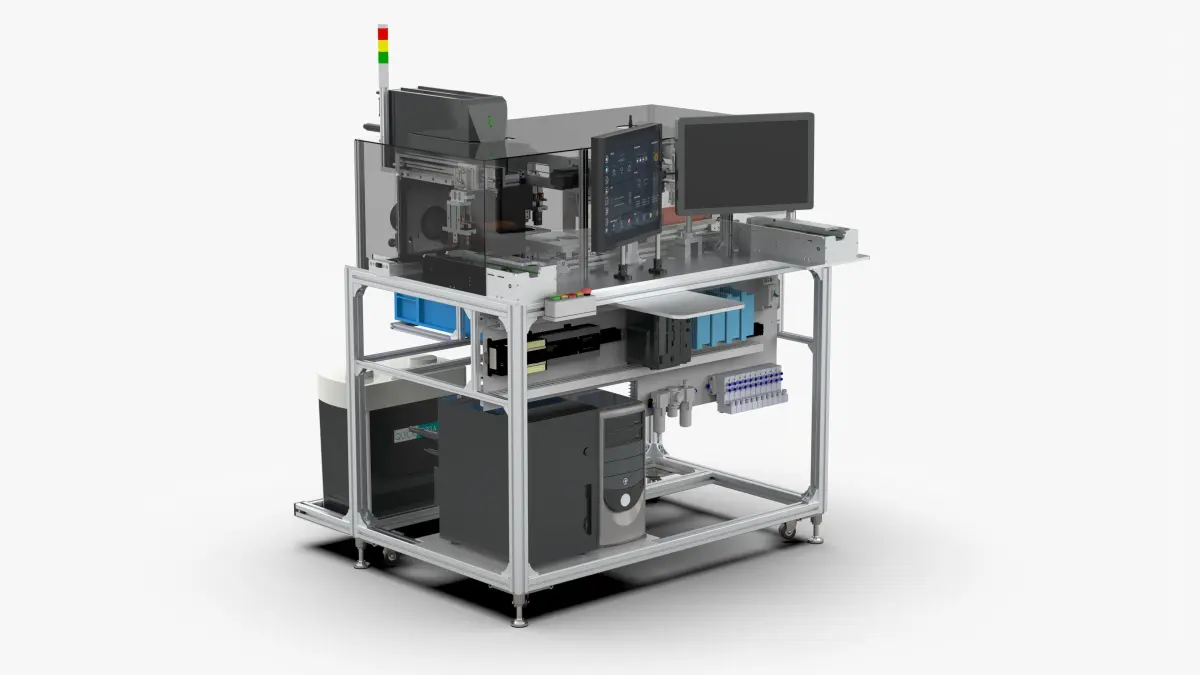

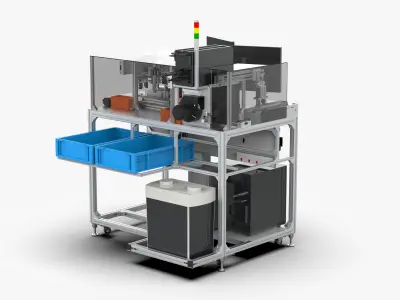

Marking Visual Inspection all-in-one Machine

Introduction

This equipment adopts the automatic feeding method, the conveying line feeds the material, takes out the material through the cylinder combined with the manipulator, reaches the marking position for marking, and performs visual inspection after reaching the standard.If it is qualified, it will continue to flow to the unloading area. If it is NG, the material is divided and rejected by the manipulator.The sub-equipment has fine structure, strong practicability, complex mechanism, and can be used for learning and so on.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 2,178,357
  • Vertice: 6,535,071

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 2,178,357
  • Vertices: 6,535,071
  • Plugins used

Tags

Marking Visual Inspection All in one Machine Solidwork Design Assembly Modeling Automatic Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()33.8 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • OBJ ()161 MB
  • IGES ()168 MB
  • Stereolithography ()104 MB
  • STEP ()42.8 MB
