Marriage hall complete design drawings and estimate 3D model

$79

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

mechengineer2014

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mechengineer2014». CGhub does not claim copyright ownership over the content used.

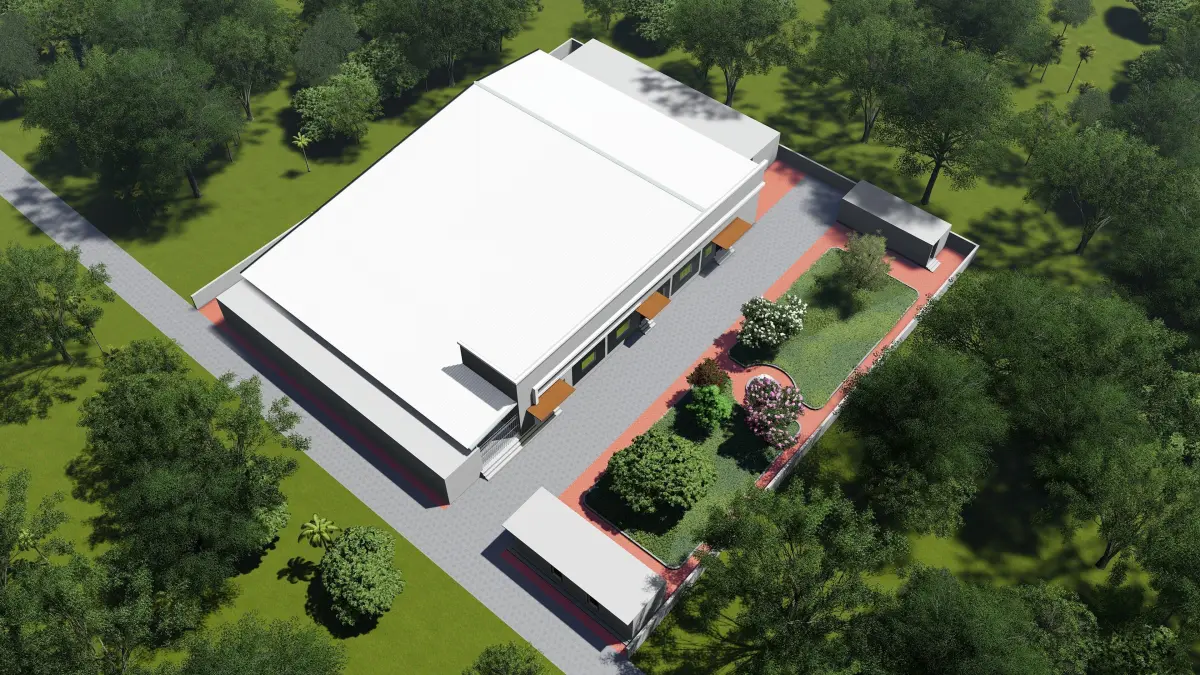

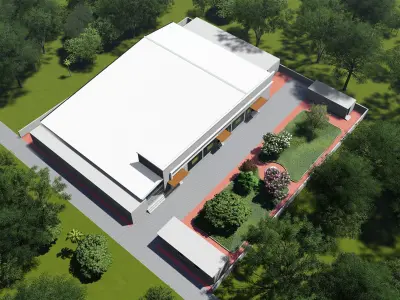

Marriage Hall Complete Design , Drawings and Estimate - Cost effective Design

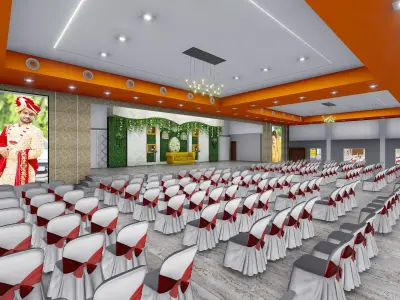

700 seating Hall and 250 Seating Dining - separate kitchen6 rooms with attached toiletoffice roomsecurity roomstore roomsElectrical roomcar parking spacecommon toilets

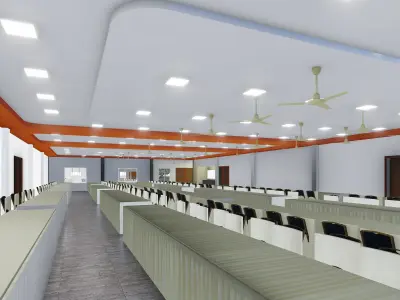

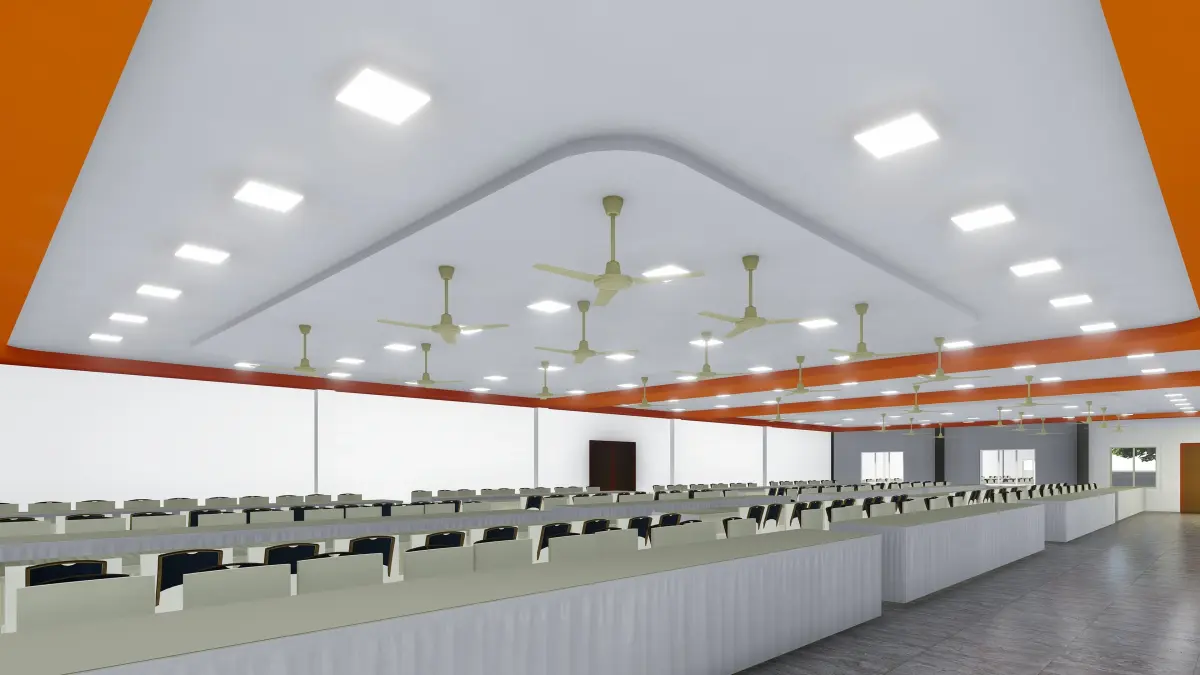

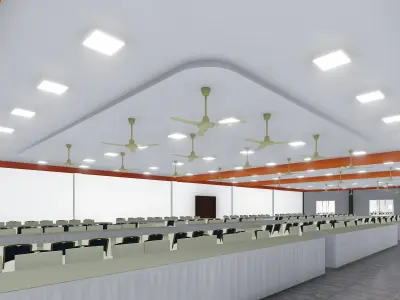

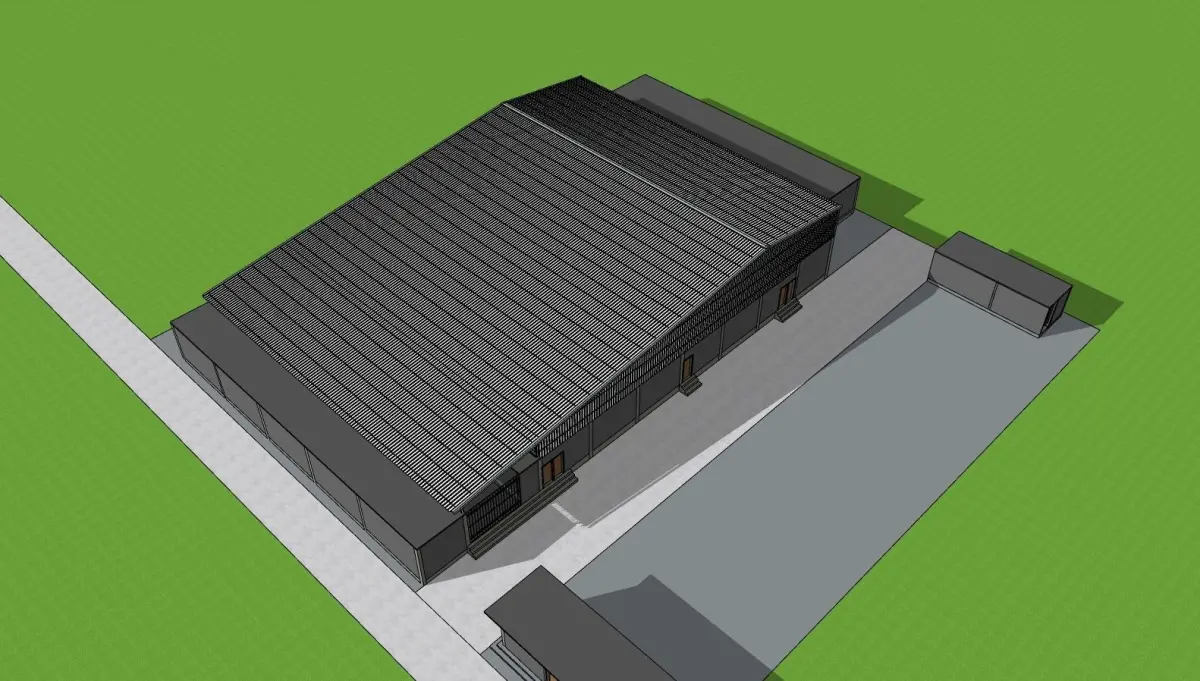

Upto 10 ft Rcc work above 10ft steel structure with gi sheet on roofside cladding Cement fibre boards and have false ceiling for hall and dining

Air conditioning also done on this model with Ductable split ac units for halls onlyELectrical and plumbing also done on this model.

Total turnkey project cost is in the estimate excel file and total drawings on Pdf and also in CAD format,Revit 2020 formatSKetchup file 2021

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0
Plugins used

Tags

Marriage Hall Wedding Interior Exterior Dining Bride Groom Stage Function Open Architecture interior Reception Steel Structure Truss Roofing Lowcost Architectural Engineering
