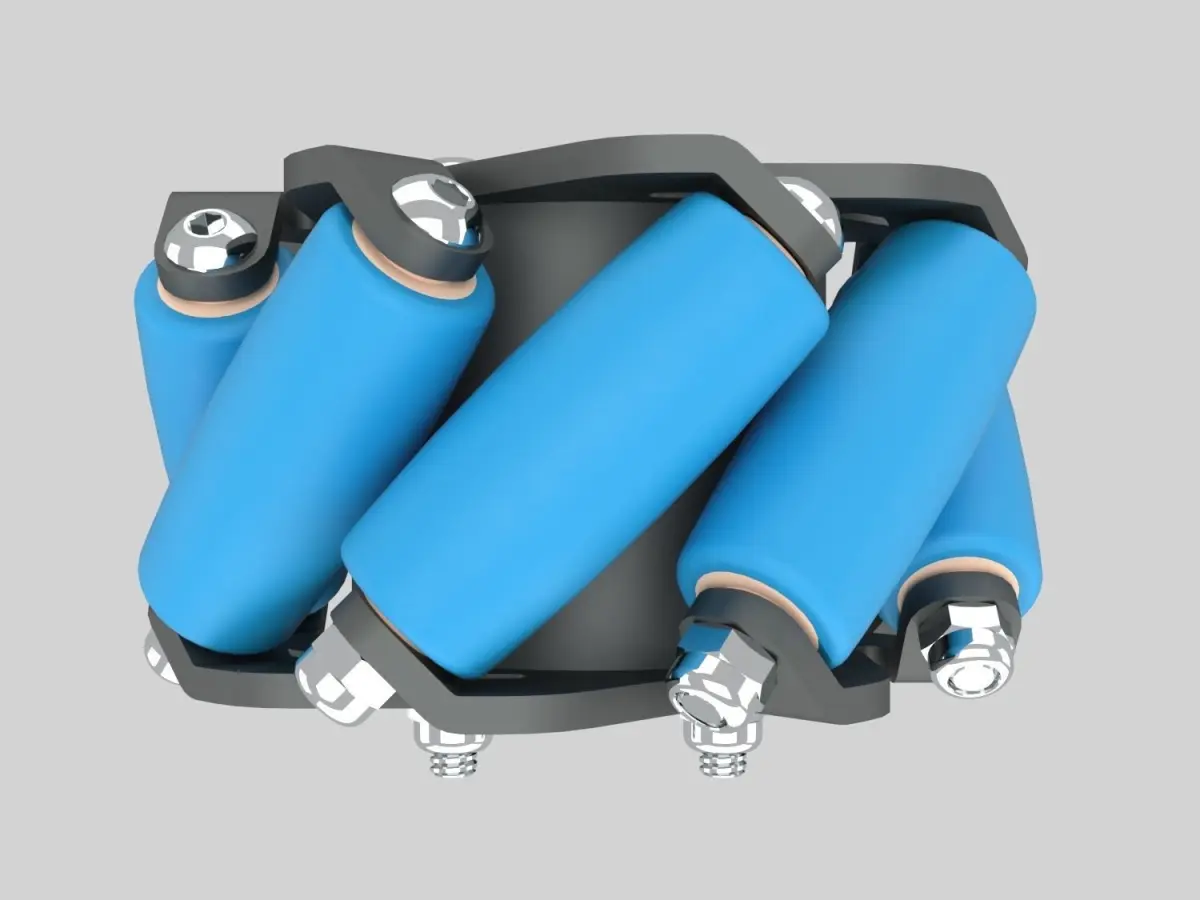

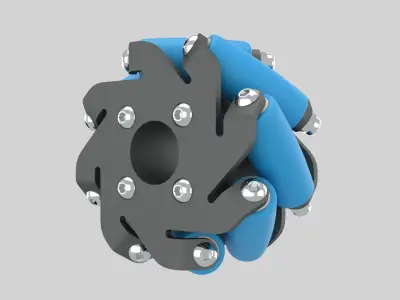

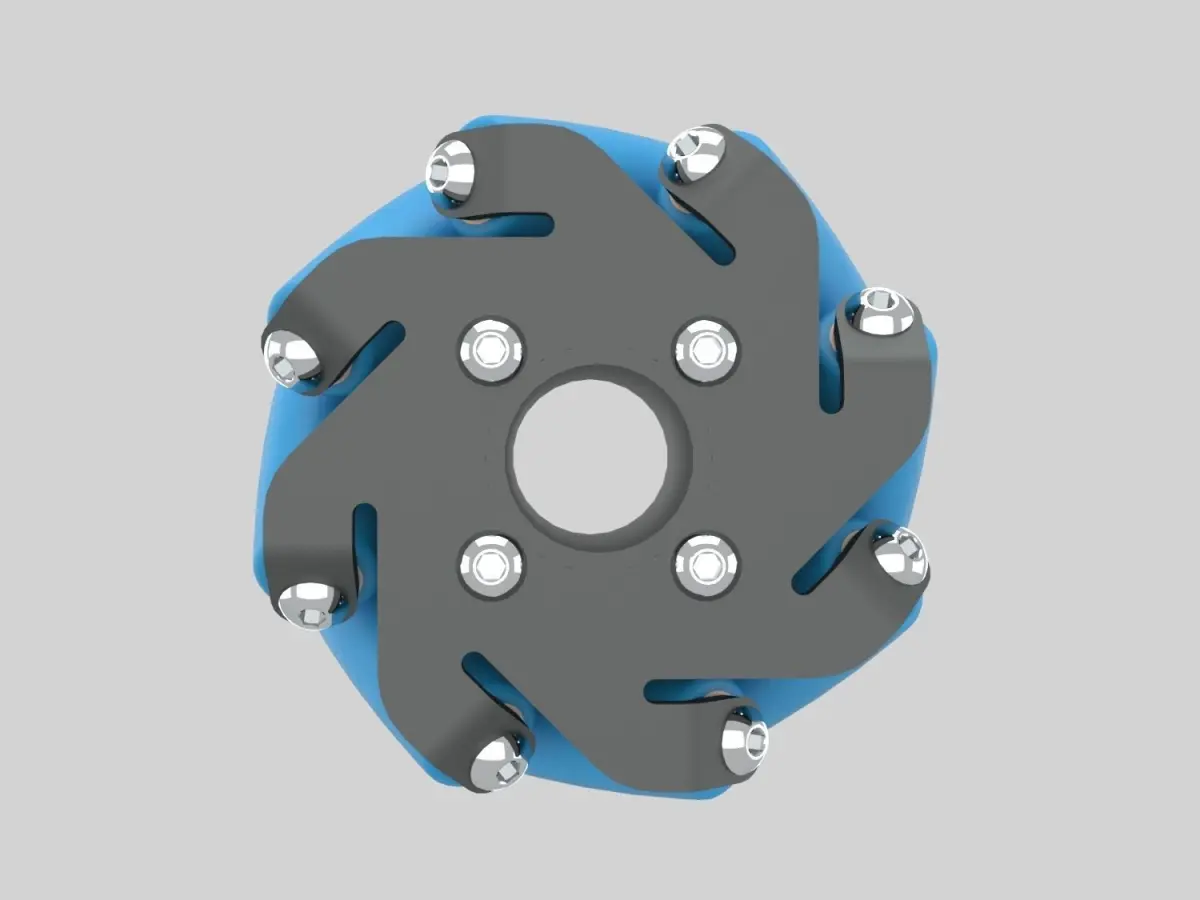

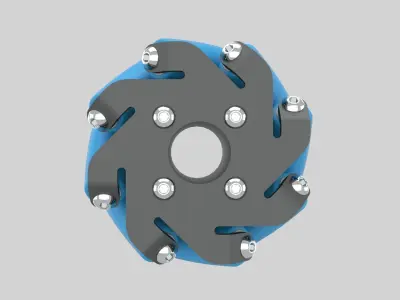

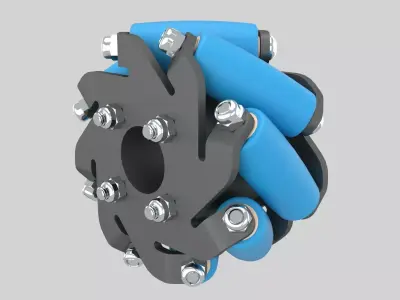

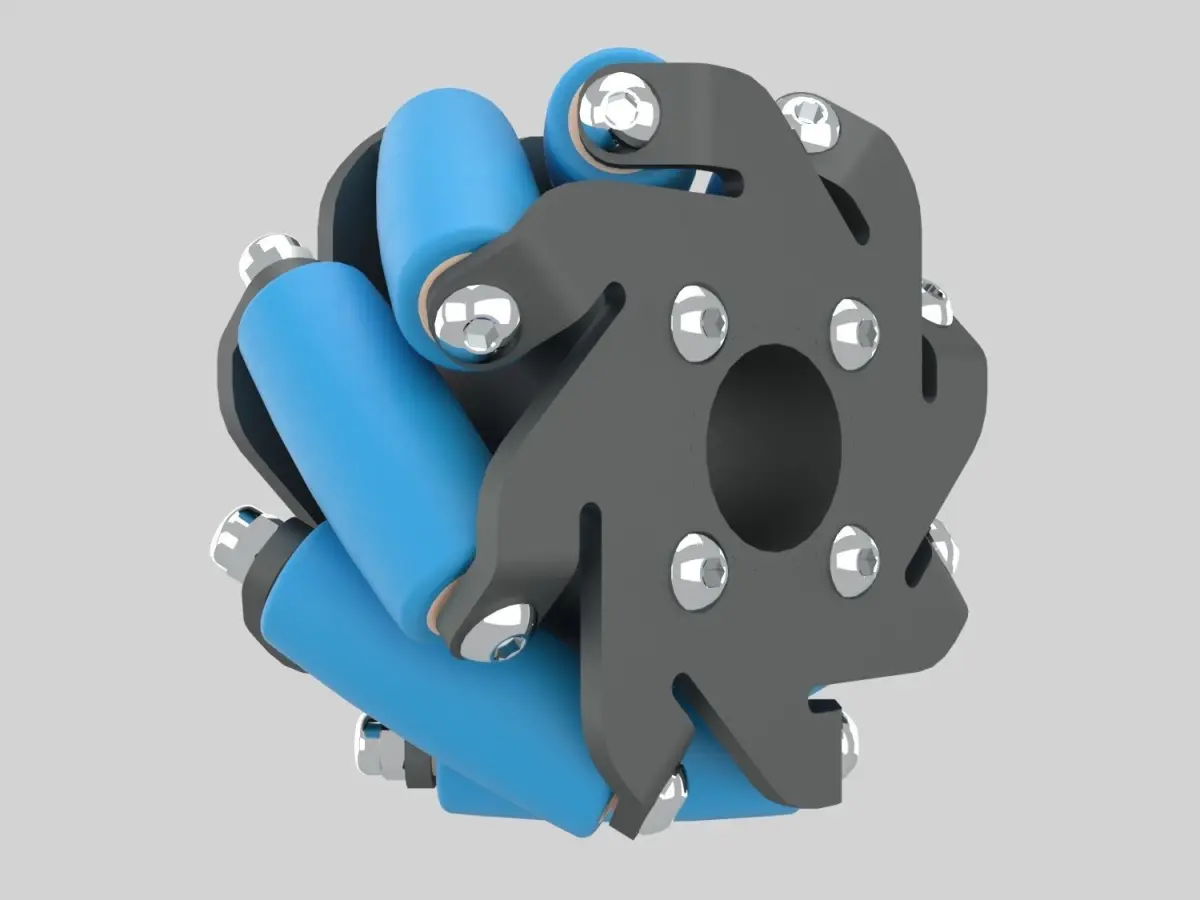

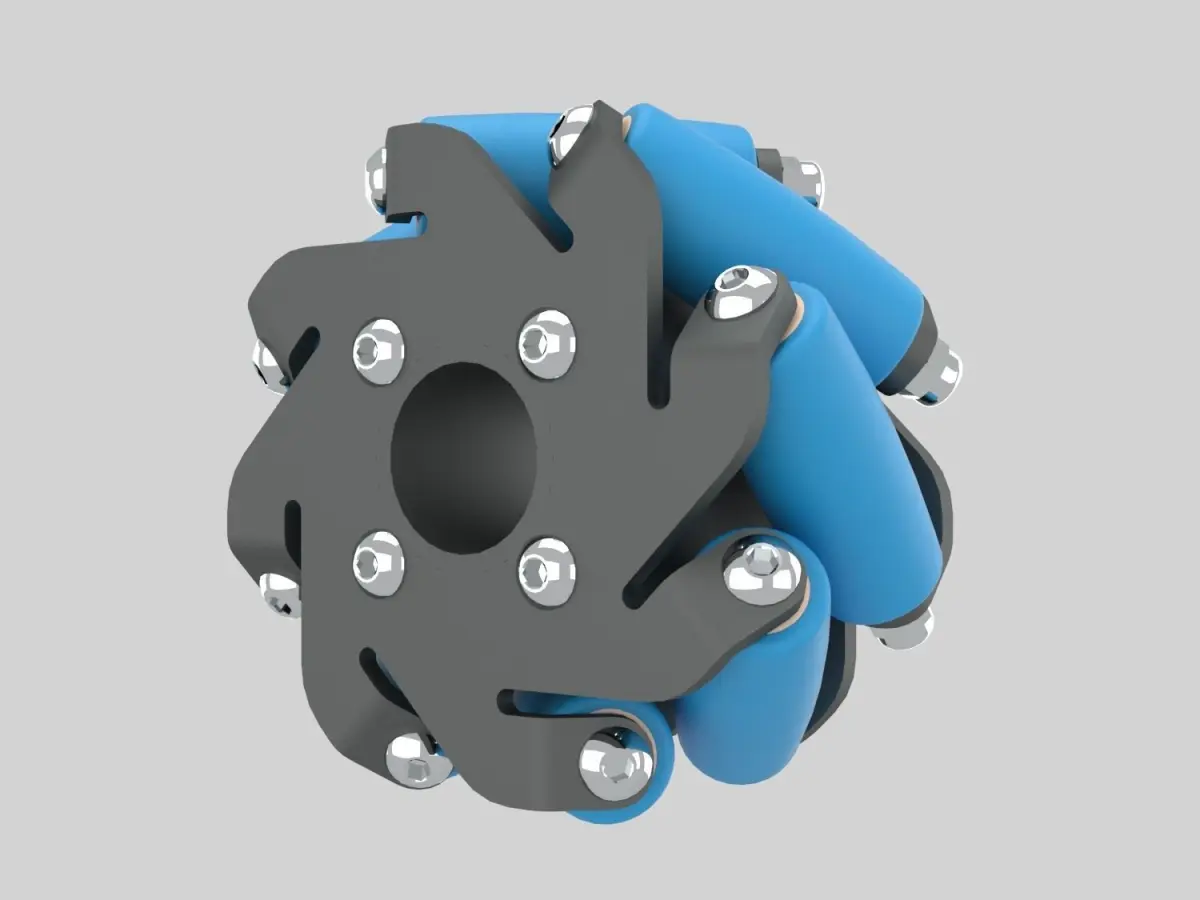

Mecanum Wheel 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

tiger-fire

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «tiger-fire». CGhub does not claim copyright ownership over the content used.

The mecanum wheel is an omnidirectional wheel design for a land-based vehicle to move in any direction. It is sometimes called the Swedish wheel or Ilon wheel after its inventor, Bengt Erland Ilon (1923-2008), who conceived of the concept while working as an engineer with the Swedish company Mecanum AB, and patented it in the United States on November 13, 1972.The mecanum wheel is a form of tireless wheel, with a series of rubberized external rollers obliquely attached to the whole circumference of its rim. These rollers typically each have an axis of rotation at 45° to the wheel plane and at 45° to the axle line. Each Mecanum wheel is an independent non-steering drive wheel with its own powertrain, and when spinning generates a propelling force perpendicular to the roller axle, which can be vectored into a longitudinal and a transverse component in relation to the vehicle.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0
Plugins used

Tags

Mecanum Wheel Robot Platform Vehicle Unmanned Cargo Robotics Trolley Truck Wagon Industry Industrial Technology Ground Arduino Raspberry Engineering Transport Logistics Tool
