Name: Mechanical gripper 3D print model
Brand: SerhiiShm
SKU: 876912
Price: 5.00 USD
Availability: InStock

License: Royalty Free No Ai

author:

SerhiiShm

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SerhiiShm». CGhub does not claim copyright ownership over the content used.

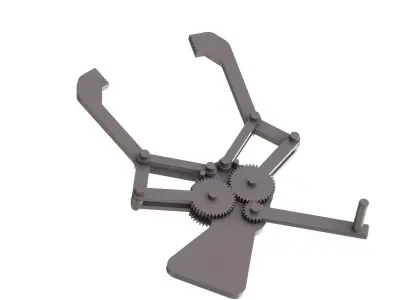

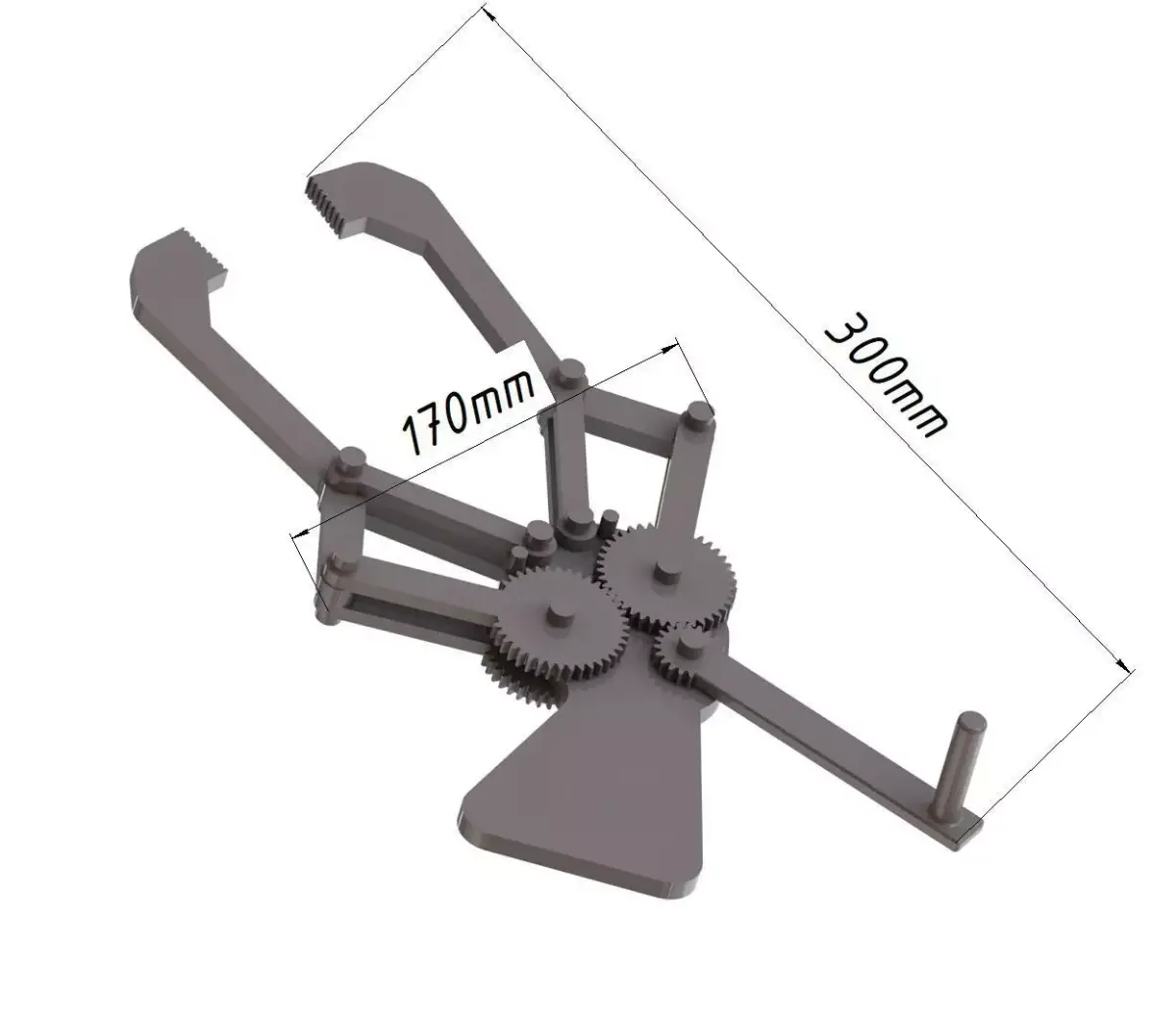

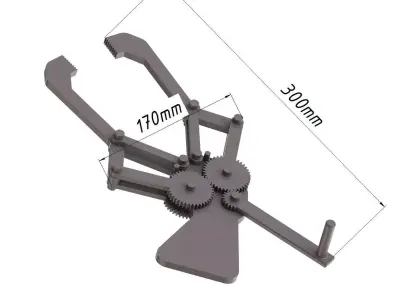

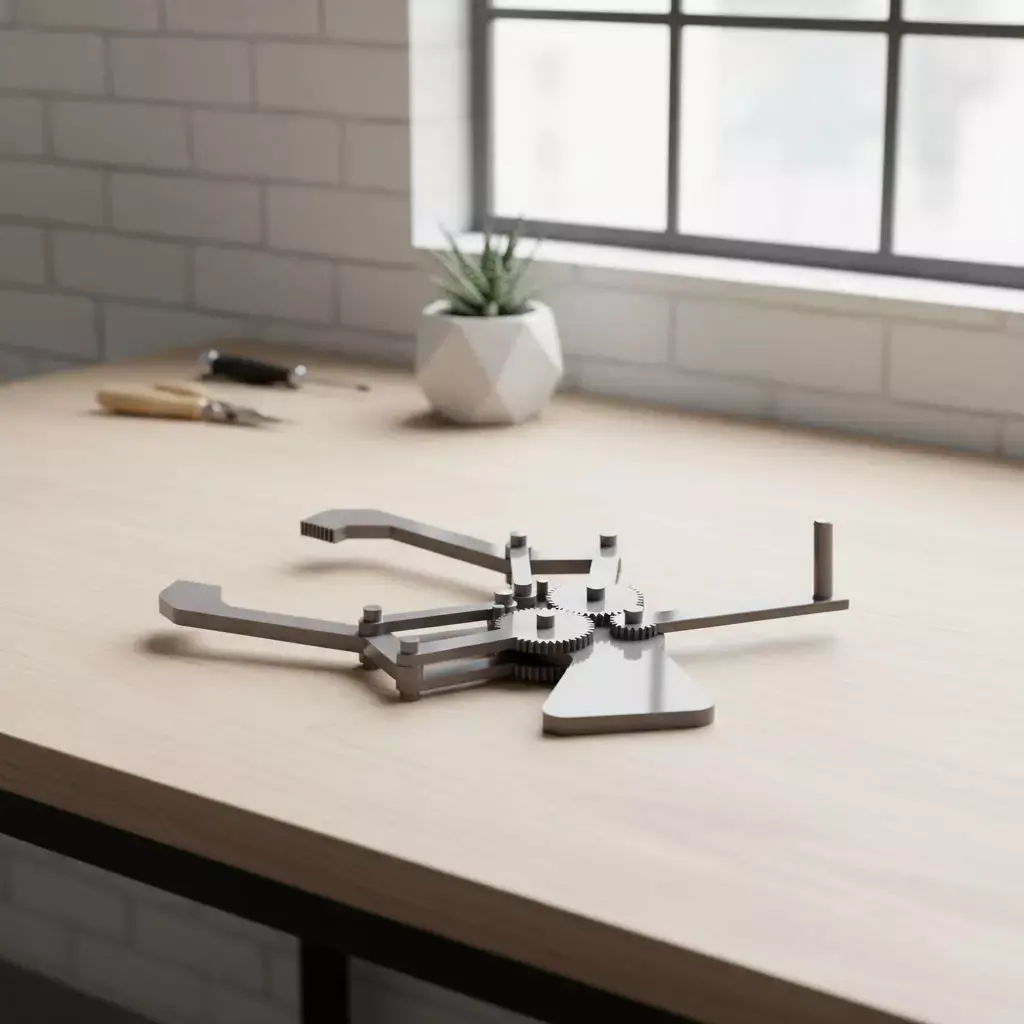

This is a mechanical gripper mechanism designed as a functional and demonstrational 3D model. The design includes a flat base platform on the lower left side, allowing the model to be comfortably held with fingers during operation. A built-in handle integrated directly with the drive gear enables smooth manual actuation and clearly demonstrates how rotational motion is converted into synchronized gripping movement. All joints and pivot points are designed so the assembly can be made using standard M5 bolts, washers, and nuts, making the model practical for real mechanical assembly.

Features

Mechanical gripper with synchronized jaw movement

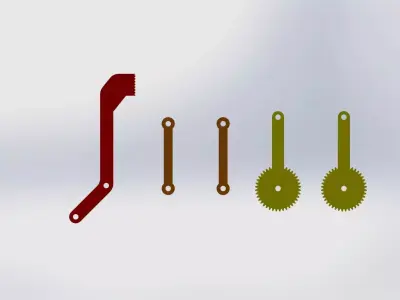

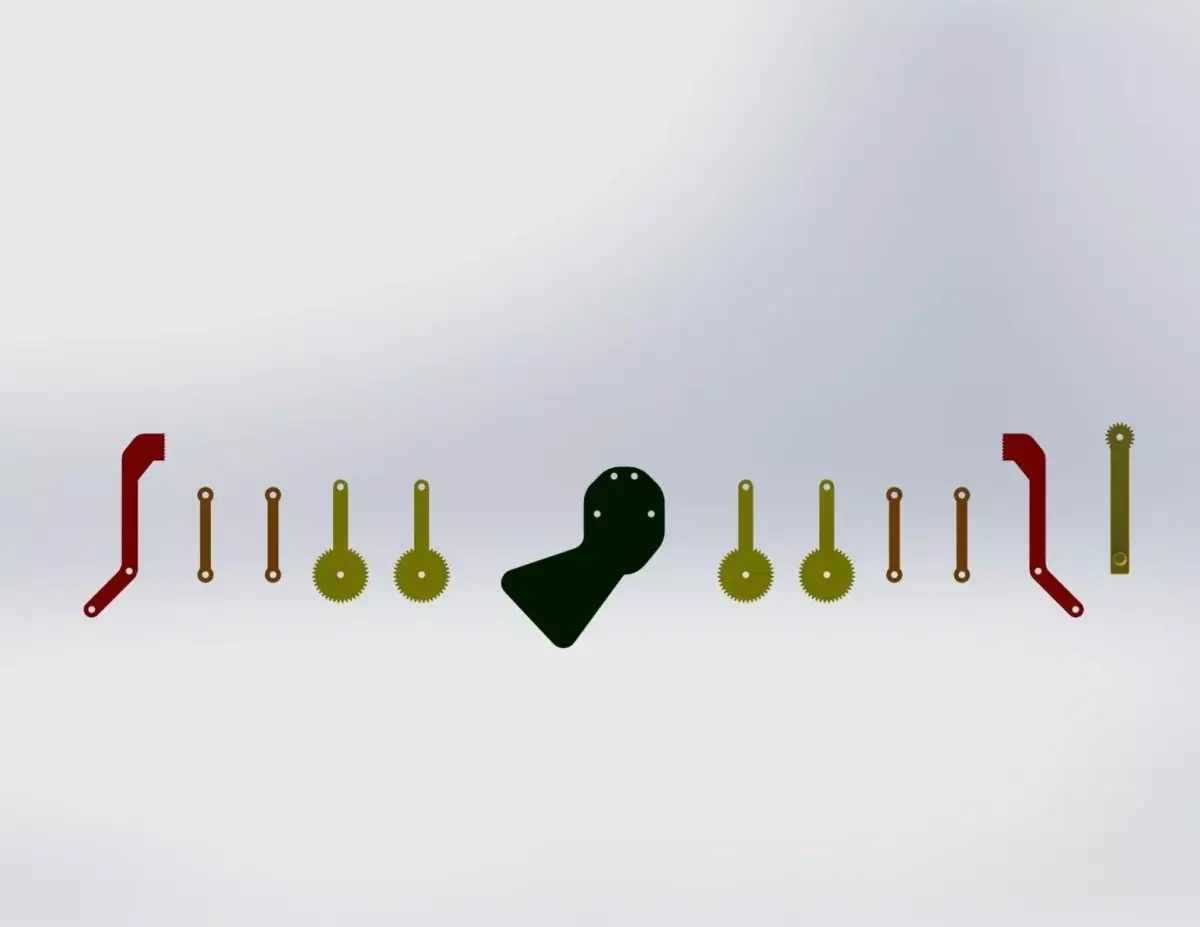

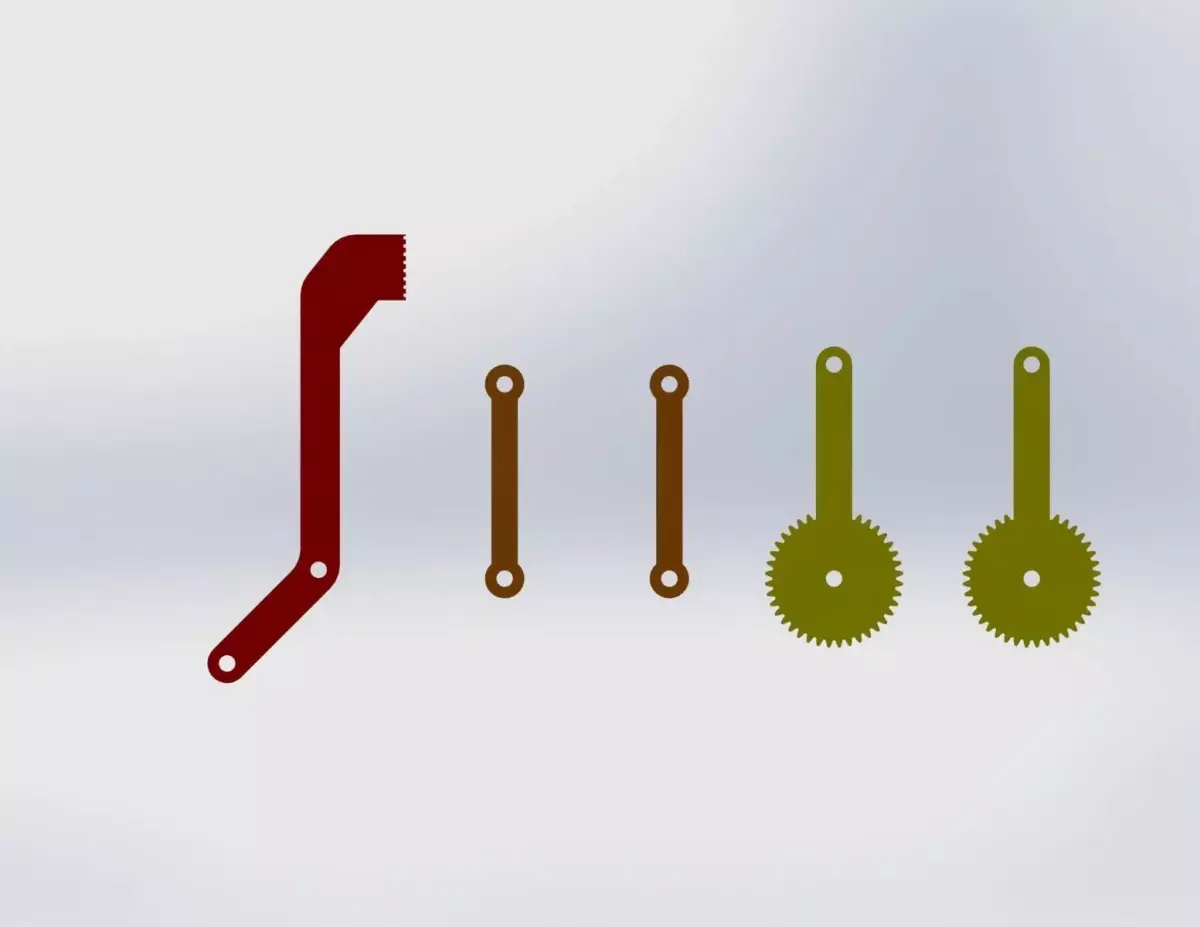

Gear-driven linkage system for symmetrical operation

Integrated handle combined with the drive gear for direct manual control

Flat base platform for stable finger grip during use

Connections compatible with standard M5 bolts, washers, and nuts

Suitable for real assembly, testing, and educational demonstrations

Ideal for 3D printing, prototyping, and mechanical visualization

Clean, parametric CAD geometry, easy to modify or scale
