Medieval castle gate winch Low-poly 3D model

Publication date: 2021-02-28

Medieval castle gate winch Low-poly 3D model

License: Royalty Free License

author:

pulex1

Description

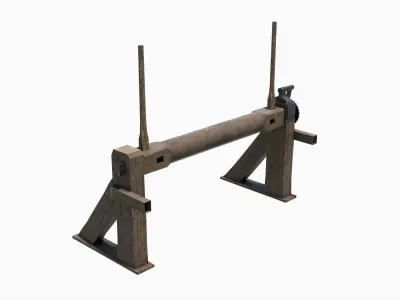

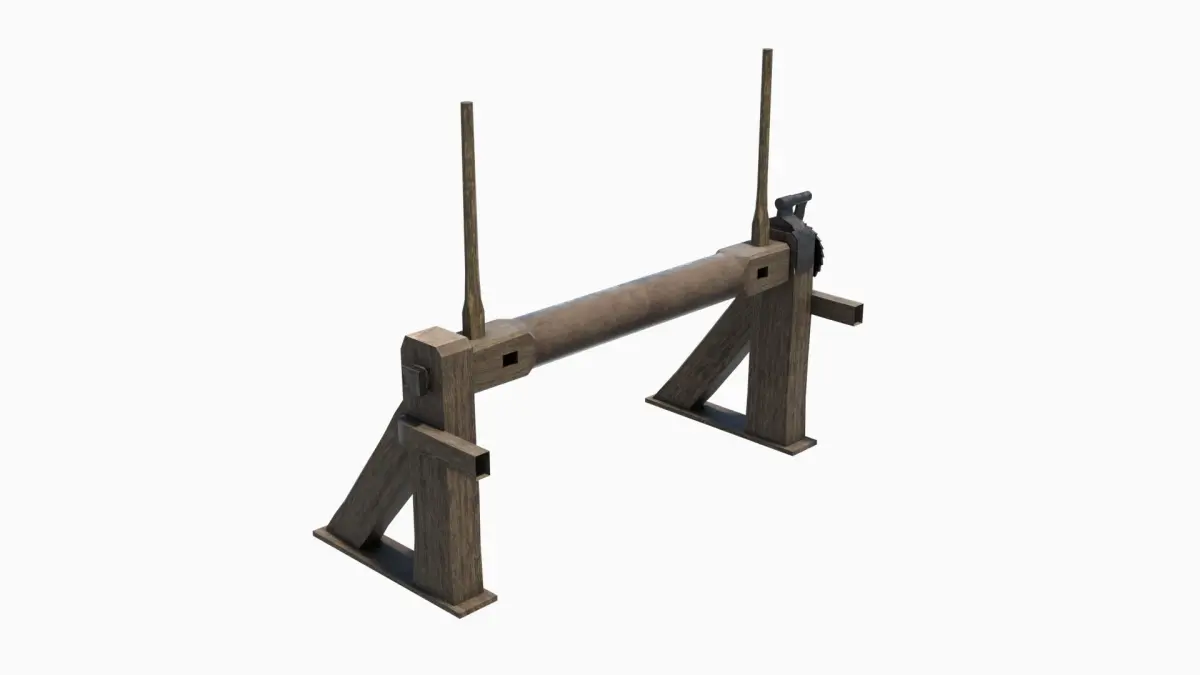

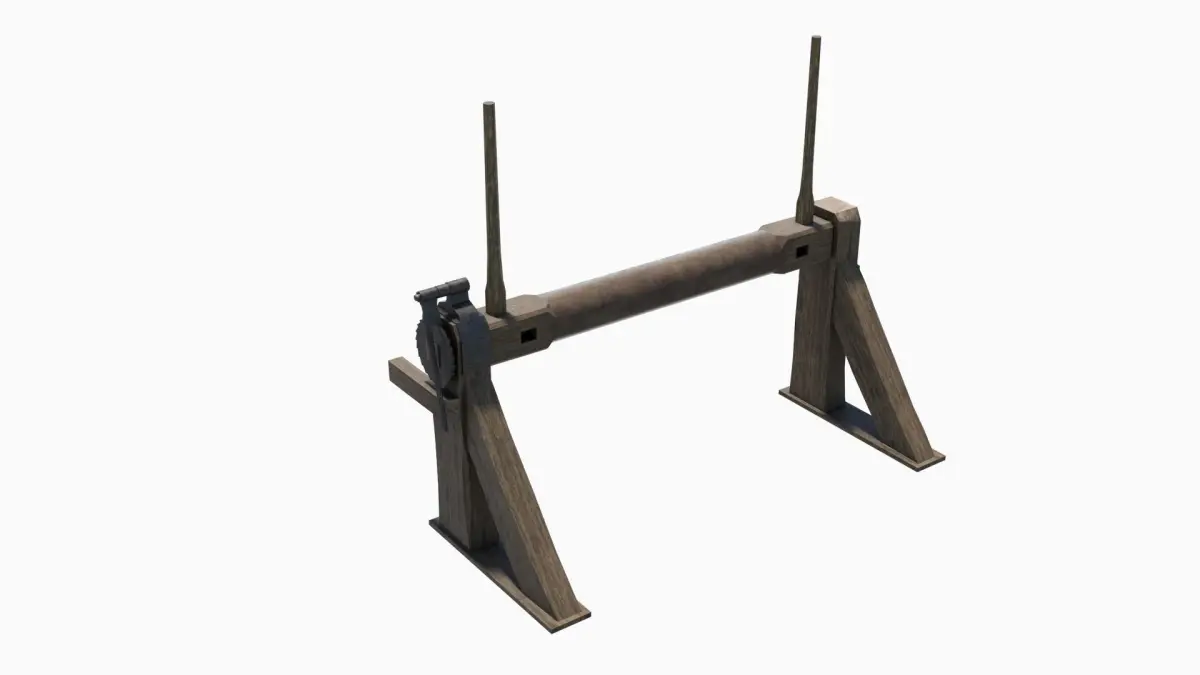

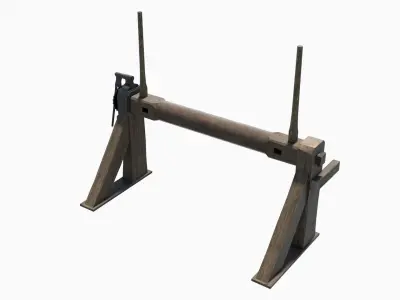

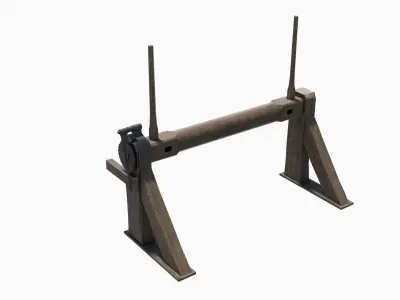

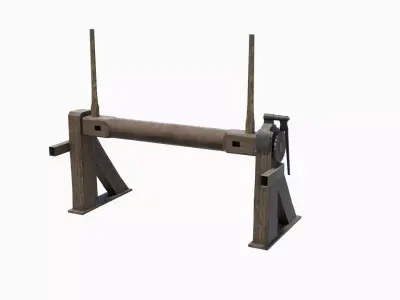

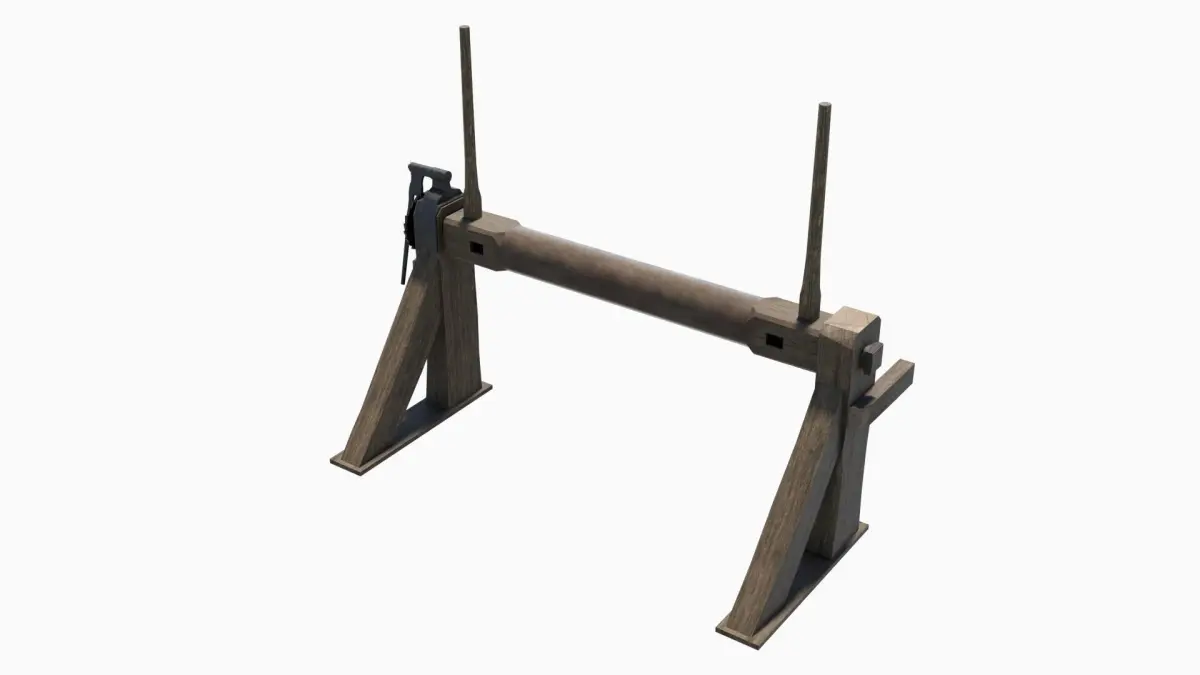

Low-poly historical accurate reconstruction of an medieval winch for rope or chain. This kind of winch could be used inside a gate house or gate tower for a portcullis or drawbridge. It is mainly made from massive wooden beams. Metal fittings help keeping it together and provide additional strength. It is operated by two handheld levers that have to be repositioned after each ¼ turn. A metal latch prevents movable parts from unwinding during this process.

You can get the whole mechanism including a functioning portcullis with animations here: https://www.cgtrader.com/3d-models/exterior/historic/medieval-portcullis-gate-and-winch-animated

The file includes:

An axle pivoted between two frames
Frames with ground and wall mountings
Latching system with cogwheel
Two levers

Polys/Verts

Winch (810/908)
Each lever (26/32)

Further Information

Models are:

Fully mapped and textured with PBR maps (4k).
In real world scale (meters).
Logically grouped, attached and named.
Pivots placed for correct movements.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 862
Vertices: 972

Tags

Gate Winch Spool Lever Handle Hoist Windlass Jack Drawbridge Old Ancient Medieval Mechanism Historic Tool Chain Rope Industrial
