Medieval drawbridge gate with animation Low-poly 3D model

Publication date: 2021-05-03

Medieval drawbridge gate with animation Low-poly 3D model

$18

License: Royalty Free License

author:

pulex1

Description

UPDATE 2024-10-08: fixed some animation issues in the fbx.

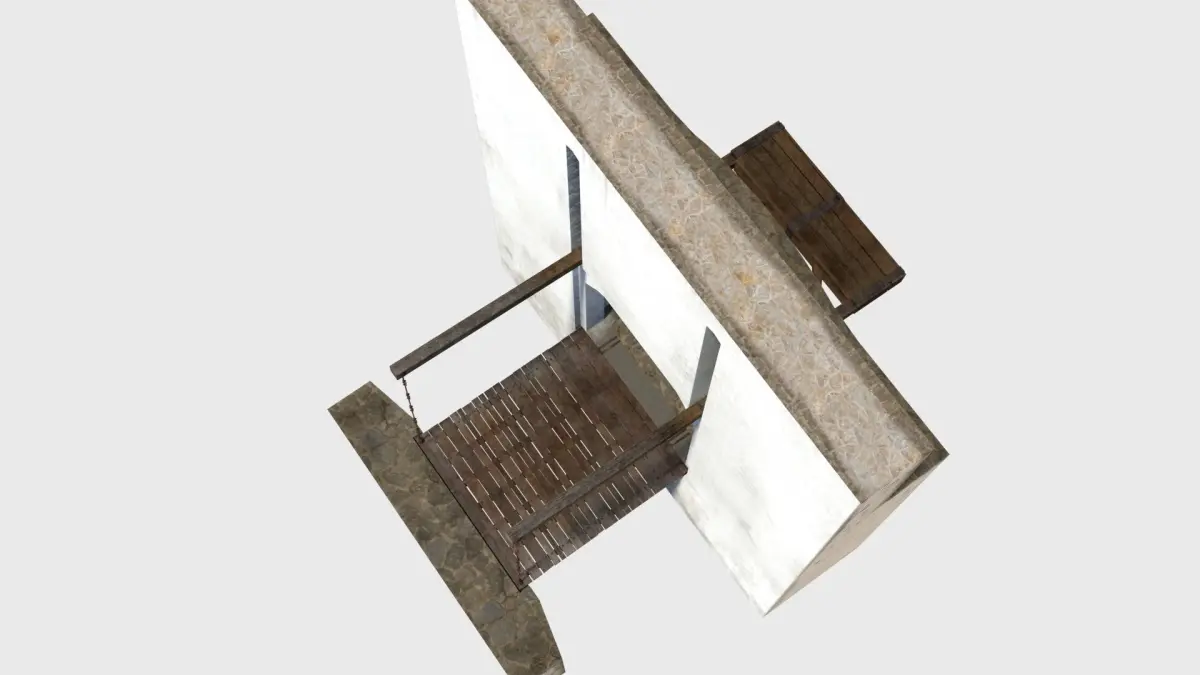

Low-poly historical accurate reconstruction of a drawbridge with lifting arms (gaffs) and counterweights mechanism for castle or town gates. This form was very common from the 14th century onwards. Due to the counterweight, the bridge can be operated by only one person, by pulling or releasing a rope attached to its end. The arms or gaffs fit in slits in the outer wall, when the bridge is lifted.

The file includes:

Gate house wall section including an upper level floor segment
Wooden drawbridge with metal fittings, hinges, chains and gaffs with counterweight
Opening and closing animation

Polys/Verts

Wall segment with gate, corbels, etc. (580/638)
Drawbridge (3,346/4,538)
Gaffs with counterweight (1,658/2,133)
Each chain (2,568/2,592)

Further Information

Models are:

Fully mapped and textured with PBR material (4k).
In real world scale (meters).
Logically grouped, layered, attached, linked and named.
Pivots in correct positions
Animated

- closing / lifting drawbridge: frame 0 - 100
- opening / lowering drawbridge: frame 120 - 220

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 11,276
Vertices: 13,205

Tags

Gate Tower Castle Town City Italy Europe Drawbridge Arm Ancient Medieval Mechanism Historic Fortification Defense Counterweight Exterior Historic exterior
