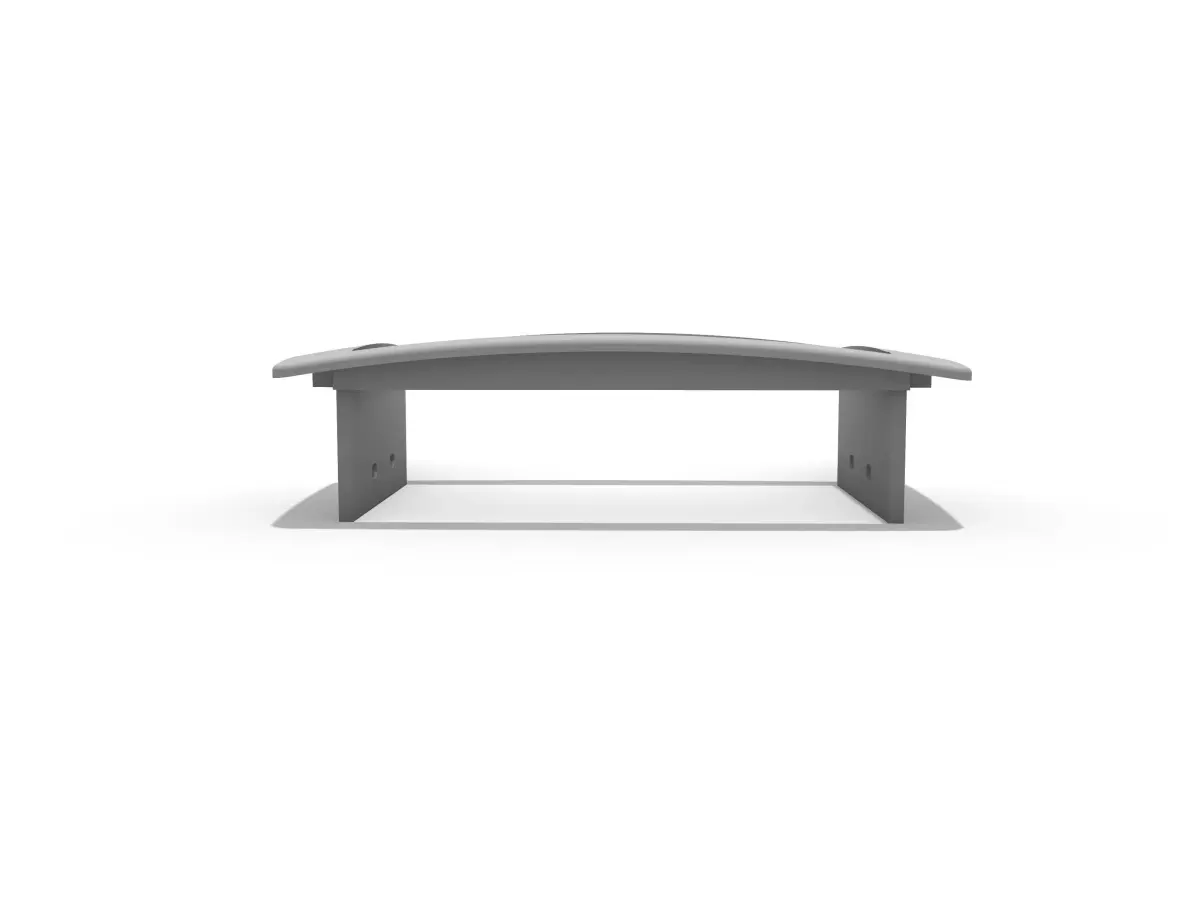

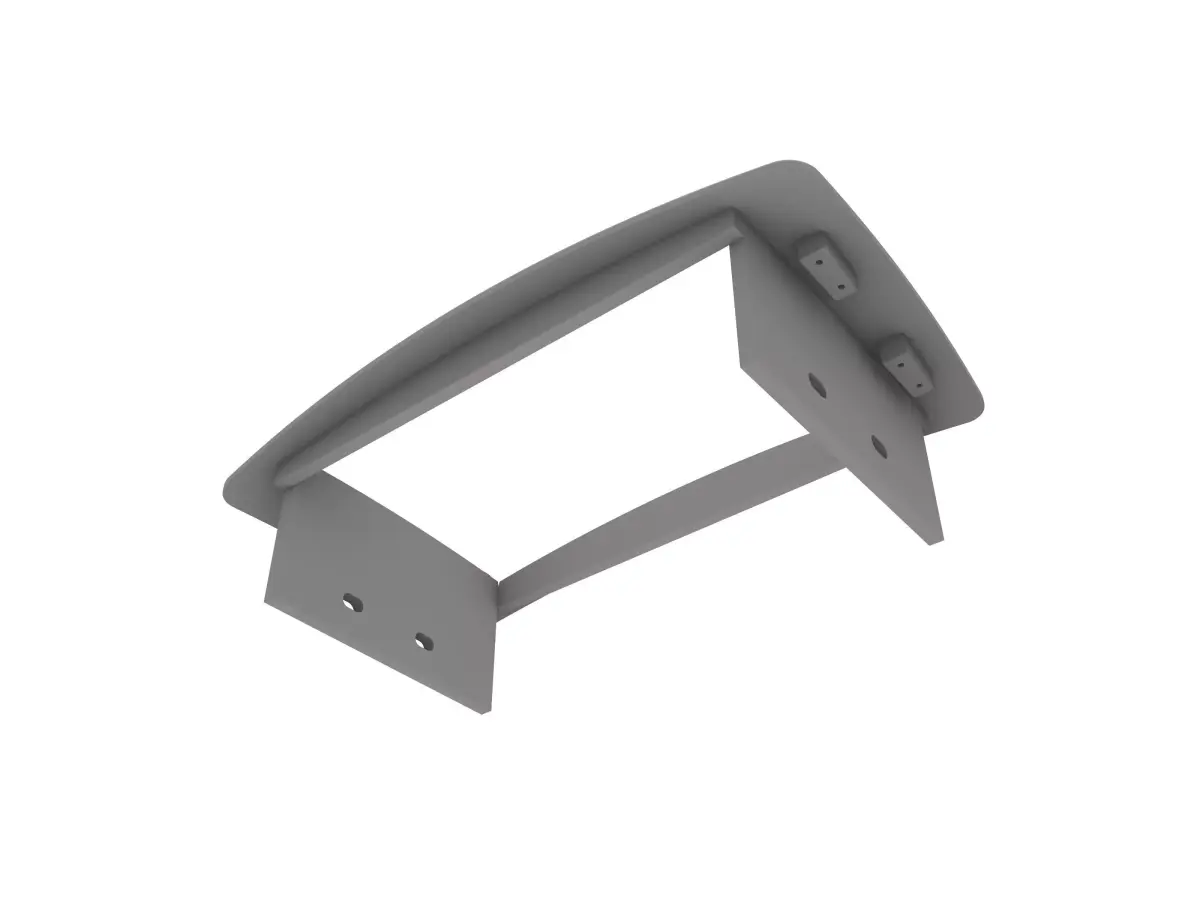

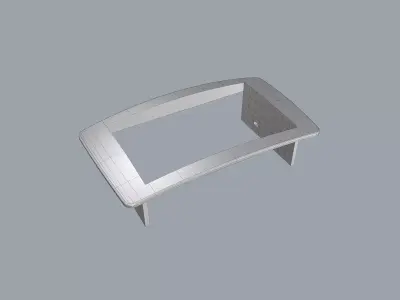

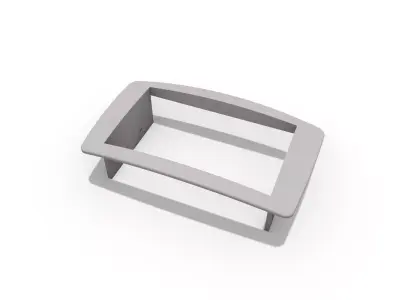

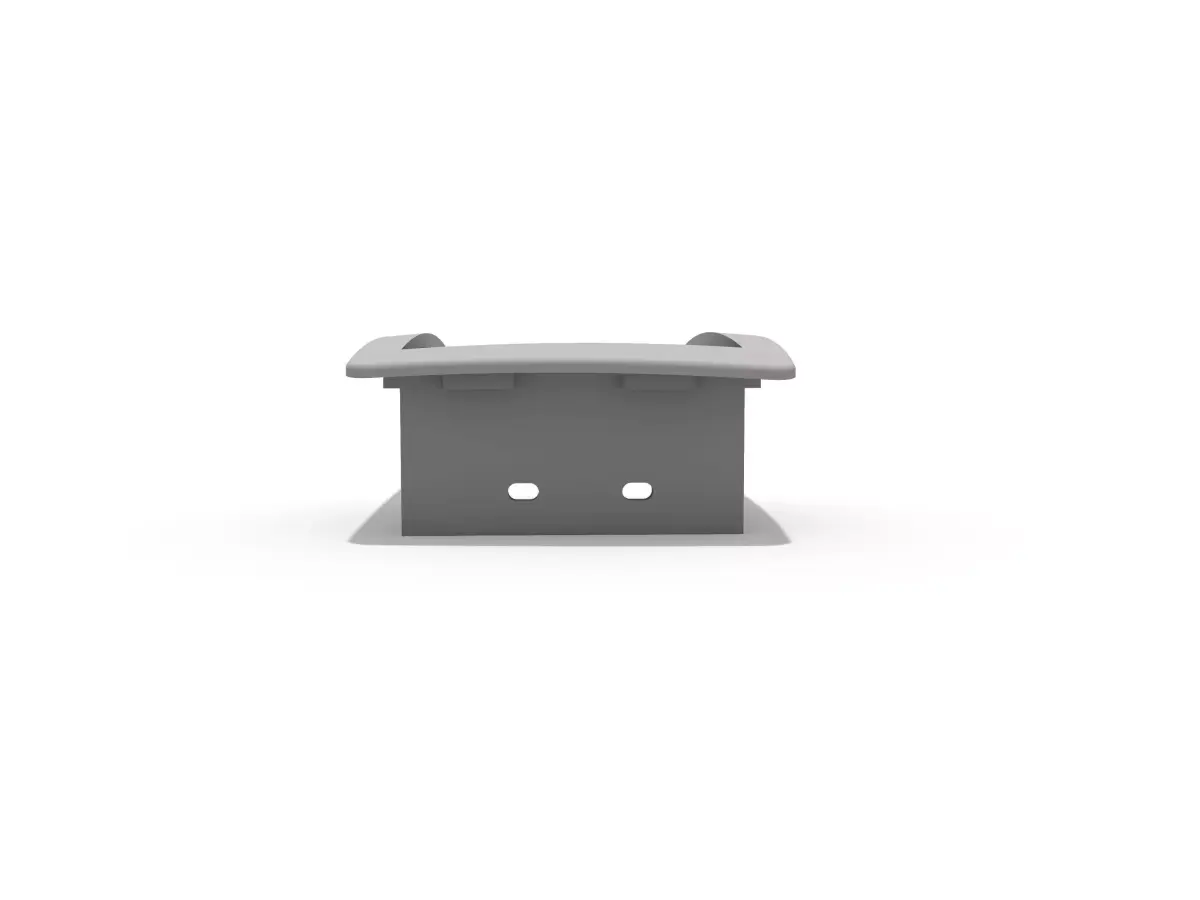

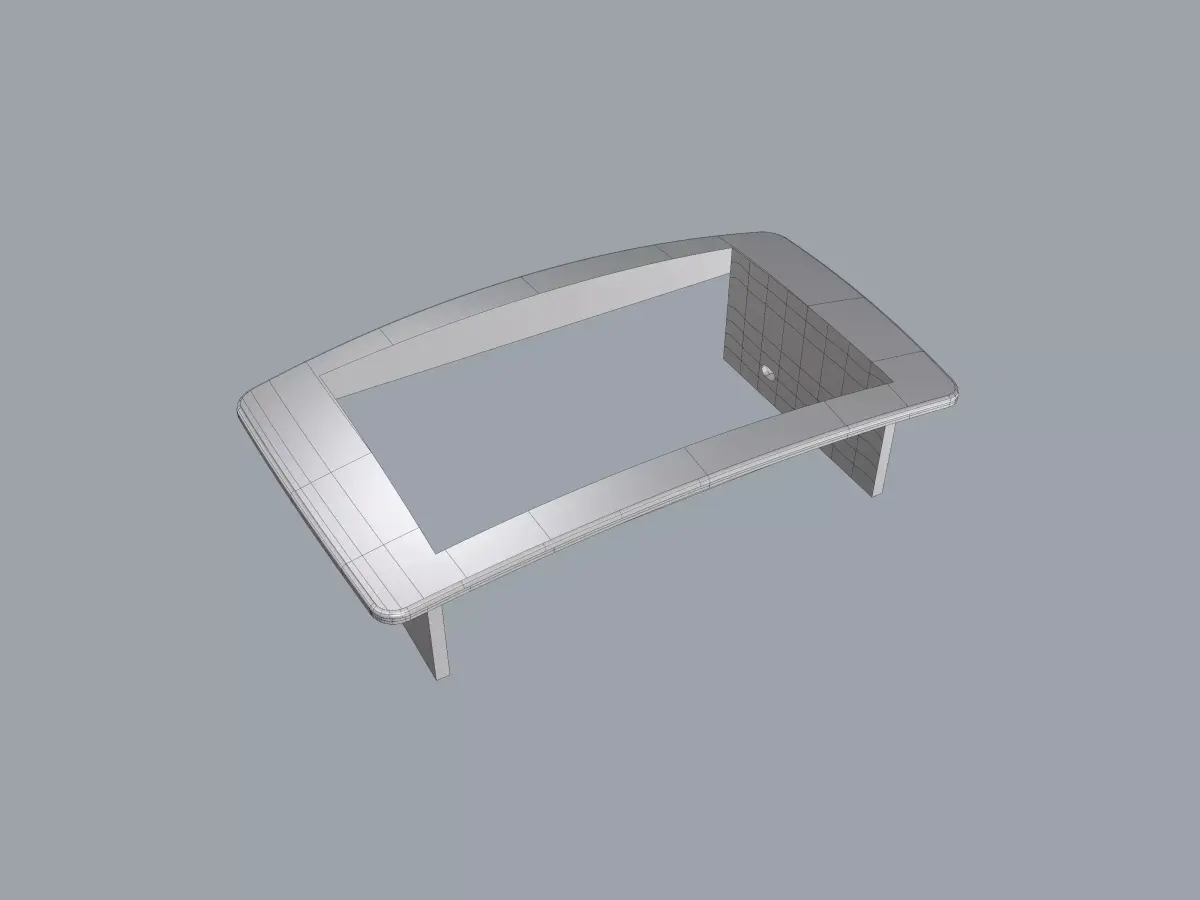

Overview3D printable adapter frame for installing a universal 2DIN 7" touchscreen head unit (7010D-type) into the center console of a Mercedes-Benz C-Class W203.The frame is modeled to “snap” into the original console opening and to hold the 7010D unit in the correct position and angle.
Compatibility
Car: Mercedes-Benz C-Class (W203)
Position: Center console / radio opening
Years: approx. 2000–2004 pre-facelift (please compare with your interior)
Head unit: universal 2DIN 7" MP5 player, 7010D-style front (≈178×100 mm)
Model details
Designed using measurements from a real W203 console and a real 7010D unit
1:1 scale, tight fit around the radio body and front bezel
Clean, closed mesh – ready for 3D printing
Can be edited in CAD/DCC tools if you want to add logos, vents, switches, etc.
Printing & installation notes
Recommended material: PETG or ABS for better temperature resistance in the car interior
Print with enough perimeters and infill for stiffness
Do a test print first to check fitment before final part
Mounting holes and tabs are designed for the 7010D-style unit; minor sanding may be needed depending on printer tolerances
License & disclaimer
Digital product only – no physical parts included.
Royalty-free license for personal, educational and non-commercial projects (visualization, DIY installs, etc.).
Not allowed: mass production of physical parts for resale or reselling/redistributing the 3D model itself.
Mercedes-Benz, C-Class and 7010D are mentioned only to describe compatibility. This is an unofficial part and not an original product of these brands.
Native Formats: 3DM (Rhinoceros 3D, filesize: 18.3 MB)
Exchange Formats: OBJ (OBJ, filesize: 578 KB), FBX (Autodesk FBX, filesize: 508 KB), STL (Stereolithography, filesize: 2 MB), 3MF (3D Manufacturing File, filesize: 16.6 MB)
