Merlin 1C Rocket Engine 3D model

$25

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

joeyls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «joeyls». CGhub does not claim copyright ownership over the content used.

Original creation of Atomic Joe

Project Date: 5/29/2019Time: ~30-60 hrsSoftware: Blender 3D

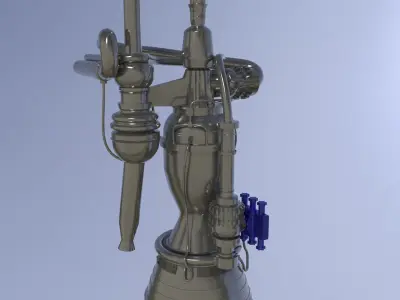

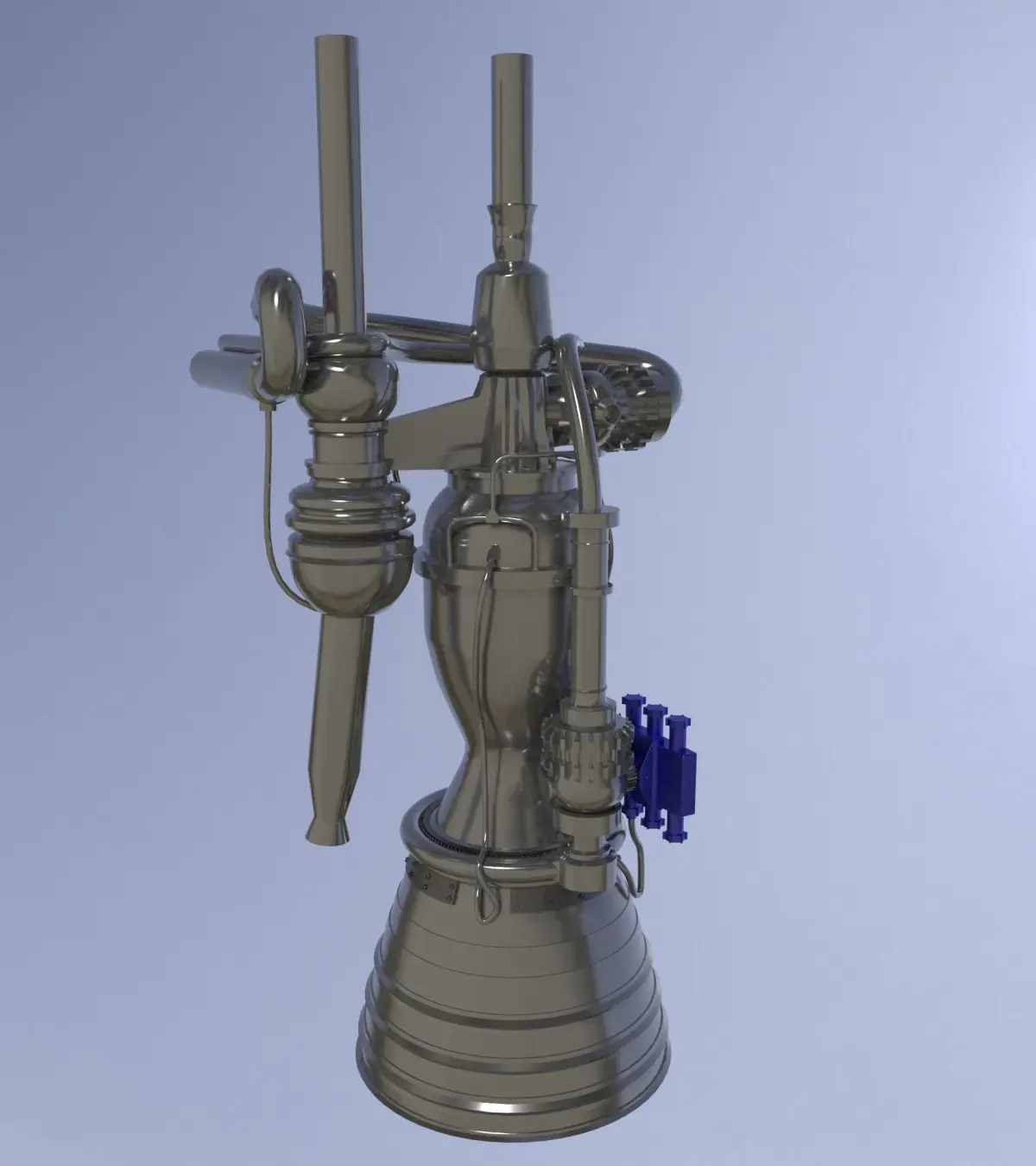

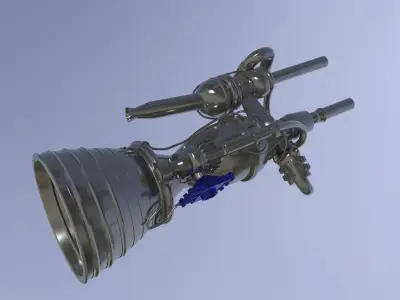

SpaceX Merlin 1C semi-complete engine model in the non-vacuum configuration.

Included file formats: .obj .stl .fbx .dae

Three versions of the Merlin 1C engine were produced. The Merlin engine for Falcon 1 had a movable turbopump exhaust assembly which was used to provide roll control by vectoring the exhaust. The Merlin 1C engine for the Falcon 9 first stage is nearly identical to the variant used for the Falcon 1, although the turbopump exhaust assembly is not movable. Finally, a Merlin 1C vacuum variant is used on the Falcon 9 second stage. This engine differs from the Falcon 9 first stage variant in that it uses a larger exhaust nozzle optimized for vacuum operation and can be throttled between 60 and 100 percent.
