Publication date: 2017-10-14

Metric screw threads ISO 724 3D print model

$19

License: Copyright

author:

Twillert1979

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Twillert1979». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $19 Add to Wishlist
  • Description

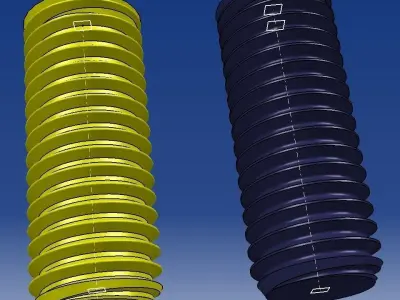

Catia V5 R24 surface model of all metric screw threads according to ISO 724.

• With parameters.

• With thread run-out.

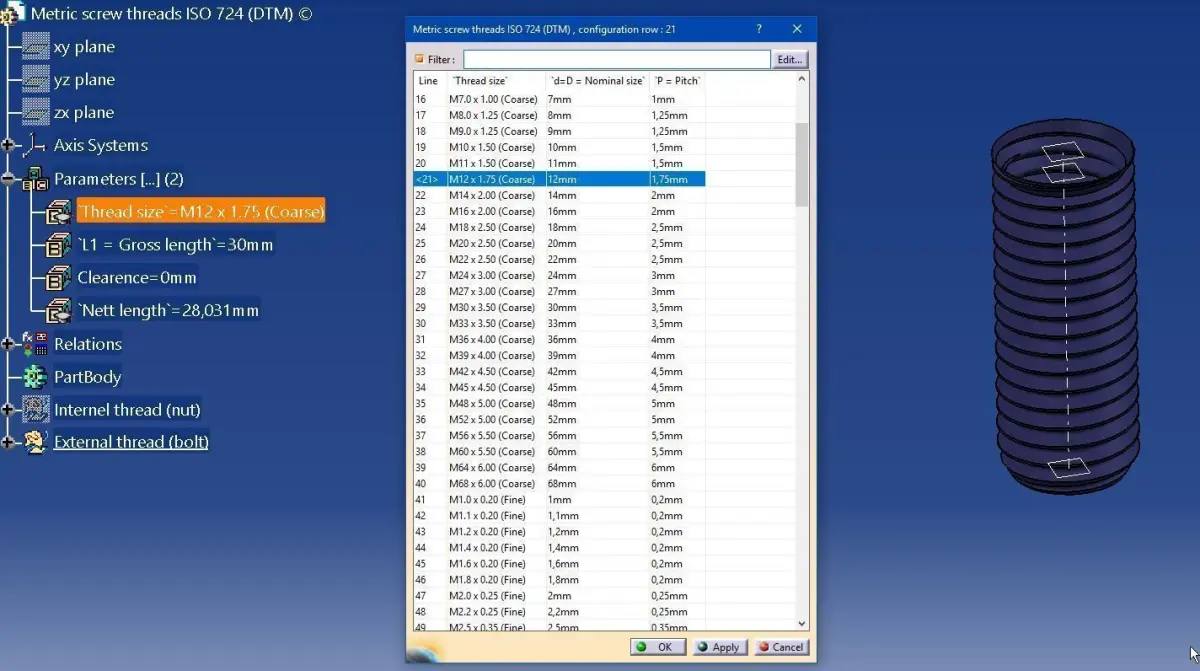

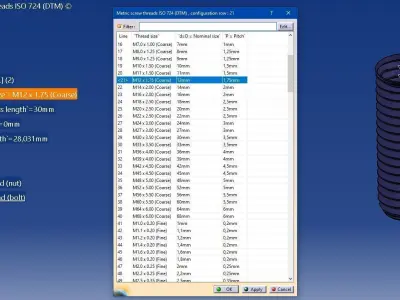

Configurable inputs in 'Design table mode' (DTM):

• d=D = Thread size

• L1 = Gross length

• Clearence

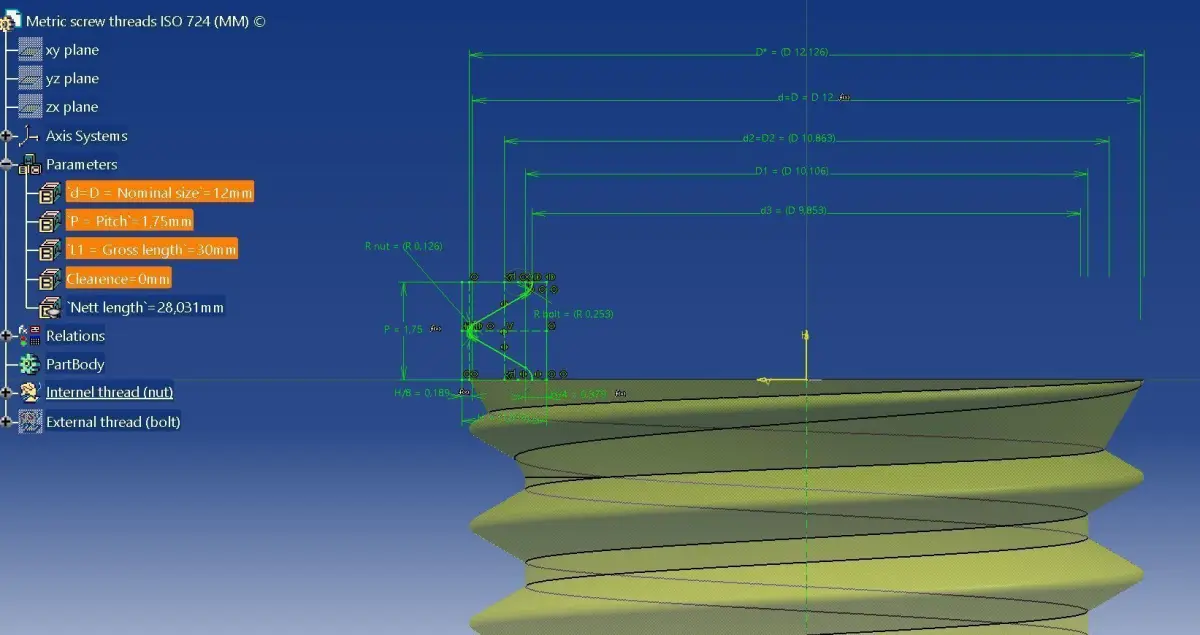

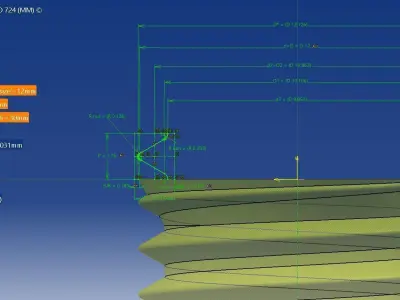

Configurable inputs in 'Manual mode' (MM):

• d=D = Nominal size

• P = Pitch

• L1 = Gross length

• Clearence

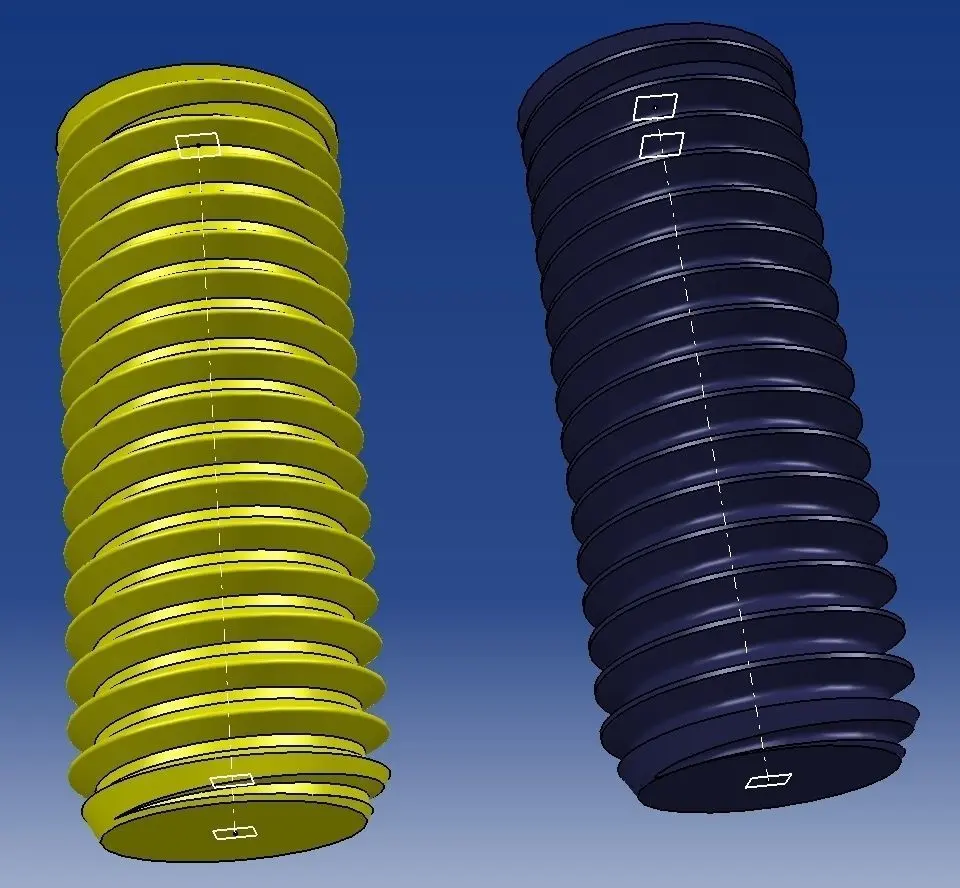

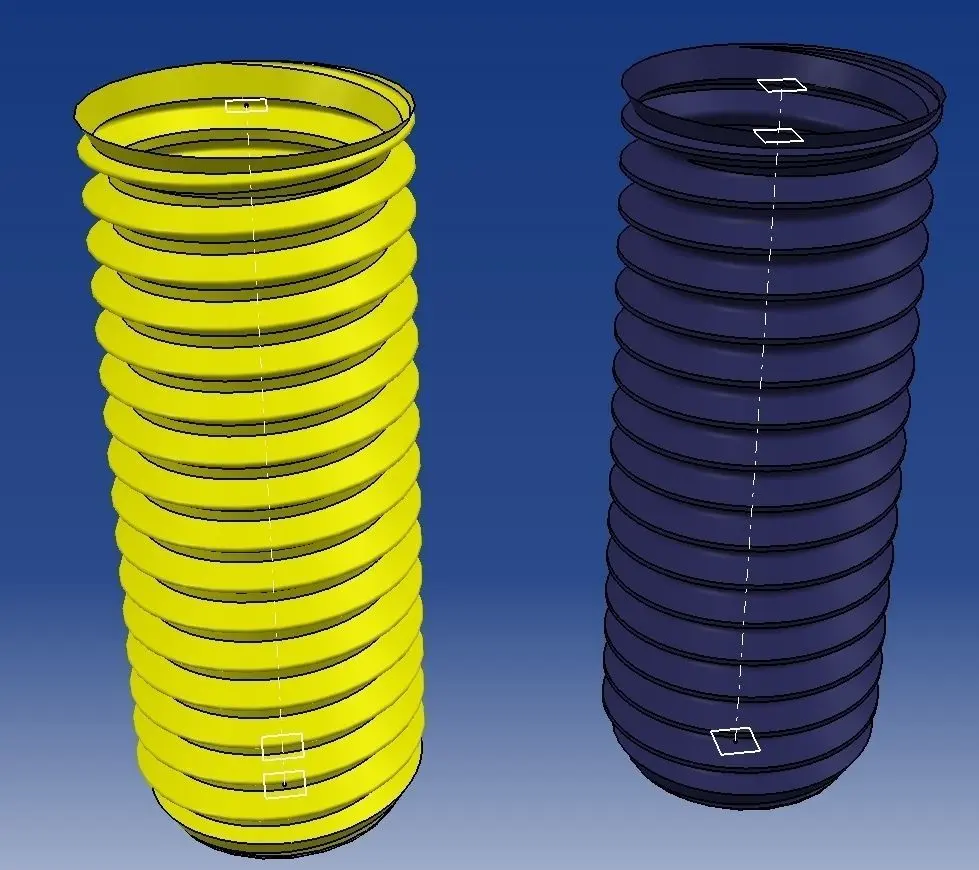

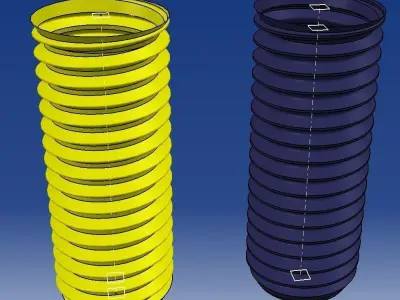

Outputs:

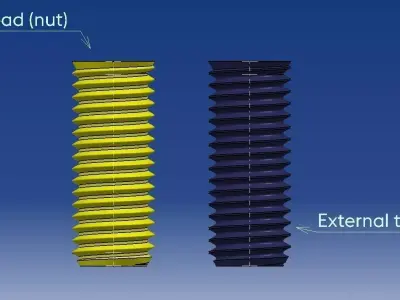

• Internel thread (nut)

• External thread (bolt)

• Nett length (Gross - Run-out)

A request for the desired .stl file is also possible.

Also available BSPP ISO 228 & BSPT ISO 7-1 (G/R/Rp/Rc).

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Iso 724 Metric Screw Threads 3d Printing Additive Manufacturing Science Engineering Catia Catpart Nut Iso724 Parametric Printer
