MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model
Home Catalog MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model
MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model
MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model
MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model
MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model
MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model

Publication date: 2026-03-10

Buy MGN12 Linear Rail Pack 150 300 450mm High-Precision CAD STEP 3D model

$11

License: Royalty Free No Ai

author:

BMotion

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «BMotion». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $11 Add to Wishlist
  • Description
  • Formats

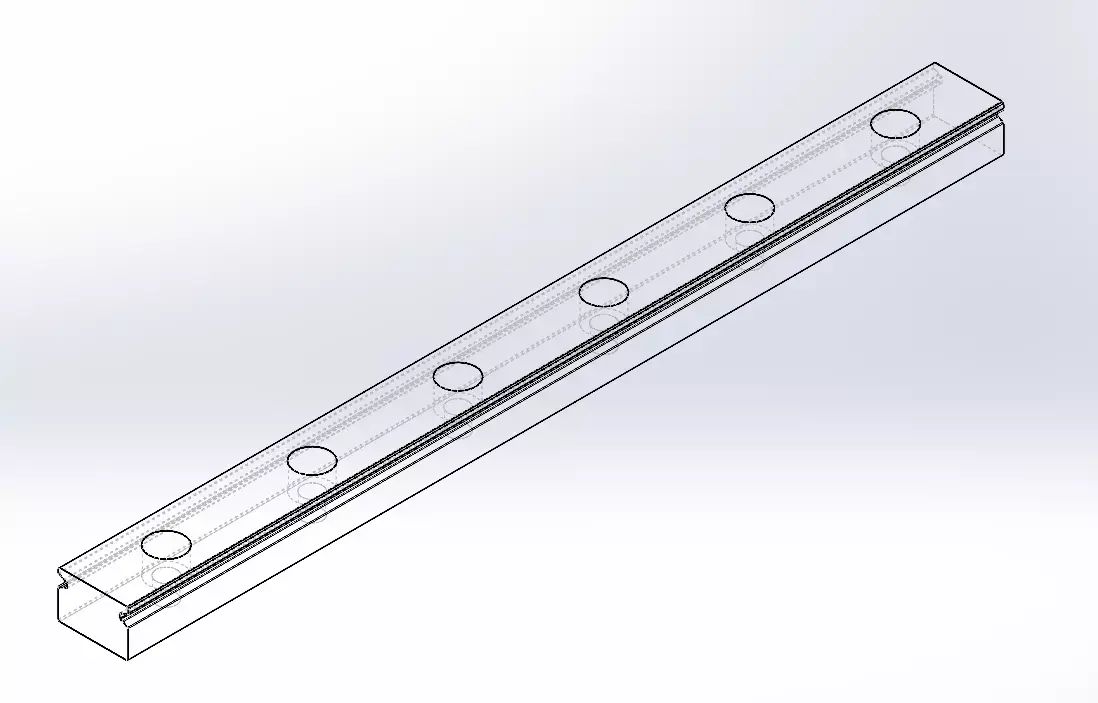

Stop wasting time with approximate models. This professional CAD pack delivers three of the most widely used MGN12 rail lengths, all verified against Hiwin and CNA manufacturer datasheets.

The industry standard for lightweight precision motion in CoreXY 3D printers and CNC routers.

Technical Specifications:

  • Rail type: MGN12 (12mm width)
  • Rail height: 8mm
  • Mounting hole pitch: 15mm (M3)
  • Tolerance: verified against Hiwin MGN12 datasheet
  • Compatible carriages: MGN12C (short) and MGN12H (long body)

Lengths Included:

  • 150mm
  • 300mm
  • 450mm

Files Included (per length):

  • Universal: .STEP (Fusion 360, FreeCAD, SolidWorks, Inventor, Onshape)
  • Visualization: .STL

Used in: Voron 2.4, Voron Trident, RatRig V-Core, CoreXY builds, custom CNC stages.

Need the carriage too? Check our MGN12H Full Assembly Bundle.

Precision is not an option. It's our standard.Designed by B-Motion CAD - Nuclear industry precision, applied to every model.

STL (Stereolithography, filesize: 865 KB), STP (STEP, filesize: 923 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Nurbs

Tags

Cnc Mechanical Industrial Cad Assembly Rail Step Solidworks 150mm 450mm Fusion360 Freecad
