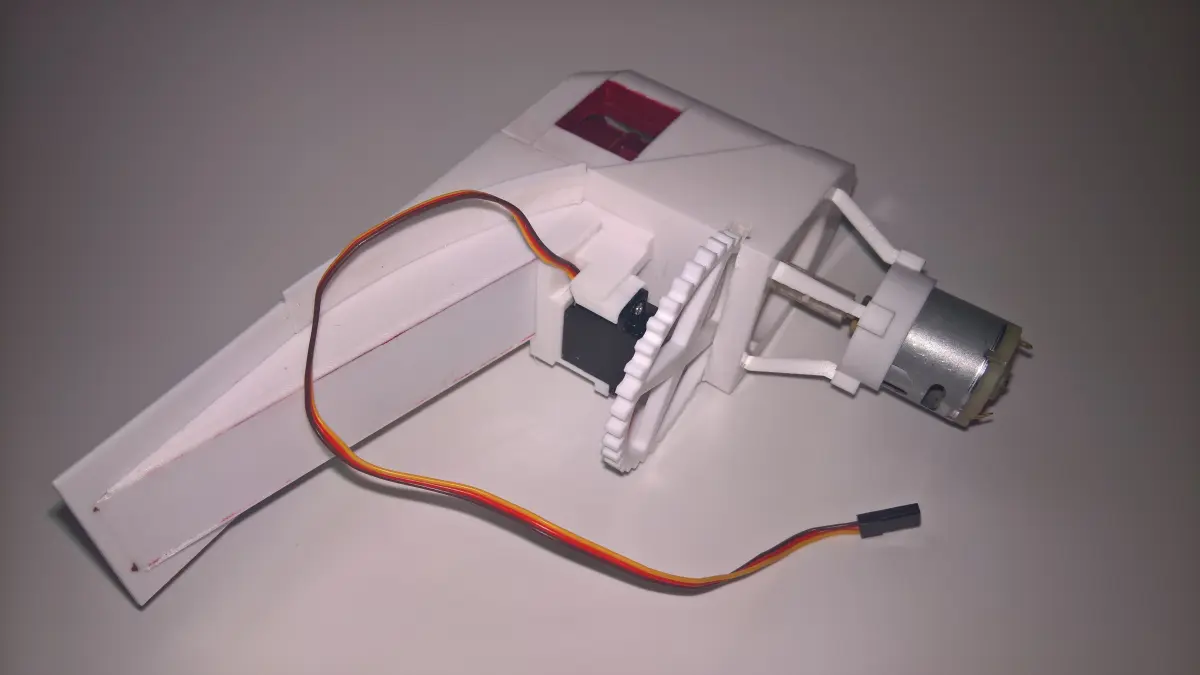

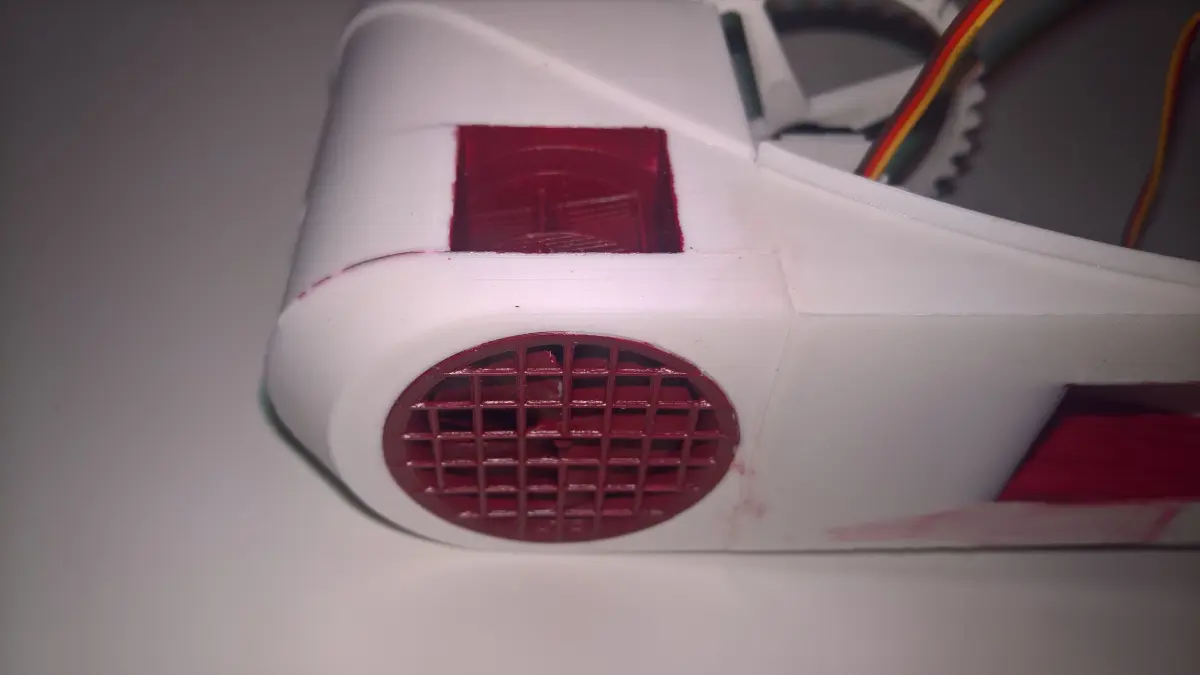

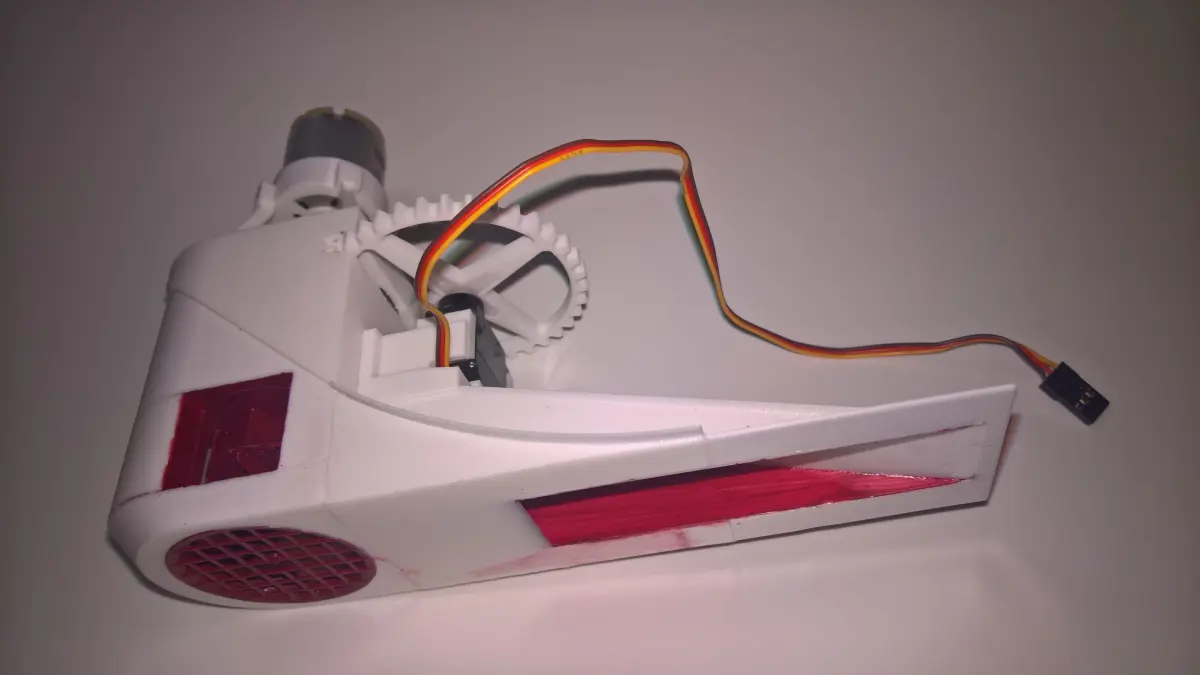

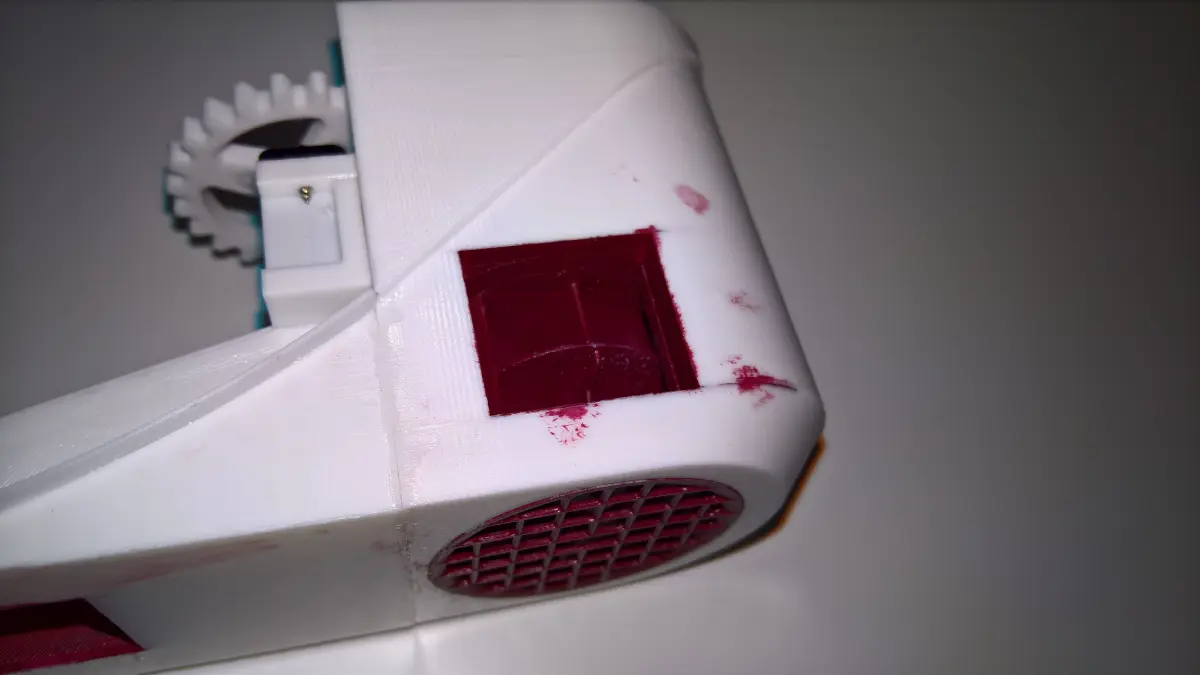

Veth Jet 360° thruster for Delta multi purpose pusher tug 2500.For 3D print.
There have been built:Smit Barracuda [2004 IMO9345506]Smit Beluga [2010 IMO9528316]Smit Bison [2004 IMO9345518]Smit Bronco [2004 IMO9345491]Smit Buffalo [2009 IMO9528304]Smit Bulldog [2009 IMO9528299]
Dimensions:inner diameter 42mmwidth max. 54 mmwidth min. 48 mmlength 188mmheight (incl. motor) 76mm (136mm)propeller 4 bladesscale 1:25
Printing: material ABS, layer 0.1mm, no support , no brim, 20% cooling from layer 4 upwards is recommendedFor assembly a glues for plastic and metal are needed (for eg. Revell Contacta for plastic and UHU Plus for metal-ABS).
Designed specifically for Delta multi purpose pusher tug 2500. Used actual photos of the real ships to model the Veth Jet as accurately as possible.
PDF instructions included.
Additional required parts:Part Nr. Nbr. Name material dimensionsS1 1 stainless steel rod for propeller 2 x 78.6 mmB1 1 brass tube 2/3 x 63 mmB2 1 brass tube 3/4 x 41.7 mmMotor with diameter 27.5 mmelastic hose or other coupling between motor and steel rod
A v3 has modified servo gears, they can be now mounted with screw directly onto servo shaft.
A full kit is also available if requested (all parts printed + all additional required parts, without motor). Please write me a message.
More details, photos and info: https://www.zonerama.com/jsyrovat/Album/4895661Video: https://www.youtube.com/watch?v=jm6CTudE7Ts (Veth Jet test)
