MJS 2002-16 Bow Thruster 16mm for scale model boats 3D print model

$19

License: Editorial No Ai

author:

jsyrovat

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jsyrovat». CGhub does not claim copyright ownership over the content used.

rev. 20221109

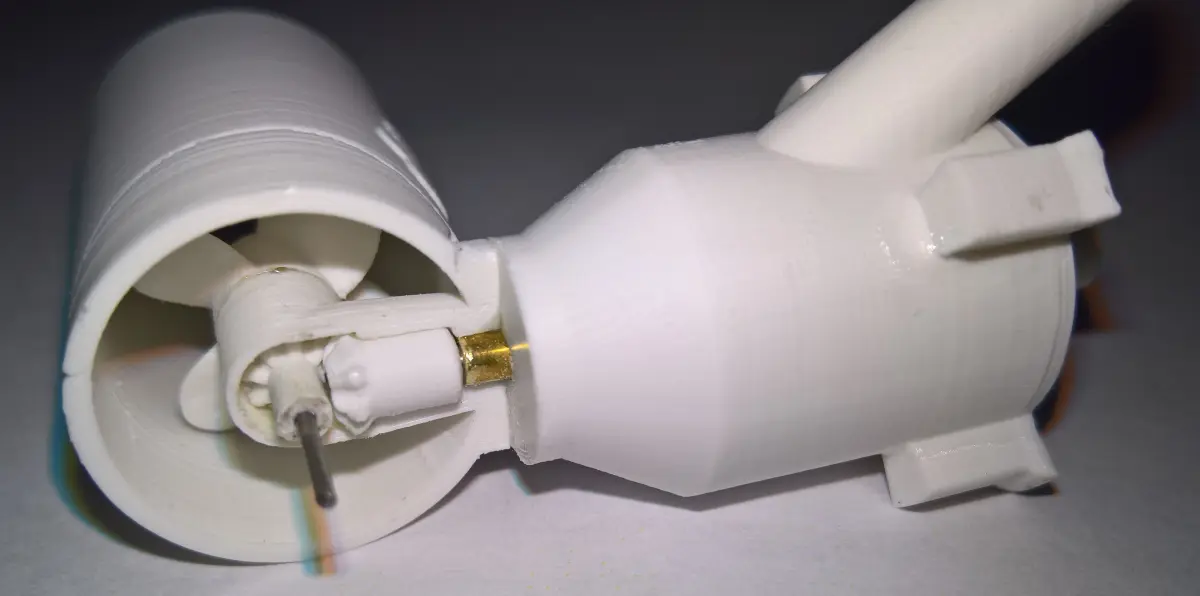

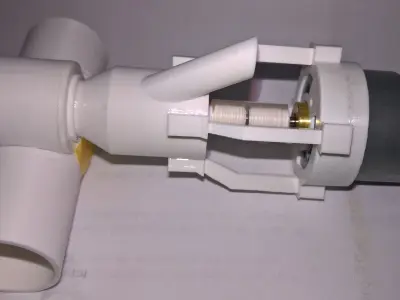

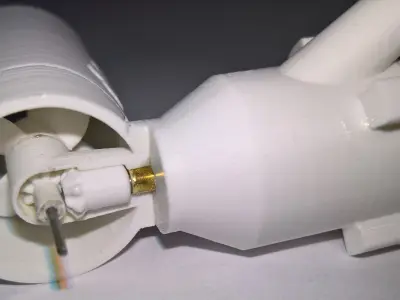

Printable bow thruster for scale model ships.

For 3D print.

Parts for 2 versions to build:

a) working propeller with bevel gears
b) side blade prop
Dimensions:
inner diameter 16 mm

width 70 mm (+extension parts)
height 85mm (without motor), depends on bow thruster inner diameter size
propeller 4 blades

Printing: FDM printer with NOZZLE 0.25mm!, material ABS, layer 0.1mm, no support , no brim, 20% cooling from layer 4 upwards is recommended (or better required)
For assembly a glues for plastic and metal are needed (for eg. Revell Contacta for ABS-ABS and UHU Plus for metal-ABS).

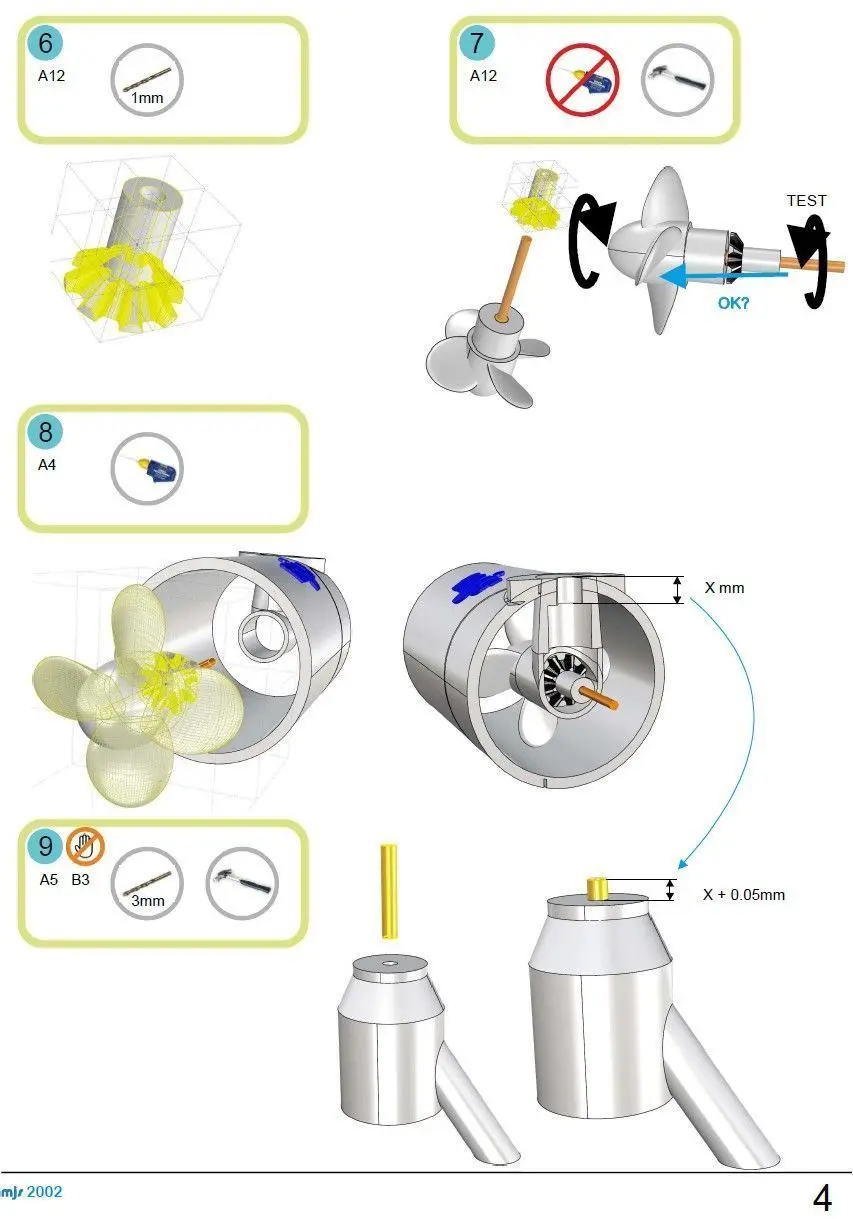

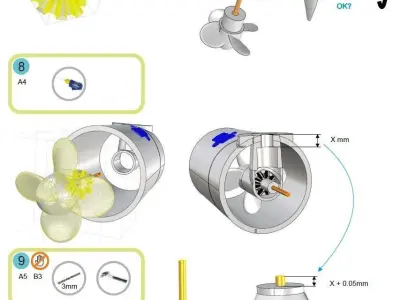

PDF instructions included.

Additional required parts:

Stainless steel rods and brass tubes - check attached table for dimensions
Motor with diameter 27.5 mm (for eg. Johnson RS-365 or RS-385 or similar)

optionally an elastic hose (5mm inner diameter for printed 5.4mm parts) or other coupling between motor (2.3mm) and steel rod (2mm) for top mounted motor

A full kit is also available if requested (all parts printed + all additional required parts, without motor). Please write me a message.

More details, photos and info: https://www.zonerama.com/jsyrovat/Album/6035198

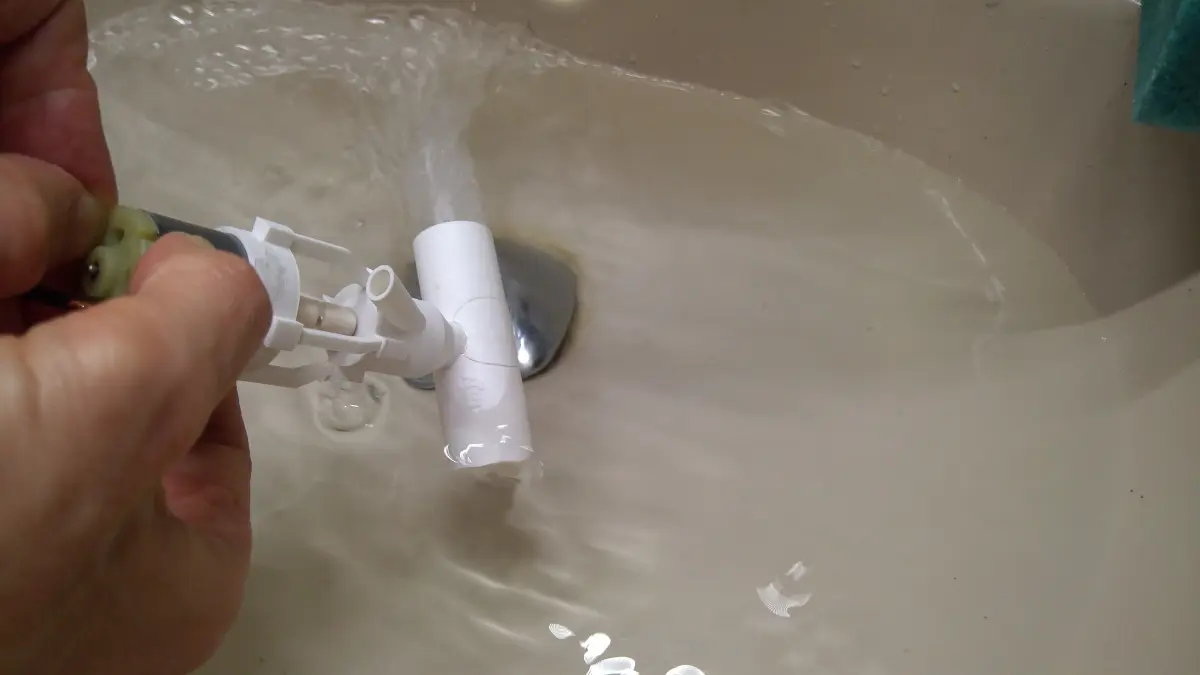

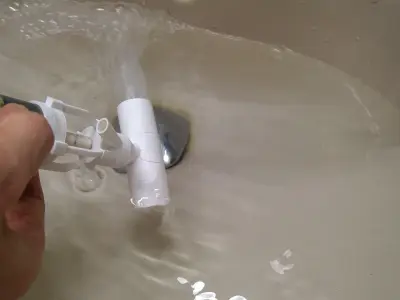

Video: https://www.youtube.com/watch?v=VSJRwizBC6s (bow thruster test in hull)
https://www.youtube.com/watch?v=NH0v2VlEgdI (bow thruster test)
