Modular Belt Conveyor 02 Low-poly 3D model
Home Catalog Modular Belt Conveyor 02 Low-poly 3D model
Modular Belt Conveyor 02 Low-poly 3D model
Modular Belt Conveyor 02 Low-poly 3D model
Modular Belt Conveyor 02 Low-poly 3D model
Modular Belt Conveyor 02 Low-poly 3D model
Modular Belt Conveyor 02 Low-poly 3D model

Publication date: 2025-07-18

Buy Modular Belt Conveyor 02 Low-poly 3D model

$29

License: Royalty Free

author:

kittipum

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «kittipum». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $29 Add to Wishlist
  • Description
  • Formats

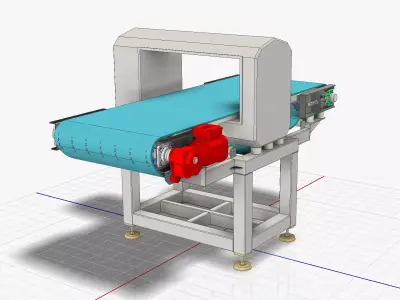

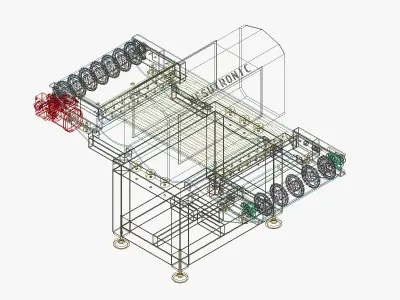

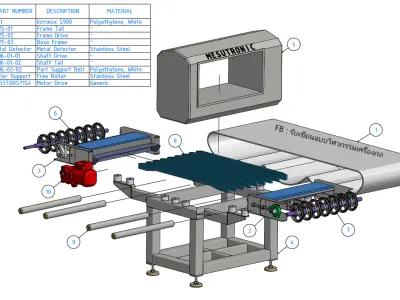

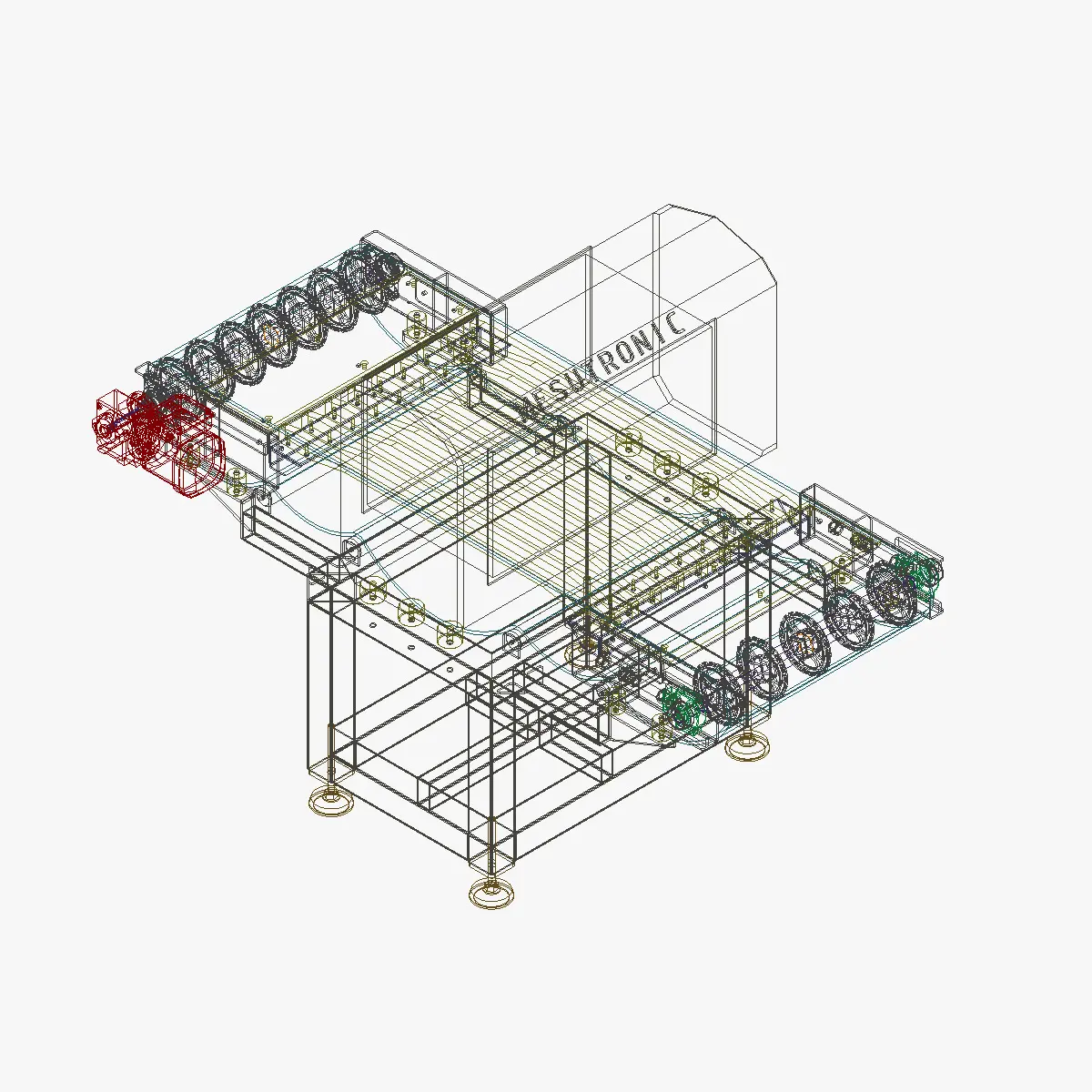

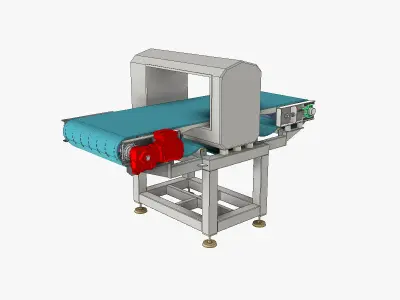

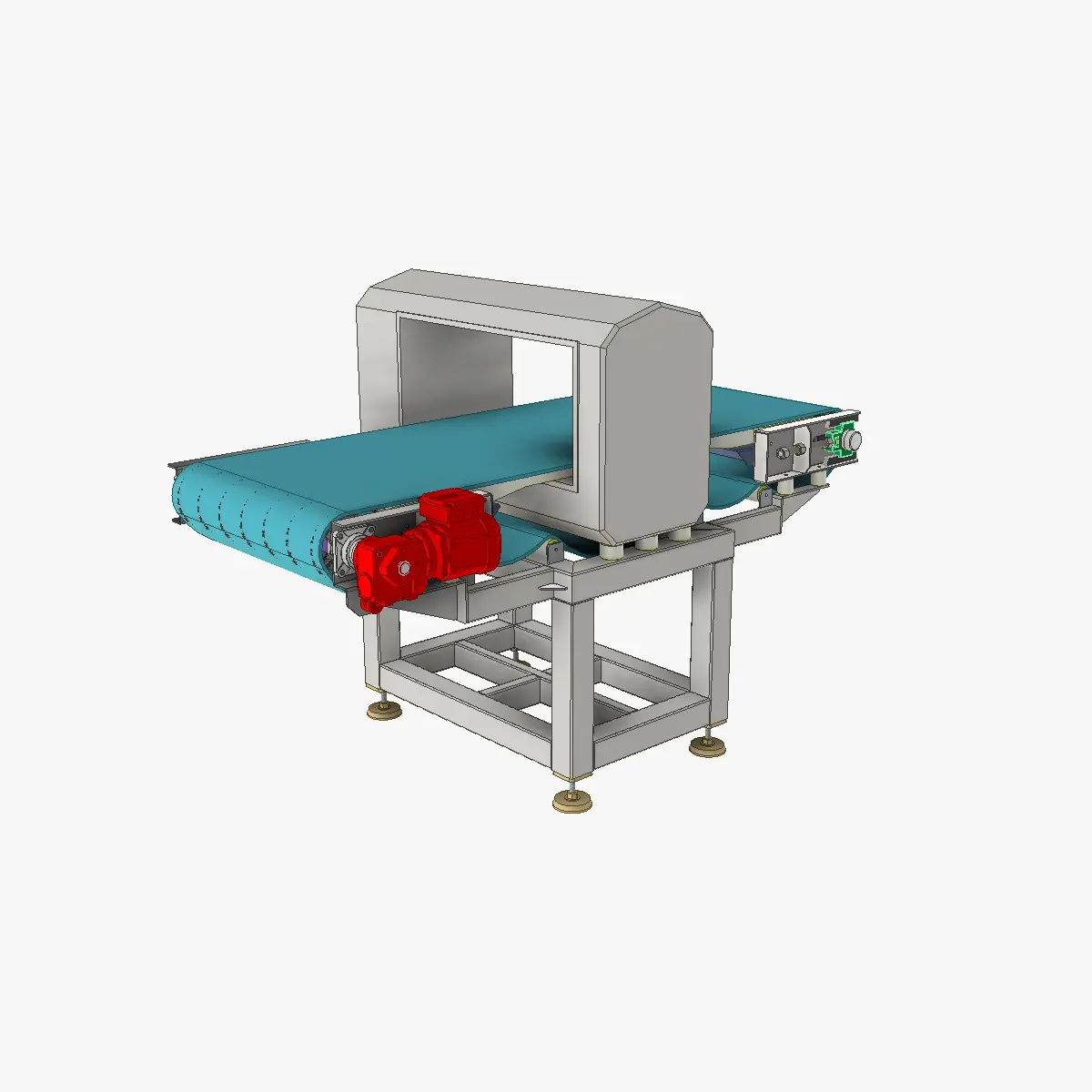

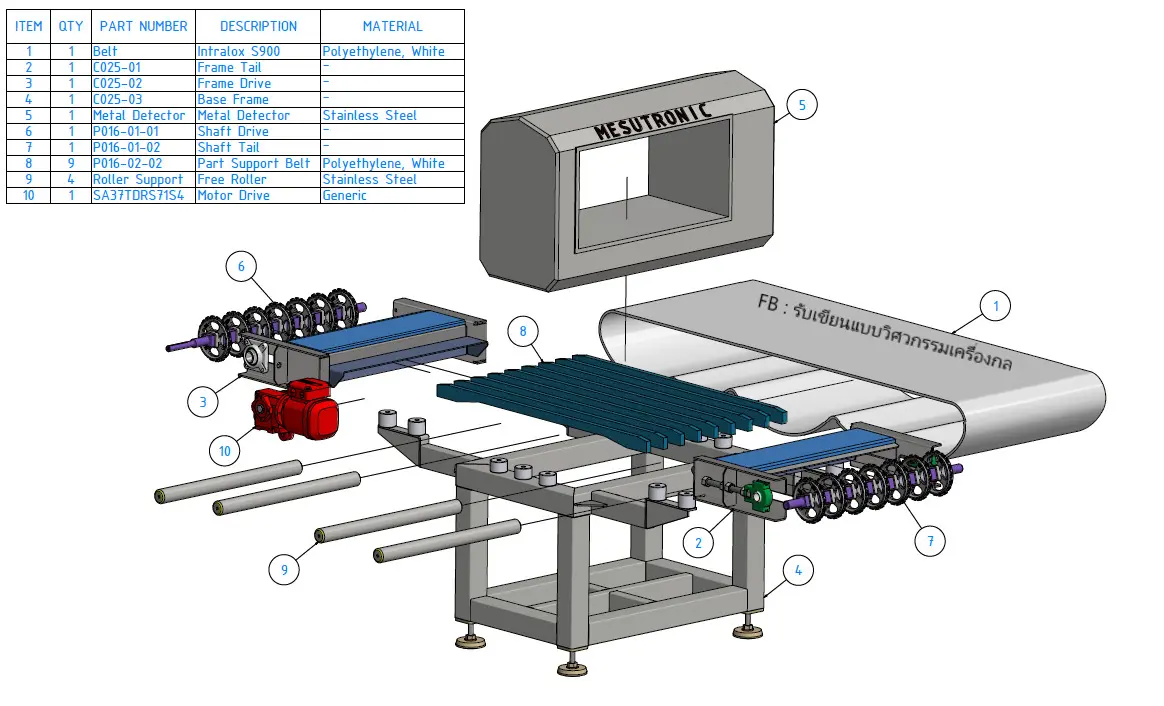

Conveyor Modular belt 02 & Metal detector(We use the program inventor 2021 to do)

File formats: (Full Drawing Process Engineering)

  • Inventor ( iam = Assembly file)
  • Inventor ( idw = Drawing file)
  • Inventor ( ipt = Part file)
  • Inventor ( ipn = UV file)-Solid model 3D (STEP file)-Ohther file X_T , IGS , STP , STL , CATProduct , OBJ-PDF file for review drawing (PDF)

Concept Design

  • Design Material Food Grade SUS304 & Plastic PE
  • Motor drive Spcorket S900_18t_155mmpd_40mm_sq_ezclean
  • Motor SEW SA37TDRS71S4
  • Speed conveyor = 60 rpm = 10 m/min
  • Motor drive Spcorket 1:1
  • Foot Plate Part Stud Adjust +-70 for top belt conveyor

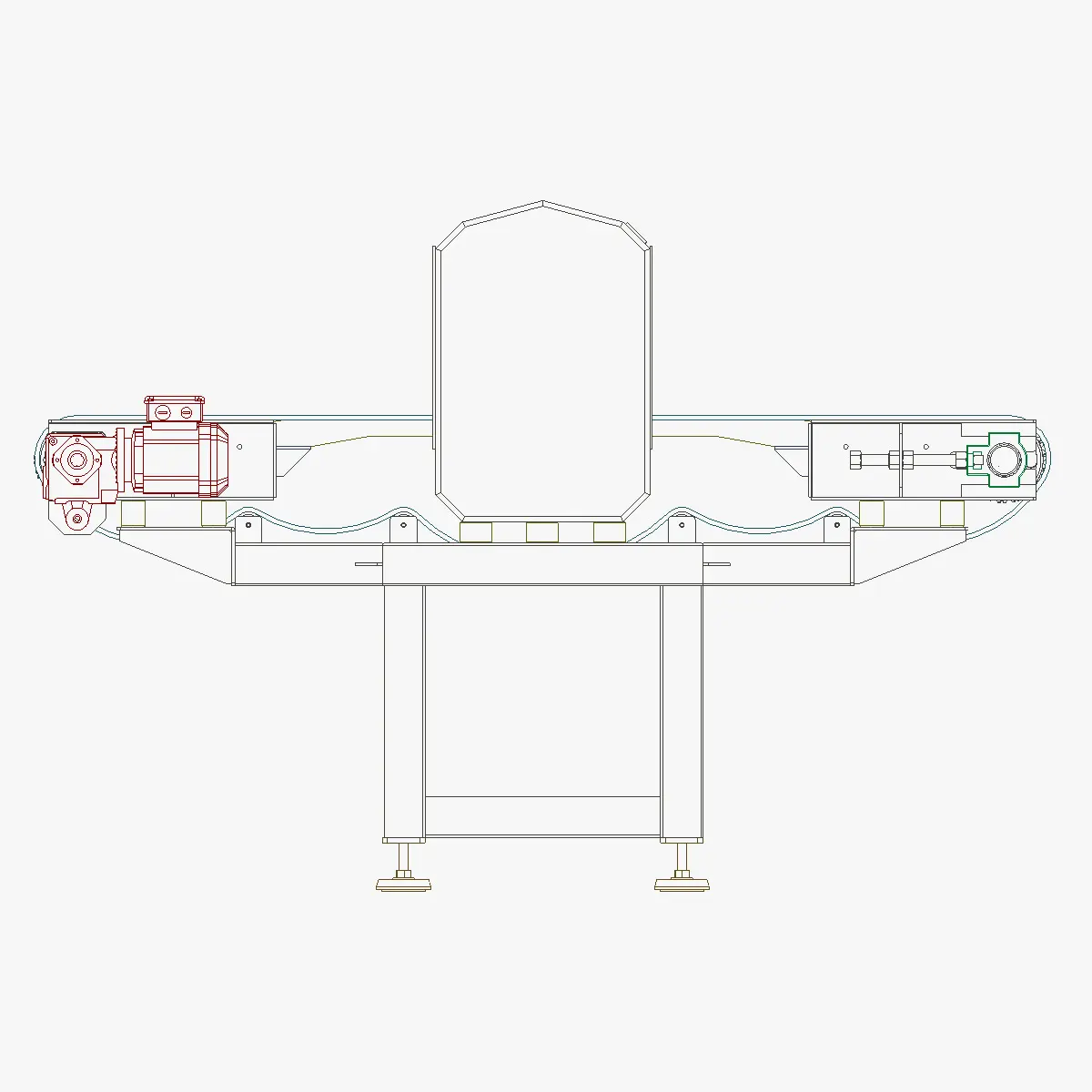

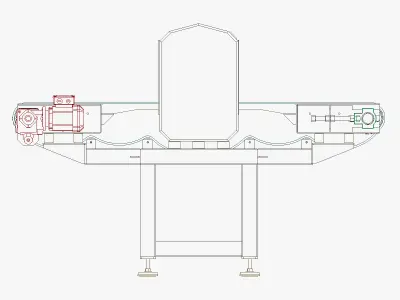

  • Dimension W660 x L1900 x H890 mm.

If you have questions, you can ask.Thanks for interesting

STL (Stereolithography, filesize: 38.2 MB), OBJ (OBJ, filesize: 99.5 MB), DWG (AutoCAD, filesize: 3.12 MB), OTHER (Other, filesize: 195 MB), PDF (PDF, filesize: 3.83 MB), X_T (Parasolid, filesize: 4.01 MB), IGE (IGES, filesize: 8.31 MB), STP (STEP, filesize: 4.68 MB), IAM (Autodesk Inventor, filesize: 188 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 500
  • Vertices: 2000
  • Plugins used
  • Geometry: Polygon mesh

Tags

Industrial Machine Industrial machine Tool Part Interior Exterior Steel Food Metal Detector Design Conveyor cad Conveyor belt cad Belt conveyor cad
