This is a project or modular pipe which I made for my own needs and decided to share it.
It contains:

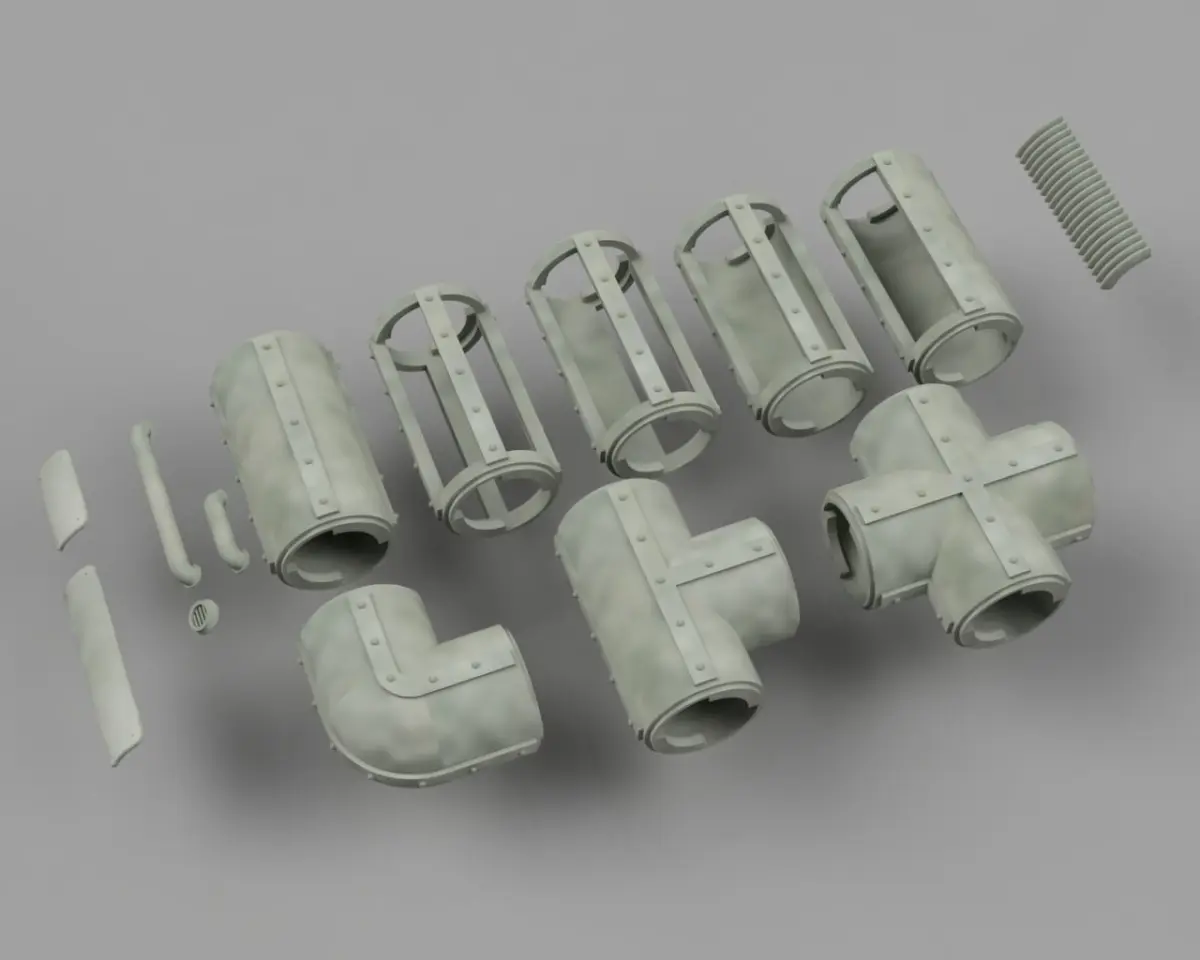

- 5 straight pipes (with 0, 1, 2, 3 and 4 slots for inserts)
- L-pipe
- T-pipe
- X-pipe
- plasma pipe insert
- 2 pipe add-ons for big pipes
- 1 vent add-on for big pipes
- 2 plate add-ons for big pipes

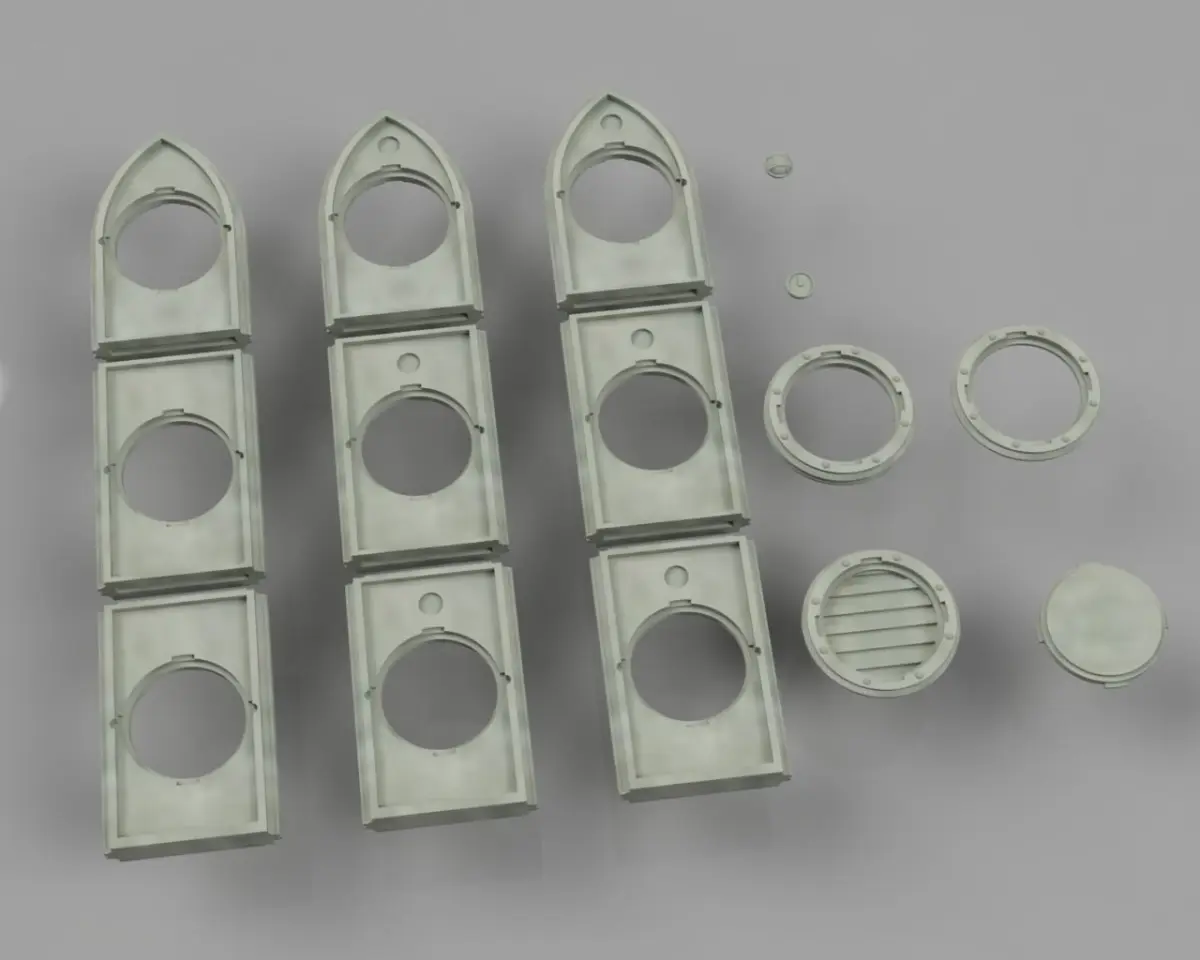

- 1 circular connector
- 1 circular connector to ground
- stackable ground connector with different accessory slot variations
- accessories/inserts for connector - lamp, dial
- 23 magnet pipe inserts with magnet dimensions 5x3-15x3, 5x4-15x4 and 1 blank if you wanted to magnetize the set. (the 15mm magnet slot has no margin)
Models aren't pre-supported yet, I've test printed them, but I've had some problems with them, so I want to optimize the supports, be 100% sure, that they're good and I'm going to add them here too.
Since this is my personal project I'm going to keep adding models to it as I see the need. The more complex models will be with instructions for assembly.Right now I have planned to make:
- plasma generator of size slightly smaller, than two pipes
- plasma charger of size slightly smaller, than one pipe
- additional connector insert accessories, such as skulls, cogs
Also if you think something is missing here, would like a particular model added to the set or just found an error please message me, I'll definitely fix the error and consider adding your idea.
3MF (3D Manufacturing File, filesize: 2.77 MB)
