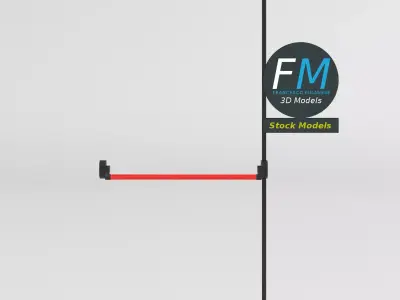

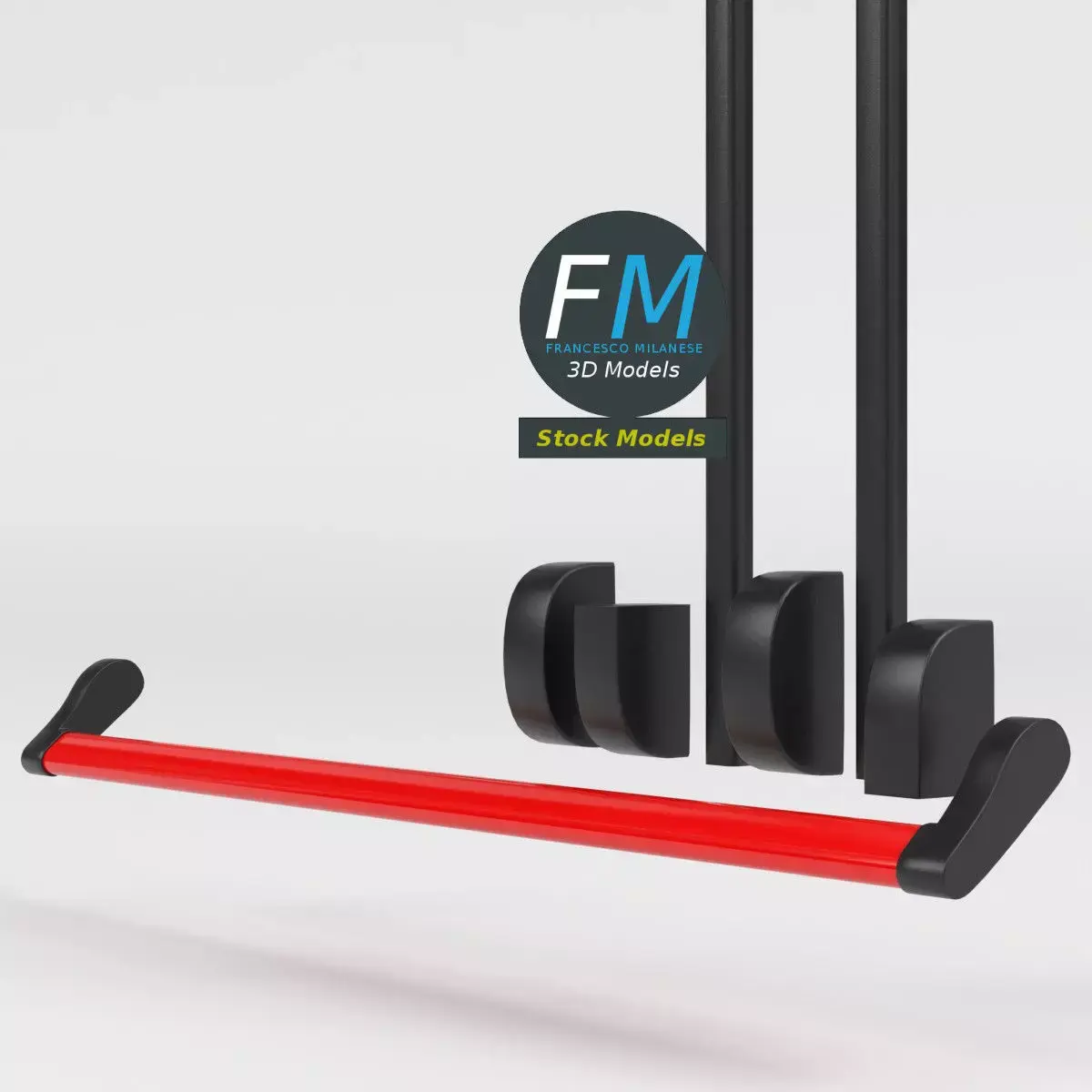

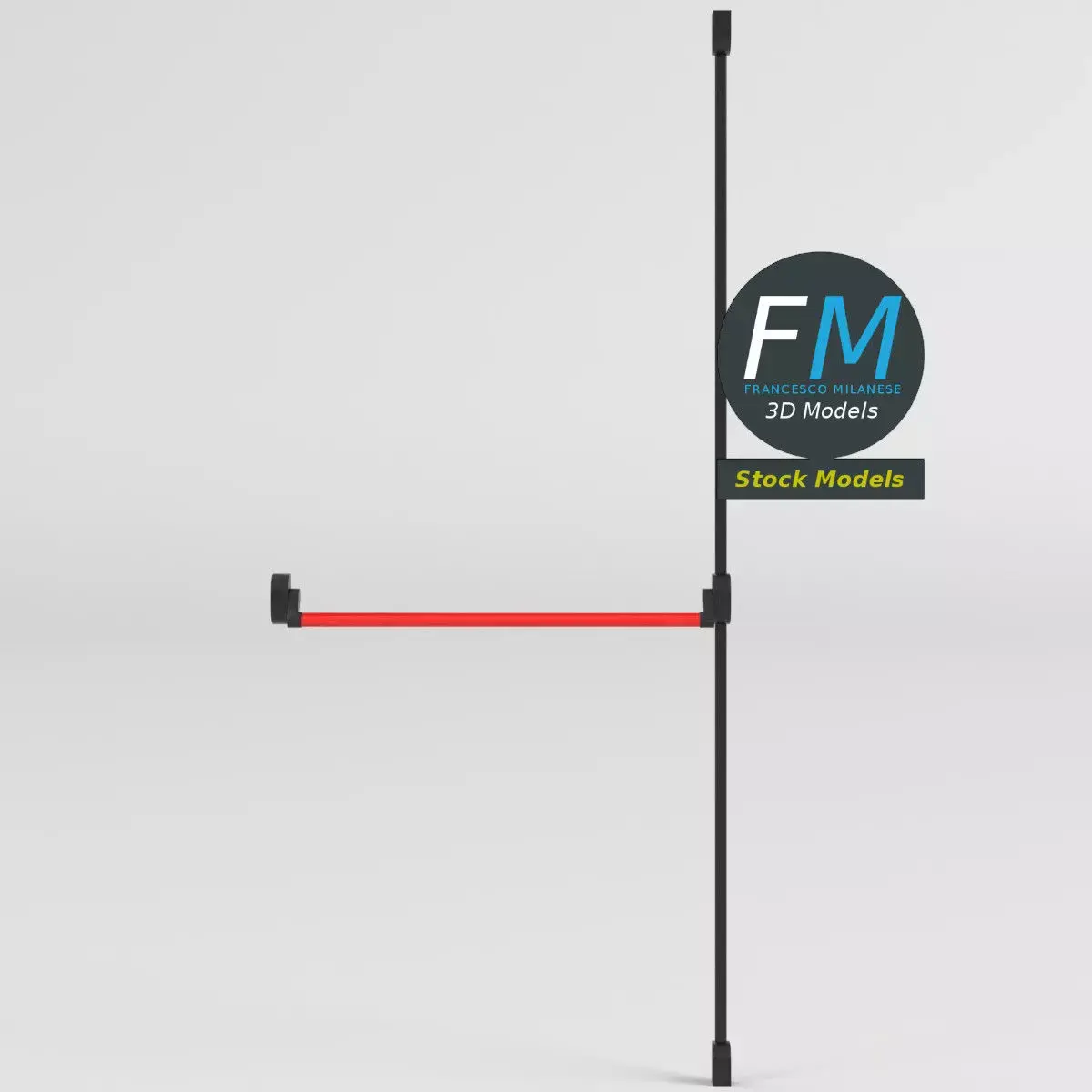

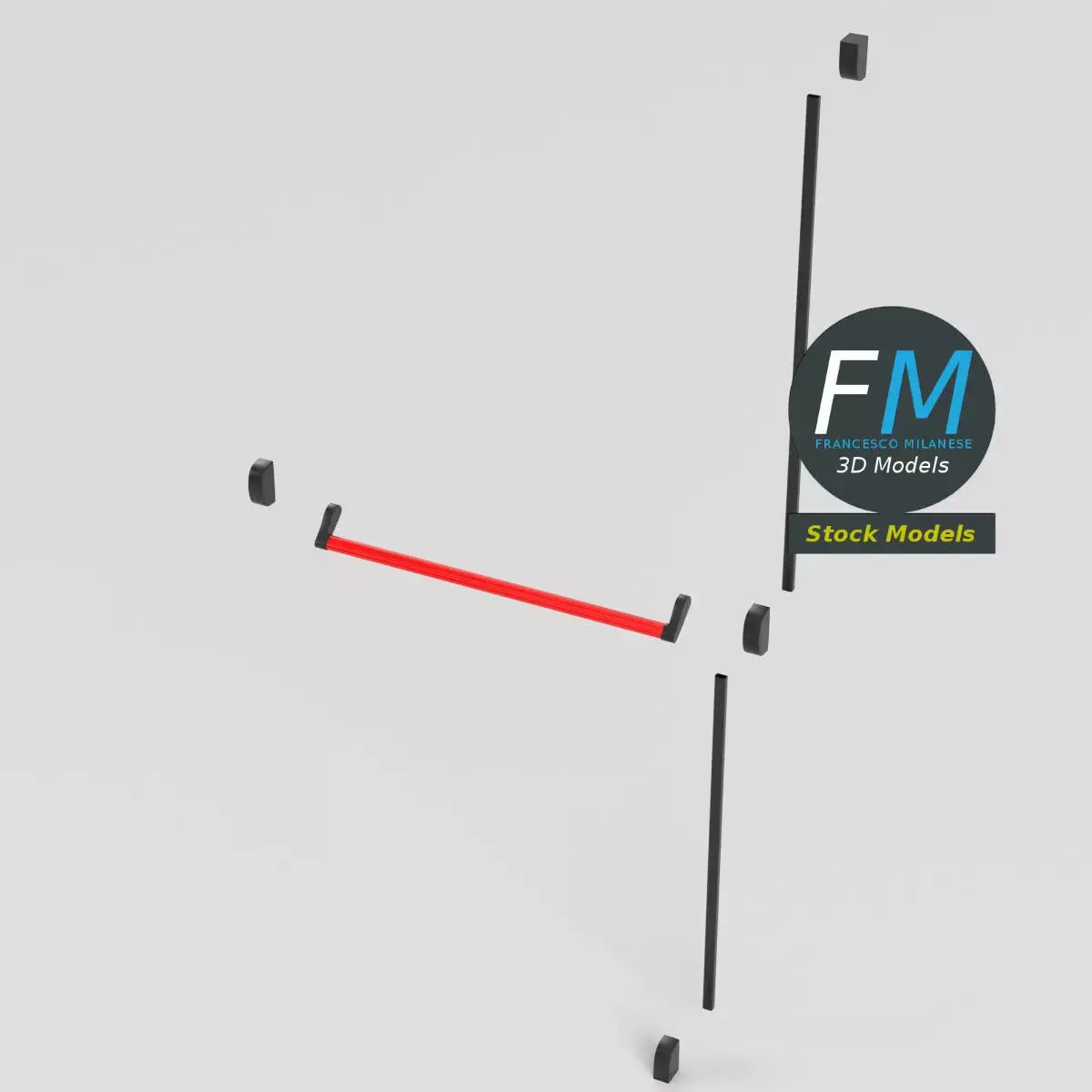

A minimalist panic-bar style mechanism 3D Model, featuring long vertical black support rods with a perpendicular red horizontal push arm, connected by simple bracket joints and capped ends. 7 objects (push bar, right cap, left cap, top rod, bottom rod, top latch, bottom latch; so, you can easily move or delete some elements, as shown in preview images), sharing the same non overlapping UV Layout Map, Material, and PBR Textures set. Production-ready 3D Model with non overlapping UV Layout map provided in the package. PBR Materials and Textures (Metallic Workflow: Base Color, Metallic, Roughness, Normal) embedded in the Blend, FBX, and GLB files.Easily customizable: UV unwrapped geometries; UV Layout maps provided in the package as png with alpha images.Quads-only geometry.Made with Blender 4.5 LTS with Cycles Principled BSDF (PBR, Metallic Workflow) Material, then exported to other formats (OBJ, FBX, GLB; FBX and GLB have embedded textures).Promo images: some renderings made with Cycles for Blender, plus Wireframes and Blender screenshots (Object Mode, Edit Mode with UVs).Formats included: FBX with embedded PBR Textures (Metallic Workflow: Base Color, Metallic, Roughness, Normal), GLB with embedded PBR Textures (Metallic Workflow: Base Color, Metallic, Roughness, Normal), OBJ; scenes: BLEND (with Cycles Principled (PBR) Materials); other: 16-bit PNGs with Alpha.7 Objects (meshes), 1 PBR Material, UV unwrapped (non overlapping UV Layout map provided in the package).UV Layout maps and Image Textures resolutions: 2048x2048.Polygonal, QUADS-ONLY, 3488 vertices, 3424 quad faces (6848 tris).Real world dimensions; scene scale units: METERS in Blender 4.5 LTS (that is: Metric with 1.00 scale).Uniform scale object (scale applied in Blender 4.5 LTS).PBR Textues included: in a zipped folder, you'll find the PBR Textures set (as 16-bit PNGs with Alpha).IMPORTANT --- Main renderings made with Blender 4.5 LTS + Cycles using an HDR Environment Texture Image which is NOT provided in the package!
BLEND (Blender, filesize: 10.2 MB), OBJ (OBJ, filesize: 6.81 MB), FBX (Autodesk FBX, filesize: 3.57 MB), GLTF (glTF, filesize: 3.48 MB), OTHER (Other, filesize: 2.26 MB), PNG (PNG, filesize: 23.7 MB), TEXTURES (Textures, filesize: 6.7 MB)
