Publication date: 2022-05-06

Buy Mold Design - B02 3D model

$20

License: Royalty Free

author:

mahdeezoabi

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mahdeezoabi». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $20 Add to Wishlist
  • Description
  • Formats

3D SolidWorks model of simple basket mold.

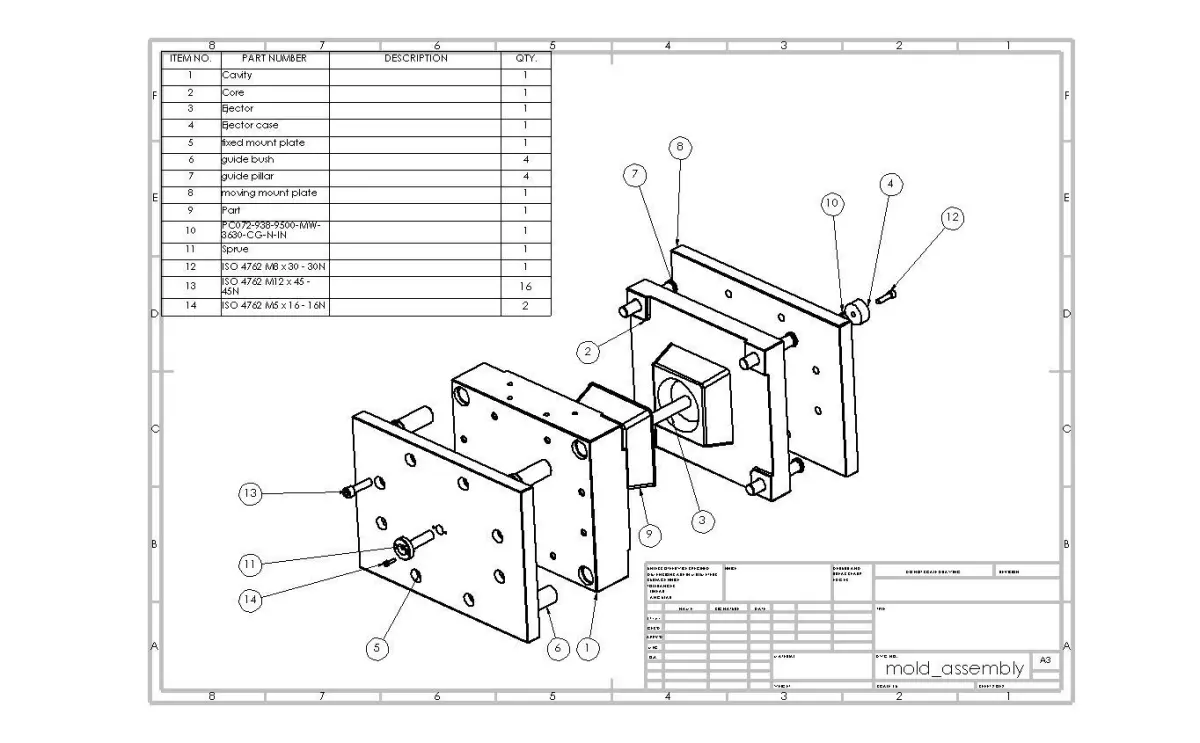

The model contains the most common parts that used in mold designing, sprue/guide pin/giude bush/cavity/core/ejector/spring.

The model cantains the cooling inlets bores but not all the cooling system.

File formats is: solidworks(sld) version 2018 + step format + stl format.

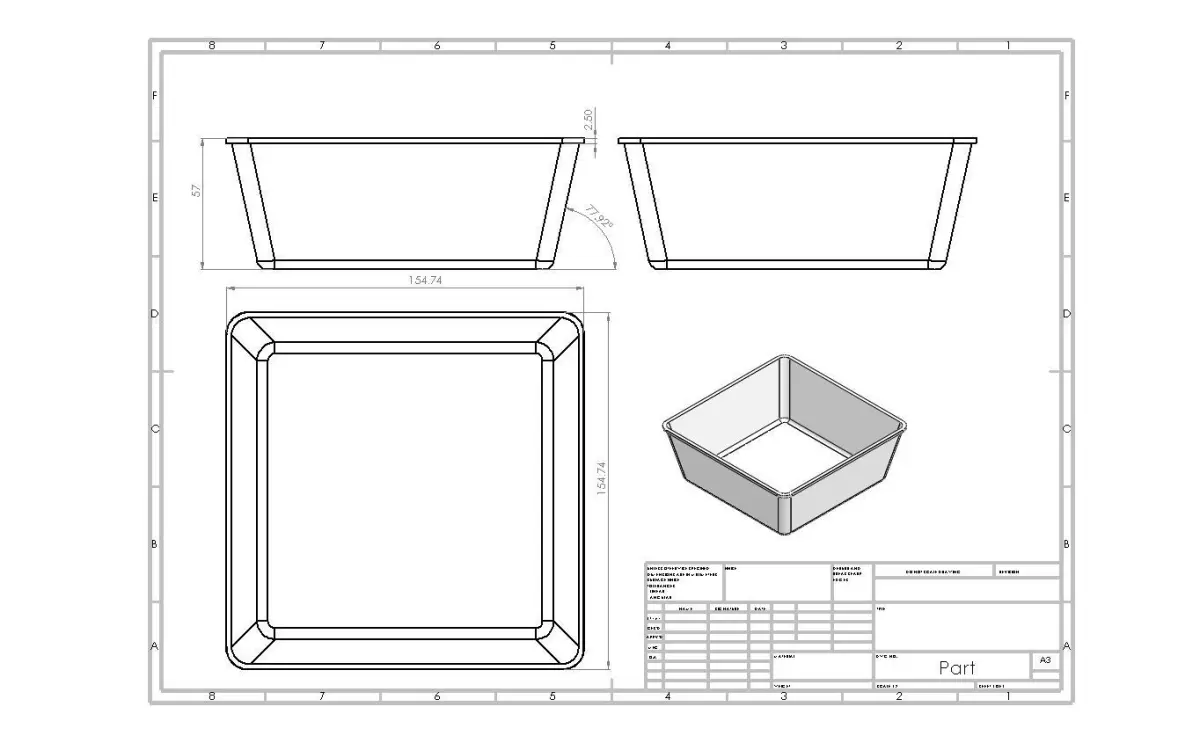

The dimesnoins of the model on the drawing sheets are in mm.

The model doesnt contain the screws listed in the drawing sheet. you can take them from the solidworks tools box from is standard.

STL (Stereolithography, filesize: 13.9 MB), SLDPRT (SolidWorks, filesize: 15 MB), STP (STEP, filesize: 9.22 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Mold Part Steel Plastic Injection Spring Pillar Abs Pet Machine Various Various models Solidworks spring
