Buy Mold for diecast tire 5 Scale 1 to 10 and 1 to 14 and 1 to 25 3D print model

Name: Mold for diecast tire 5 Scale 1 to 10 and 1 to 14 and 1 to 25 3D print model
Brand: tommy250max
SKU: 851907
Price: 10.00 USD
Availability: InStock

$10

License: Royalty Free

author:

tommy250max

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «tommy250max». CGhub does not claim copyright ownership over the content used.

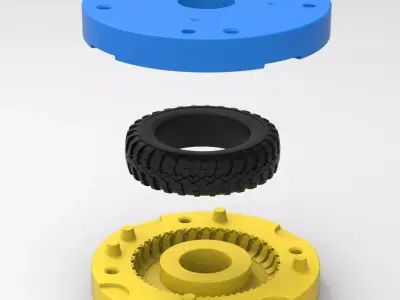

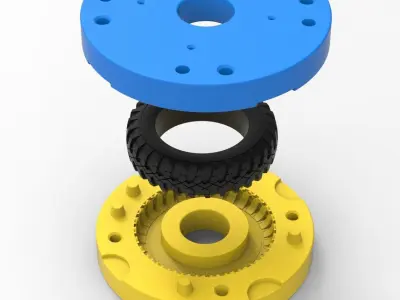

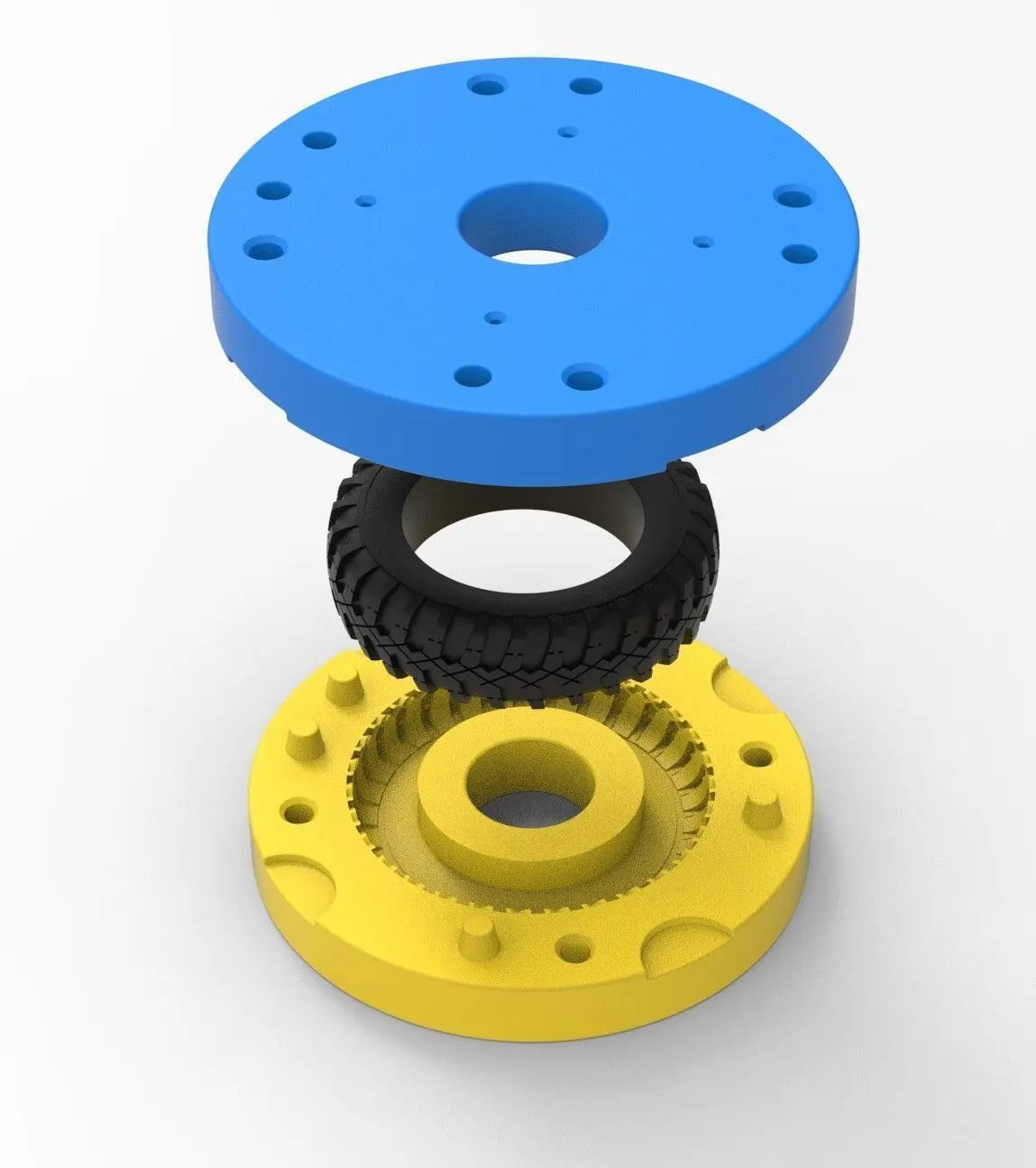

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

diameter – 115 mm
height – 30.5 mm

Tire dimensions 1:10:

outer diameter – 75 mm
overall width – 20.5 mm
inner diameter – 46 mm

Mold dimensions 1:14:

diameter – 93.5 mm
height – 24.5 mm

Tire dimensions 1:14:

outer diameter – 53.5 mm
overall width – 14.5 mm
inner diameter – 33 mm

Mold dimensions 1:25:

diameter – 70 mm
height – 17.5 mm

Tire dimensions 1:25:

outer diameter – 30 mm
overall width – 7.5 mm
inner diameter – 17.4 mm

If you want a different wheel size, simply scale the mold.

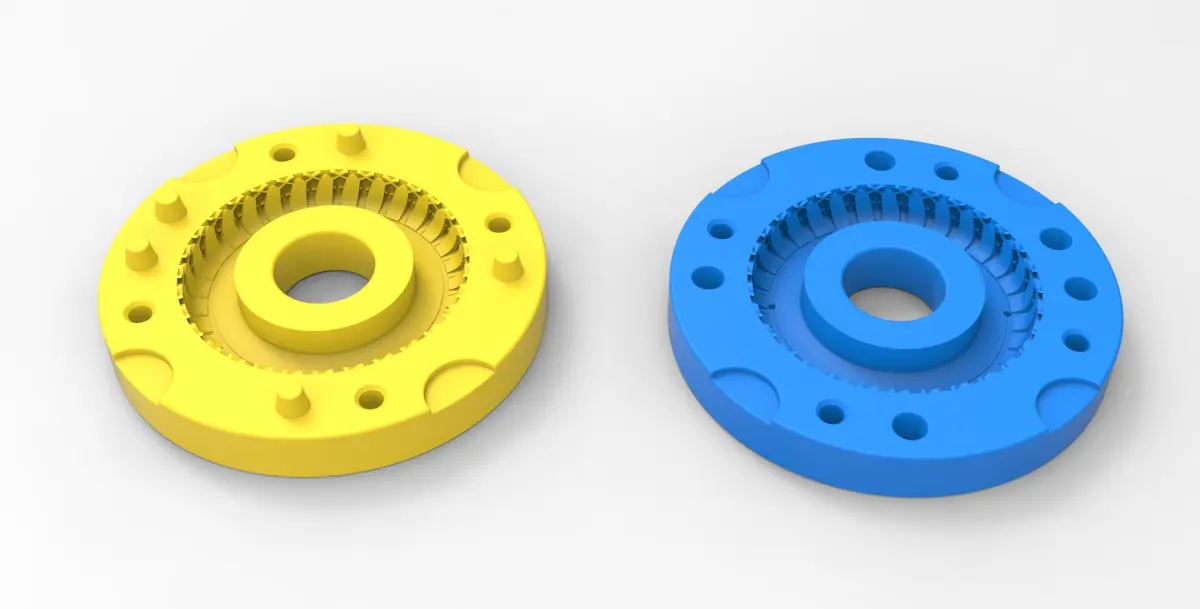

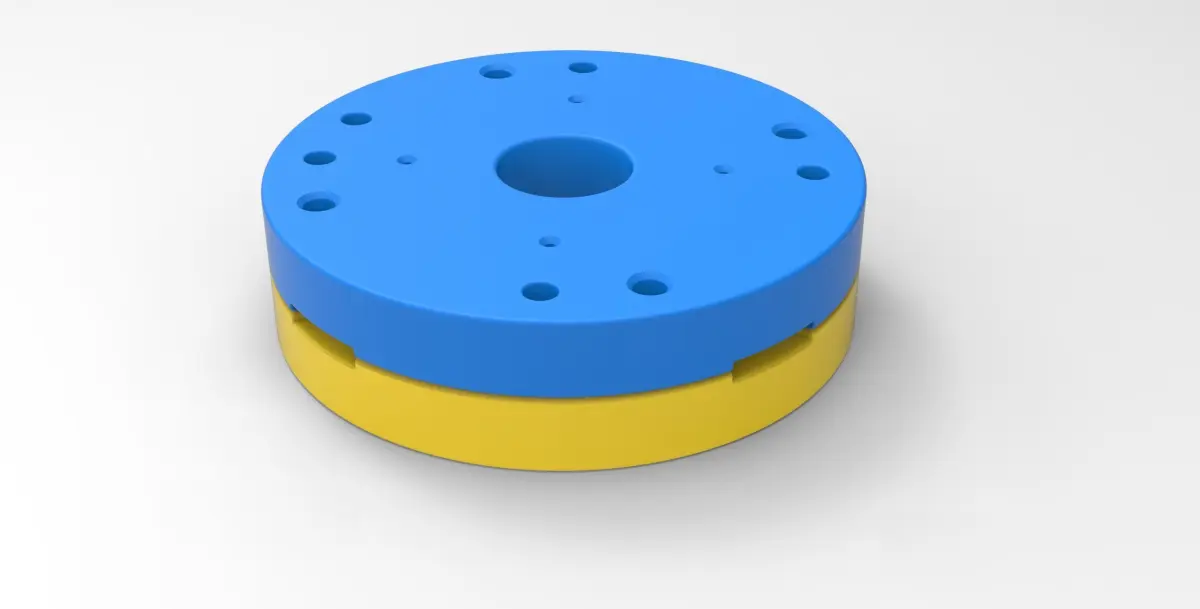

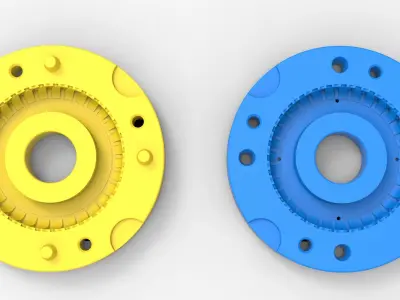

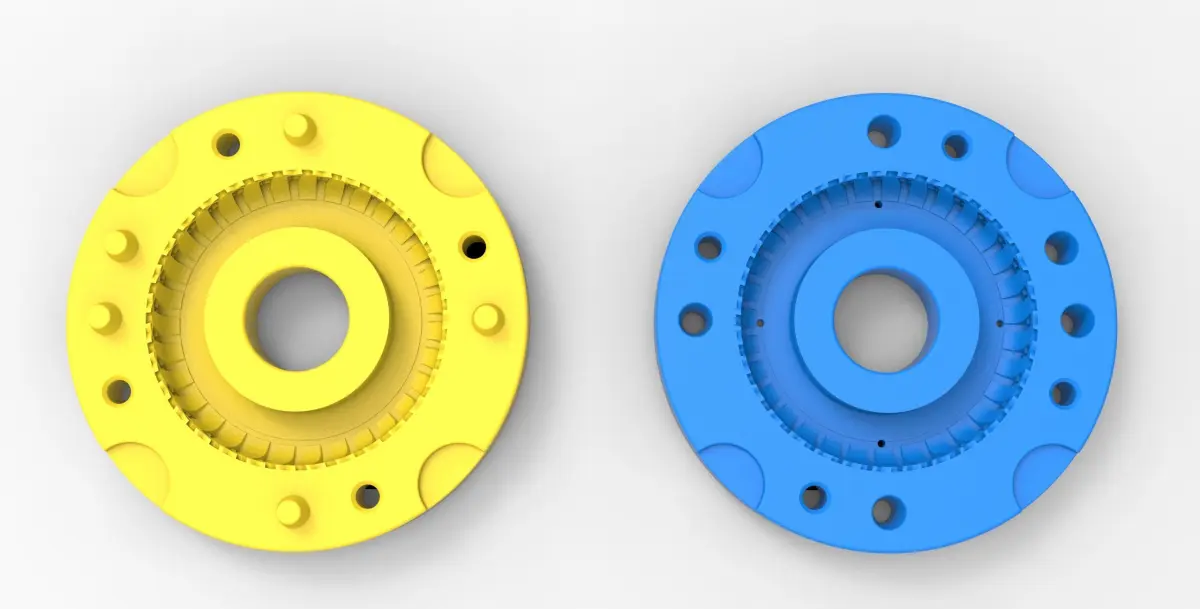

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.In the Top mold part are 4 small holes for material injection.Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.Note! Only the mold! This is not a tire!
