MOTEUR ROTATIF WANKEL - WANKEL ROTARY ENGINE 3D print model

$30

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

pierrotg

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «pierrotg». CGhub does not claim copyright ownership over the content used.

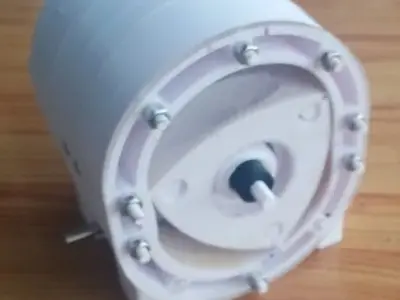

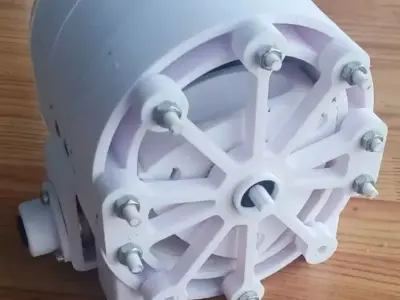

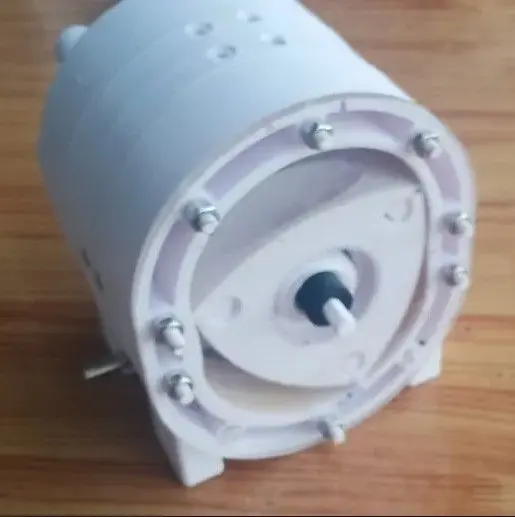

j'ai reconstitué le moteur rotatif Wankel d'apres des images de ce fameux moteur.le plus difficile as ete de creer la developante de cercle pour le deplacement ddu piston curvilignevoila j'ai dit le principaltout a ete construit en PLA sur imprimante 3D Anycubicdecouvre ce modele ingenieux

Pierre

I reconstructed the Wankel rotary engine from pictures of this famous engine.the most difficult thing was to create the circle developer for the movement of the curvilinear pistonhere I said the main thingeverything has been built in PLA on 3D printer Anycubicdiscover this ingenious model

Pierre

Anycubique méga Sbuse diametre 0.4mmtempérature 220/230 degreplateau 40 degres

j'ai optimisé les 3D pour reduire les supports

Anycubic mega Snozzle diameter 0.4mmtemperature 220/230 degres40 degree plateI have optimized the 3D to reduce the supports
