Motion Detecting LED Lighting for 3D Printers 3D print model

$4.87

License: Royalty Free No Ai

author:

illici7

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «illici7». CGhub does not claim copyright ownership over the content used.

This design was created to incorporate a movement detector for LED lighting so that any LED lighting installed on a 3D Printer is only activated when either the print bed is moving or movement is detected beneath.

This design incorporates a '12V Passive Infrared Sensor' which can be bought from the following link:
https://www.aliexpress.com/item/1005008589497175.html

The design has been made to have directional sighting for the PIR Sensor so that it is not omnidirectional but rather focussed on the print bed with the print being in two parts, one being a downwards directional sight and the other being a custom designed rail mount fitting for 2020 extrusion to be fitted at the top of the printer.

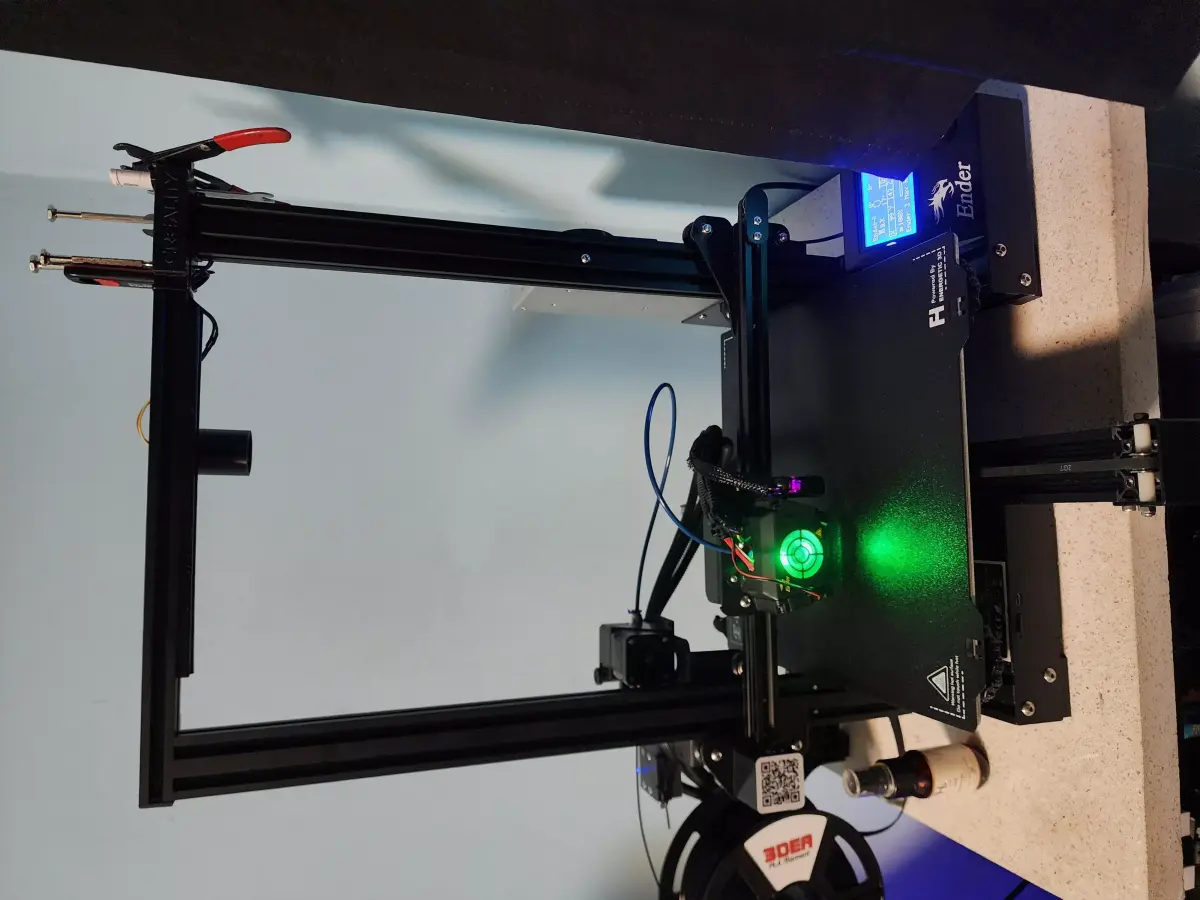

This design should suit most 3D Printer brands and LED Light modifications however the example shown was made specifically for my 'Ender 3 Max'.

Videos of operation:
https://youtube.com/shorts/Vgmx0wZ9oy4
https://youtube.com/shorts/98hvzqkjDqE
Included STLs are:

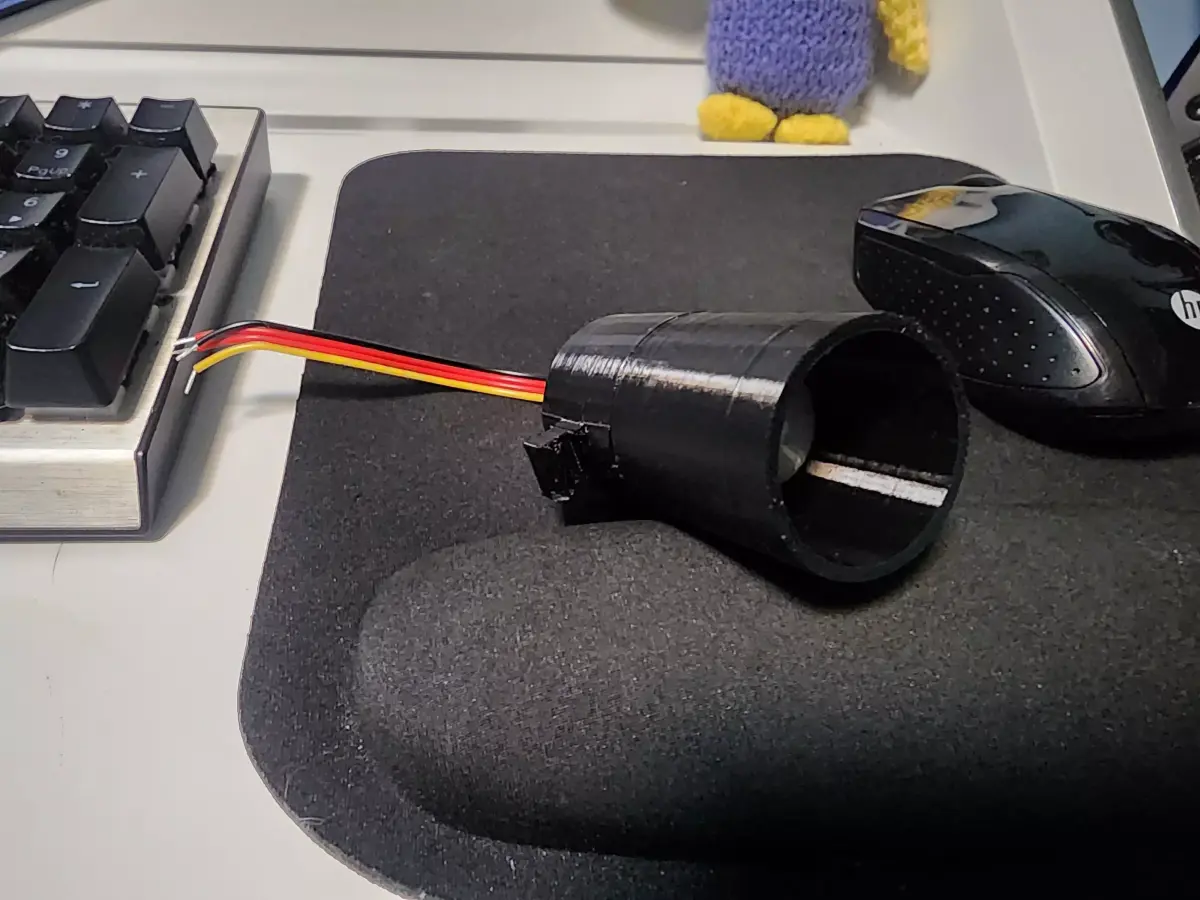

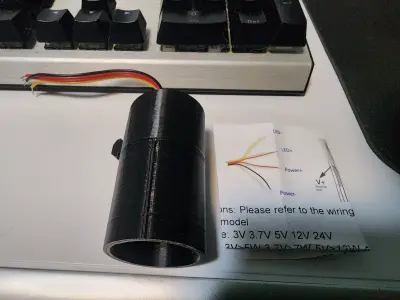

PIR LED Light Sensor Directionally Mounted Downwards Sight

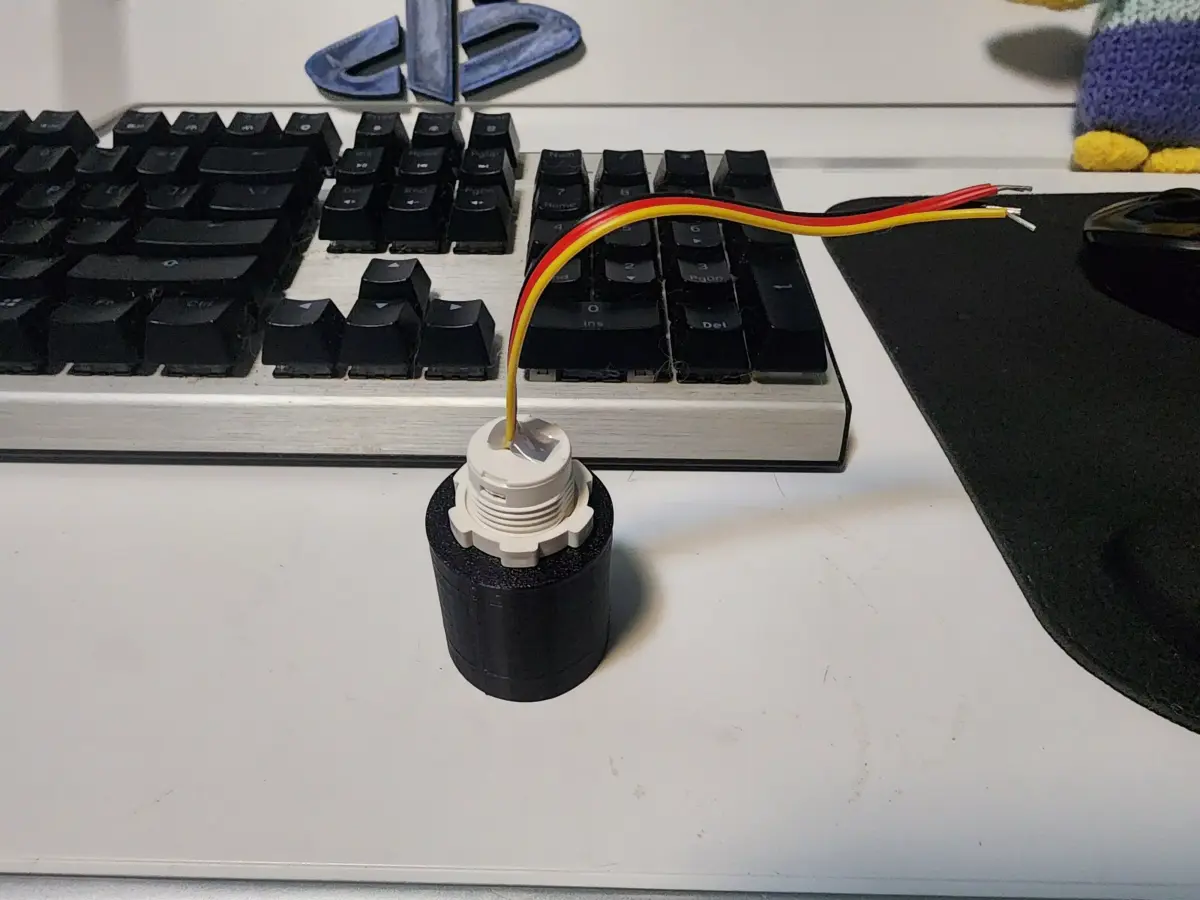

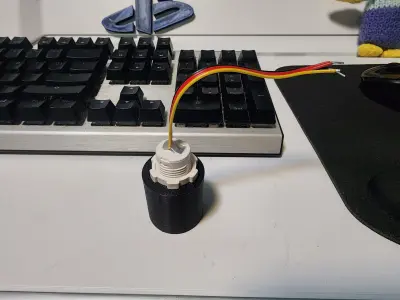

PIR LED Light Sensor Top Rail Mount

I'm more than happy to communicate with the buyer and help with design, wiring and other options (As you can set this up many ways - This is just the motion detecting PIR design) upon a successful purchase.

Supports are recommended.
