Buy Motor automatic assembly production line 3D model

Name: Motor automatic assembly production line 3D model
Brand: chanway2012
SKU: 895287
Price: 29.00 USD
Availability: InStock

$29

License: Royalty Free

author:

chanway2012

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «chanway2012». CGhub does not claim copyright ownership over the content used.

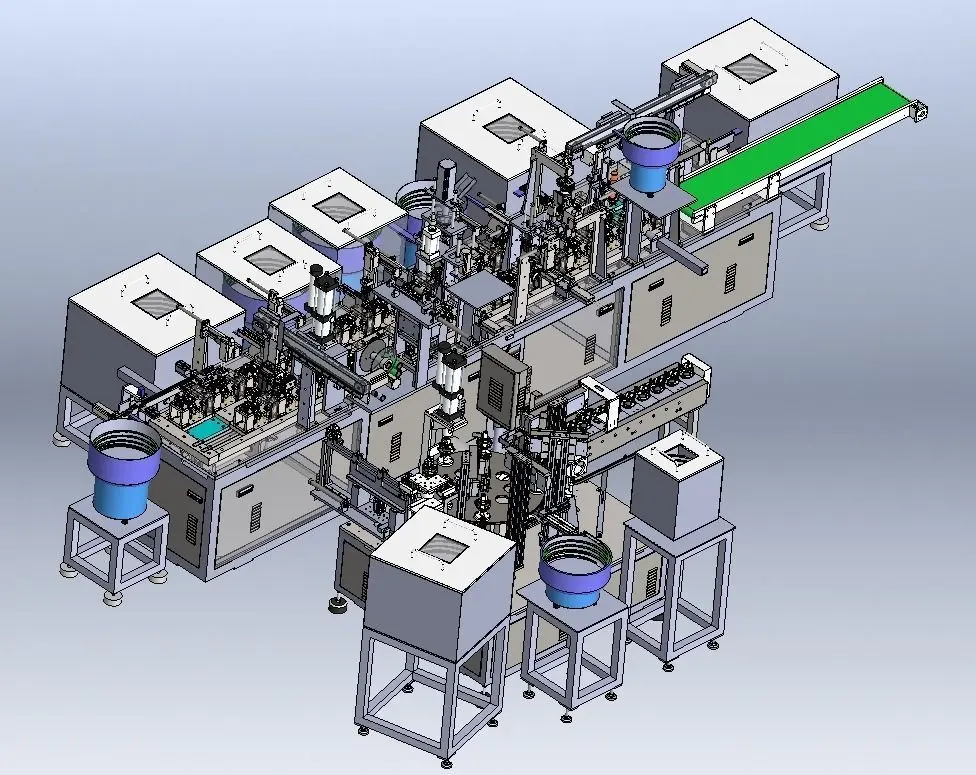

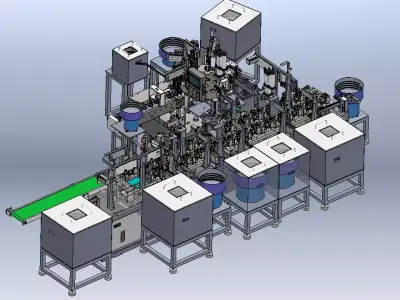

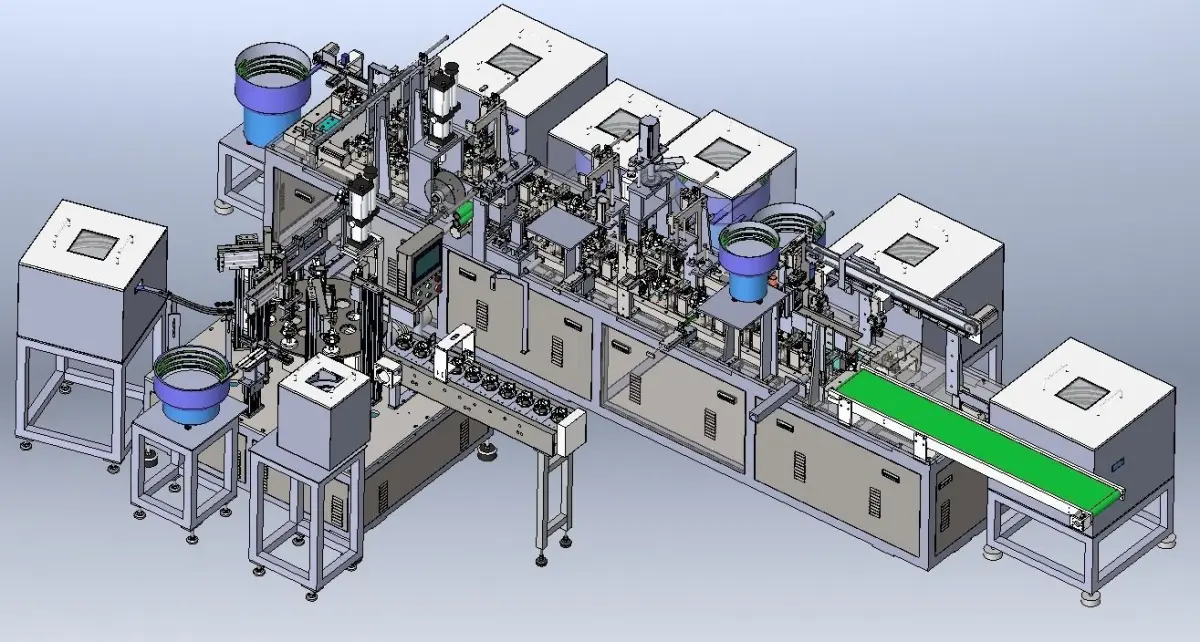

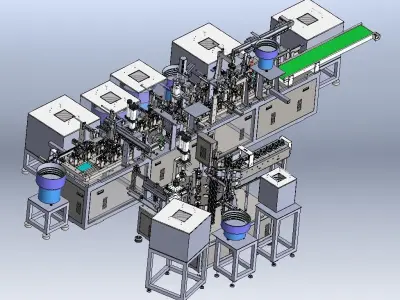

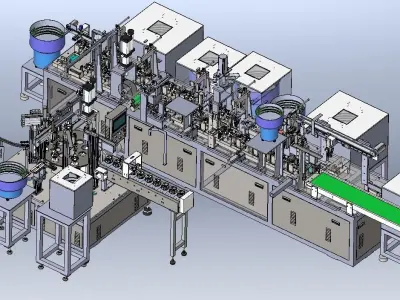

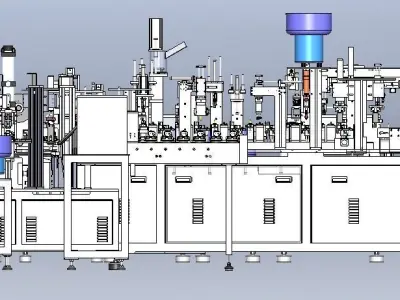

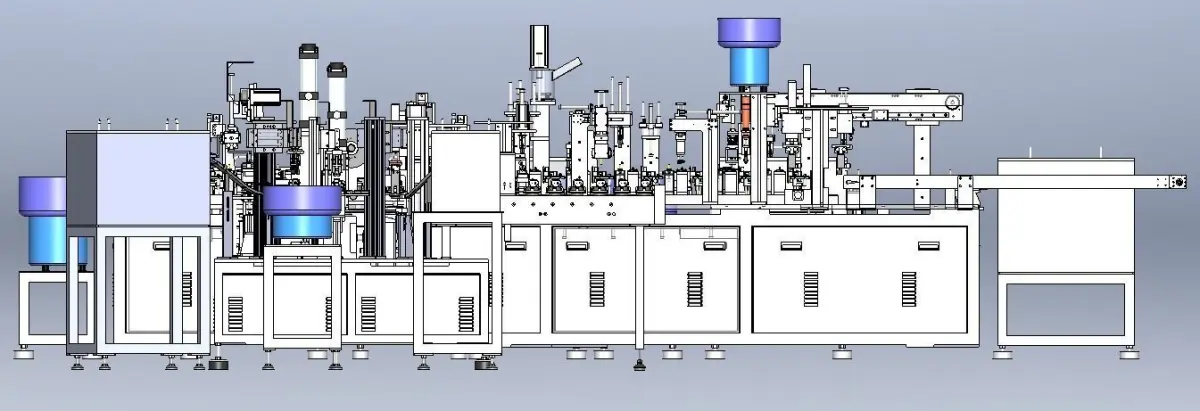

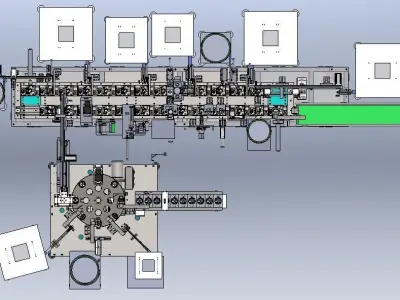

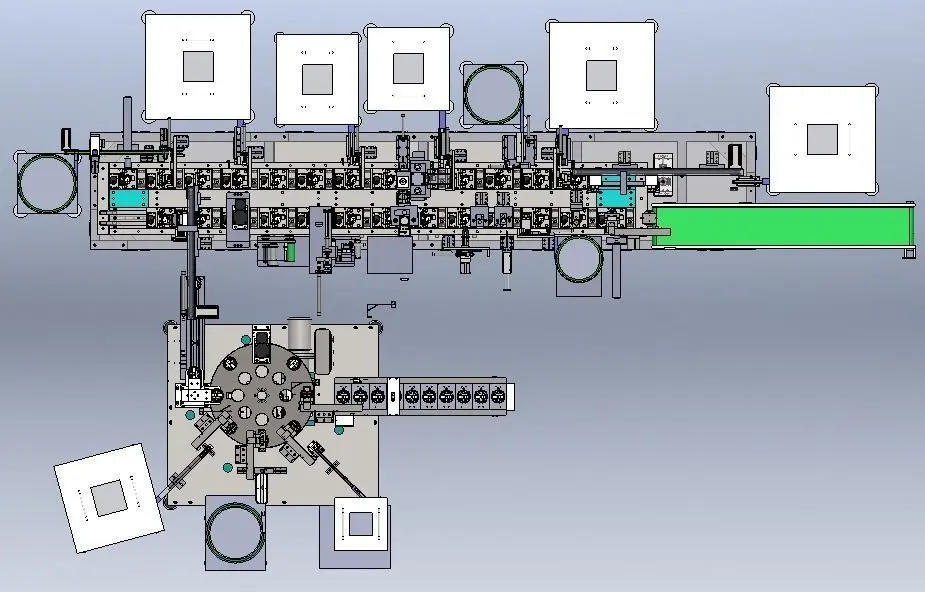

Motor automatic assembly production line 3D model. This complete set of non-standard equipment drawings is designed with SolidWorks 2012. Its main function is to assemble all motors and parts and finally realize unmanned operation when the finished product is discharged. The internal design principle is divided into : Vibration plate feeding, clamping, assembling, handling, flipping, screw locking, spring loading, picking and unloading, finished product conveying, etc. The feeding part of the vibrating plate adopts the method of belt and water fixture plate to cycle operation. Simply put the product on the fixture and pass the product through the conveyor belt, and the clamping manipulator will perform the clamping and assembly. After completion, the fixture will work in a loop

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Other

Tags

Automatic Machine Equipment Control Product Industry Industrial Manufacture Assembly Mechanic Components Electrical Plc Motor Flip Feeding Industrial machine Electrical components Motor cad
