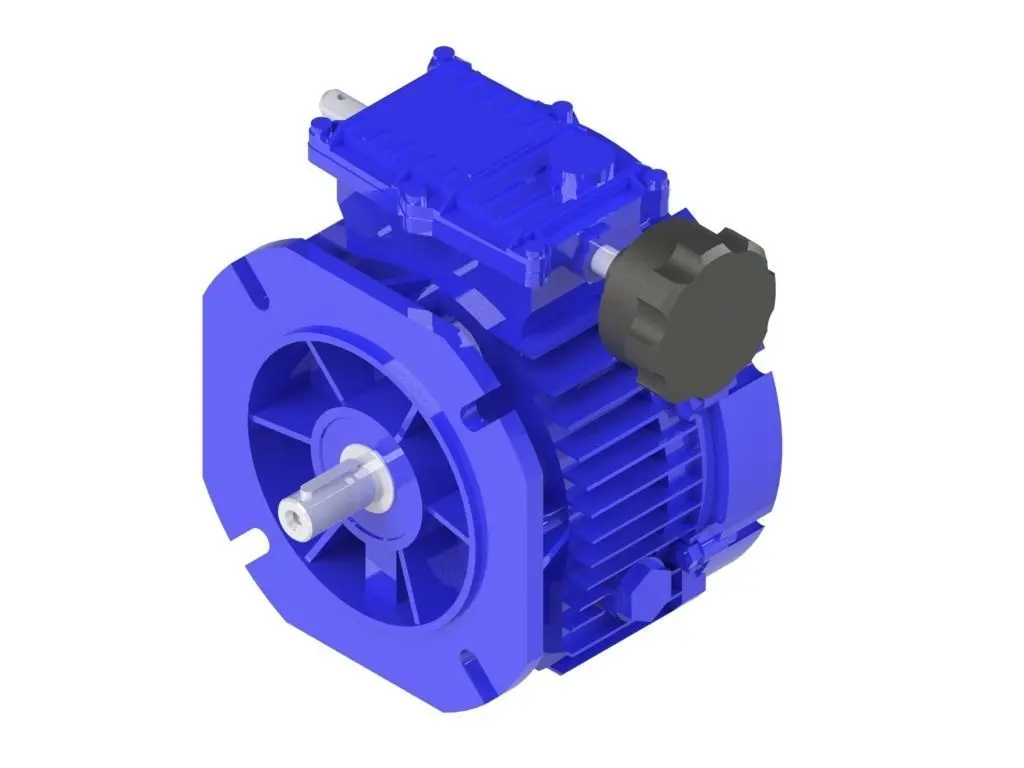

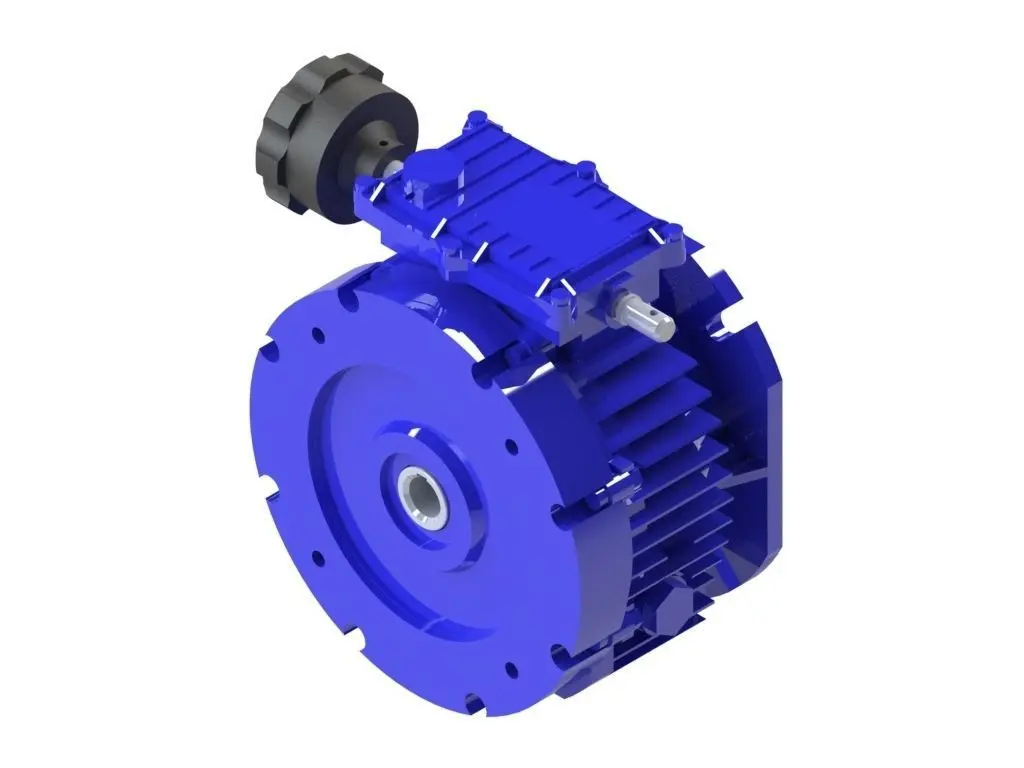

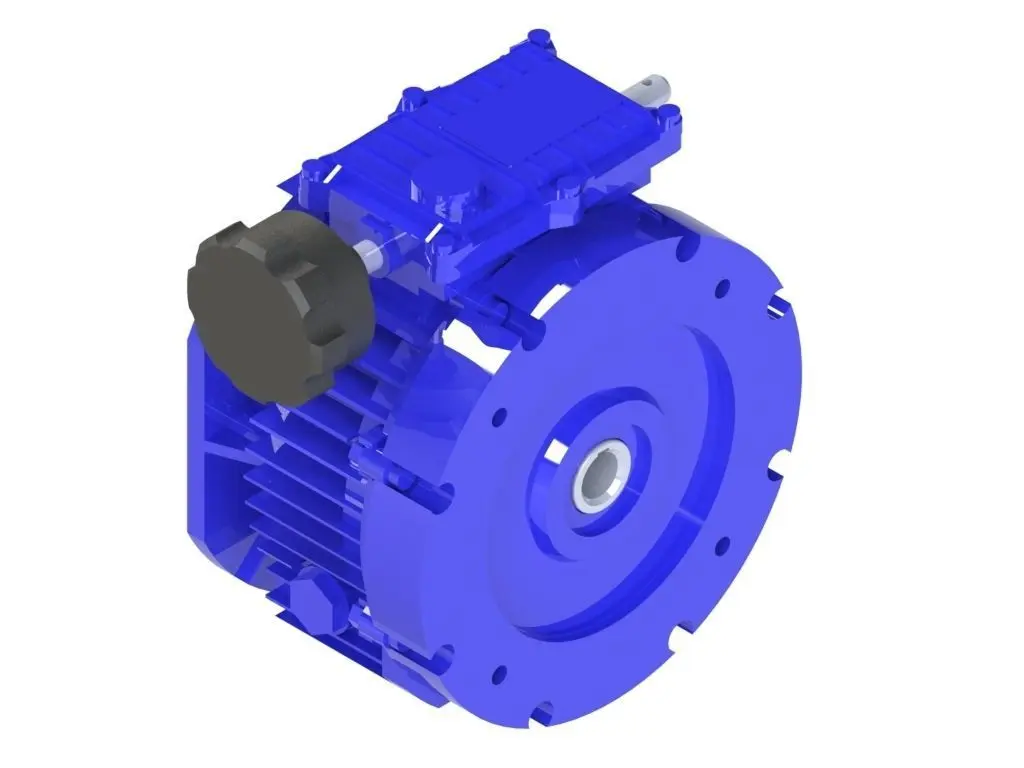

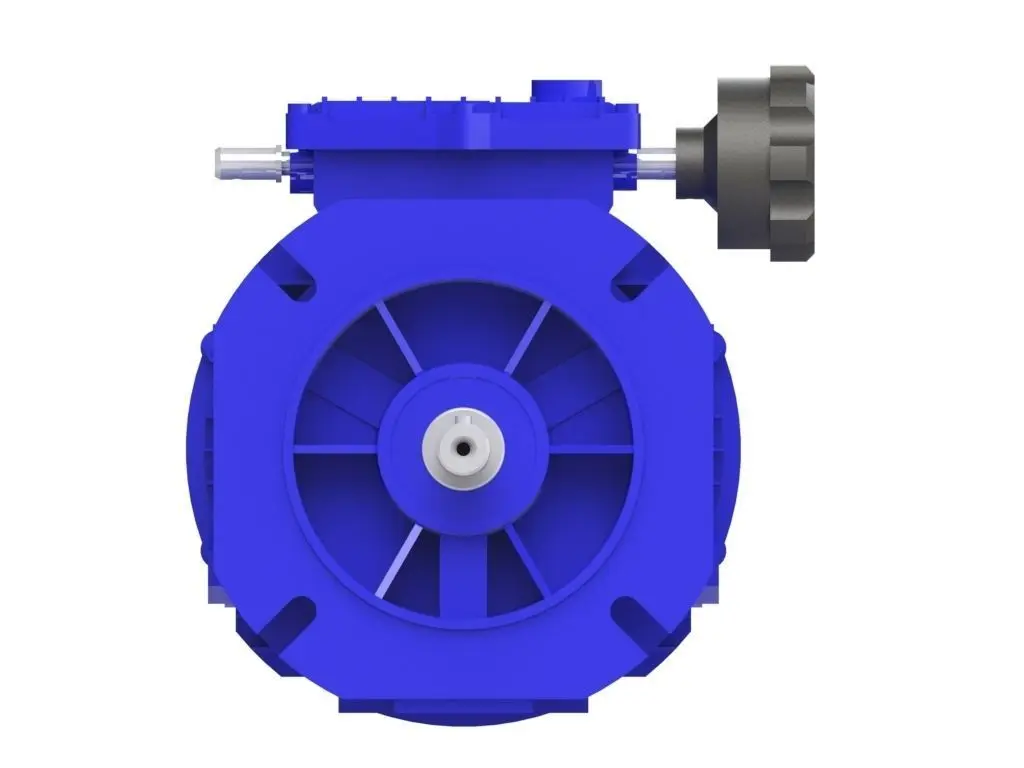

Motor-variator TXF10 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

suxrob1994

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «suxrob1994». CGhub does not claim copyright ownership over the content used.

Motor-variators are designed for stepless variation of speed and torque on the output shaft. For normal operation of the variator motor, the ambient temperature must be in the range from −10°C to + 50°C. During operation, the temperature of the motor-variator housing can reach 90°C.
The gear ratio in the variator is adjusted using wedge friction elements. Typically, a variator gear motor is installed in systems where the use of frequency converters is impractical or impossible, in particular, in installations where long-term operation at low speeds is necessary.
