Name: Multiple Gear Rack Set 3D print model
Brand: AG-Design
SKU: 888549
Price: 12.95 USD
Availability: InStock

$12.95

License: Royalty Free

author:

AG-Design

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «AG-Design». CGhub does not claim copyright ownership over the content used.

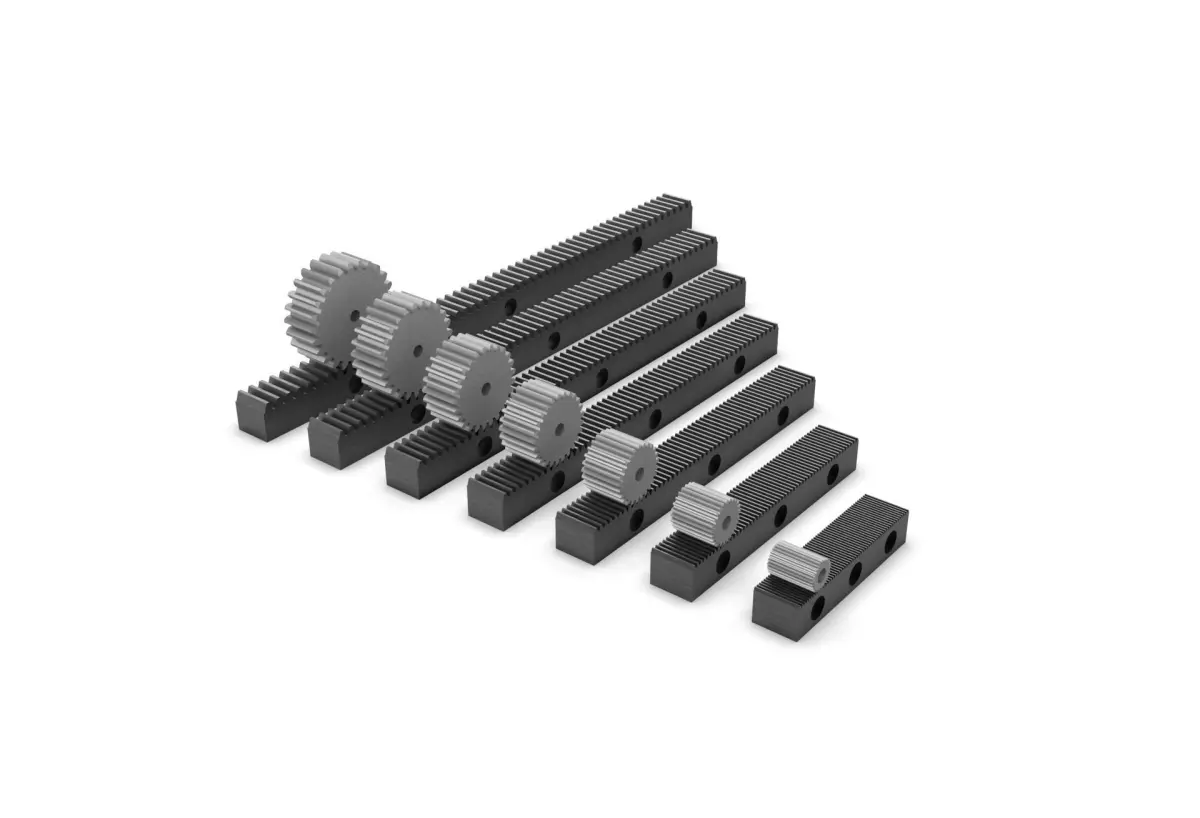

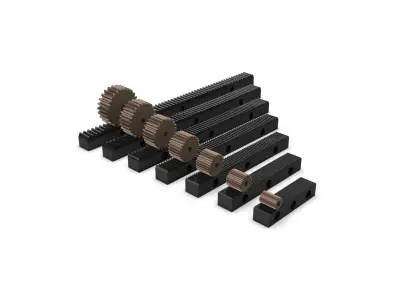

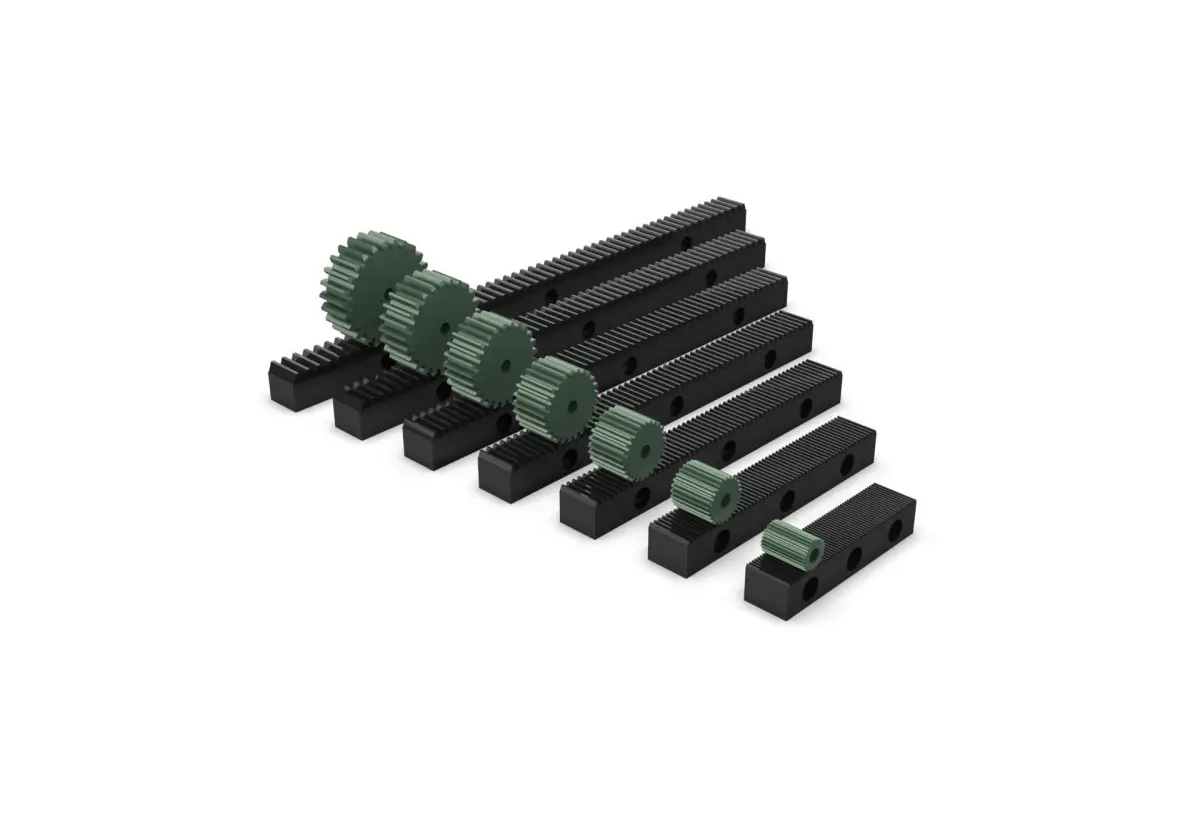

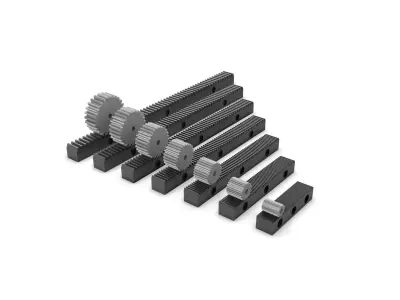

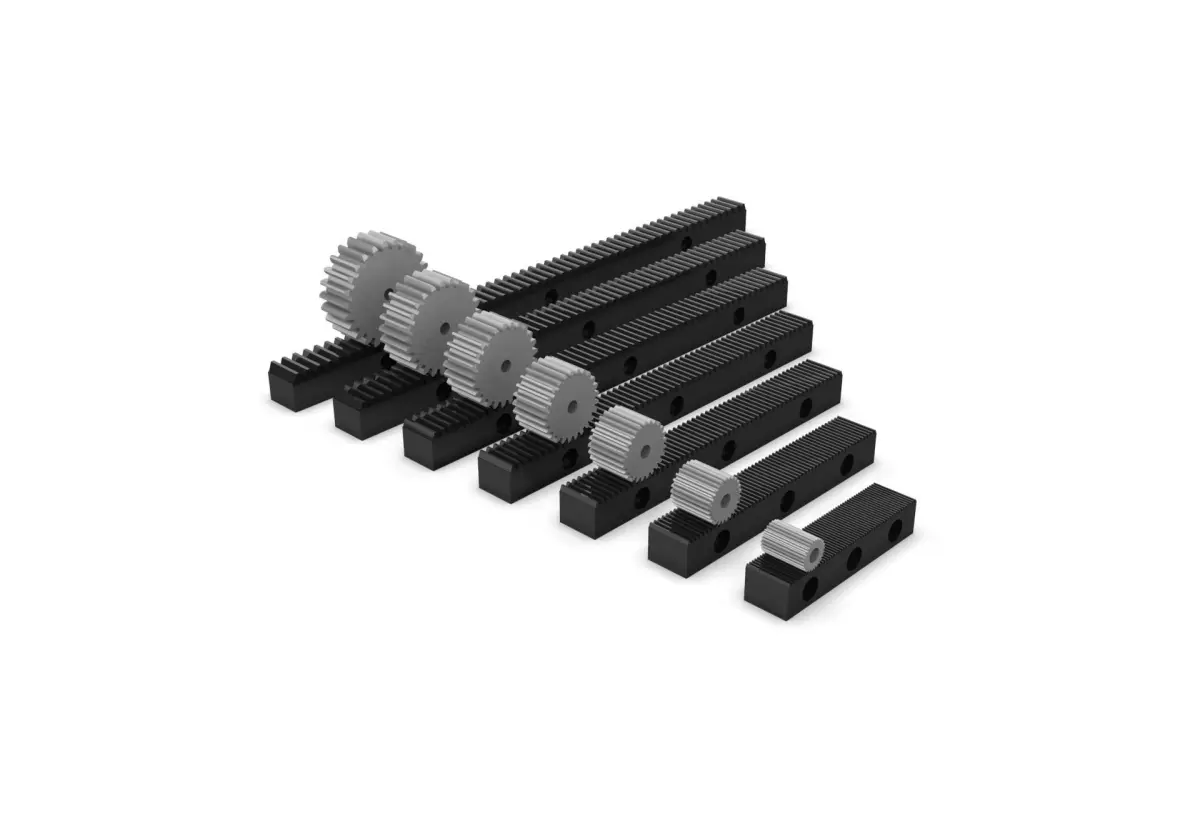

This is a complete set of multiple gear with racks system.

The set consists of 25 teeth gears with different variations of module values.The module values vary from 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2. The different values are included for optimizing the system for each use. Bigger module values means bigger teeth and as a result, it can carry a bigger load.The racks are designed in order to provide one safe complete rotation of the gear and have some spare room to play. Starting point and ending points of the racks are designed so multiple prints can be used top create a long rack according to your needs.

*Please feel free to contact me if you need an further support on 3D models or if you need any customization on this model. *

Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Manifold geometry | No N-gons |
