N54 N55 335i N52 S55 Oil pan gasket DXF 3D model

License: Royalty Free

author:

ML-Modeling

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ML-Modeling». CGhub does not claim copyright ownership over the content used.

N54 N55 335i Oil pan gasket DXF, Fusion 360, STEP file.Fits M3 S55 and N52 engines too.Not tested on n52 manual steel oil pan, it will fit but pan has to be very flat.

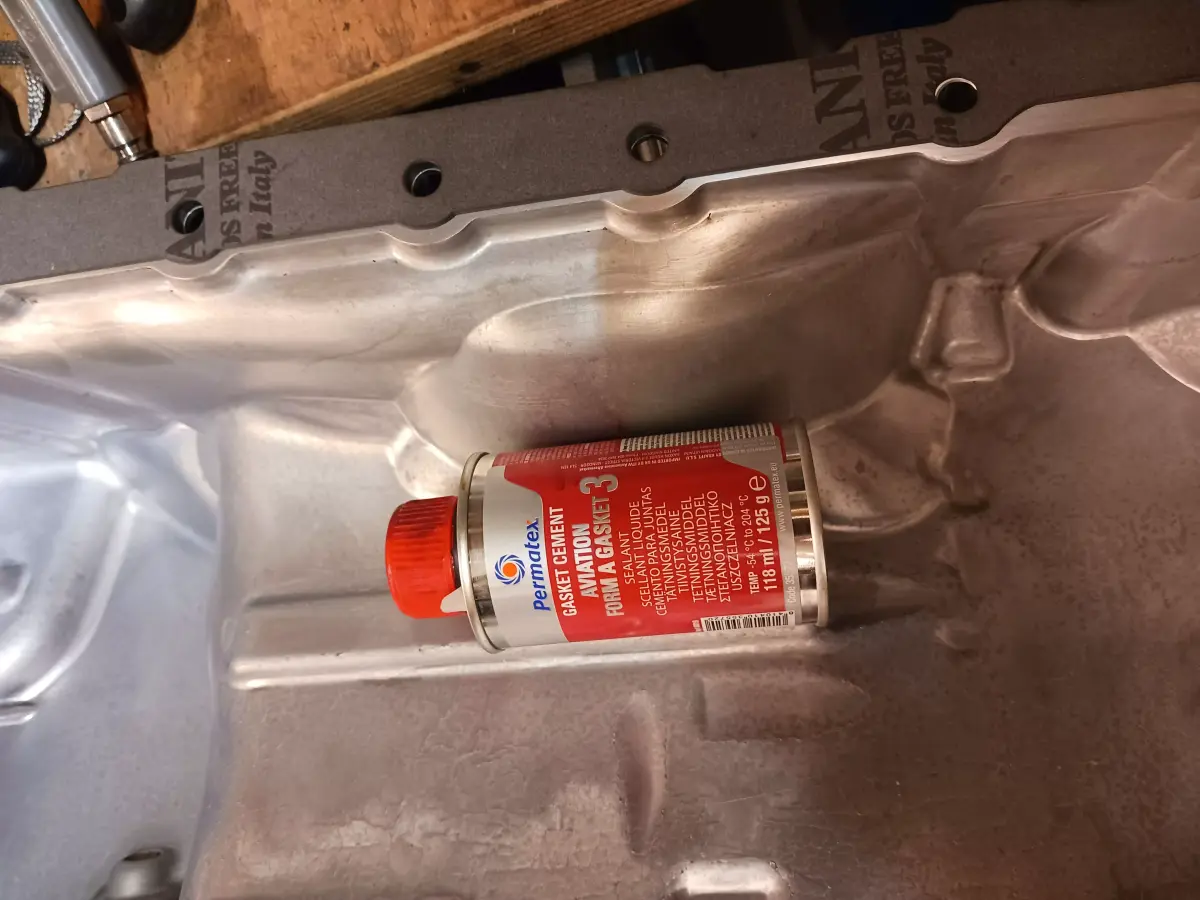

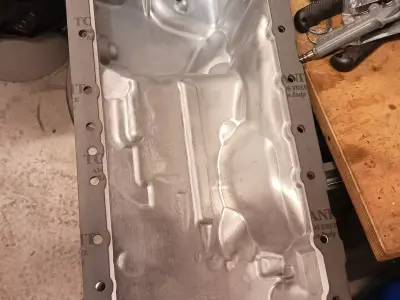

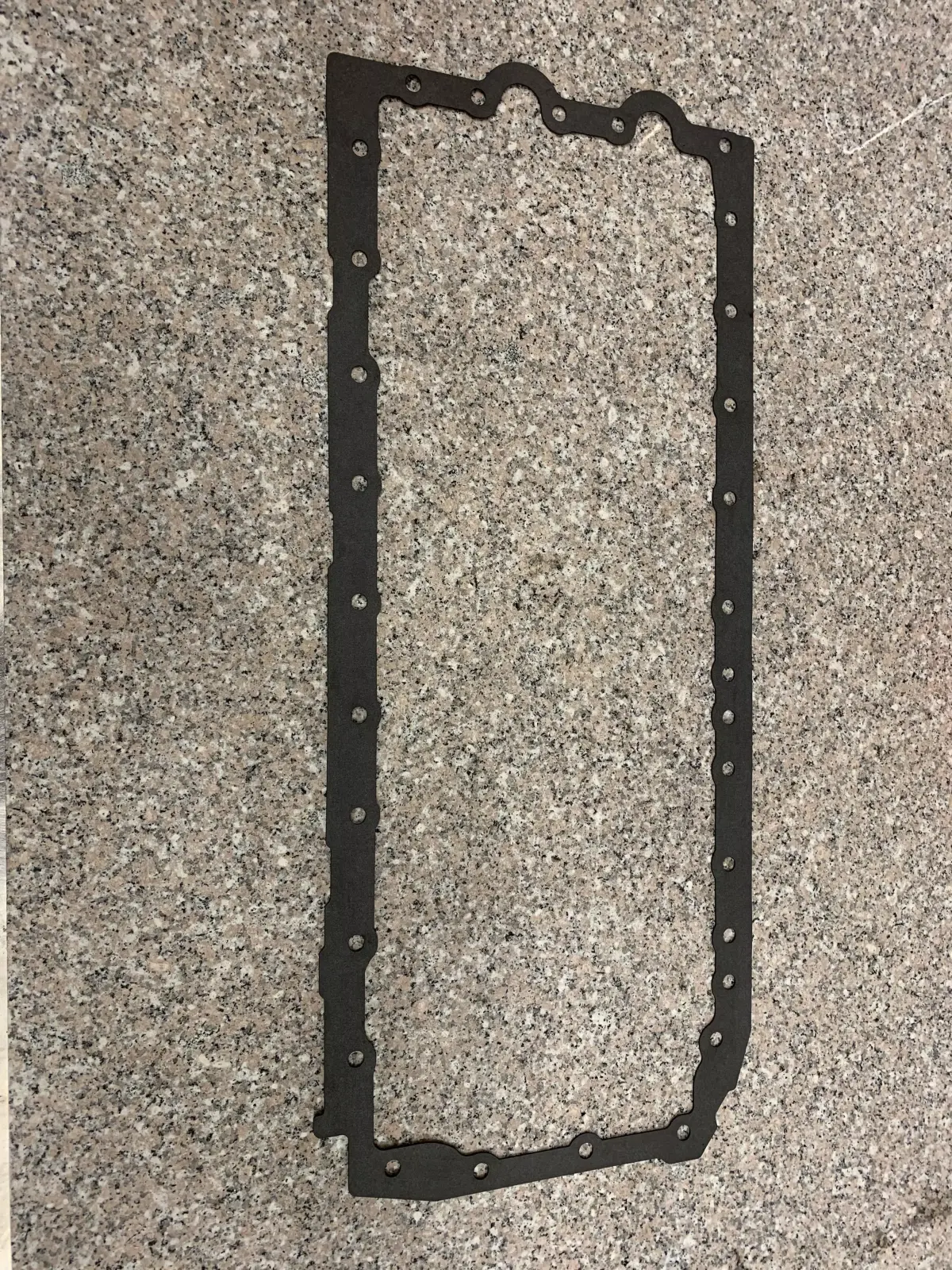

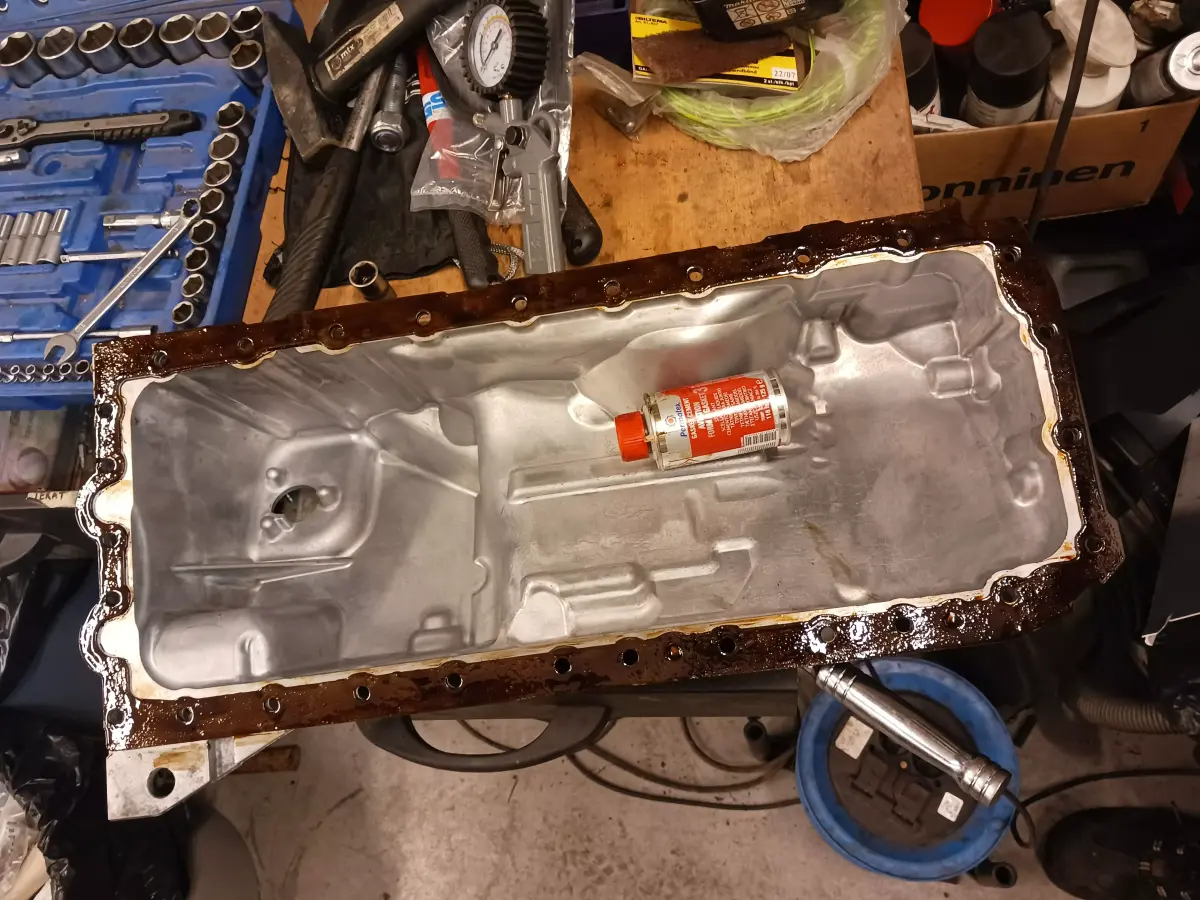

File for cutting oil pan gaskets for BMW N54/N55/S55 engine. The original part is made of aluminum sheet and has a rubber edge that seals the oil. However, this rubber material does not withstand use for very long and starts to leak. With this model, you can cut your own seals from gasket paper using a laser cutter.Oem gasket is 1,5mm. Tested on car with 1,6mm gasket sheet and worked great, i also used permatex #3 gasket dressing for perfect seal.
