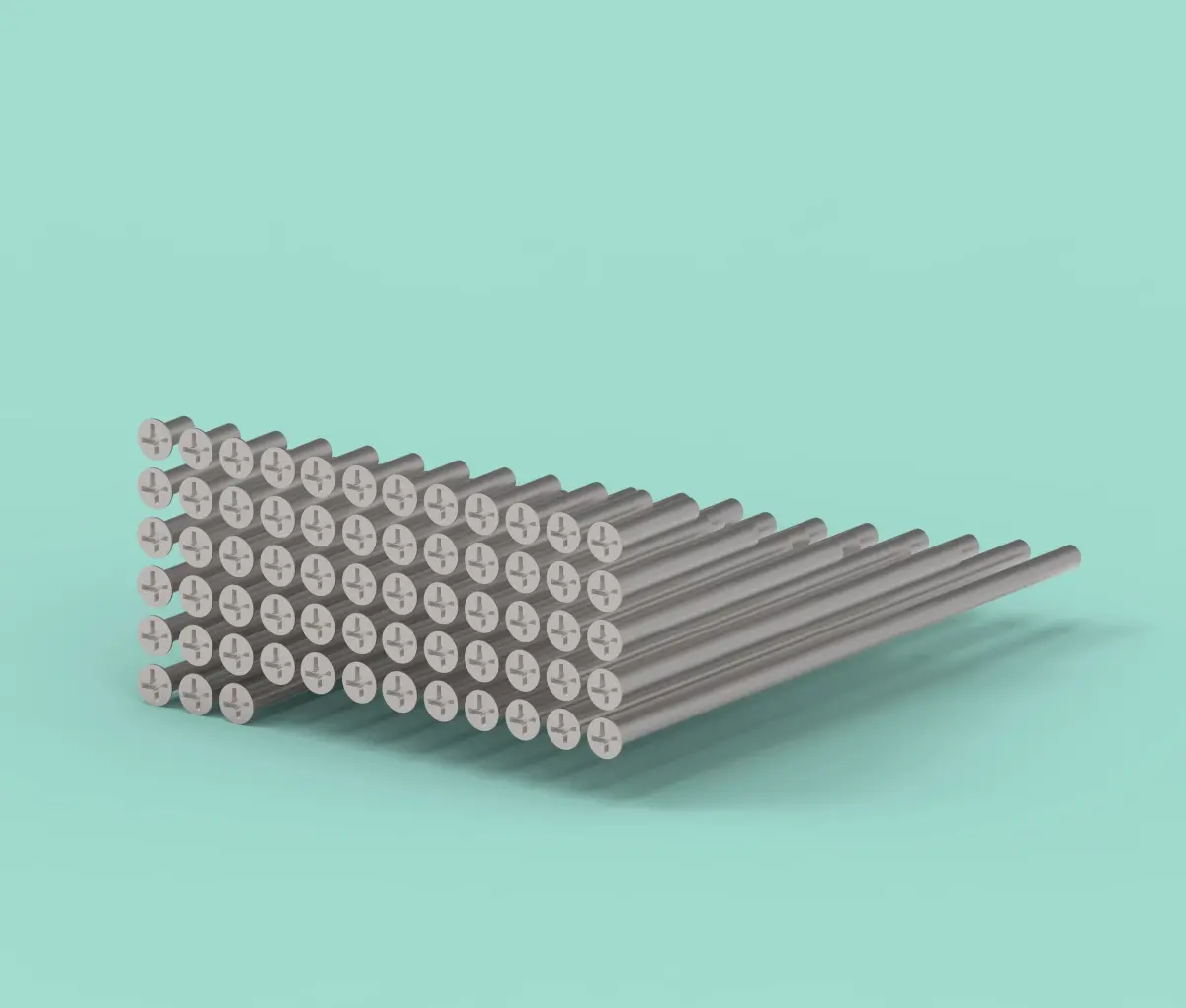

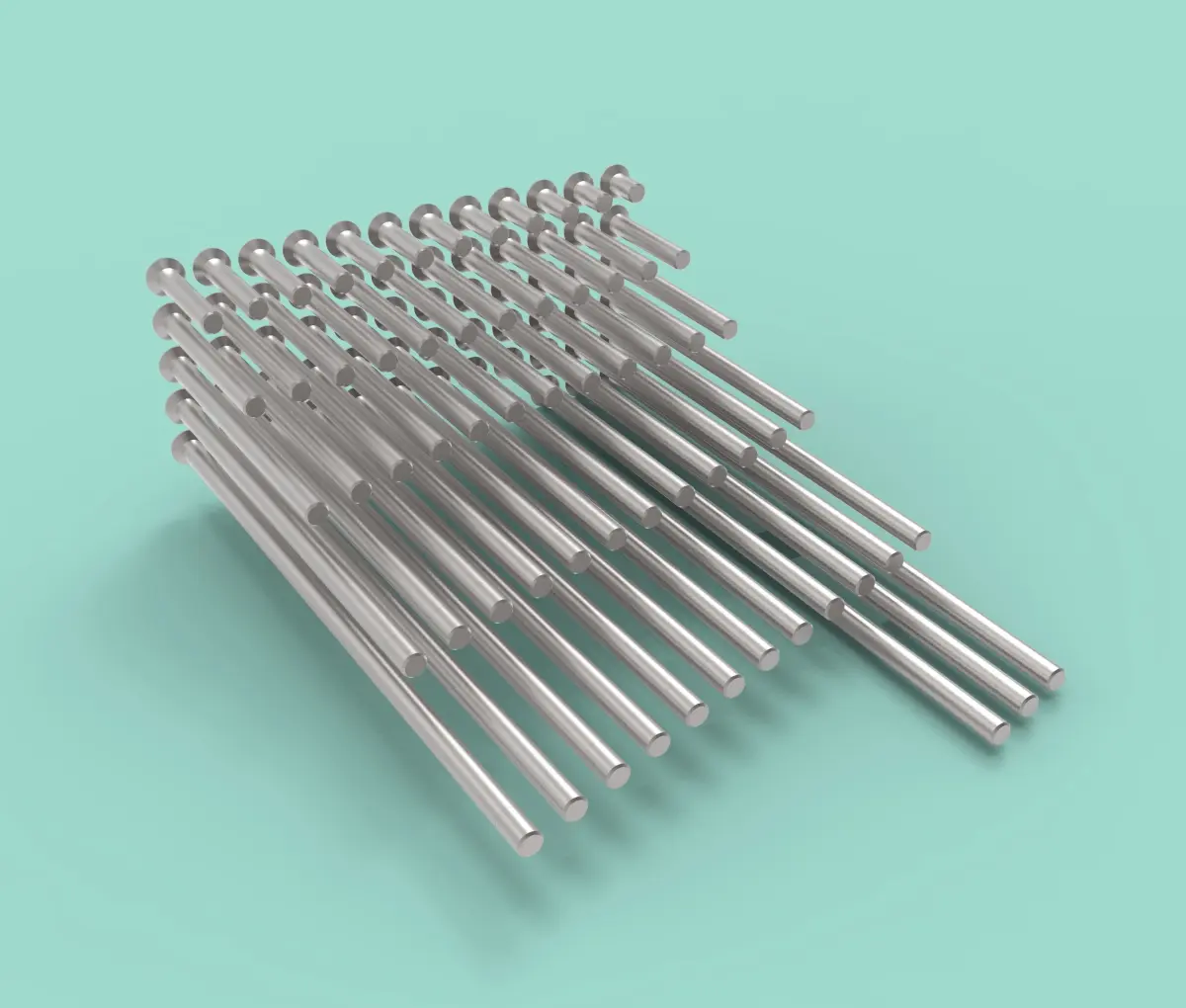

NAS1153 Full set of screws (63 screws).

Used as fasteners in aerospace field.

Designed with fully accordance to the National Aerospace Standard 1153.

Thread size: .1900-32 UNJF-3A

Dash number: -2…-96 (63 screws)

Material: Steel AISI 4140

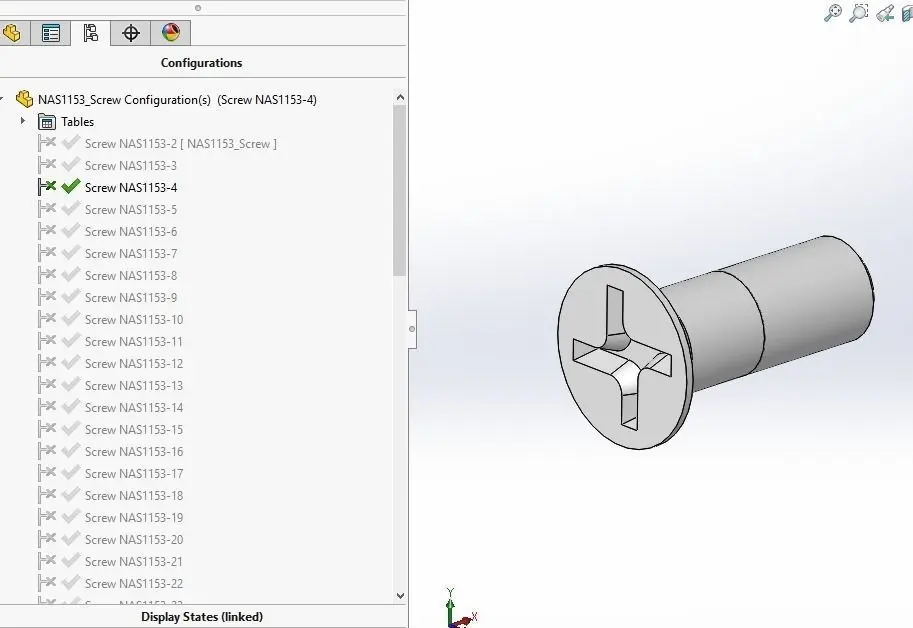

You will receive native Solid Works model (version 2017), with configuration, so in one part you download full set of screws.Model is simplified for drawings, without exact shape of threads, just with specified length of thread for each configuration.

On your demand I am able to provide you next formats for each screw: STL, x_t, STEP, OBJ, etc.
