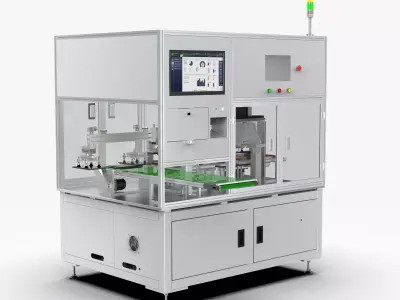

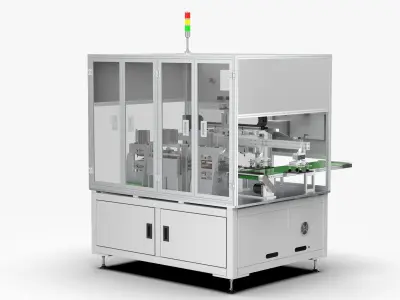

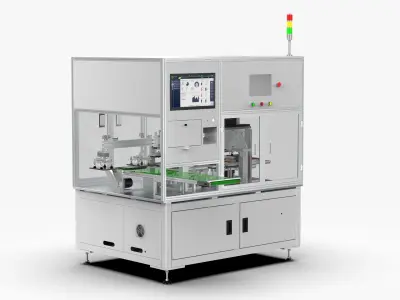

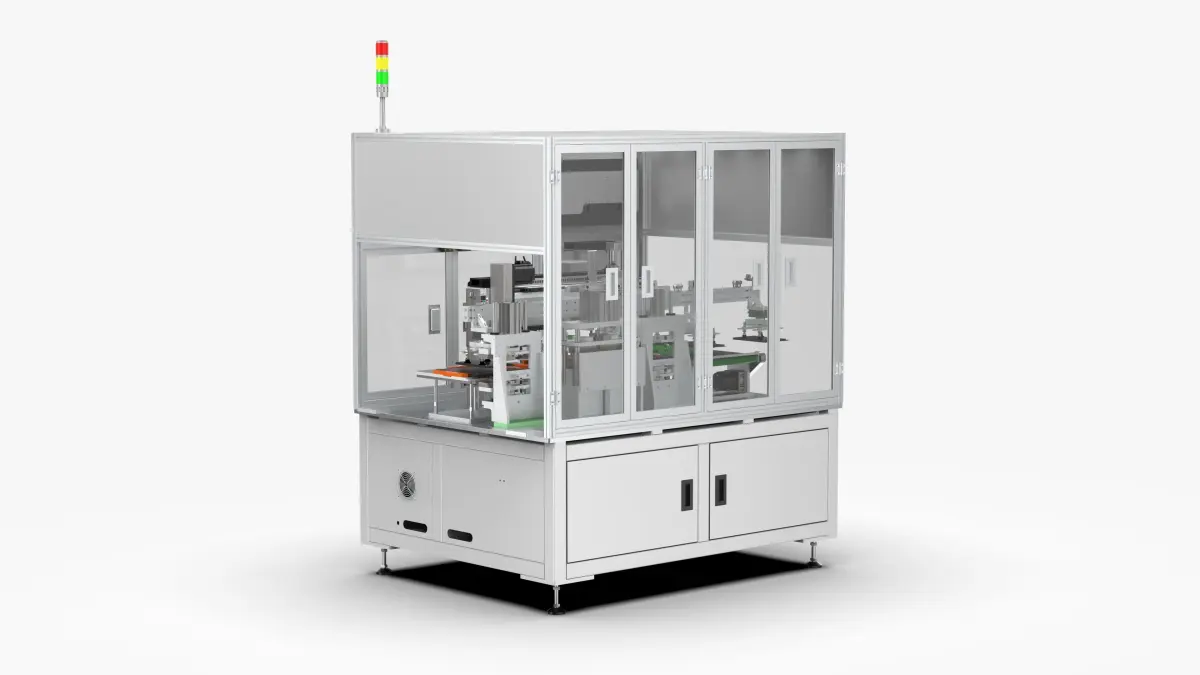

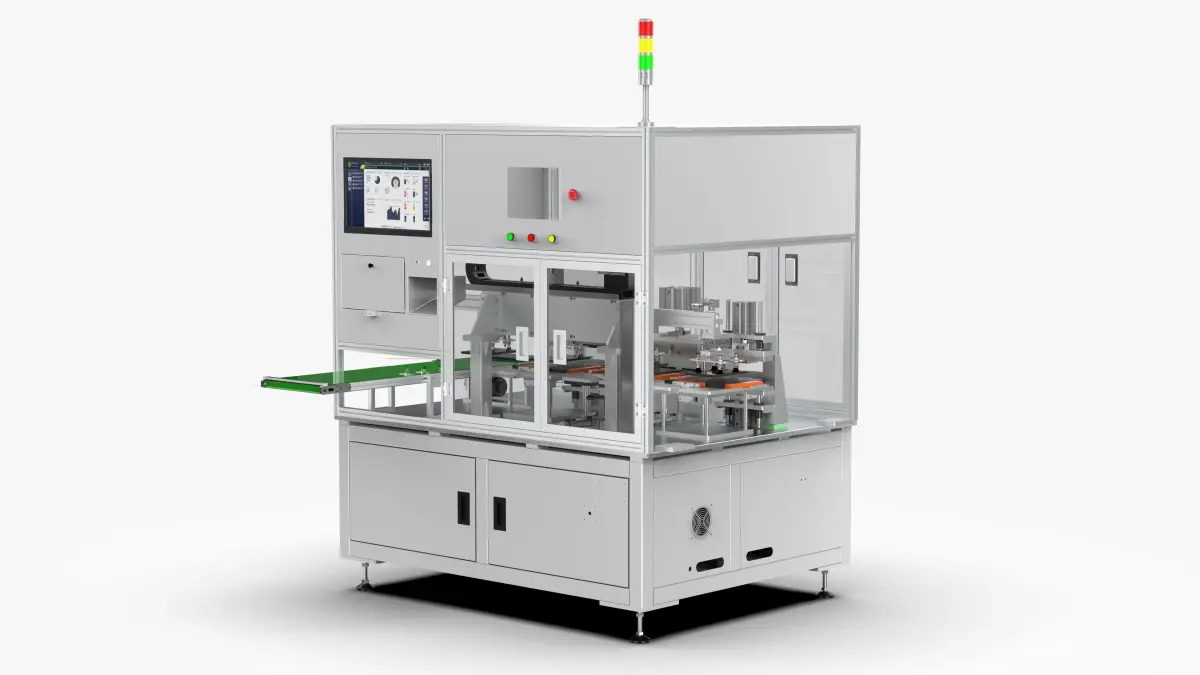

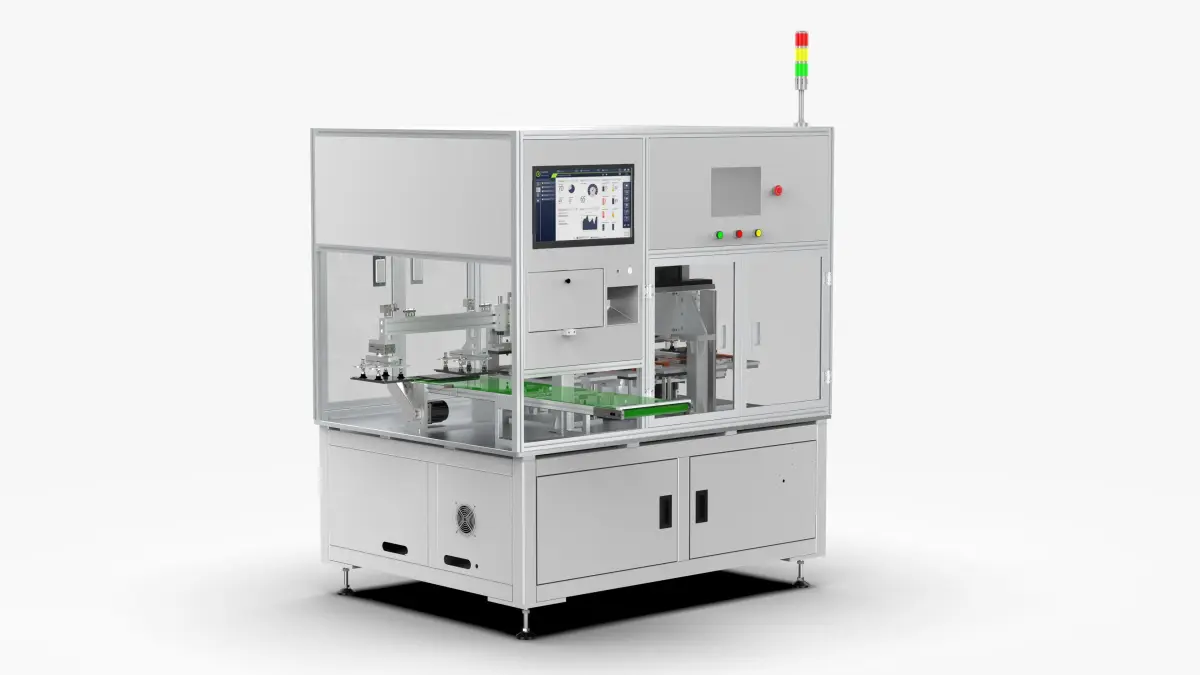

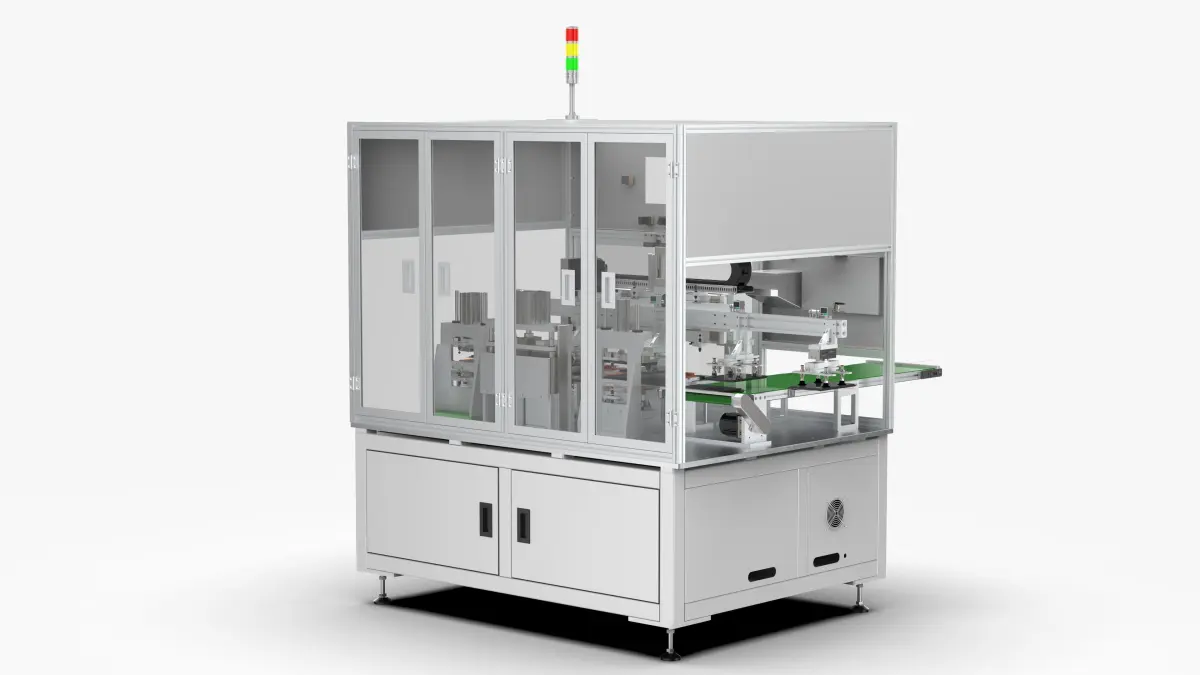

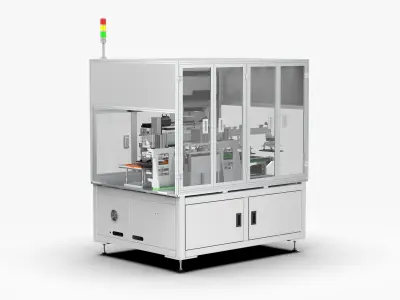

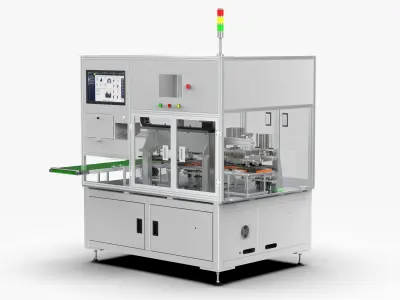

New Energy Battery Tab Cutting Machine 3D model

$89

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

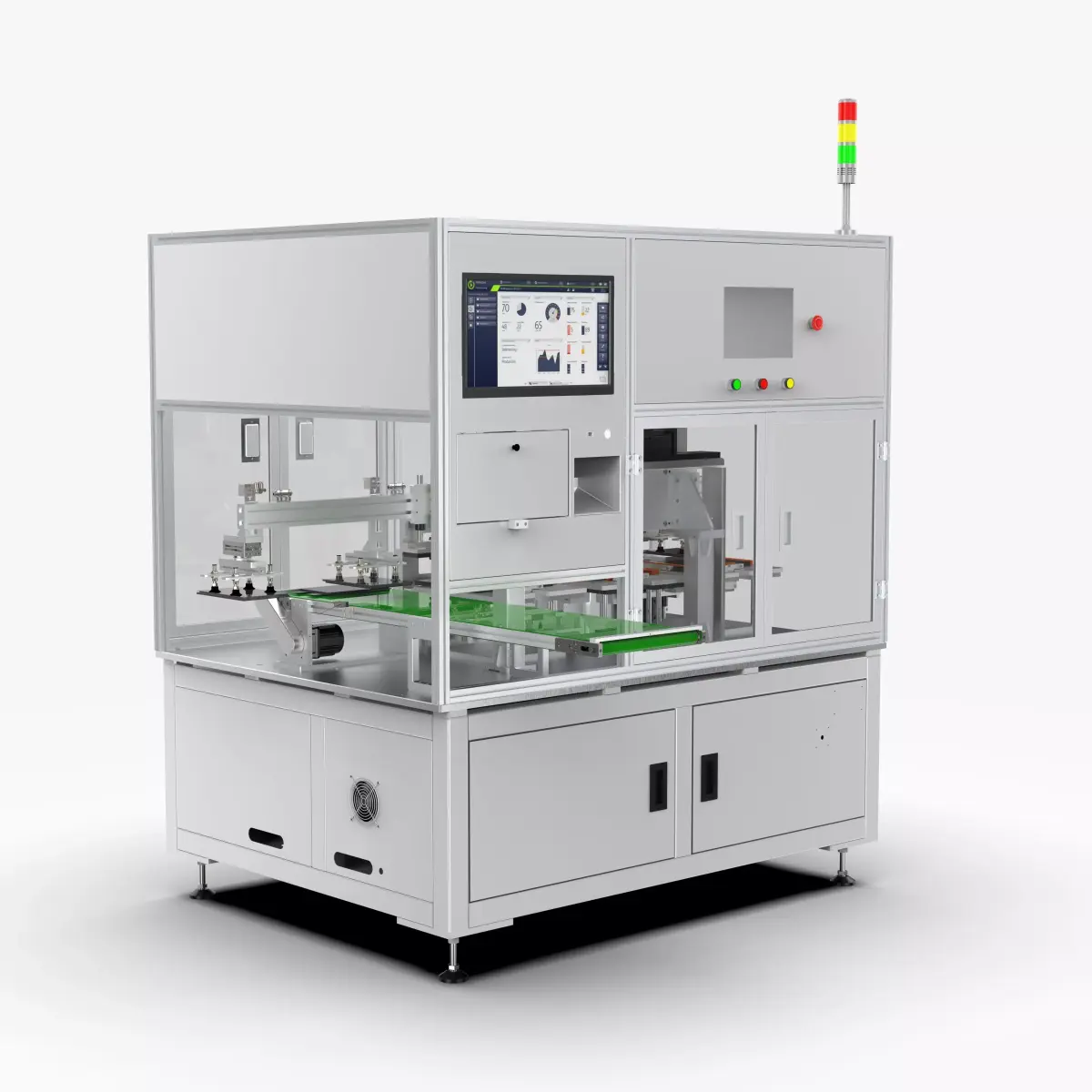

New Energy Battery Tab Cutting Machine

Introduction

Technical features of the tab cutting machine:

Complete the cutting of the positive and negative tabs in one action, which doubles the efficiency.
The positive electrode cutter and the negative electrode cutter are separated by insulating material, which can prevent the short circuit between the positive electrode ear and the negative electrode ear of the battery when cutting.
The pole-cutting earphone has a battery positioning fixture to position the battery, and the fixture is flexible and convenient to adjust.
The remaining length of the battery tab can be positioned and adjusted.
The machine controls the cylinder to cut through the battery magnetic valve.

File Formats

SolidWorks 2021 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 1,896,522
Vertice: 5,689,566

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1896522
Vertices: 5,689,566
Plugins used

Tags

New Energy Battery Tab Cutting Machine Industrial Solidwork Design Assembly Modeling Automatic Automation Machinery Part Mechanism Line Production Robot Industrial machine
