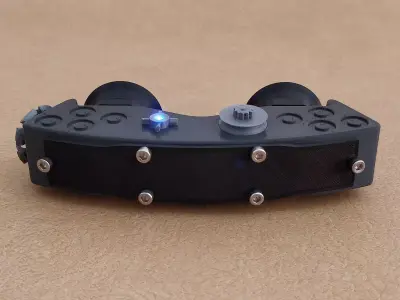

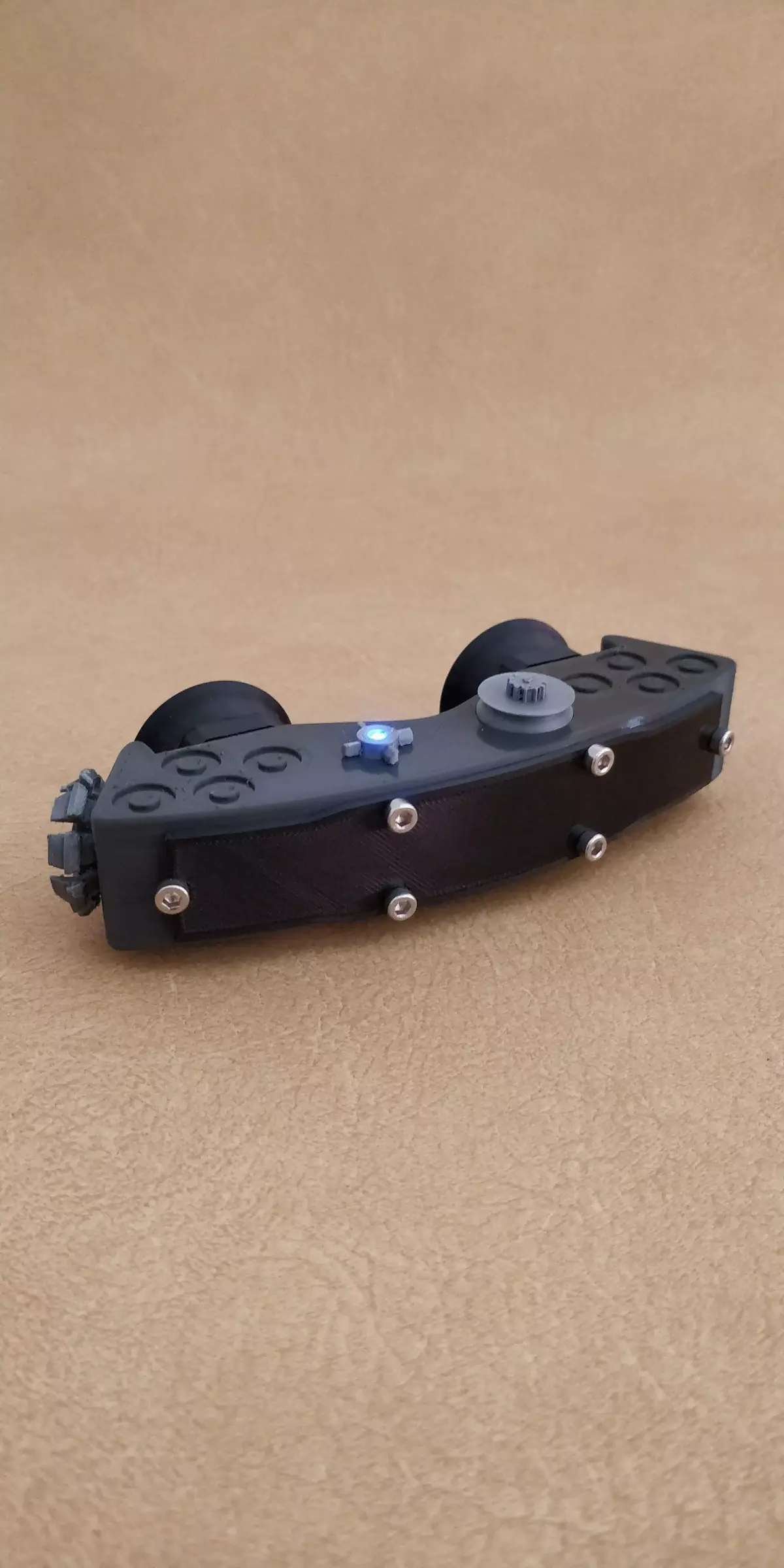

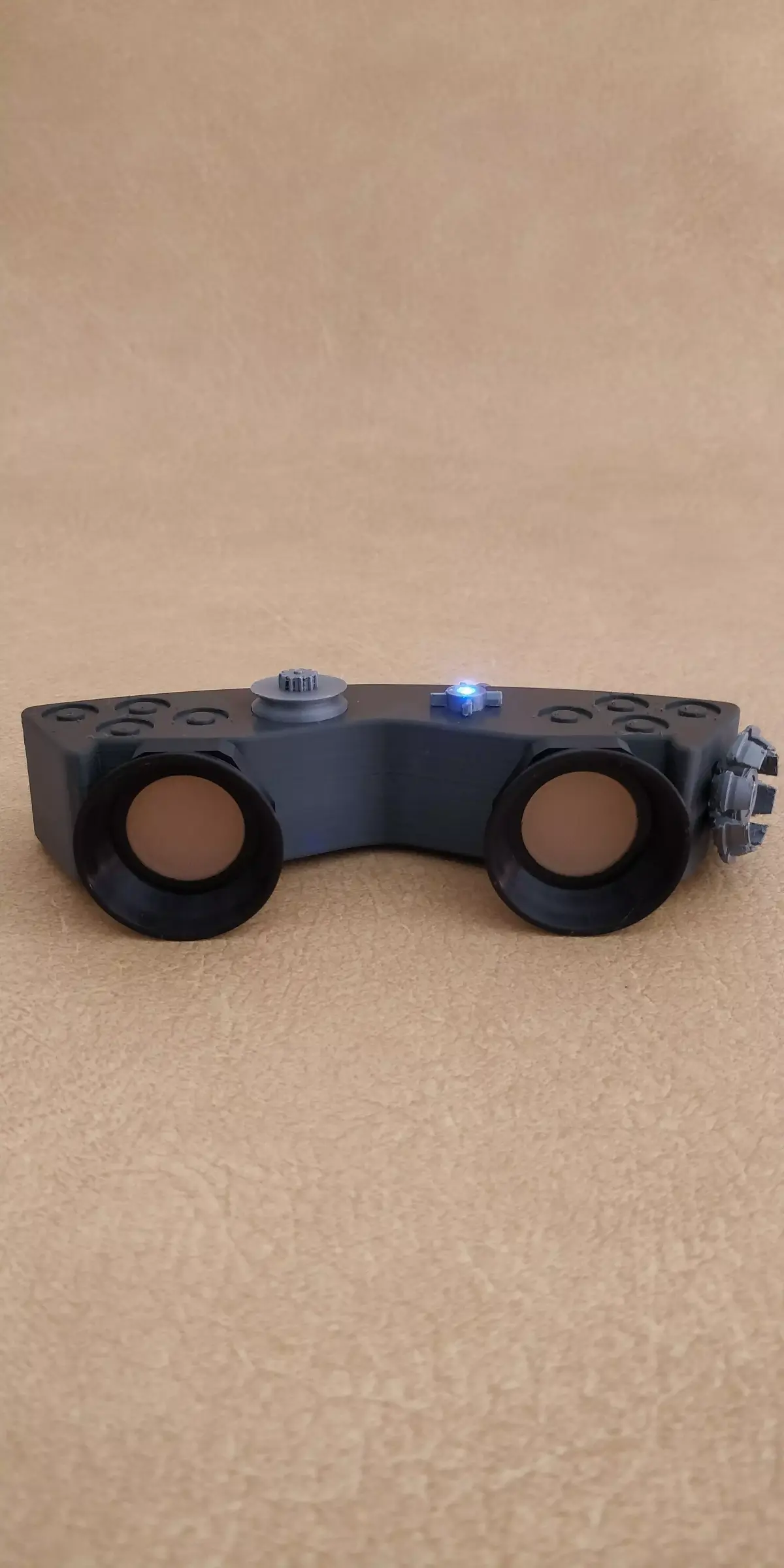

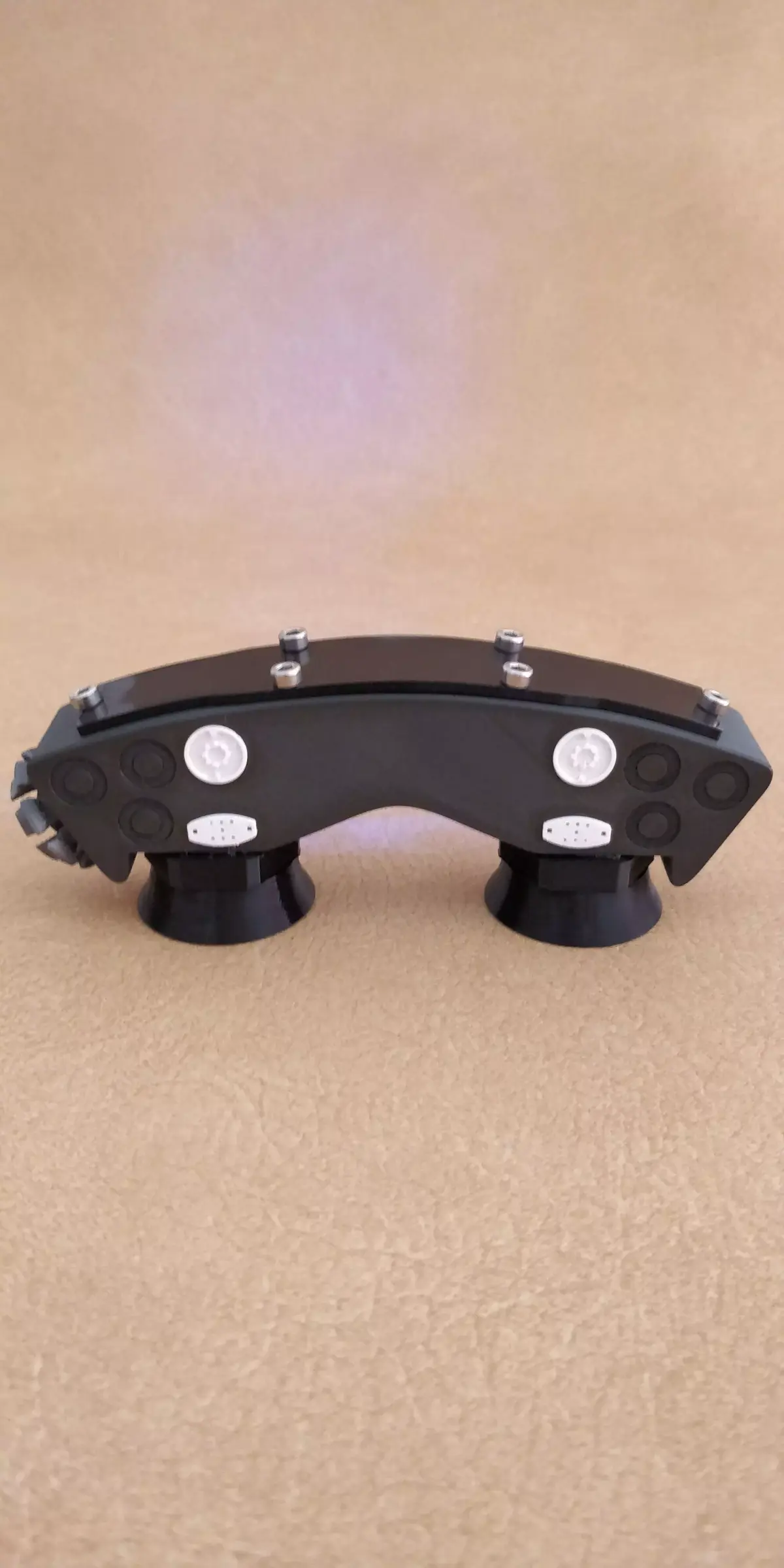

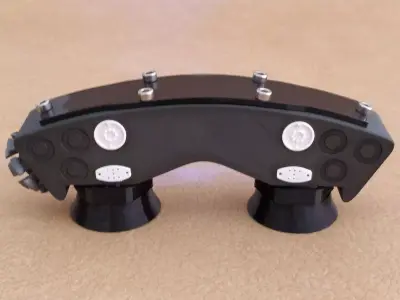

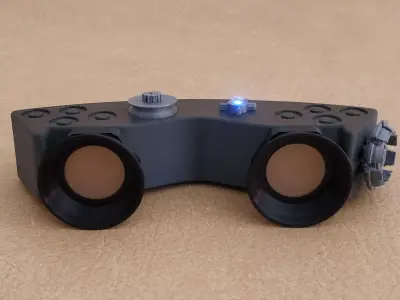

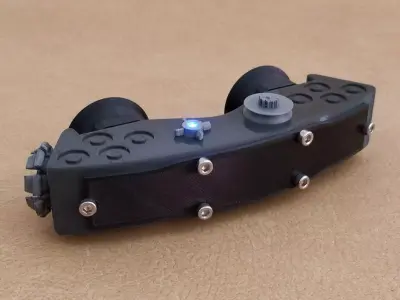

Recreate the iconic Jedi Macrobinoculars from the limited series and Attack of the Clones with this screen-accurate 3D model. This DIY project is perfect for building a highly detailed prop for cosplay or display, with options for both static and light-up versions.
Key FeaturesScreen-Accurate Design: Meticulously modeled to match the props used by Obi-Wan Kenobi in two different versions. The kit includes files for both the Attack of the Clones (AOTC) version and the Obi-Wan Kenobi Limited Series (OWK) version.

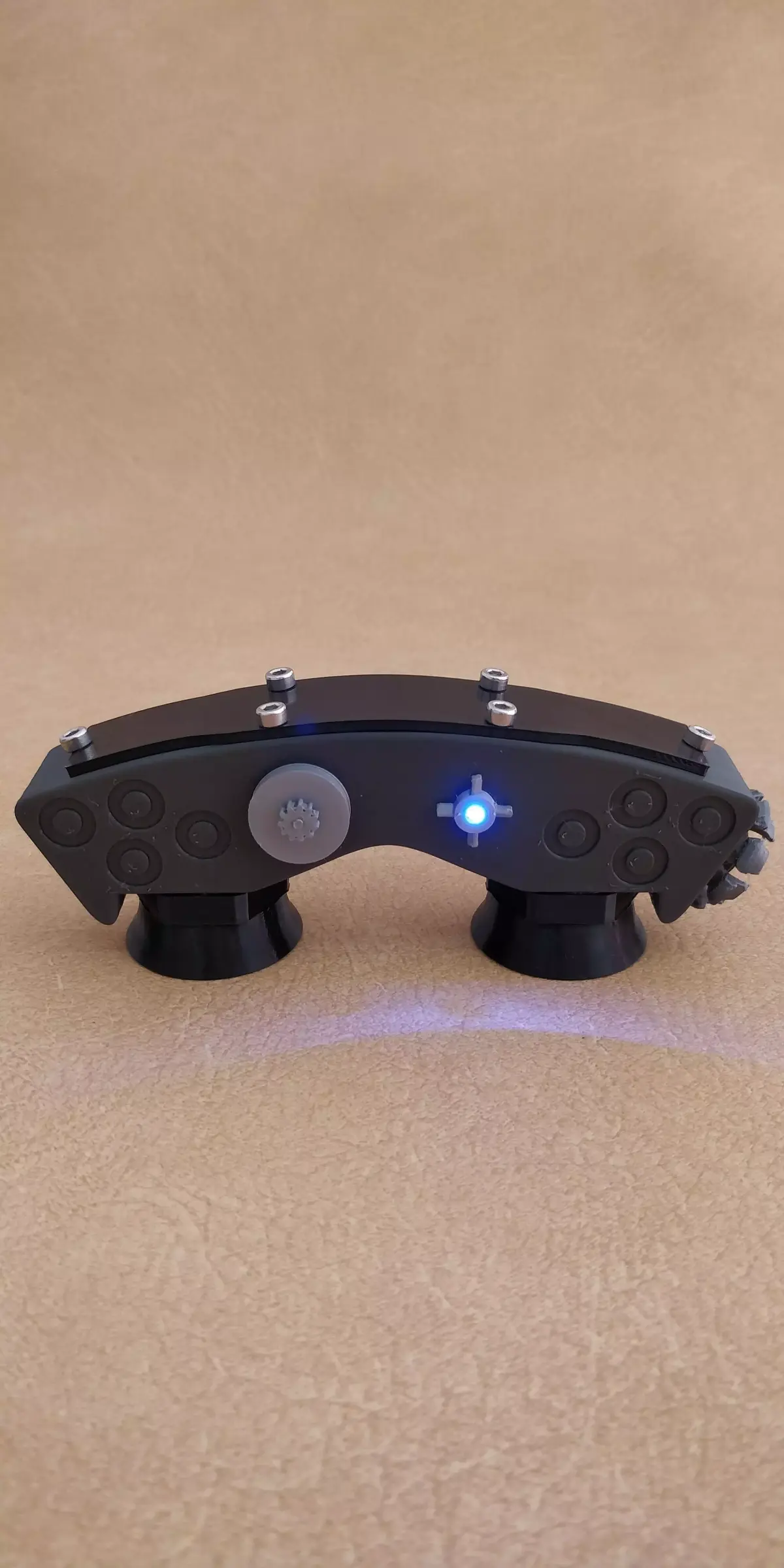

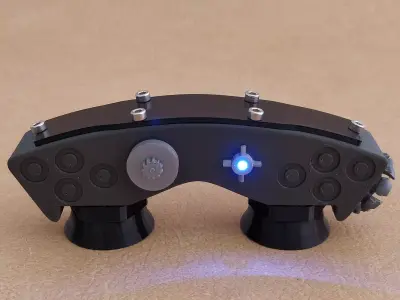

Electronics-Ready: The model is designed to be hollow, allowing you to easily install electronics to light up a blue LED for a fully functional prop.
Functional Visor: Includes files for a fully working visor assembly that can be secured with screws. DXF files are also included if you wish to laser-cut your own visor and lenses from a dark, translucent material.
Optimized for Printing: STL files are pre-oriented for the best printing results. Some parts are marked for easy interlocking and assembly.
Assembly Instructions: A detailed visual guide is available to walk you through the electronics and build process.
What's IncludedYou will receive a single .zip file containing all the necessary STL files for 3D printing, along with DXF files for laser cutting and additional parts. The files are organized with separate folders for the AOTC and OWK versions. Please note that this is a DIY project, and you are only receiving the digital files—not a fully assembled or functional prop. Some parts may require supports for optimal printing.
Resources & Recommended PartsElectronics Assembly Guide: https://www.flickr.com/photos/141209339@N06/sets/72177720297787648/
Recommended BOM List:
LEDs: 1x 3mm Blue LED (for AOTC version) or 1x 5mm Blue Flat Head LED (for OWK version)
Electronics: RV16 flat foot radio potentiometer, CR2012 battery with connectors, and wires
Visor Hardware: 6x Stainless Steel M3 x 6mm Socket Screws
Potentiometer Conversion: Files are included to help you modify a flat foot radio potentiometer into a smaller size.
Support & ContactI'm here to help you with your build. Please don't hesitate to contact me if you have any questions about printing or assembly.
You can also follow my work on Instagram: https://www.instagram.com/therebelagent/
Disclaimer: Files are for personal use only.
IMPORTANT UPDATE:I was able to deliver the first finished and painted to Mr. Ewan McGregor himself at past Star Wars Celebration Anaheim 2022. He said: Oh wow! I am very proud of that moment.
https://www.instagram.com/reel/CeFbz0SD4RI/?utm_source=ig_web_copy_link
STL (Stereolithography, filesize: 7.63 MB), DXF (DXF, filesize: 7.63 MB)
