Octo Vortex Tesla Turbine - Concept.

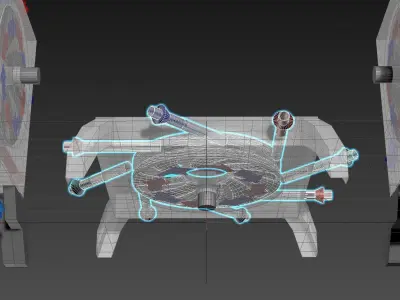

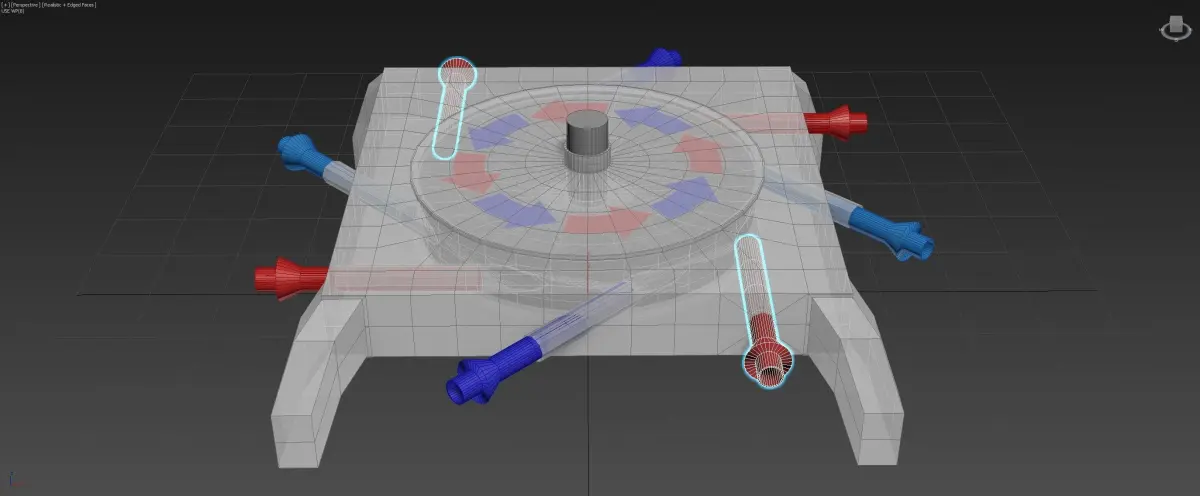

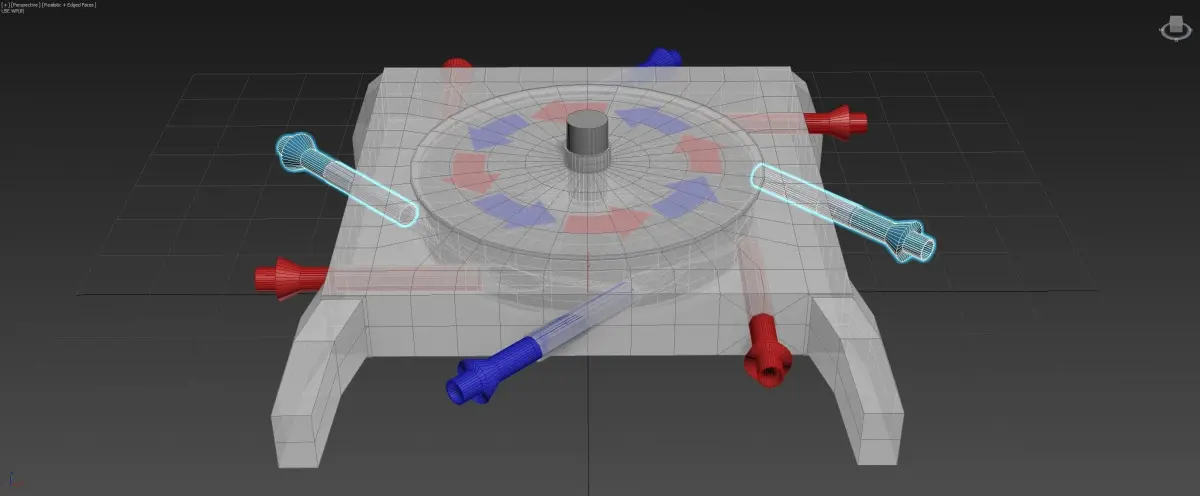

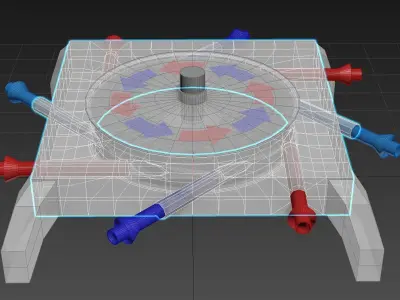

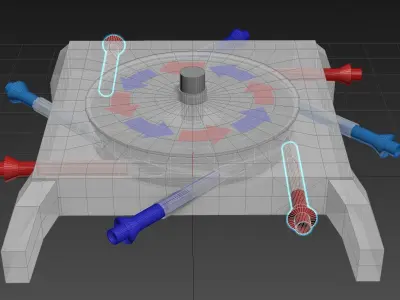

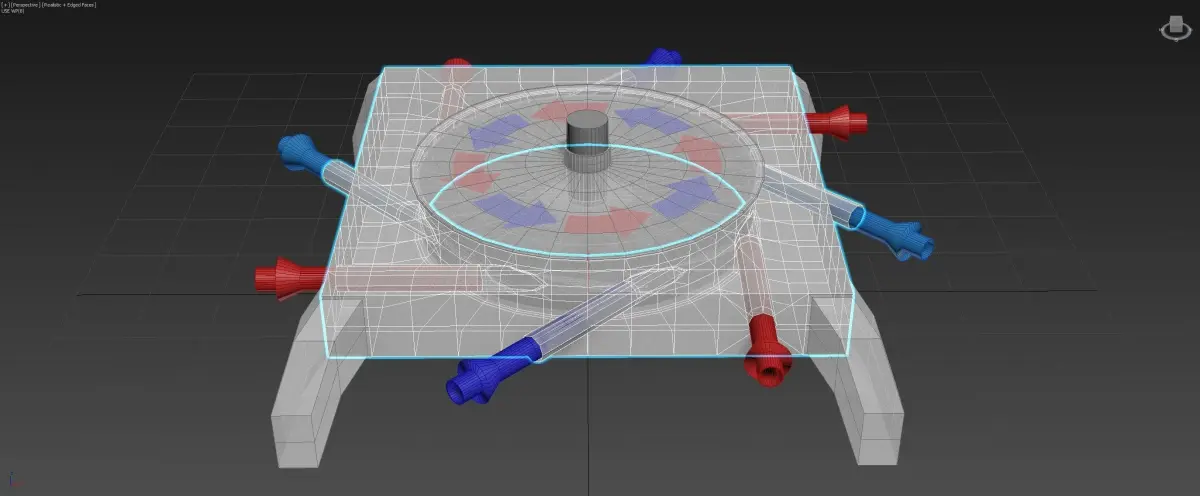

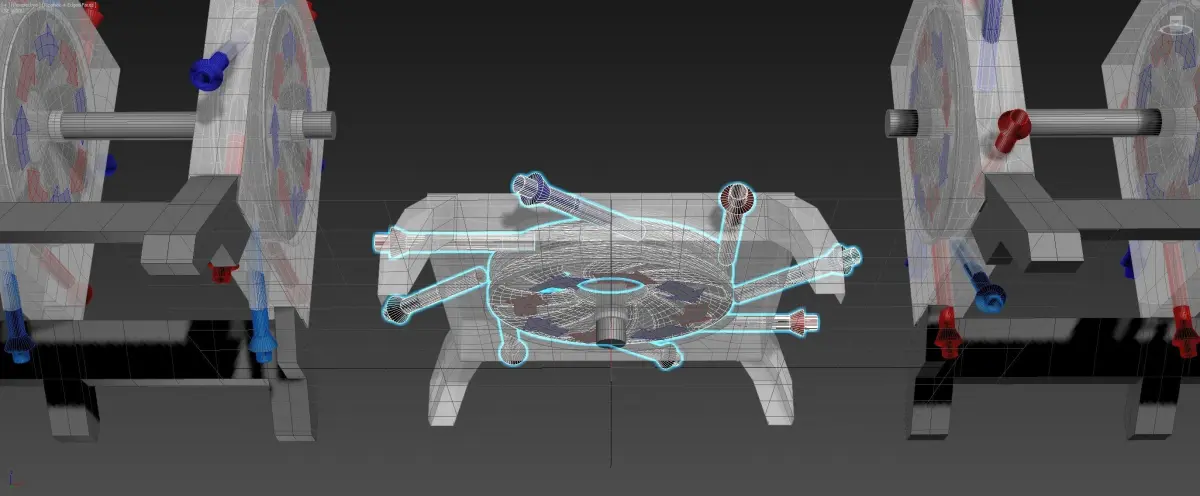

Why not instead of putting pressure and forces on a single part of the spinning discs, put equal pressure and force on them omni directionally? forces balanced on all sides. i have added small vortex nozzles inside the feeding pipes, to force water through, entering the system with a twist or a vortex, spinning onto the sides of the discs. the concept can be repeated in rows as they would then also balance the force on the center axis need to turn in order to perform work. using two or more in a row can put a lot of power onto a single axis.
now if we needed a counter spinning axis for performing work, one could just use the same combination of 2 or 3 turbines, on the exact opposite side, working the exact same only now spinning counter clockwise. one could double further to balance forces out even further. the center vortex disc shape is hollow, which allows for a fluid or gas to more easily turn the axis as there is less mass, or a less massive disc. the holes also push down the fluid or the gas, compressing it downwards in the process. one could still use multiple parabola shaped flattened discs inside the same space, maximizing efficiency even further. one could mis-time or off-set the 4 discs to further increase efficiency. Ive added a little profile in the center of the ring for creating a little more friction still.
it might work for fluids, gasses, maybe even electrical power itself. who knows what two counterspinning discs, forced tight and close to one another would do, right. or maybe even 4 counterspinning discs, who knows what the future holds. you could also just keep building them with a single opening for another 100 years.
i live off of comments, your likes and your tips. thank you for watching and reading.
STL (Stereolithography, filesize: 9.86 MB), OBJ (OBJ, filesize: 12.4 MB), MAX (Autodesk 3ds Max, filesize: 16.4 MB), FBX (Autodesk FBX, filesize: 4.68 MB)
