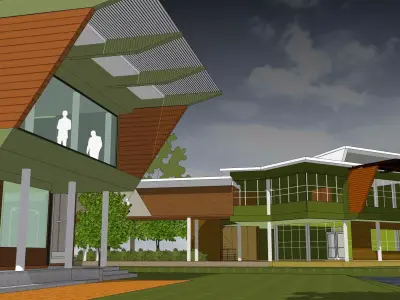

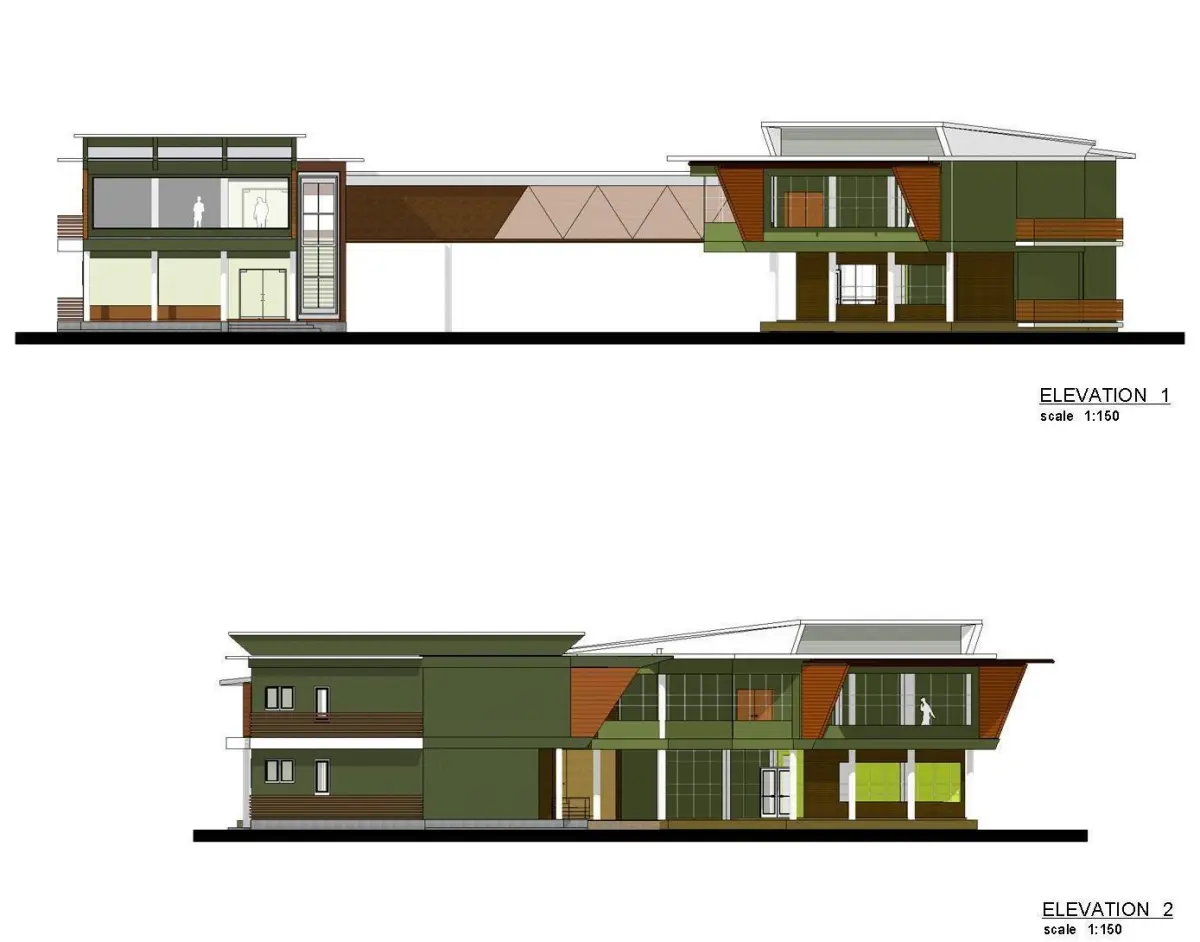

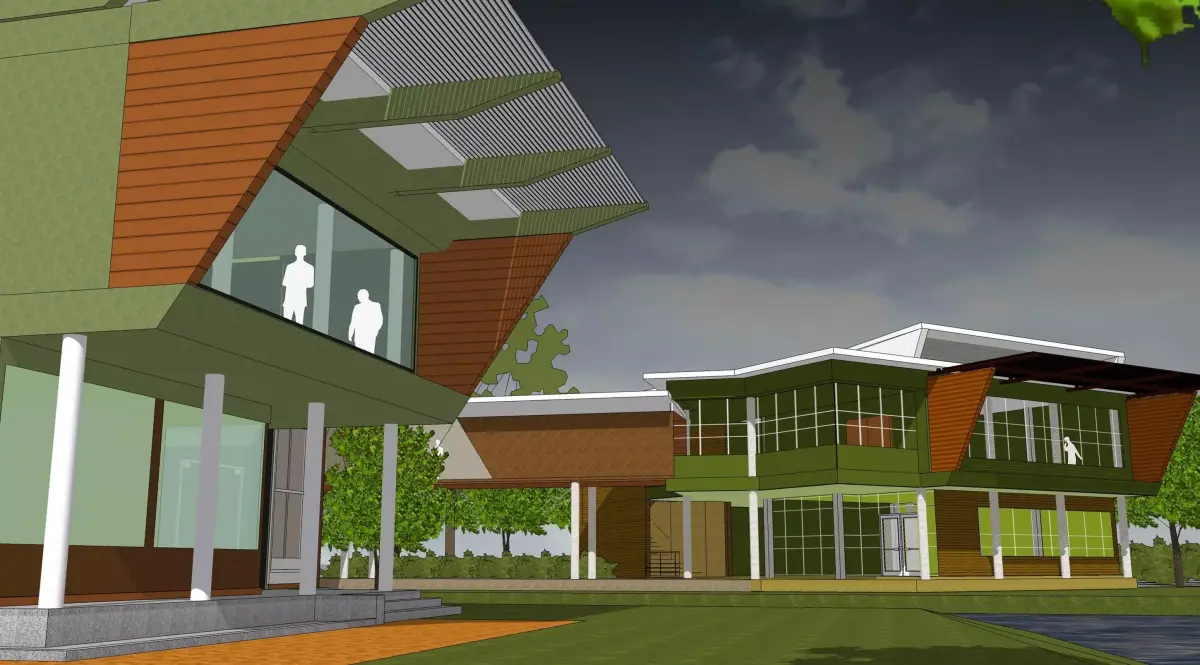

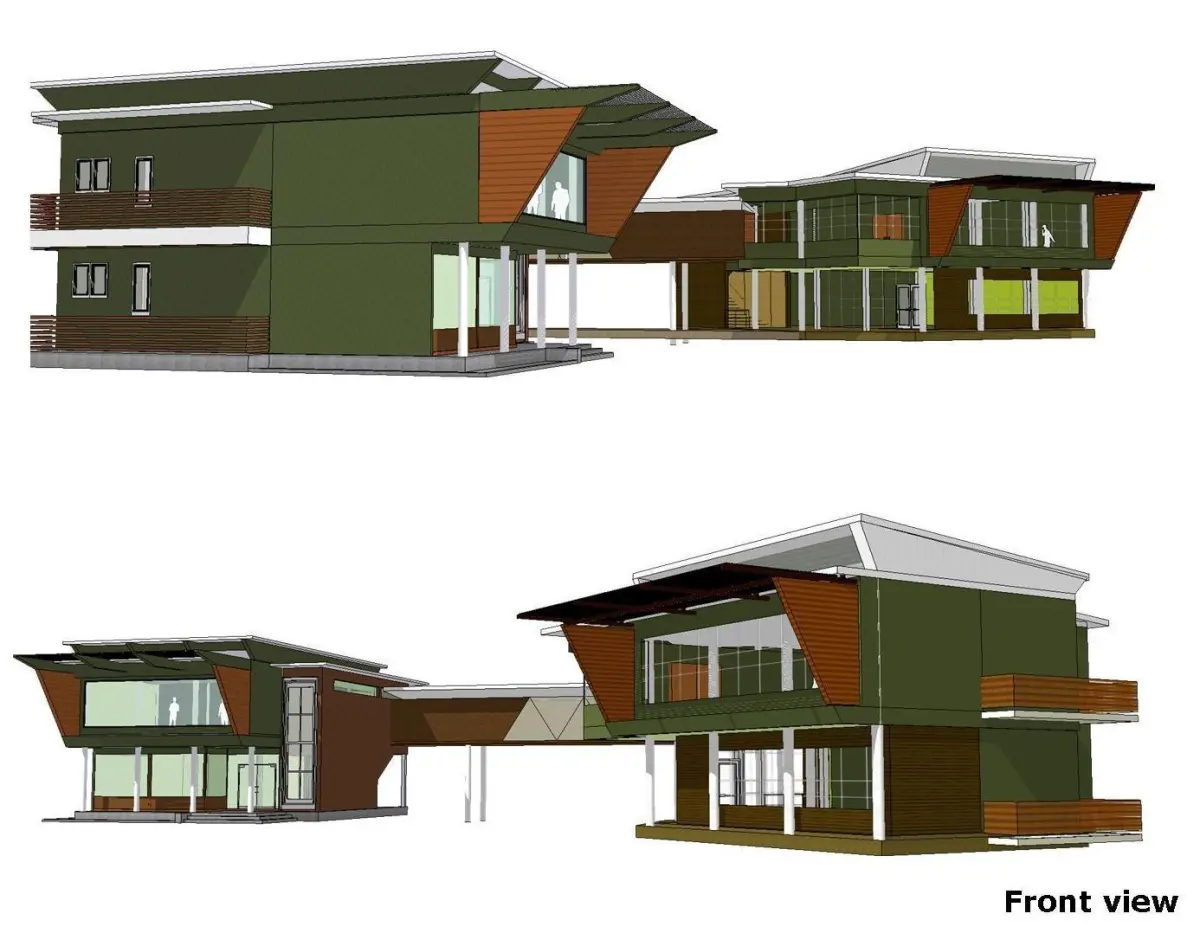

Office extension and bridge linkage

Theme :

Passive energy design
- Optimized solid wall & opening.
- By building's orientation and sun shading.

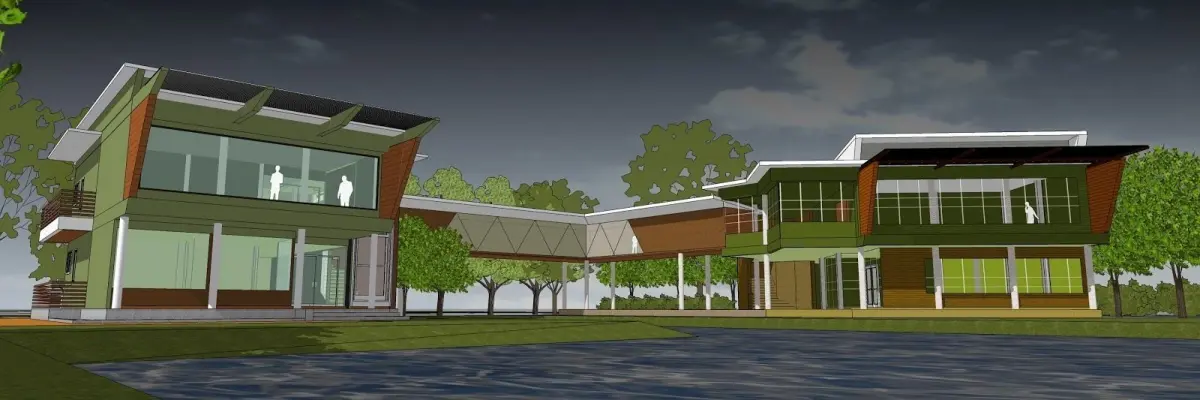

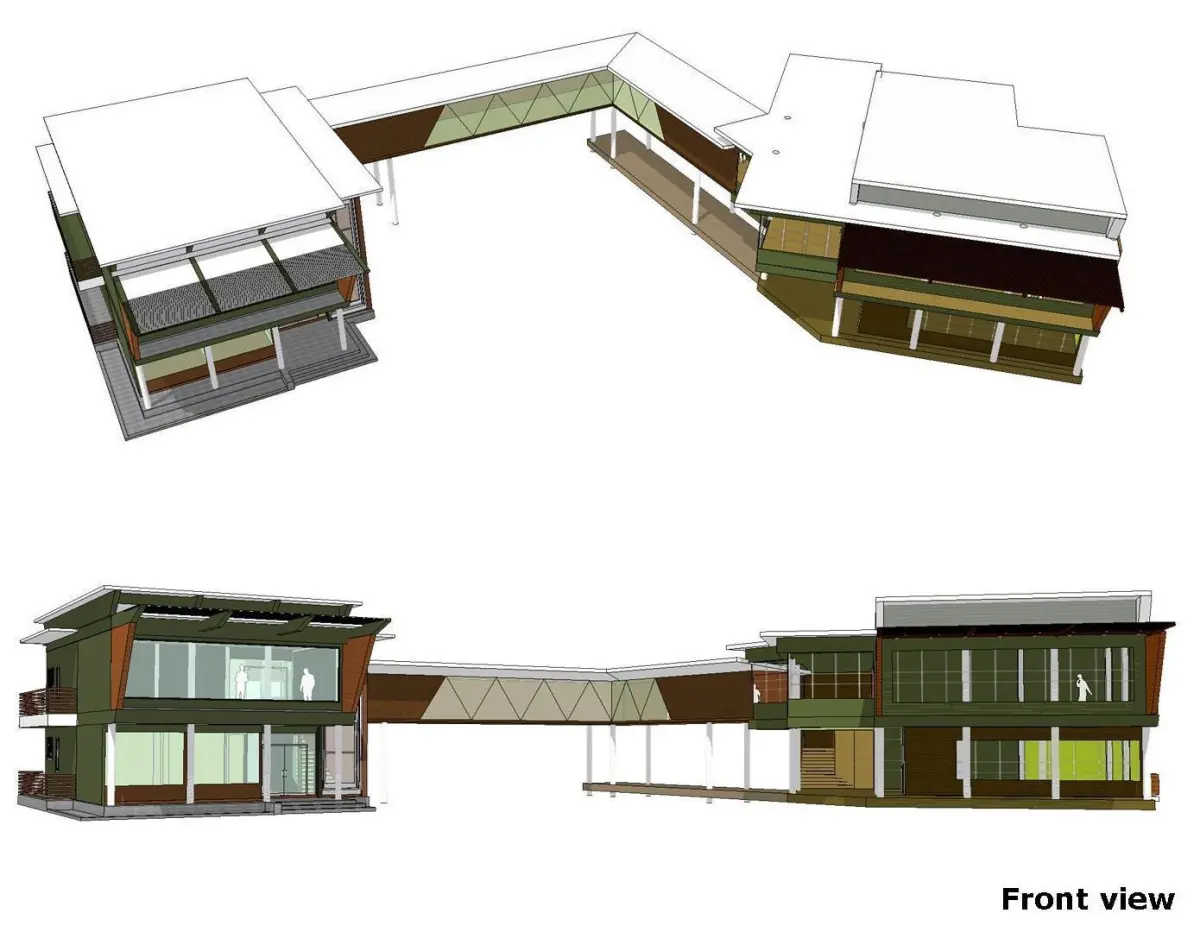

Circulation linkage
- Combined circulation both existing office and new office through the bridge.
Site constrain as design solution
- Water view along the combined circulation for existing pond.
- Diagonal building's new office layout to face both existing office and main gate.

Building & material info :

Foundation : Spread footing
Structure : Post and beam - Reinforce concrete
Roof : Reinforce concrete Slab
Ceiling : Gypsum panel / Fiberglass insulation blanket type
Wall : Autoclaved aerated concrete (AAC) masonry / plastering / Gypsum panel
Floor : Reinforce Concrete hollow core / Terrazzo finished
Doors & windows : Aluminium frame / Glass 6 mm.thk
