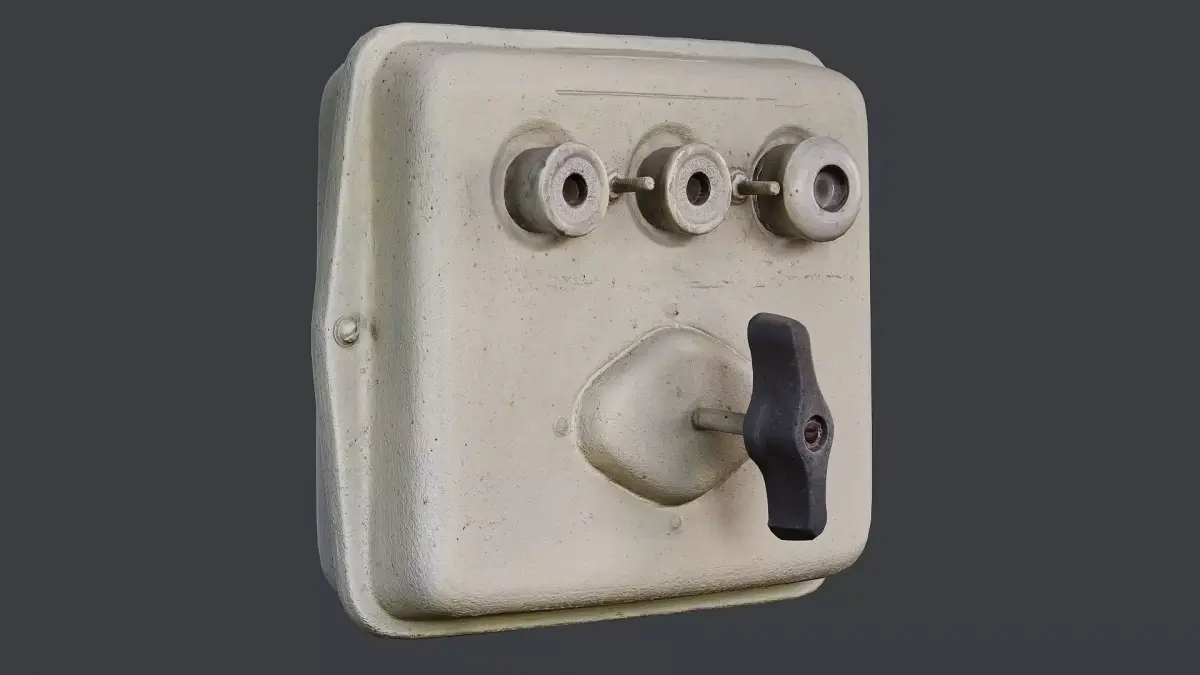

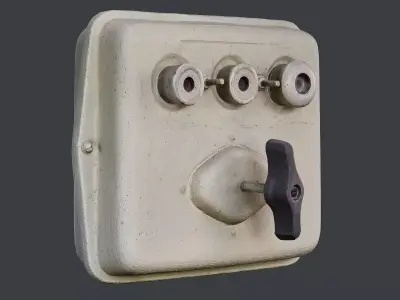

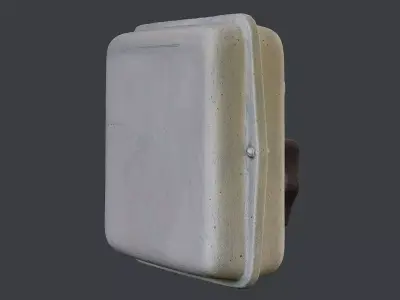

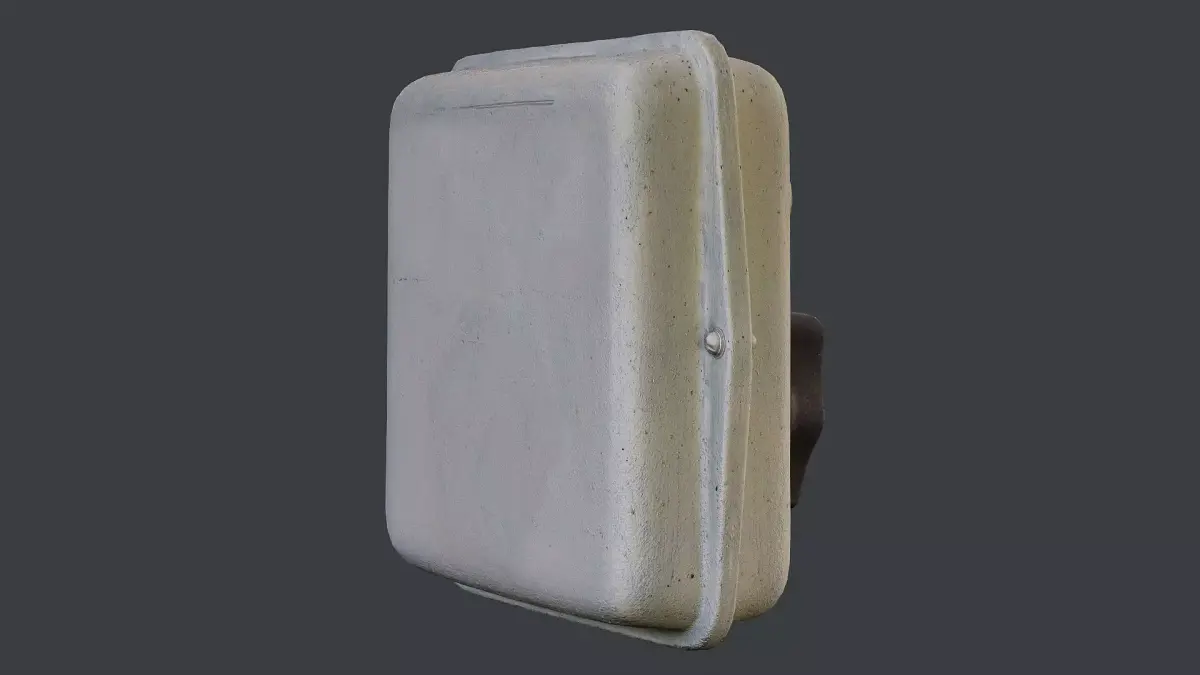

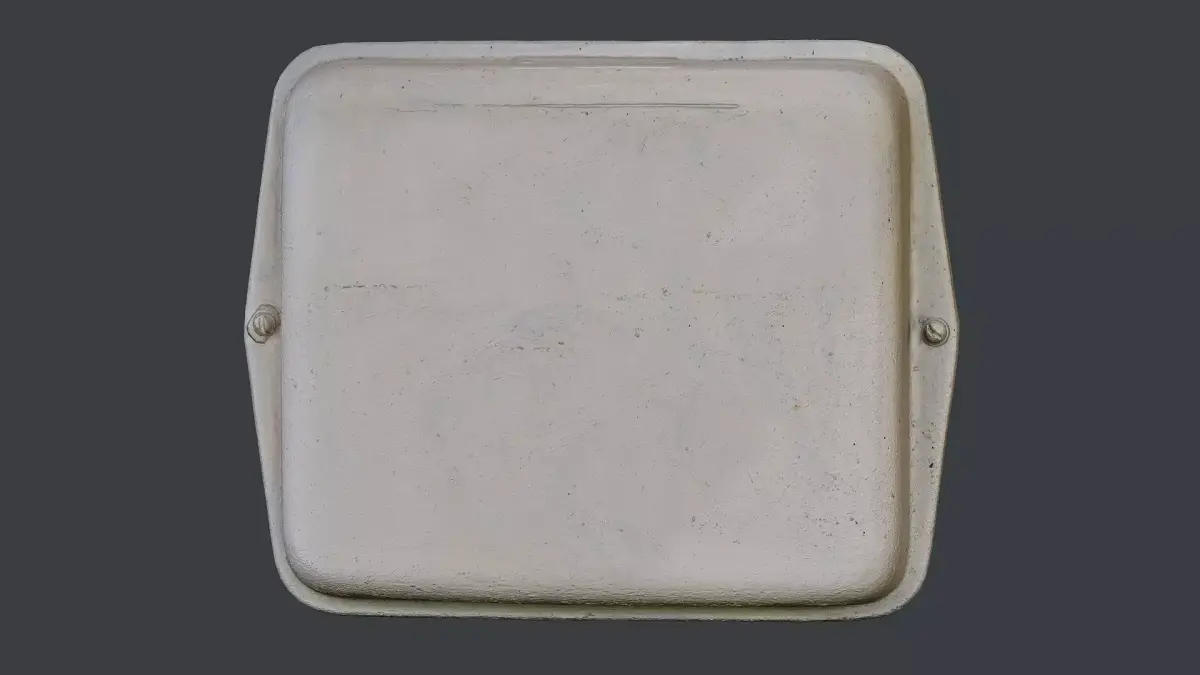

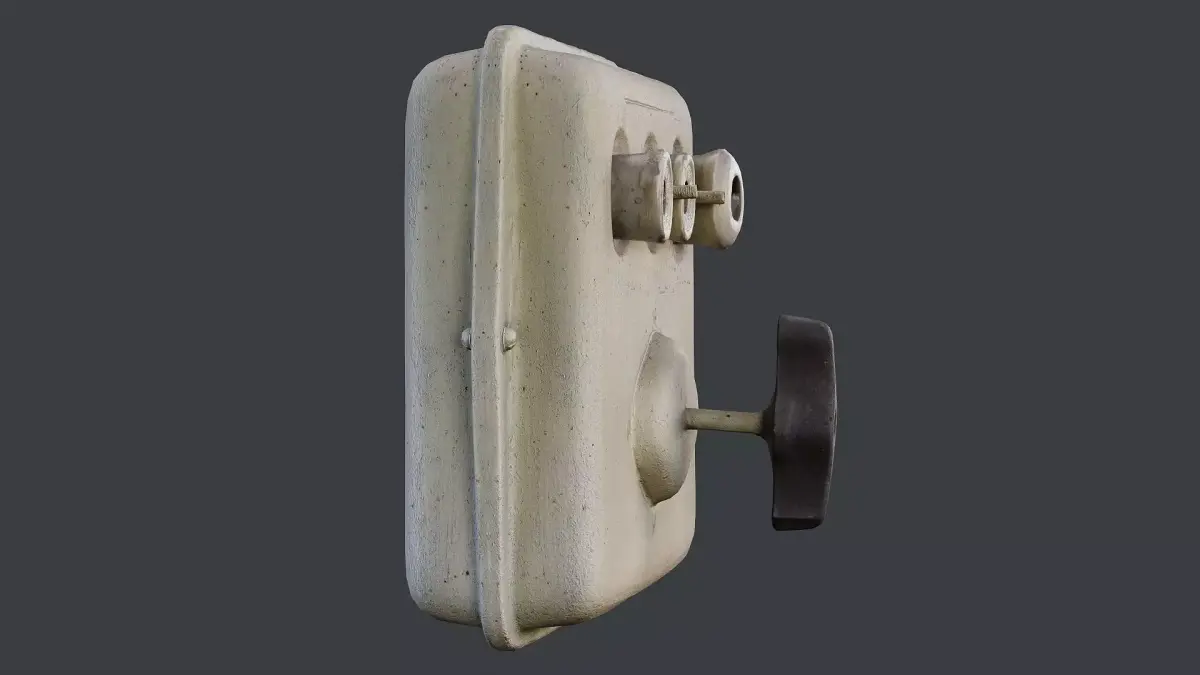

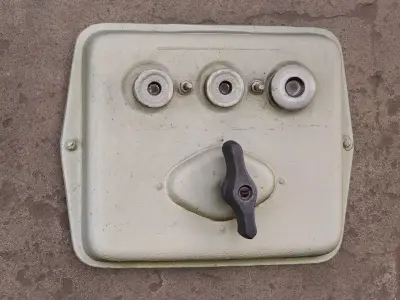

3D model of old electrical circuit breaker box with a large switch. The model was aquired by photo scanning real object and carefully cleaning and processing data. PBR materials were crafted by hand. There is no AI tools involved in the process of creation this model.
MODEL
- Model dimensions (LWH): 28,0 x 14,6 x 22,6 cm (11.0 x 5.8 x 8.9 in).
- Model can be subdivided if needed.
- Model is subdivision ready.
- Model is made mostly of quads and some triangles. No n-gons.
- Polycount:
- Polys - 6 492
- Tris - 12 676
- Verts - 6 430
MATERIALS
- Materials are prepared for Corona renderer.
- Materials are PBR compliant
- FBX and GLTF formats should render same, or close to preview images, asuming your 3D software supports PBR standard.
- OBJ format has only basic materials and may not render the same as in preview images.
UV COORDINATES
- The model is fully unwrapped with no overlapping
- UVs are neatly packed into 0-1 UV space
TEXTURES
- Format - PNG, JPG
- Total count - 5
- Map types - Base colour, Roughness, Normal (OpenGL, +Y), Metallic, AO
- Bit depth - 8 bits
- Resolution - PNG - 4096 x 4096 px, JPG - 2048 x 2048 px, (solid colour textures are resized to 16 x 16 px to save space).
- Textures are collected into one archive and are delivered in a separate file.
SCENE
- Model is scaled to correct real world dimensions.
- Objects, materials and textures have meaningful and matching names.
- Transformations has been reset and the model is placed at scene origin [0, 0, 0 XYZ].
- All texture paths are set to relative.
FILE FORMATS
- 3ds Max - Corona (native)
- 3ds Max - Physical (Physical material)
- FBX
- OBJ
- GLB
GENERAL
- Modeled in 3ds Max 2026 and saved to 3ds Max 2023 version for better compatibility.
- Preview images are rendered with Corona renderer. Turnaround video is rendered in Marmoset Toolbag.
- Images are straight from rendering app. No post processing was applied.
- Render scenes are not included.
***
Feel free to contact me if you have questions or need assistance with the models.
MAX (Autodesk 3ds Max, filesize: 1.89 MB), OBJ (OBJ, filesize: 279 KB), FBX (Autodesk FBX, filesize: 434 KB), MAX (Autodesk 3ds Max, filesize: 1.89 MB), GLTF (glTF, filesize: 4.51 MB), PNG (PNG, filesize: 138 MB), JPG (JPG, filesize: 69 MB)
