On Line Transfer Machine 3D model
On Line Transfer Machine 3D model
On Line Transfer Machine 3D model
On Line Transfer Machine 3D model
On Line Transfer Machine 3D model

Publication date: 2023-03-10

On Line Transfer Machine 3D model

$59

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $59 Add to Wishlist
  • Description
  • Formats
Description

On Line Transfer Machine

Introduction

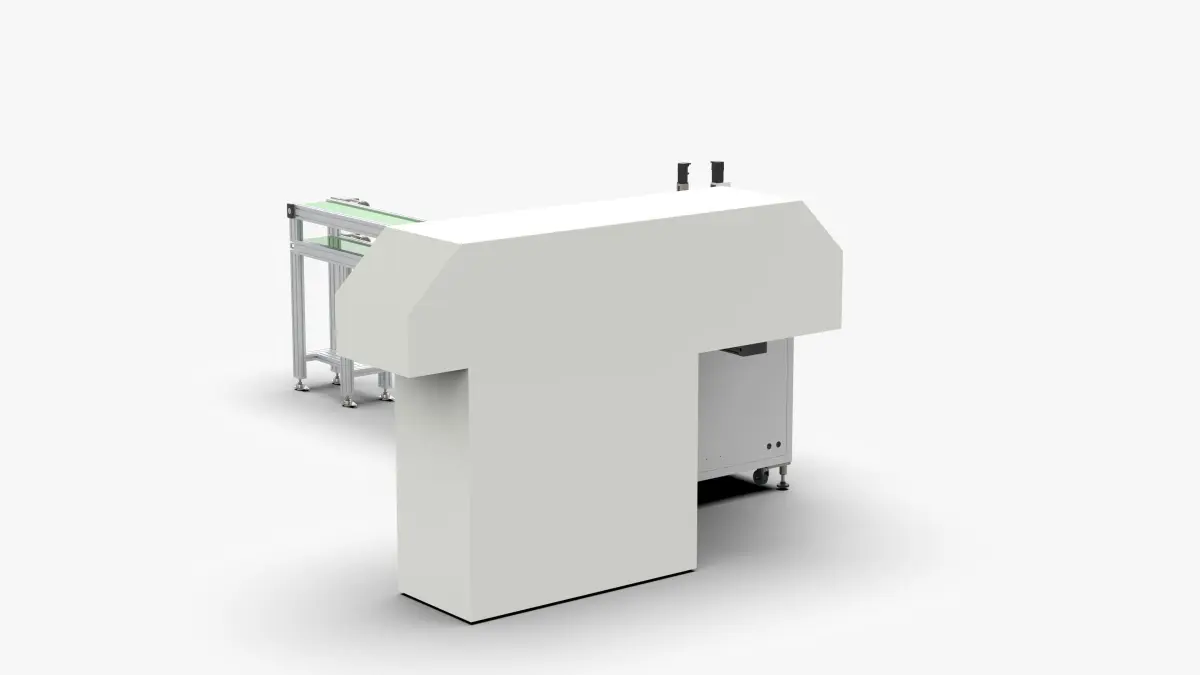

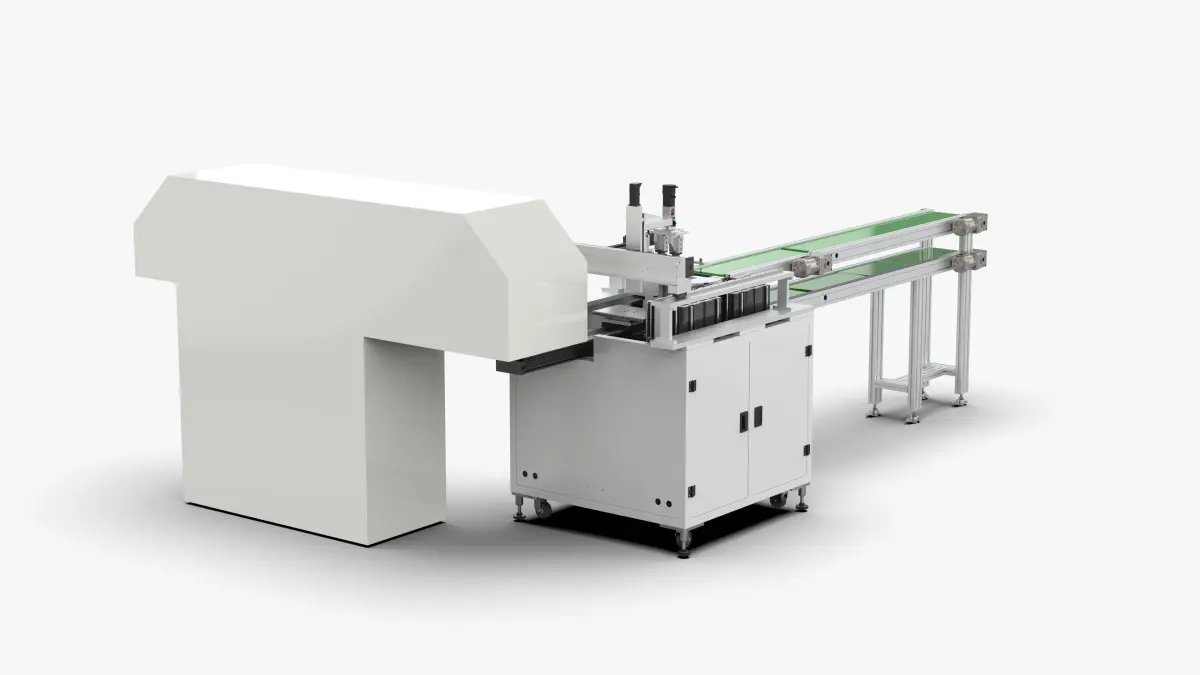

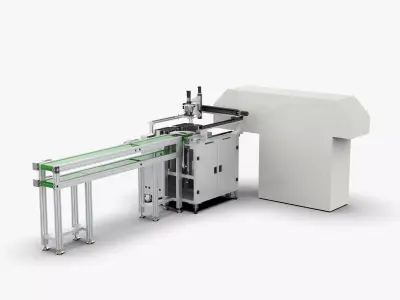

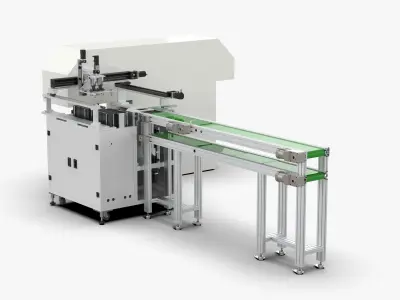

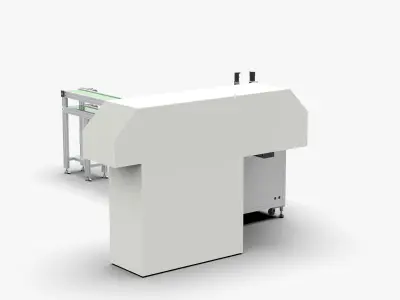

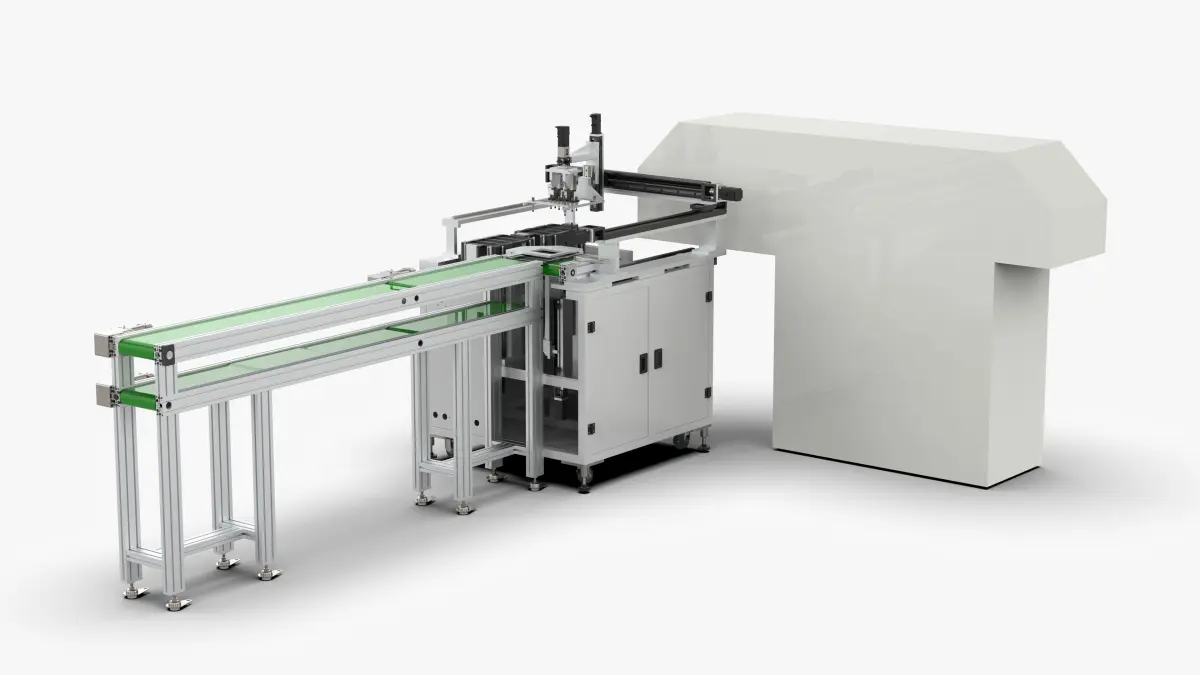

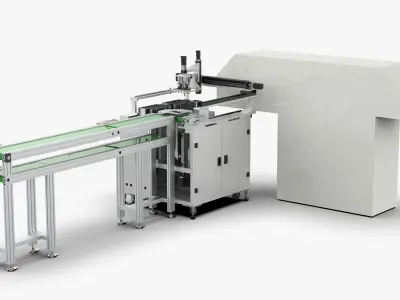

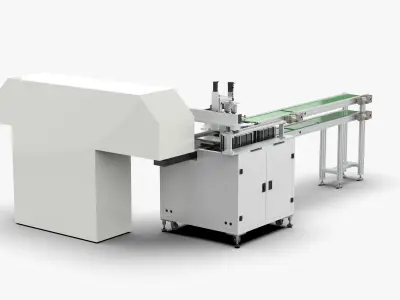

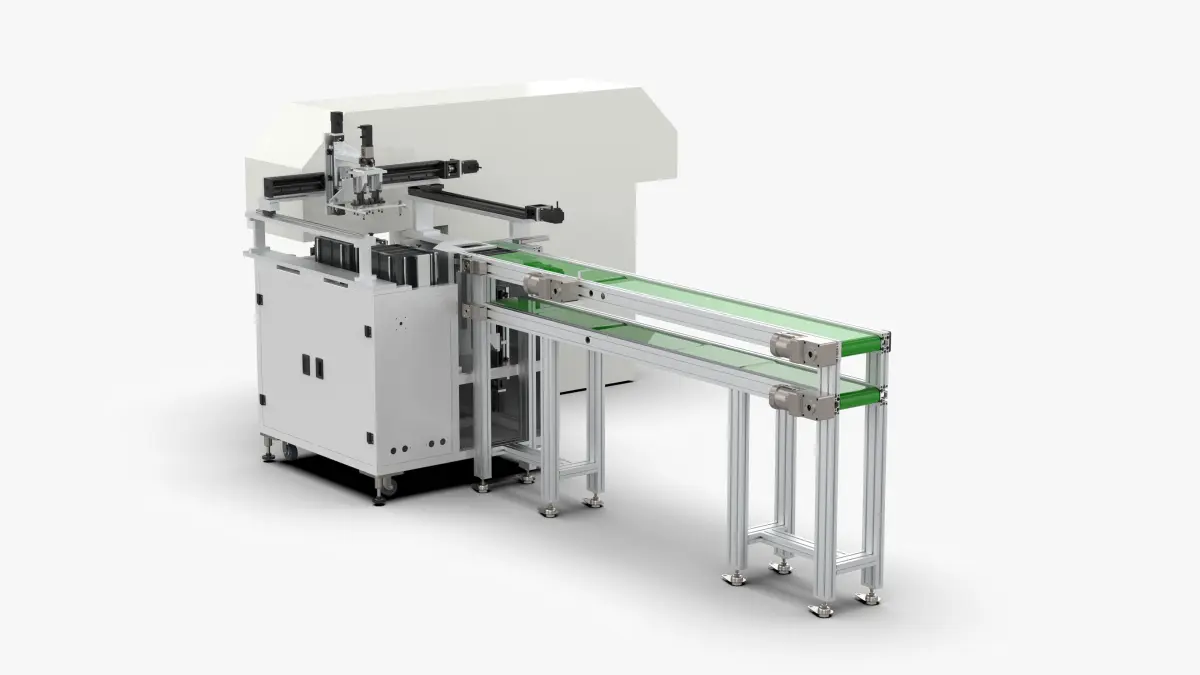

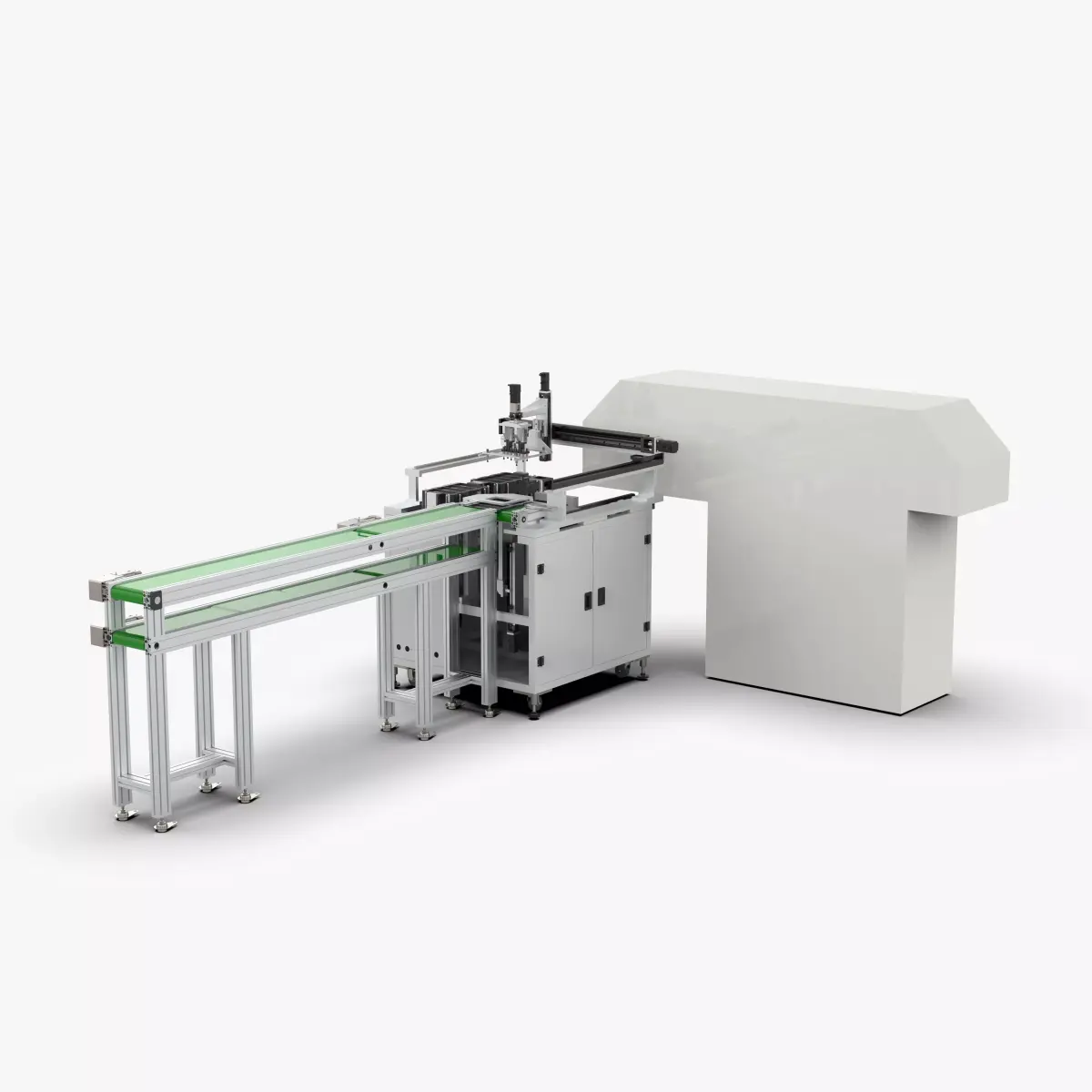

This equipment is an online transfer machine. The original Tray is fed by the upper equipment through the assembly line and enters the transfer machine for positioning. The new Tray is fed by double silos. The independent silo can be used to load the Tray without stopping. It is carried by the screw guide rail and the servo motor. The XYZU axis and the suction nozzle complete the product turntable action.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,454,013
  • Vertice: 4,362,039

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 1,454,013
  • Vertices: 4,362,039
  • Plugins used

Tags

Line Transfer Machine Solidwork Design Assembly Modeling Automatic Automation Machinery Part Mechanism Production Robot Manufacture Drawing Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()51.6 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • STEP ()22.1 MB
  • Stereolithography ()69.3 MB
  • IGES ()90 MB
  • OBJ ()104 MB
