Outboard Engine GearBox Gear Case 3D print model

$12.95

License: Royalty Free

author:

AG-Design

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «AG-Design». CGhub does not claim copyright ownership over the content used.

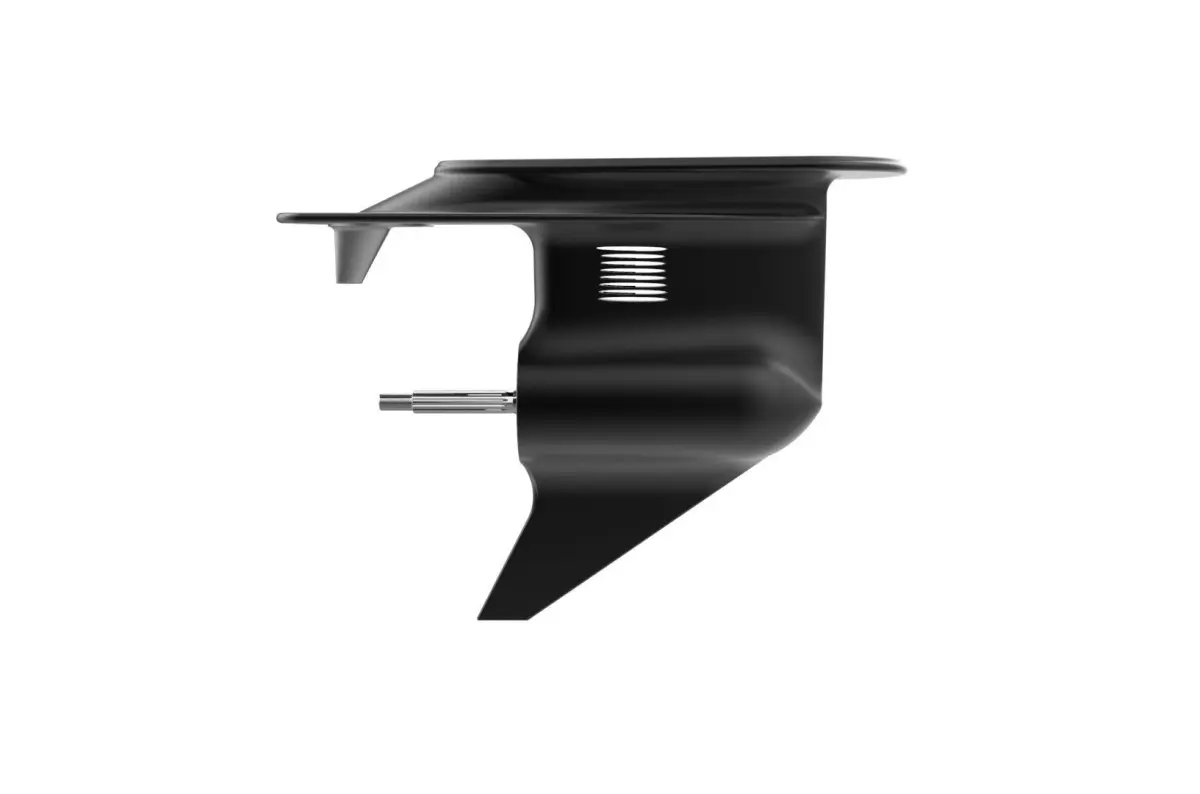

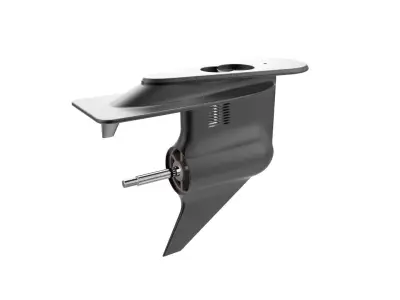

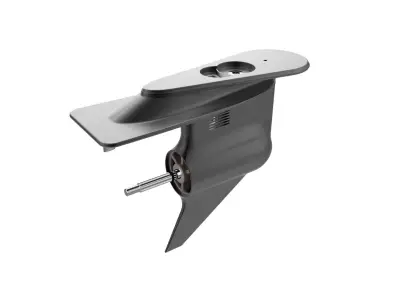

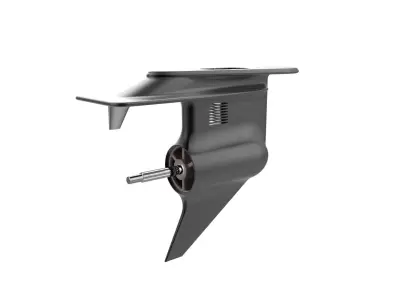

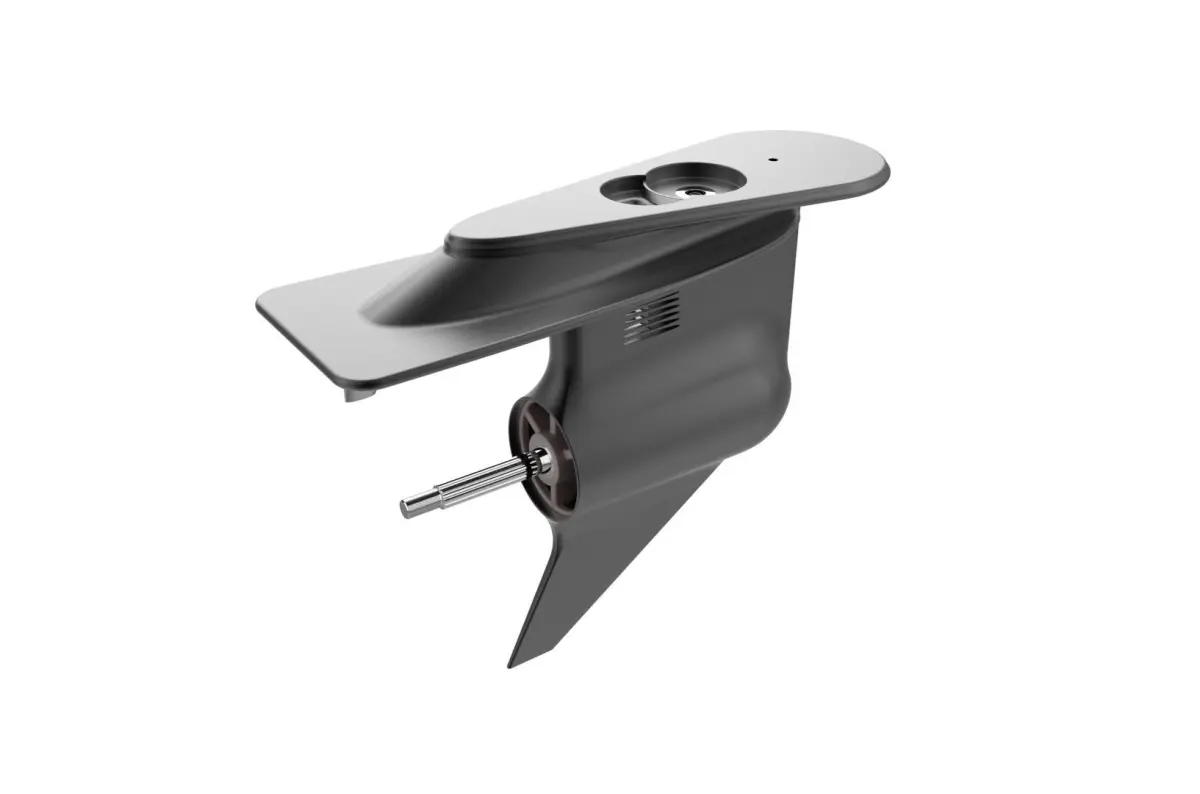

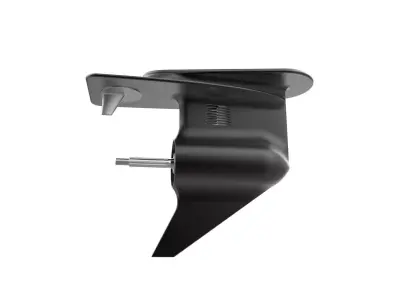

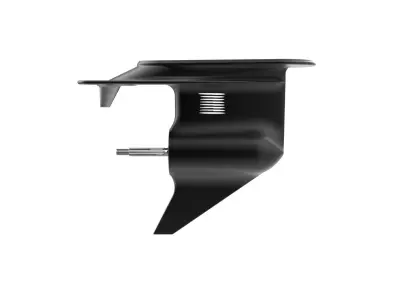

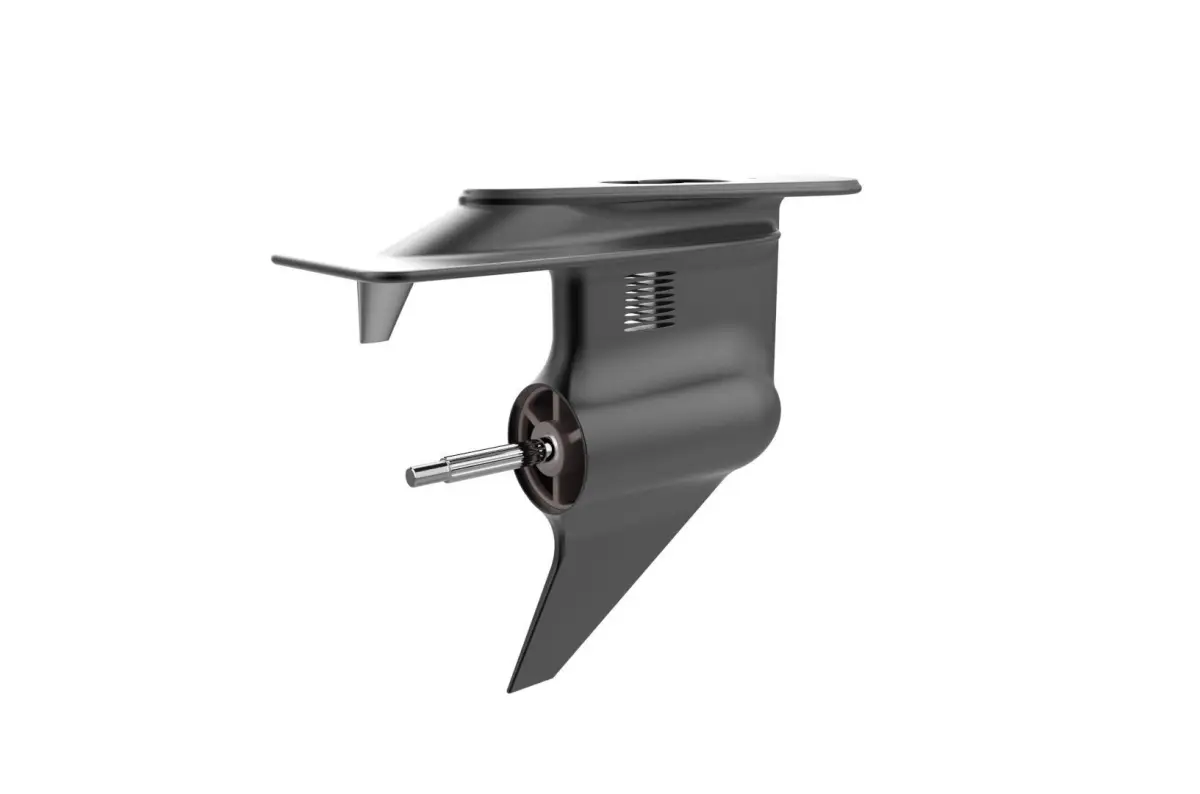

This is a model of an outboard engine gear case. Below, i'll explain how it works for someone that doesn't know.The power from the crankshaft of the engine is driven to the gear on the top pinion through the driveshaft, which is fited with a nut below the pinion. The pinion then delivers the power (rotational) to the 2 gears next to it. The gears are rotating with opposite rotation. (the pinion and gears are rotating all the time the engine is powerd on...) Then with a lever (which usually is placed on the left side of the outboard or to your remote control) the clutch which is between the gears, is moved to the desired direction. Then the clutch is fited with the gear (because of its shape) and as the clutch is mounted on the propeller shaft, it rotates the propeller, which eventually moves the boat. If we want to put in the other gear (reverse or forward) we move the clutch to the opposite gear. When the clutch is in the middle position, your engine is in neutral. All gears as long as the pinion and the clutch as placed inside the lower Unit of the engine and are sank into oil (to reduce friction and wear).Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached. Can be used for 3D printing.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Motor Boat Propeller Engine Gears Shaft Lower Drive Pinion Housing Rotate Yamaha Outboard Mercury Driveshaft Gearcase Crankcase Gearbox Outboard engine Outboard motor Hobby Diy Hobby diy Automotive Drive shaft Motor boat Car Parts
